S221E-ZPRF (2000)
Toyota Sparky
Production
Sep 2000
-
Jun 2002
Engine
K3VE
Transmission
4AT ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0009- )

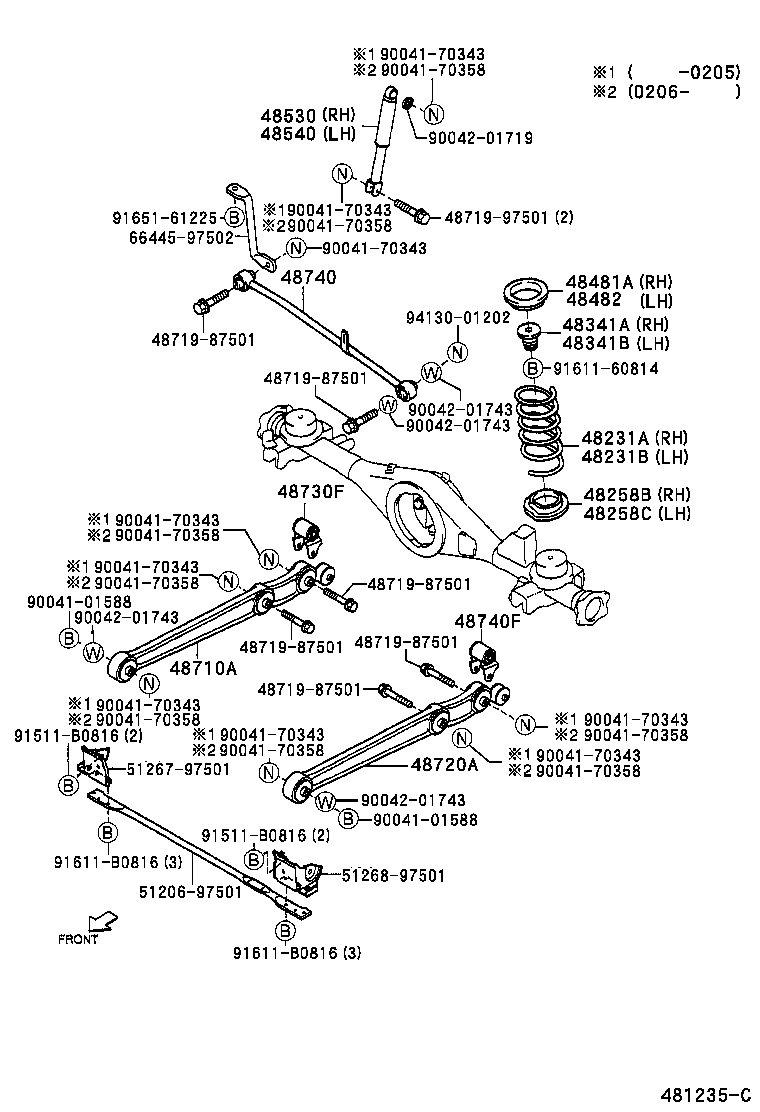

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48231A - SPRING, COIL, REAR RH | ||||
| 48231-97519 |
S221 |
1 | ||
| 48231-97519 |
S221..X ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) |
1 | ||
| 48231-97514 |
S221..X |
1 | ||
| 48231B - SPRING, COIL, REAR LH | ||||
| 48231-97514 |
S221..X |
1 | ||
| 48231-97519 |
S221..X ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) |
1 | ||
| 48231-97519 |
S221 |
1 | ||
| 48258B - INSULATOR, REAR COIL SPRING, LOWER RH | ||||
| 48482-97501 |
S221,231 |
1 | ||
| 48258C - INSULATOR, REAR COIL SPRING, LOWER LH | ||||
| 48482-97501 |
S221,231 |
1 | ||
| 48341A - BUMPER, REAR SPRING, NO.1 RH | ||||
| 48341-97504 |
S221,231 |
1 | ||
| 48341B - BUMPER, REAR SPRING, NO.1 LH | ||||
| 48341-97504 |
S221,231 |
1 | ||
| 48481A - SEAT, REAR COIL SPRING, UPPER RH | ||||
| 48481-97501 |
S221,231 |
1 | ||
| 48482 - SEAT, REAR SPRING, UPPER LH | ||||
| 48481-97501 |
S221,231 |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48530-97510 |
S221,231 |
1 | ||
| 48530-97509 |
S221,231 |
1 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48530-97509 |
S221,231 |
1 | ||
| 48530-97510 |
S221,231 |
1 | ||
| 48710A - ARM ASSY, REAR SUSPENSION, NO.1 RH | ||||
| 48710-97504 |
S221,231 |
1 | ||
| 48720A - ARM ASSY, REAR SUSPENSION, NO.1 LH | ||||
| 48720-97504 |
S221,231 |
1 | ||
| 48730F - ARM ASSY, REAR SUSPENSION, NO.2 RH | ||||
| 48730-97501 |
S221,231 |
1 | ||
| 48740 - ROD ASSY, REAR LATERAL CONTROL | ||||
| 48740-97505 |
S221,231 |
1 | ||
| 48740-97504 |
S221,231 |
1 | ||
| 48740F - ARM ASSY, REAR SUSPENSION, NO.2 LH | ||||
| 48730-97501 |
S221,231 |
1 | ||
| Common parts | ||||
| 48719-87501 | ||||
| 48719-97501 | ||||
| 51206-97501 | ||||
| 51267-97501 | ||||
| 51268-97501 | ||||
| 66445-97502 | ||||
| 90041-01588 | ||||
| 90041-70343 | ||||
| 90041-70358 | ||||
| 90042-01719 | ||||
| 90042-01743 | ||||
| 91511-B0816 | ||||
| 91611-60814 | ||||
| 91611-B0816 | ||||
| 91651-61225 | ||||
| 94130-01202 | ||||
