S221E-ZPRF (2000)
Toyota Sparky
Production
Sep 2000
-
Jun 2002
Engine
K3VE
Transmission
4AT ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0009- )

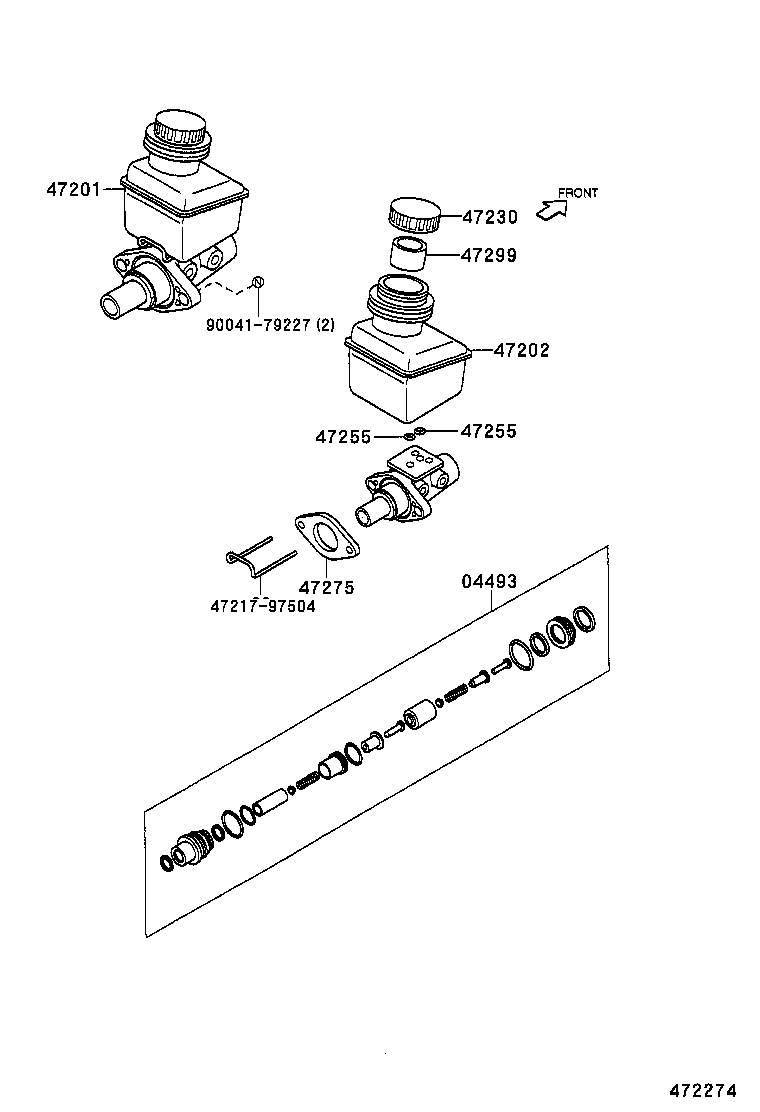

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04493 - CYLINDER KIT, BRAKE MASTER | ||||
| 04471-97502 |
S221,231 |
1 | ||
| 47201 - CYLINDER SUB-ASSY, BRAKE MASTER | ||||
| 47201-97504 |
S221,231 |
1 | ||
| 47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER | ||||
| 47203-97504 |
S221,231 |
1 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 47225-97502 |
S221,231 |
1 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 47255-87701 |
S221,231 |
2 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 47255-87701 |
S221,231 |
2 | ||
| 47275 - GASKET, BRAKE MASTER CYLINDER | ||||
| 47275-87703 |
S221,231 |
1 | ||
| 47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR | ||||
| 47299-97501 |
S221,231 |
1 | ||
| Common parts | ||||
| 47217-97504 | ||||
| 90041-79227 | ||||
