S221E-ZPDF (2000)
Toyota Sparky
Production
Sep 2000
-
Jun 2002
Engine
K3VE
Transmission
4AT ATM
Displacement
2500cc
Power
168 HP (125 kW)

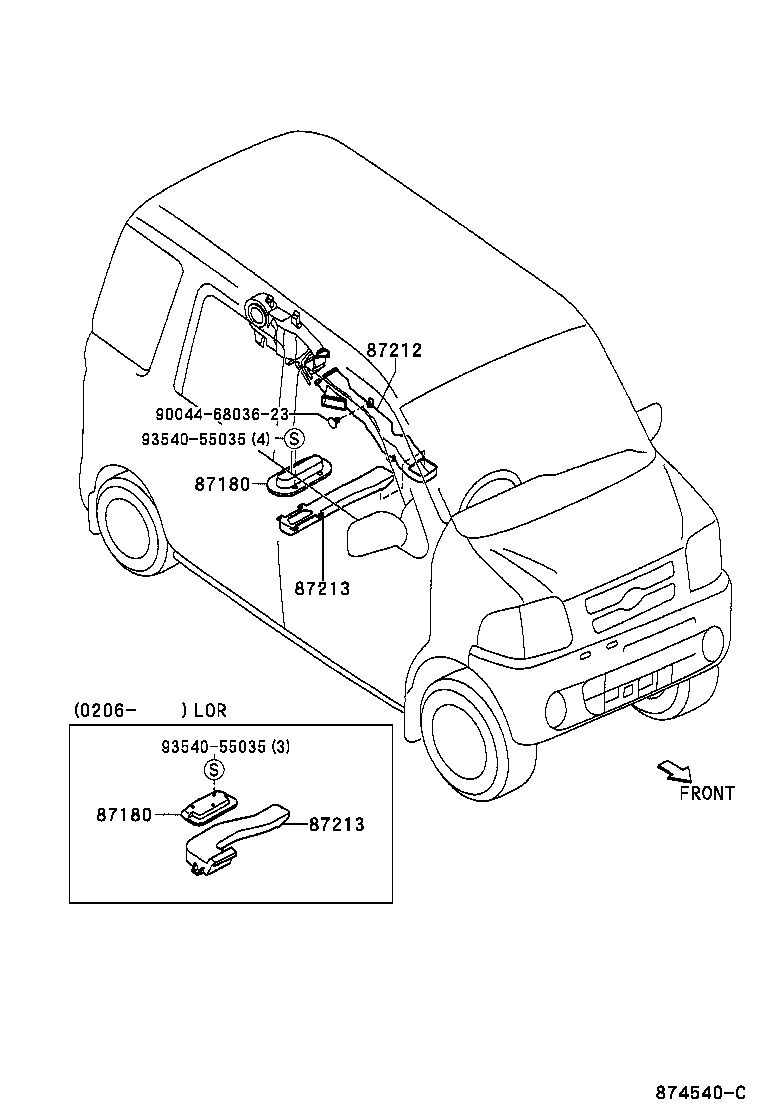

ILLUST NO. 2 OF 3(0009- )
Click highlighted areas on diagram
ﾘﾔﾋ-ﾀﾀﾞｸﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87180 - GRILLE ASSY, RR HEATER AIR OUTLET | ||||
| 87180-9750103 |
S221,231..HIR GRAY |
1 | ||
| 87180 - GRILLE ASSY, RR HEATER AIR OUTLET | ||||
| 87180-9750103 |
S221,231..HIR GRAY |
1 | ||
| 87212 - DUCT, AIR, REAR NO.1 | ||||
| 87212-97501 |
S221,231 |
1 | ||
| 87213 - DUCT, AIR, REAR NO.2 | ||||
| 87213-97501 |
S221,231..HIR |
1 | ||
| 87213 - DUCT, AIR, REAR NO.2 | ||||
| 87213-97501 |
S221,231..HIR |
1 | ||
| Common parts | ||||
| 90044-6803623 | ||||
| 93540-55035 | ||||

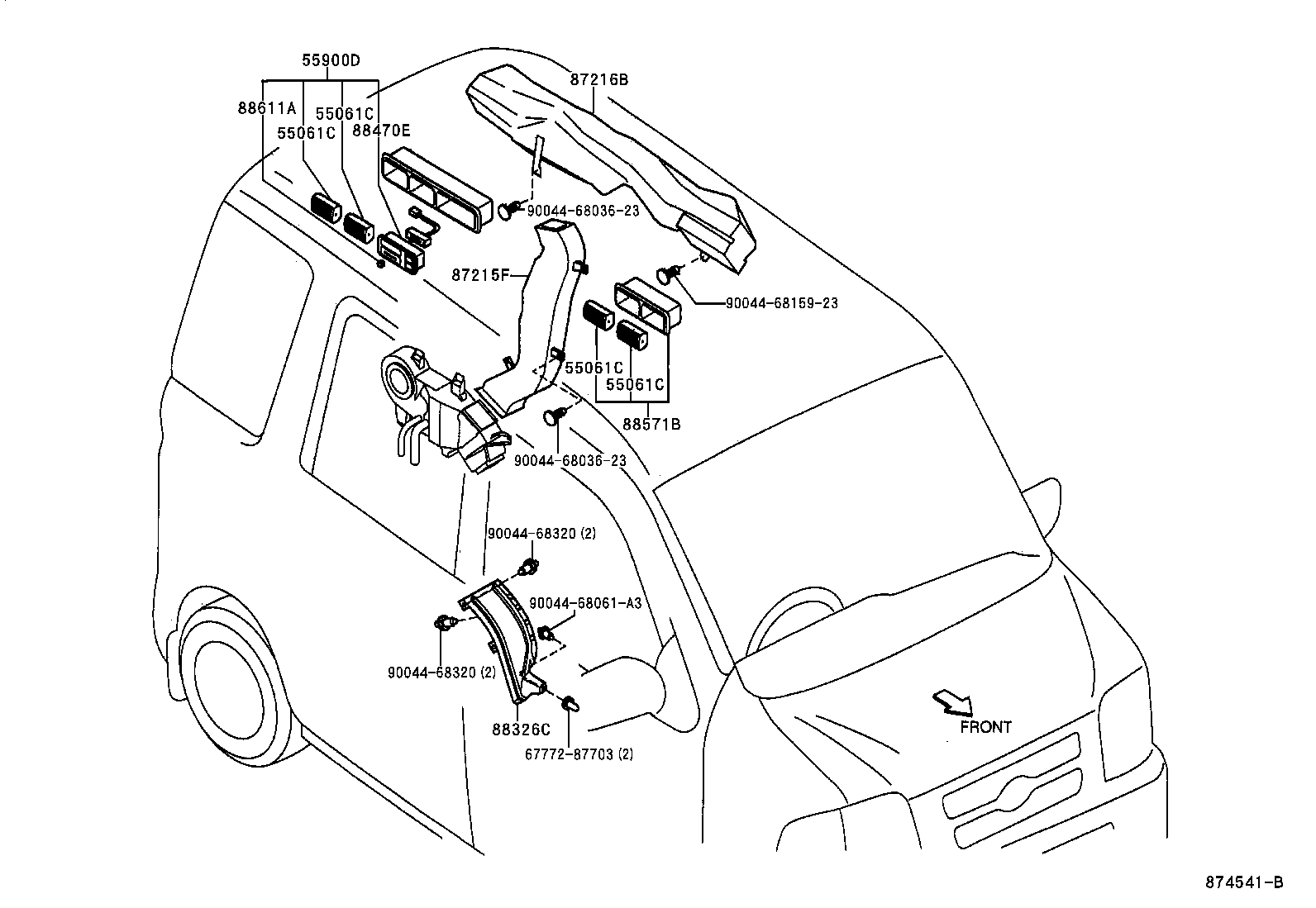

ILLUST NO. 3 OF 3(0009- )HIR
Click highlighted areas on diagram
ﾘﾔｸ-ﾗﾀﾞｸﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55061C - REGISTER SUB-ASSY, INSTRUMENT PANEL | ||||
| 55061-9720103 |
S221,231..HIR GRAY |
4 | ||
| 55061C - REGISTER SUB-ASSY, INSTRUMENT PANEL | ||||
| 55061-9720103 |
S221,231..HIR GRAY |
4 | ||
| 55061C - REGISTER SUB-ASSY, INSTRUMENT PANEL | ||||
| 55061-9720103 |
S221,231..HIR GRAY |
4 | ||
| 55061C - REGISTER SUB-ASSY, INSTRUMENT PANEL | ||||
| 55061-9720103 |
S221,231..HIR GRAY |
4 | ||
| 55900D - CONTROL ASSY, AIR CONDITIONER, NO.2 | ||||
| 55900-9750203 |
S221,231..G..HIR ｶﾝﾚｲﾁ ｼﾖｳ,GRAY |
1 | ||
| 55900-9750103 |
S221,231..G..HIR GRAY |
1 | ||
| 87215F - DUCT, AIR, REAR NO.3 | ||||
| 87215-97501 |
S221,231 |
1 | ||
| 87216B - DUCT, AIR, REAR NO.4 | ||||
| 87216-97501 |
S221,231..HIR |
1 | ||
| 88326C - PLATE, COVER | ||||
| 88326-97501 |
S221,231 |
1 | ||
| 88470E - SWITCH ASSY, BLOWER CONTROL | ||||
| 88470-97501 |
S221,231..HIR |
1 | ||
| 88571B - GRILLE, AIR OUTLET | ||||
| 88404-9750103 |
S221,231..HIR GRAY |
1 | ||
| 88611A - KNOB, COOLER CONTROL SWITCH | ||||
| 88611-87502 |
S221,231 |
1 | ||
| Common parts | ||||
| 67772-87703 | ||||
| 90044-6803623 | ||||
| 90044-68061A3 | ||||
| 90044-6815923 | ||||
| 90044-68320 | ||||

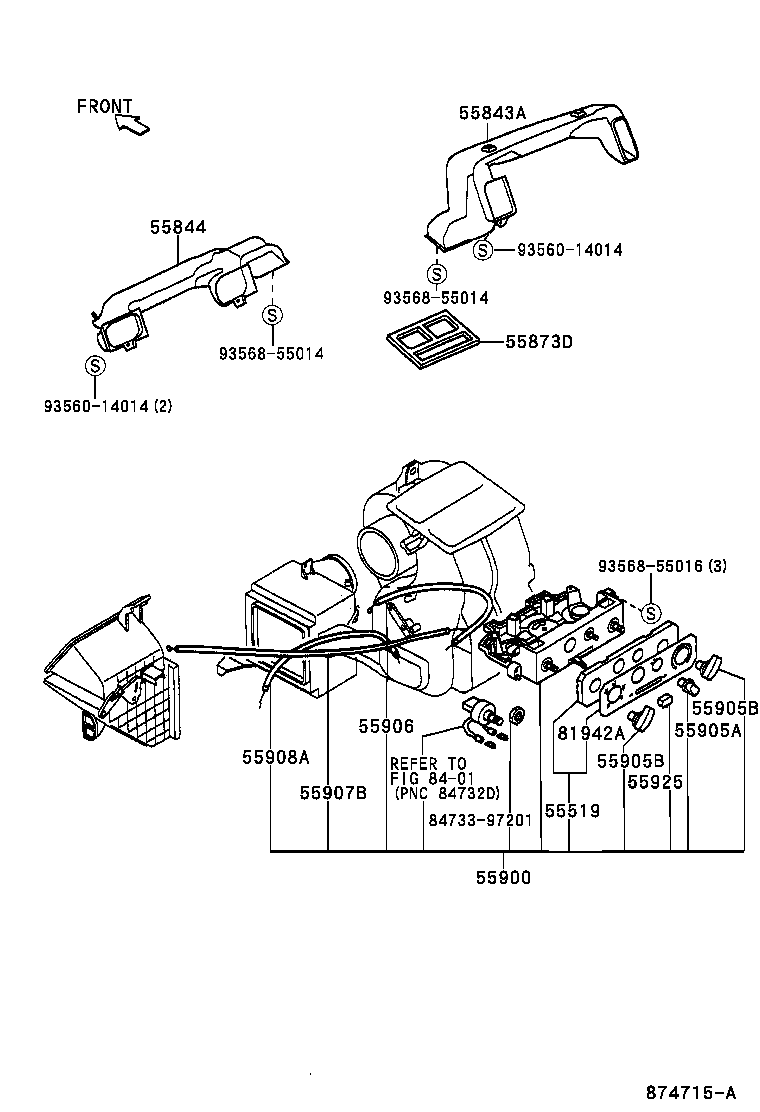

ILLUST NO. 1 OF 3(0009- )
Click highlighted areas on diagram
ﾌﾛﾝﾄﾀﾞｸﾄ & ﾋ-ﾀｺﾝﾄﾛ-ﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55519 - PLATE, HEATER CONTROL NAME | ||||
| 55519-97501 |
S221,231 |
1 | ||
| 55843A - DUCT, HEATER TO REGISTER, NO.1 | ||||
| 55843-97504 |
S221,231 |
1 | ||
| 55844 - DUCT, HEATER TO REGISTER, NO.2 | ||||
| 55844-97503 |
S221,231 |
1 | ||
| 55873D - SEAL, AIR DUCT, CENTER | ||||
| 55873-97501 |
S221,231 |
1 | ||
| 55900 - CONTROL ASSY, AIR CONDITIONER | ||||
| 55910-97505 |
S221,231 |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-97503 |
S221,231 |
1 | ||
| 55905B - KNOB, HEATER CONTROL, NO.2 | ||||
| 55905-97502 |
S221,231 |
2 | ||
| 55905B - KNOB, HEATER CONTROL, NO.2 | ||||
| 55905-97502 |
S221,231 |
2 | ||
| 55906 - CABLE SUB-ASSY, HEATER CONTROL | ||||
| 55906-97504 |
S221,231 |
1 | ||
| 55907B - CABLE SUB-ASSY, TEMPERATURE DAMPER CONTROL | ||||
| 55907-97504 |
S221,231 |
1 | ||
| 55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL | ||||
| 55908-97504 |
S221,231 |
1 | ||
| 55925 - KNOB, HEATER CONTROL LEVER | ||||
| 55925-97501 |
S221,231 |
1 | ||
| 81942A - SHEET, HEATER CONTROL NAME, NO.1 | ||||
| 81942-97501 |
S221,231 |
1 | ||
| Common parts | ||||
| 84733-97201 | ||||
| 93560-14014 | ||||
| 93568-55014 | ||||
| 93568-55016 | ||||
| Linked diagrams | ||||
| 8401 | ||||
