S221E-ZPDF (2000)

Toyota Sparky

Production Sep 2000 - Jun 2002
Engine K3VE
Transmission 4AT ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0009- )

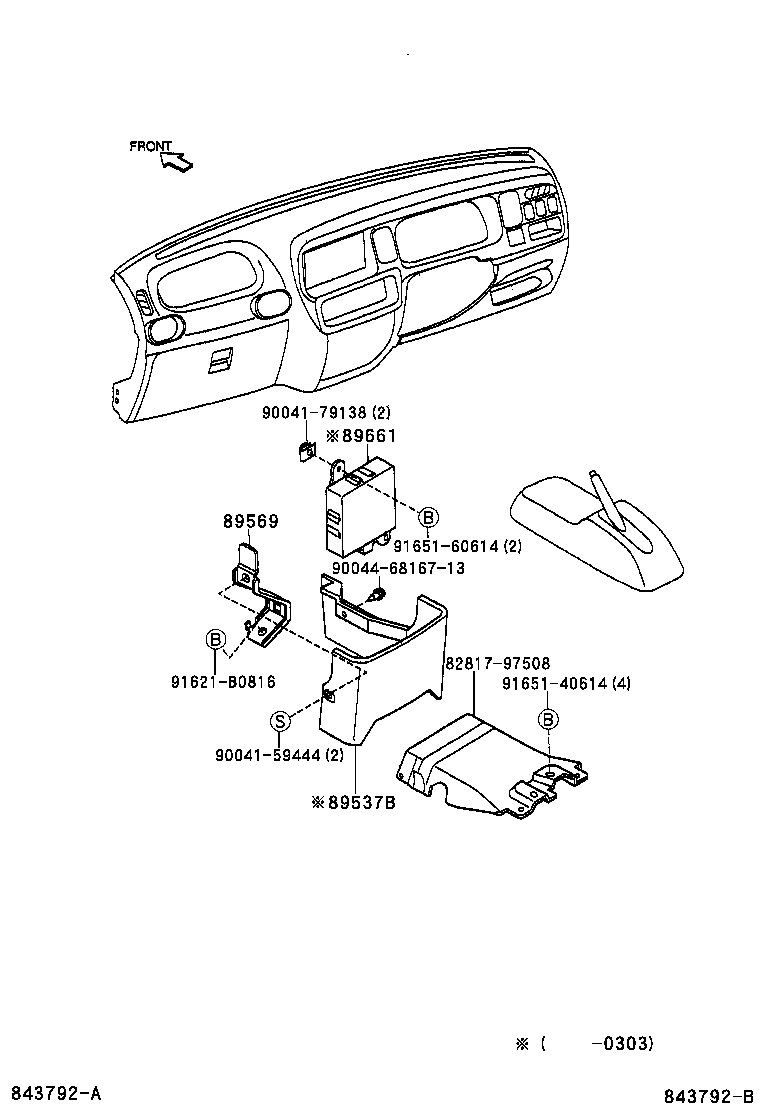

Click highlighted areas on diagram

diagram 8281797508 89537B 89569 89661 9004159444 9004179138 900446816713 91621B0816 9165140614 9165160614
Part # Description Qty Price
89537B - COVER, COMPUTER
89537-97504

S221,231

 1
89569 - BRACKET, FUEL INJECTION COMPUTER
89569-97501

S221,231

 1
89661 - COMPUTER, ENGINE CONTROL
89560-97528

S221,231..4AT

DENSO

 1
89560-97578

S221,231..4AT

DENSO,ｱﾘ(ｷ- ﾌﾘ- ｼｽﾃﾑ)

 1
Common parts
82817-97508
90041-59444
90041-79138
90044-6816713
91621-B0816
91651-40614
91651-60614
