S221E-ZPDF (2000)
Toyota Sparky

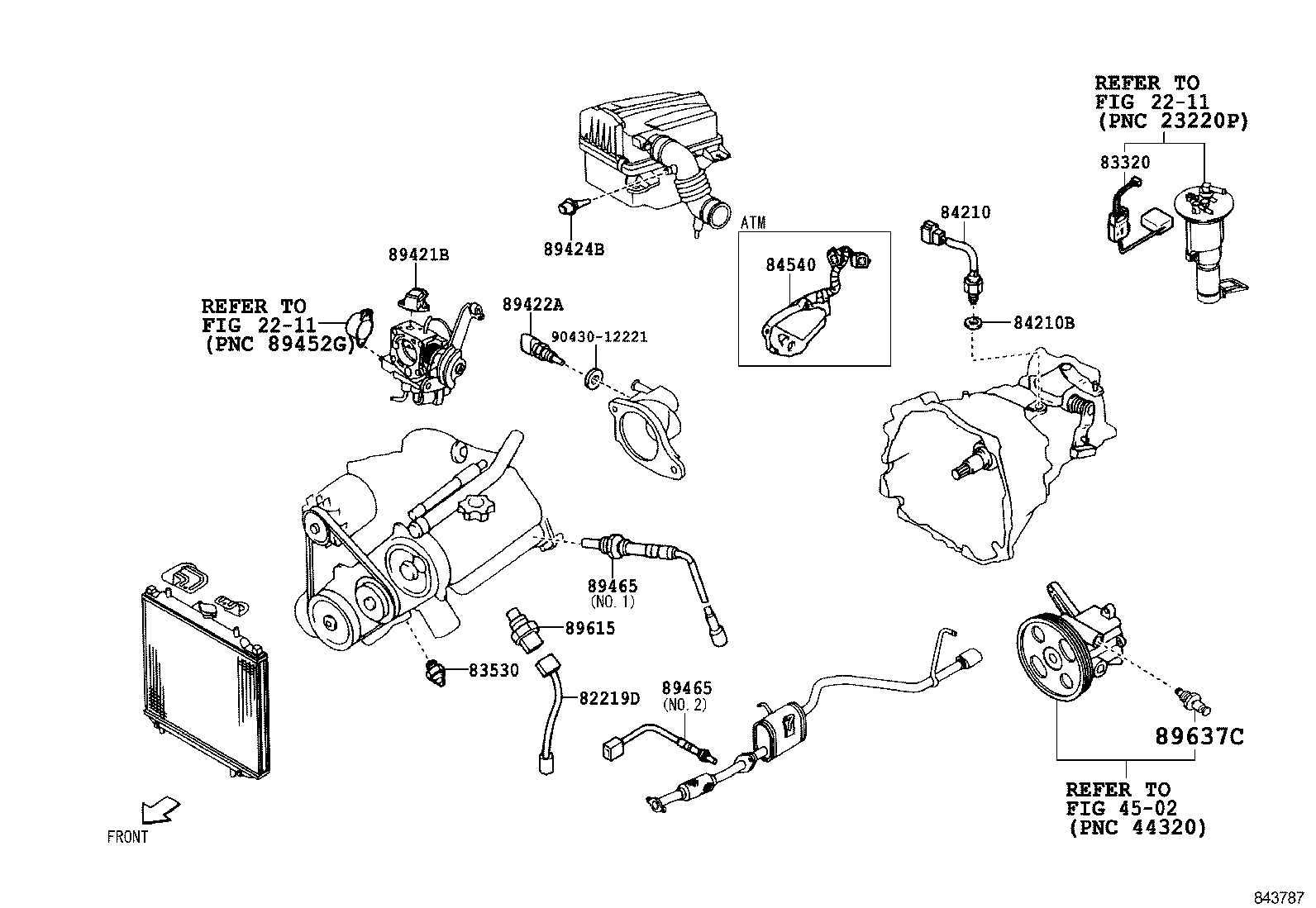

ILLUST NO. 1 OF 5(0009- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82219D - WIRE, SENSOR | ||||
| 82219-97401 |
S221,231 |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 77501-97501 |
S221,231 |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-87205 |
S221,231 |
1 | ||
| 83530-97401 |
S221,231 |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-97501 |
S221,231..4AT |
1 | ||
| 84540-97502 |
S221,231..ATM |
1 | ||
| 89421B - SENSOR, VACUUM | ||||
| 89420-97204 |
S221,231 |
1 | ||
| 89422A - SENSOR, WATER TEMPERATURE | ||||
| 89422-16010 |
S221,231 |
1 | ||
| 89424B - SWITCH, INLET AIR TEMPERATURE | ||||
| 89424-87703 |
S221,231 |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-97407 |
S221,231 NO.1 |
1 | ||
| 89465-97502 |
S221,231 NO.2 |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-97407 |
S221,231 NO.1 |
1 | ||
| 89465-97502 |
S221,231 NO.2 |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-97401 |
S221,231 |
1 | ||
| 89637C - SENSOR, OIL PRESSURE | ||||
| 89630-97201 |
S221,231 |
1 | ||
| Common parts | ||||
| 90430-12221 | ||||
| Linked diagrams | ||||
| 2211 | ||||
| 4502 | ||||

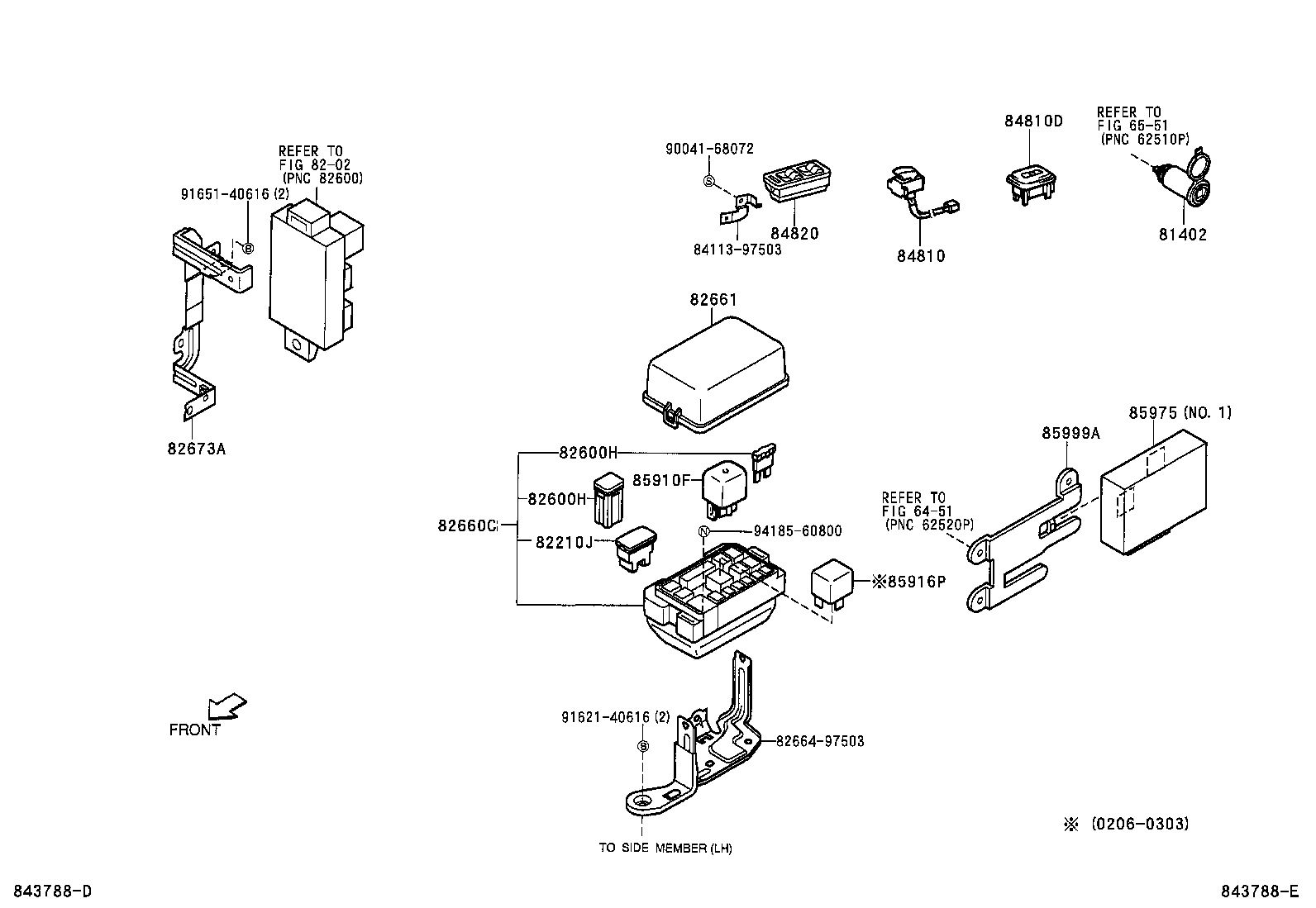

ILLUST NO. 2 OF 5(0009- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81402 - SOCKET SUB-ASSY, INSPECTION LAMP, NO.1 | ||||
| 81402-97201 |
S221,231 |
1 | ||
| 81402-9720107 |
S221,231 GREEN |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90049-82033 |
S221,231 60A,ｲｴﾛｰ |
1 | ||
| 82600H - FUSE, FUSE BLOCK | ||||
| 90049-40048 |
S221,231 40A |
1 | ||
| 90049-40047 |
S221,231 50A |
1 | ||
| 90049-40049 |
S221,231 30A |
2 | ||
| 90049-40060 |
S221,231 30A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90049-40056 |
S221,231 10A |
2 | ||
| 90049-40058 |
S221,231 20A |
1 | ||
| 90049-40057 |
S221,231 15A |
2 | ||
| 82600H - FUSE, FUSE BLOCK | ||||
| 90049-40048 |
S221,231 40A |
1 | ||
| 90049-40047 |
S221,231 50A |
1 | ||
| 90049-40049 |
S221,231 30A |
2 | ||
| 90049-40060 |
S221,231 30A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90049-40056 |
S221,231 10A |
2 | ||
| 90049-40058 |
S221,231 20A |
1 | ||
| 90049-40057 |
S221,231 15A |
2 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82660-97554 |
S221,231 |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-97513 |
S221,231 |
1 | ||
| 82661-97510 |
S221,231 |
1 | ||
| 82673A - BRACKET, JUNCTION BLOCK | ||||
| 82673-97501 |
S221,231 |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-9750101 |
S221,231..HIR BLACK |
1 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84814-9750113 |
S221,231 GRAY |
2 | ||
| 84810-9720623 |
S221,231..HIR GRAY |
2 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-97507 |
S221,231 |
1 | ||
| 84820-97504 |
S221,231 |
1 | ||
| 85910F - RELAY, COMPUTER (FOR EFI) | ||||
| 90049-87014 |
S221,231 DENSO S=22.5,T=15,H=36.5 |
4 | ||
| 85975 - RELAY, SLIDE DOOR CLOSER | ||||
| 85975-97502 |
S221,231..G NO.2 |
1 | ||
| 85975-97502 |
S221,231..(4AT,5MT)..HIR NO.2 |
1 | ||
| 85975-97501 |
S221,231..G NO.1 |
1 | ||
| 85975-97501 |
S221,231 NO.1 |
1 | ||
| 85999A - BRACKET, RELAY, NO.2 | ||||
| 85999-97501 |
S221,231 |
1 | ||
| Common parts | ||||
| 82664-97503 | ||||
| 84113-97503 | ||||
| 90041-68072 | ||||
| 91621-40616 | ||||
| 91651-40616 | ||||
| 94185-60800 | ||||
| Linked diagrams | ||||
| 6451 | ||||
| 6551 | ||||
| 8202 | ||||

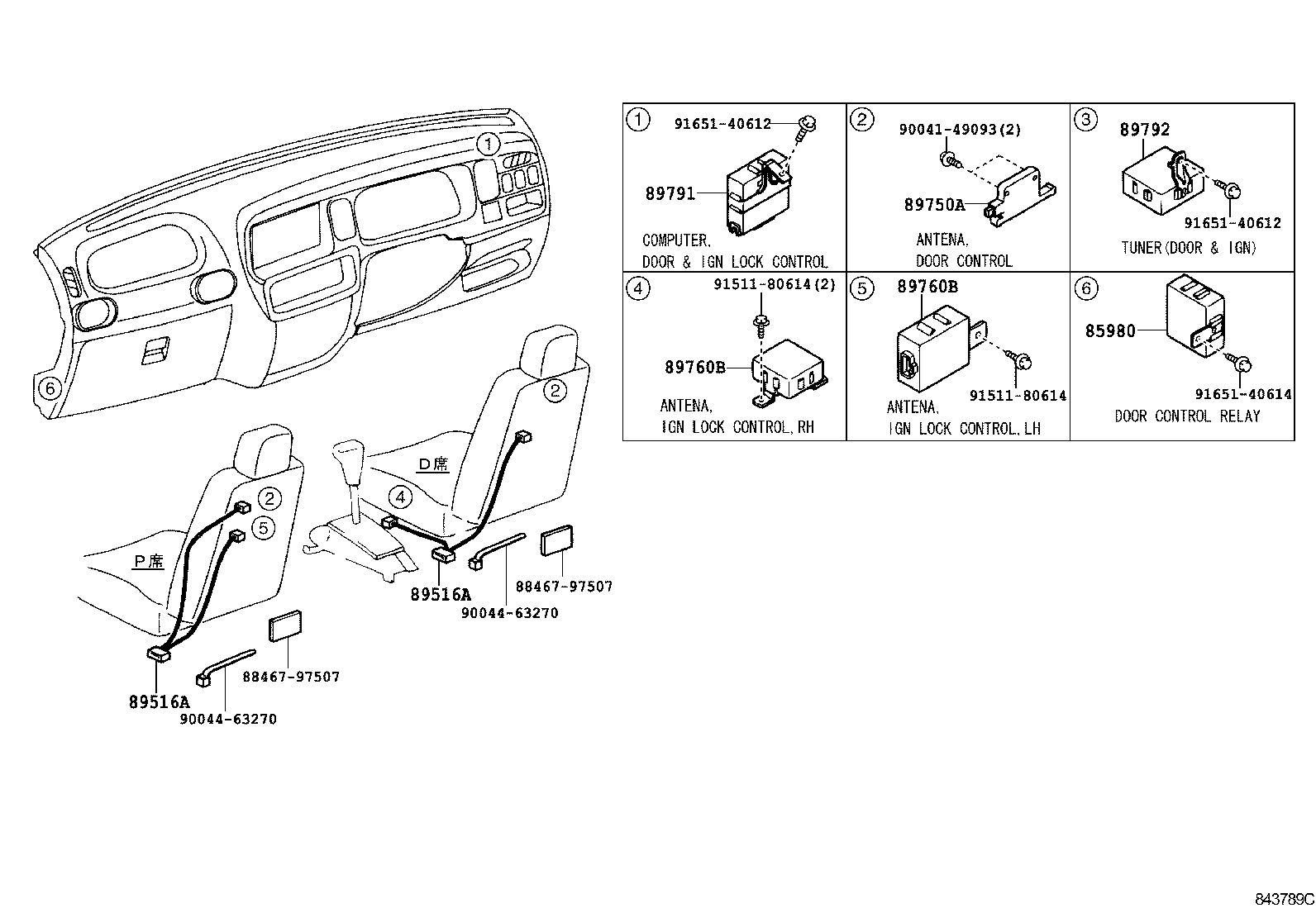

ILLUST NO. 4 OF 5(0009- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85980 - RELAY ASSY, DOOR CONTROL | ||||
| 85980-97502 |
S221,231 |
1 | ||
| 89516A - WIRE, ANTENNA | ||||
| 89516-97502 |
S221,231 左側 |
1 | ||
| 89516-97501 |
S221,231 右側 |
1 | ||
| 89516-97506 |
S221,231 左側 |
1 | ||
| 89516-97505 |
S221,231 右側 |
1 | ||
| 89516A - WIRE, ANTENNA | ||||
| 89516-97502 |
S221,231 左側 |
1 | ||
| 89516-97501 |
S221,231 右側 |
1 | ||
| 89516-97506 |
S221,231 左側 |
1 | ||
| 89516-97505 |
S221,231 右側 |
1 | ||
| 89750A - ANTENNA ASSY, DOOR LOCK CONTROL | ||||
| 89750-97202 |
S221,231 |
2 | ||
| 89760B - ANTENNA ASSY, IGNITION LOCK CONTROL | ||||
| 89760-97506 |
S221,231 左側 |
1 | ||
| 89760-97503 |
S221,231 |
2 | ||
| 89760-97505 |
S221,231 右側 |
1 | ||
| 89760-97502 |
S221,231 左側 |
1 | ||
| 89760-97501 |
S221,231 右側 |
1 | ||
| 89760B - ANTENNA ASSY, IGNITION LOCK CONTROL | ||||
| 89760-97506 |
S221,231 左側 |
1 | ||
| 89760-97503 |
S221,231 |
2 | ||
| 89760-97505 |
S221,231 右側 |
1 | ||
| 89760-97502 |
S221,231 左側 |
1 | ||
| 89760-97501 |
S221,231 右側 |
1 | ||
| 89791 - COMPUTER, DOOR & IGNITION LOCK CONTROL | ||||
| 89791-97506 |
S221,231 |
1 | ||
| 89792 - TUNER, DOOR & IGNITION LOCK CONTROL | ||||
| 89792-97501 |
S221,231 |
1 | ||
| Common parts | ||||
| 88467-97507 | ||||
| 90041-49093 | ||||
| 90044-63270 | ||||
| 91511-80614 | ||||
| 91651-40612 | ||||
| 91651-40614 | ||||

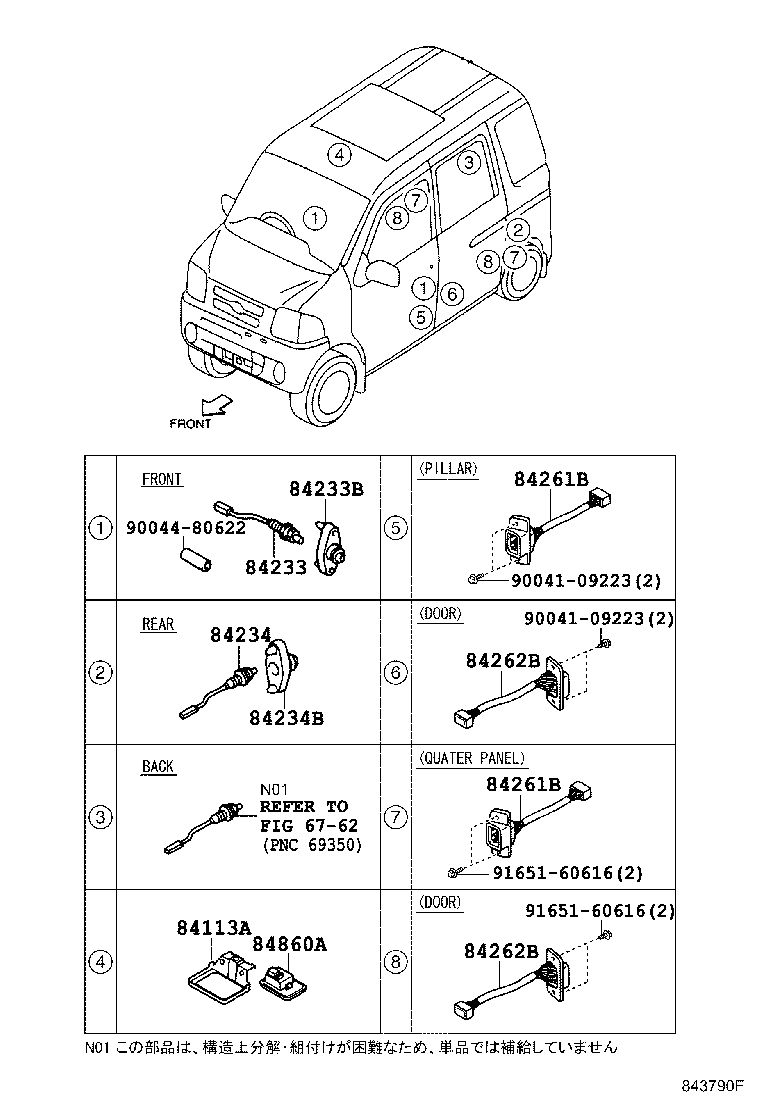

ILLUST NO. 5 OF 5(0009- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84113A - BRACKET, SWITCH, NO.1 | ||||
| 84113-97502 |
S221,231..HIR |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84230-97504 |
S221,231 |
2 | ||
| 84233B - CUSHION, COURTESY SWITCH (FOR FRONT DOOR) | ||||
| 84234-87201 |
S221,231 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84230-97501 |
S221,231 |
2 | ||
| 84234B - CUSHION, COURTESY SWITCH (FOR REAR DOOR) | ||||
| 84234-87201 |
S221,231 |
2 | ||
| 84261B - JUNCTION, SLIDE DOOR CONTROL,MALE | ||||
| 84261-97502 |
S221,231 ｸｵｰﾀ ﾊﾟﾈﾙ |
2 | ||
| 84261-97501 |
S221,231 ﾋﾟﾗｰ側 |
1 | ||
| 84261B - JUNCTION, SLIDE DOOR CONTROL,MALE | ||||
| 84261-97502 |
S221,231 ｸｵｰﾀ ﾊﾟﾈﾙ |
2 | ||
| 84261-97501 |
S221,231 ﾋﾟﾗｰ側 |
1 | ||
| 84262B - JUNCTION, SLIDE DOOR CONTROL, FEMALE | ||||
| 84262-97502 |
S221,231 ｸｵｰﾀ ﾊﾟﾈﾙ |
2 | ||
| 84262-97501 |
S221,231 ﾋﾟﾗｰ側 |
1 | ||
| 84262B - JUNCTION, SLIDE DOOR CONTROL, FEMALE | ||||
| 84262-97502 |
S221,231 ｸｵｰﾀ ﾊﾟﾈﾙ |
2 | ||
| 84262-97501 |
S221,231 ﾋﾟﾗｰ側 |
1 | ||
| 84860A - SWITCH ASSY, SLIDING ROOF | ||||
| 84860-9750203 |
S221,231..HIR GRAY |
1 | ||
| Common parts | ||||
| 90041-09223 | ||||
| 90044-80622 | ||||
| 91651-60616 | ||||
| Linked diagrams | ||||
| 6762 | ||||

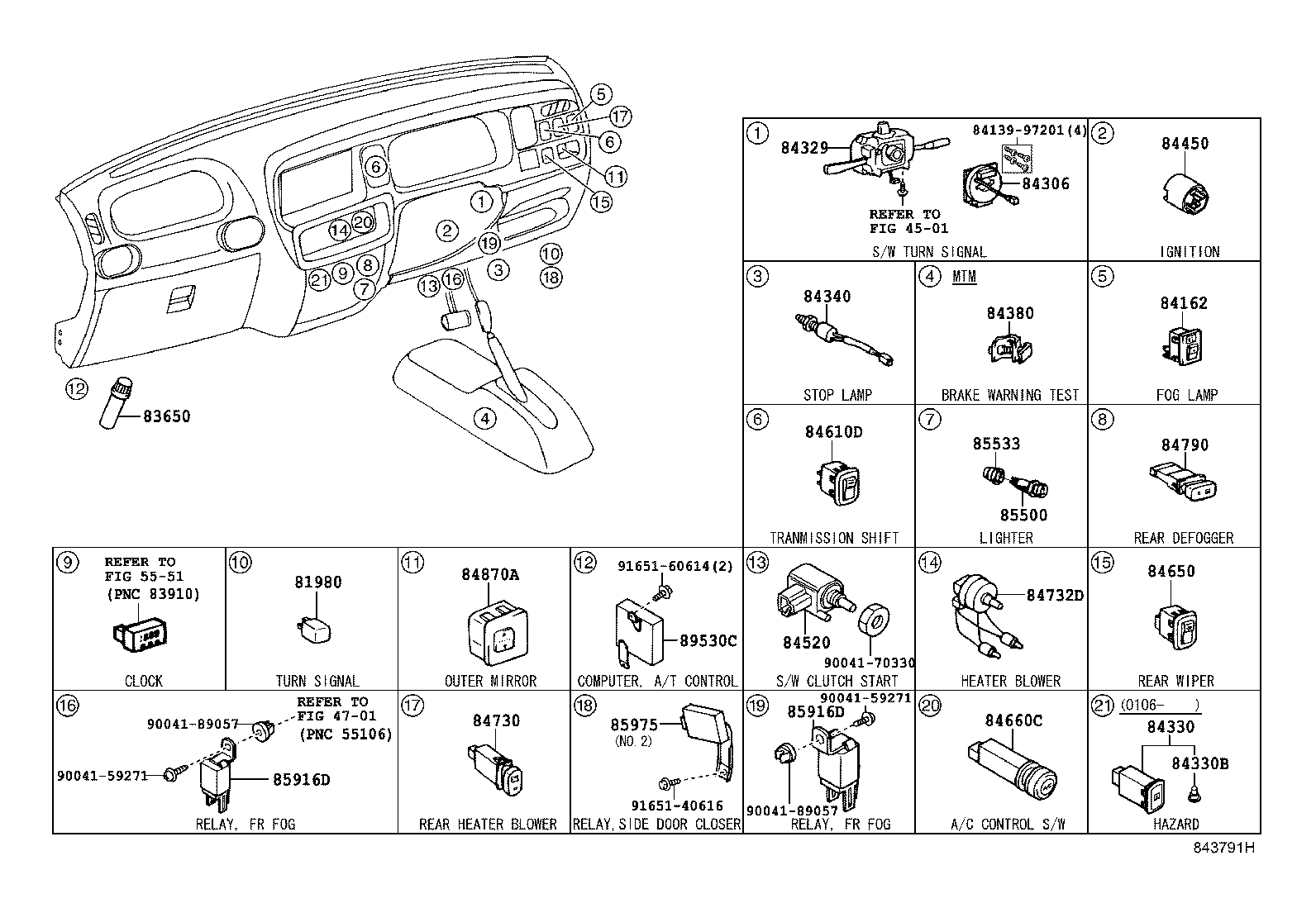

ILLUST NO. 3 OF 5(0009- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-97201 |
S221,231 |
1 | ||
| 83650 - FUSEE | ||||
| 90049-86005 |
S221,231 |
1 | ||
| 84162 - SWITCH, FRONT FOG LAMP | ||||
| 84160-97201 |
S221,231..G |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-97401 |
S221,231 |
1 | ||
| 84329 - SWITCH, TURN SIGNAL | ||||
| 84329-97201 |
S221,231 ｱﾘ(ﾊｻﾞｰﾄﾞｽｲｯﾁ) |
1 | ||
| 84329-97501 |
S221,231 ﾅｼ(ﾊｻﾞｰﾄﾞｽｲｯﾁ) |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-97501 |
S221,231 |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84999-B4020 |
S221,231 14V 0.91W |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-87401 |
S221,231 |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84458-87703 |
S221,231 |
1 | ||
| 84610D - SWITCH, TRANSMISSION SHIFT, MAIN | ||||
| 84610-97501 |
S221,231..4AT |
1 | ||
| 84610-97503 |
S221,231..ATM |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84650-97202 |
S221,231 |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-97202 |
S221,231 |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84730-97502 |
S221,231 |
1 | ||
| 84732D - SWITCH, HEATER BLOWER | ||||
| 84732-87403 |
S221,231 ｱﾘ(ｵ-ﾄｴｱｺﾝ) |
1 | ||
| 84732-97403 |
S221,231 |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-8750401 |
S221,231 BLACK |
1 | ||
| 84790-97202 |
S221,231 |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-87402 |
S221,231 |
1 | ||
| 84870-87402 |
S221,231 |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-87505 |
S221,231 |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-87601 |
S221,231 |
1 | ||
| 85533-87701 |
S221,231 |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 88630-97502 |
S221,231 |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 88630-97502 |
S221,231 |
1 | ||
| 85975 - RELAY, SLIDE DOOR CLOSER | ||||
| 85975-97502 |
S221,231..G NO.2 |
1 | ||
| 85975-97502 |
S221,231..(4AT,5MT)..HIR NO.2 |
1 | ||
| 85975-97501 |
S221,231..G NO.1 |
1 | ||
| 85975-97501 |
S221,231 NO.1 |
1 | ||
| 89530C - COMPUTER ASSY, TRANSMISSION CONTROL | ||||
| 89530-97505 |
S221..4AT |
1 | ||
| 89530-97510 |
S221..4AT |
1 | ||
| 89530-97507 |
S221..4AT |
1 | ||
| Common parts | ||||
| 84139-97201 | ||||
| 90041-59271 | ||||
| 90041-70330 | ||||
| 90041-89057 | ||||
| 91651-40616 | ||||
| 91651-60614 | ||||
| Linked diagrams | ||||
| 4501 | ||||
| 4701 | ||||
| 5551 | ||||
