S221E-ZPDF (2000)
Toyota Sparky
Production
Sep 2000
-
Jun 2002
Engine
K3VE
Transmission
4AT ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0009-0206)4AT

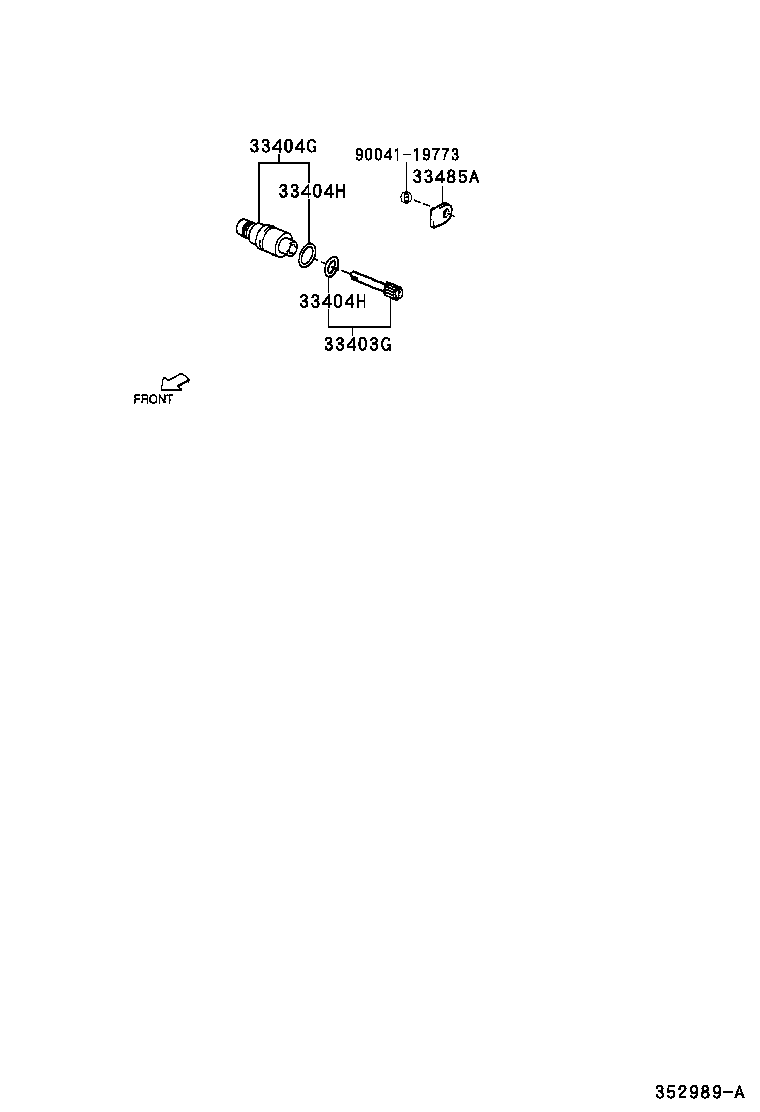

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33403G - GEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM) | ||||
| 33403-97502 |
S221..4AT |
1 | ||
| 33404G - SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (ATM) | ||||
| 33484-87211 |
S221..4AT |
1 | ||
| 33404H - RING, O (FOR ATM SPEEDOMETER SHAFT SLEEVE) | ||||
| 96721-24020 |
S221,231..ATM |
1 | ||
| 33404H - RING, O (FOR ATM SPEEDOMETER SHAFT SLEEVE) | ||||
| 96721-24020 |
S221,231..ATM |
1 | ||
| 33485A - PLATE, SPEEDOMETER SLEEVE LOCK (ATM) | ||||
| 33485-87201 |
S221,231..4AT |
2 | ||
| Common parts | ||||
| 90041-19773 | ||||
