S221E-ZPDF (2000)

Toyota Sparky

Production Sep 2000 - Jun 2002
Engine K3VE
Transmission 4AT ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0009- )ATM

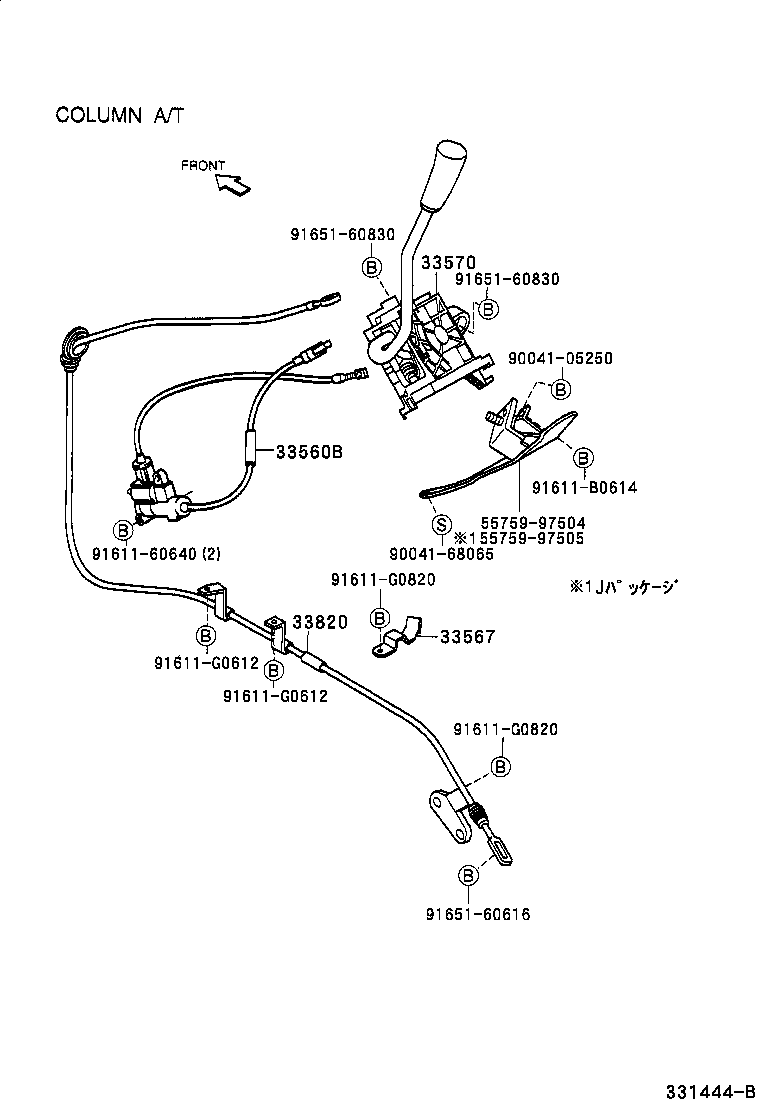

Click highlighted areas on diagram

diagram 33560B 33567 33570 33820 5575997504 5575997505 9004105250 9004168065 9161160640 91611B0614 91611G0612 91611G0612 91611G0820 91611G0820 9165160616 9165160830 9165160830
Part # Description Qty Price
33560B - CABLE ASSY, SHIFT LOCK RELEASE
33560-97503

S221,231..4AT

ｱﾘ(ｷ- ﾌﾘ- ｼｽﾃﾑ)

 1
33560-97506

S221,231..ATM

ｱﾘ(ｷ- ﾌﾘ- ｼｽﾃﾑ)

 1
33560-97502

S221,231..ATM

 1
33567 - CLAMP, CONTROL SHAFT TUBE
33567-97506

S221,231..ATM

 1
33570 - COLUMN SHIFT ASSY, TRANSMISSION
33570-9750701

S221,231..4AT..G

ﾓｸﾒ(ﾌﾞﾗﾂｸ),BLACK

 1
33570-9752401

S221,231..4AT..G

ﾓｸﾒ(ﾌﾞﾗﾂｸ),BLACK WOOD

 1
33820 - CABLE ASSY, TRANSMISSION CONTROL (FOR COLUMN SHIFT)
33520-97502

S221,231..ATM

 1
Common parts
55759-97504
55759-97505
90041-05250
90041-68065
91611-60640
91611-B0614
91611-G0612
91611-G0820
91651-60616
91651-60830
