S221E-ZMRF (2000)
Toyota Sparky
Production
Sep 2000
-
Mar 2003
Engine
K3VE
Transmission
5MT MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0009- )

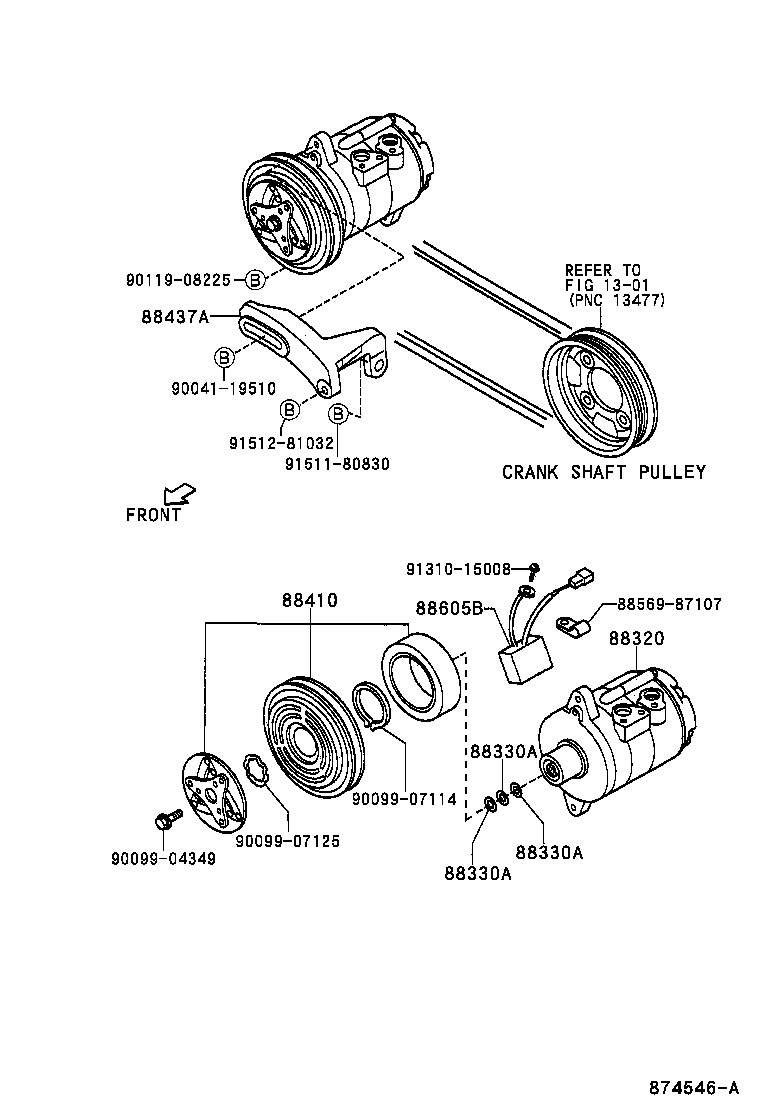

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-97504 |
S221,231 |
1 | ||
| 88330A - WASHER (FOR MAGNET CLUTCH) | ||||
| 88318-87705 |
S221,231 厚さ=0.3 |
1 | ||
| 88318-87704 |
S221,231 厚さ=0.1 |
1 | ||
| 88318-87706 |
S221,231 厚さ=0.5 |
1 | ||
| 88330A - WASHER (FOR MAGNET CLUTCH) | ||||
| 88318-87705 |
S221,231 厚さ=0.3 |
1 | ||
| 88318-87704 |
S221,231 厚さ=0.1 |
1 | ||
| 88318-87706 |
S221,231 厚さ=0.5 |
1 | ||
| 88330A - WASHER (FOR MAGNET CLUTCH) | ||||
| 88318-87705 |
S221,231 厚さ=0.3 |
1 | ||
| 88318-87704 |
S221,231 厚さ=0.1 |
1 | ||
| 88318-87706 |
S221,231 厚さ=0.5 |
1 | ||
| 88410 - CLUTCH ASSY, MAGNET | ||||
| 88410-97503 |
S221,231 |
1 | ||
| 88437A - ATTACHMENT, COMPRESSOR | ||||
| 88437-97502 |
S221,231 |
1 | ||
| 88605B - HARNESS SUB-ASSY, AIR CONDITIONER WIRING | ||||
| 88605-97508 |
S221,231 |
1 | ||
| Common parts | ||||
| 88569-87107 | ||||
| 90041-19510 | ||||
| 90099-04349 | ||||
| 90099-07114 | ||||
| 90099-07125 | ||||
| 90119-08225 | ||||
| 91310-15008 | ||||
| 91511-80830 | ||||
| 91512-81032 | ||||
| Linked diagrams | ||||
| 1301 | ||||
