S221E-ZMRF (2000)

Toyota Sparky

Production Sep 2000 - Mar 2003
Engine K3VE
Transmission 5MT MTM
Displacement 2500cc
Power 168 HP (125 kW)

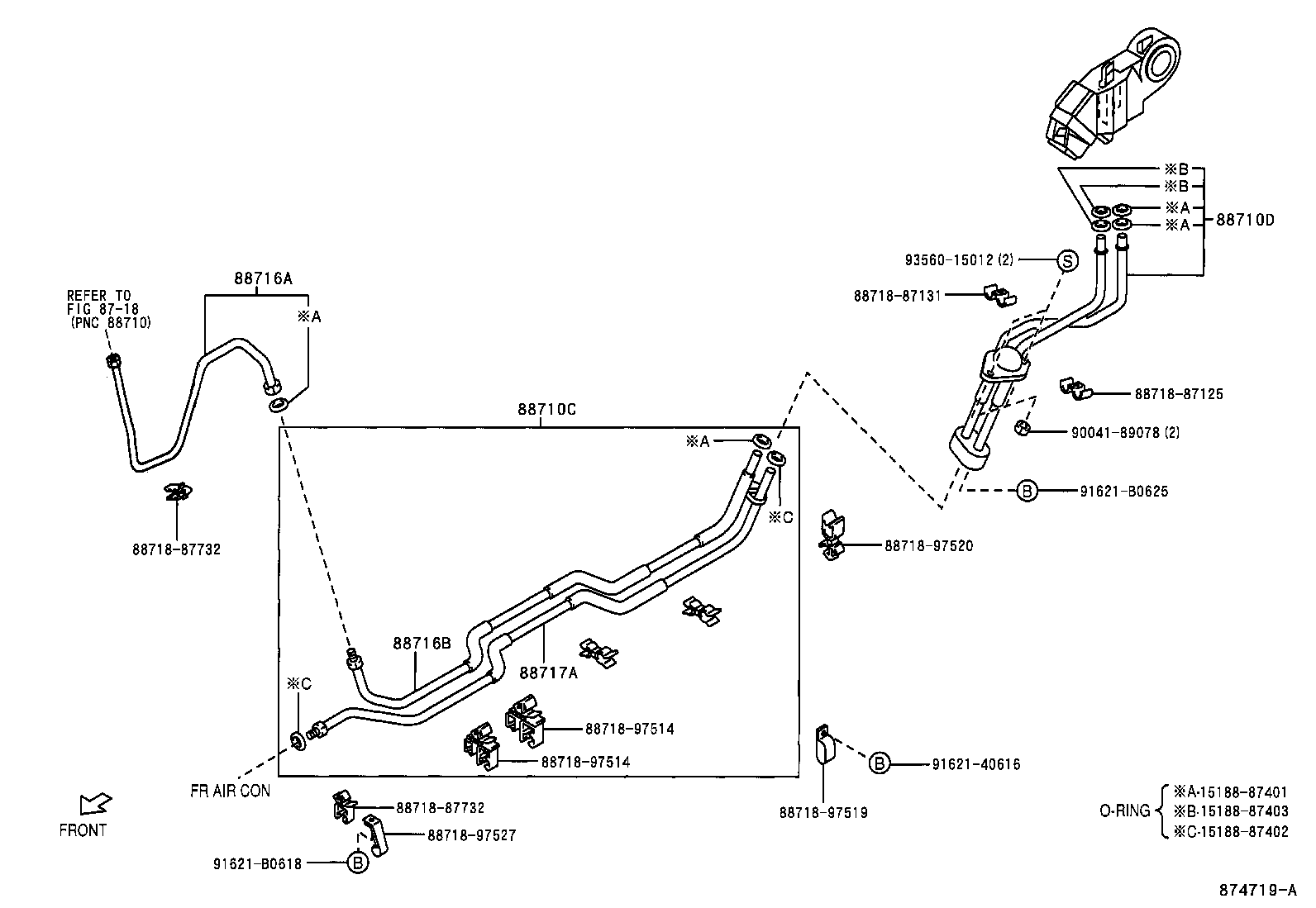

ILLUST NO. 2 OF 2(0009- )

Click highlighted areas on diagram

ﾘﾔ

diagram 1518887401 1518887402 1518887403 8718 88710C 88710D 88716A 88716B 88717A 8871887125 8871887131 8871887732 8871887732 8871897514 8871897514 8871897519 8871897520 8871897527 9004189078 9162140616 91621B0618 91621B0625 9356015012
Part # Description Qty Price
88710C - TUBE ASSY, AIR CONDITIONER
88710-97516

S221,231

 1
88710D - TUBE ASSY, AIR CONDITIONER
88710-97509

S221,231

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-97512

S221,231

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-97506

S221,231

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-97508

S221,231

 1
Common parts
15188-87401
15188-87402
15188-87403
88718-87125
88718-87131
88718-87732
88718-97514
88718-97519
88718-97520
88718-97527
90041-89078
91621-40616
91621-B0618
91621-B0625
93560-15012
Linked diagrams
8718

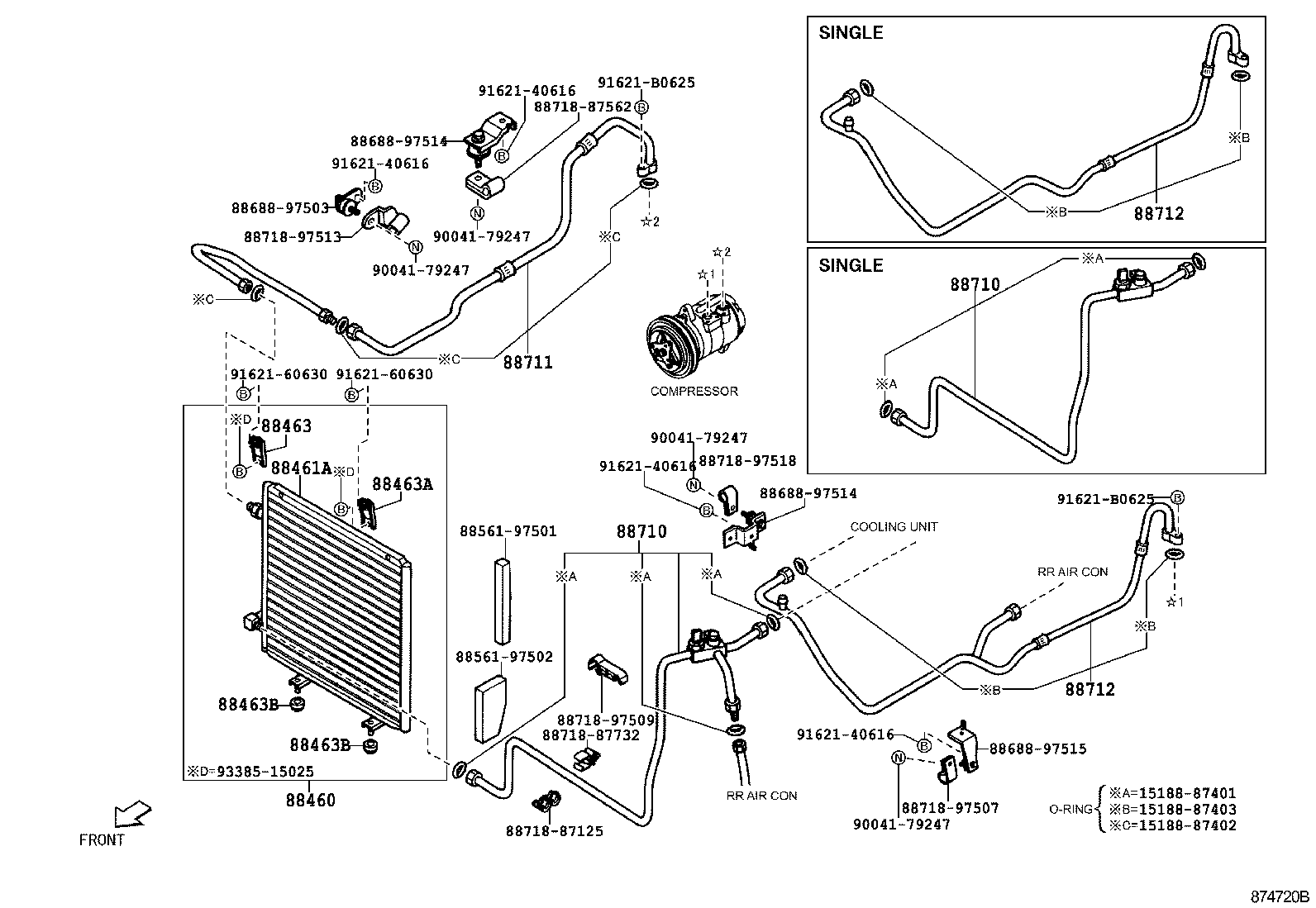

ILLUST NO. 1 OF 2(0009- )

Click highlighted areas on diagram

ﾌﾛﾝﾄ

diagram 1518887401 1518887402 1518887403 88460 88461A 88463 88463A 88463B 88463B 8856197501 8856197502 8868897503 8868897514 8868897514 8868897515 88710 88710 88711 88712 88712 8871887125 8871887562 8871887732 8871897507 8871897509 8871897513 8871897518 9004179247 9004179247 9004179247 9004179247 9162140616 9162140616 9162140616 9162140616 9162160630 9162160630 91621B0625 91621B0625 9338515025
Part # Description Qty Price
88460 - CONDENSER ASSY, COOLER
88460-97510

S221,231

 1
88461A - CORE, COOLER CONDENSER
88461-97501

S221,231

 1
88463 - BRACKET, COOLER CONDENSER, NO.1
88463-97504

S221,231

 1
88463A - BRACKET, COOLER CONDENSER, NO.2
88463-97505

S221,231

 1
88463B - BRACKET, COOLER CONDENSER, NO.3
88463-97506

S221,231

 2
88463B - BRACKET, COOLER CONDENSER, NO.3
88463-97506

S221,231

 2
88710 - TUBE ASSY, AIR CONDITIONER
88710-97505

S221,231..X..HIR

ｱﾘ(ﾃﾞﾕｱﾙｴｱｺﾝ)

 1
88710-97507

S221,231..X..HIR

 1
88710 - TUBE ASSY, AIR CONDITIONER
88710-97505

S221,231..X..HIR

ｱﾘ(ﾃﾞﾕｱﾙｴｱｺﾝ)

 1
88710-97507

S221,231..X..HIR

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-97508

S221,231

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-97510

S221,231..X..HIR

 1
88712-97509

S221,231..X..HIR

ｱﾘ(ﾃﾞﾕｱﾙｴｱｺﾝ)

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-97510

S221,231..X..HIR

 1
88712-97509

S221,231..X..HIR

ｱﾘ(ﾃﾞﾕｱﾙｴｱｺﾝ)

 1
Common parts
15188-87401
15188-87402
15188-87403
88561-97501
88561-97502
88688-97503
88688-97514
88688-97515
88718-87125
88718-87562
88718-87732
88718-97507
88718-97509
88718-97513
88718-97518
90041-79247
91621-40616
91621-60630
91621-B0625
93385-15025
