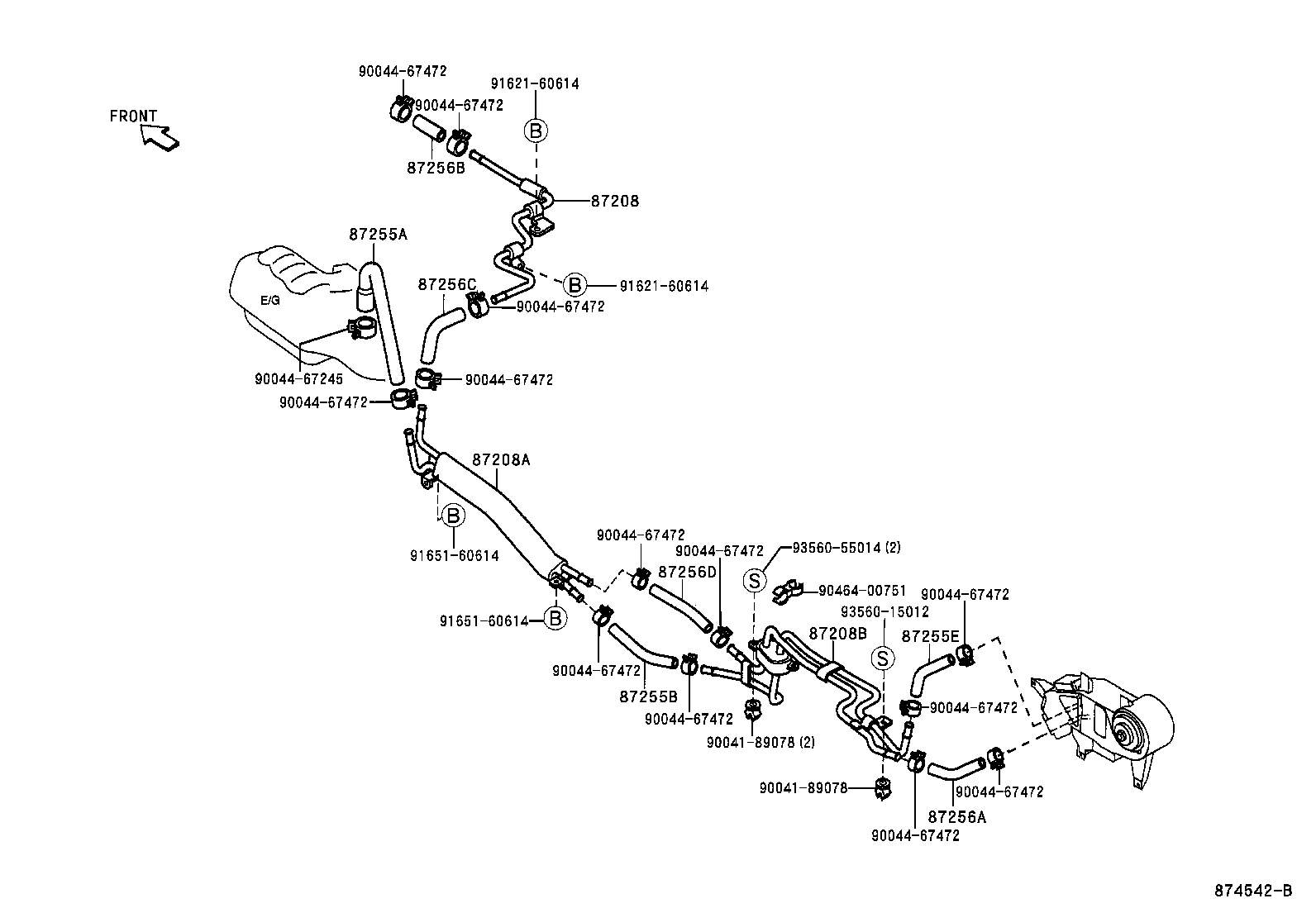

ILLUST NO. 2 OF 2(0009- )
Click highlighted areas on diagram
ﾘﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87208 - PIPE SUB-ASSY, HEATER WATER | ||||
| 87208-97505 |
S221,231 |
1 | ||
| 87208A - PIPE SUB-ASSY, HEATER WATER, A | ||||
| 87208-97503 |
S221,231 |
1 | ||
| 87208B - PIPE SUB-ASSY, HEATER WATER, B | ||||
| 87208-97504 |
S221,231 |
1 | ||
| 87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE) | ||||
| 87245-97515 |
S221,231 |
1 | ||
| 87255B - HOSE, REAR HEATER WATER INLET, B | ||||
| 87245-97513 |
S221,231 長さ=202 |
1 | ||
| 87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT) | ||||
| 87245-97519 |
S221,231 長さ=89.5 |
1 | ||
| 87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT) | ||||
| 87245-97520 |
S221,231 長さ=182 |
1 | ||
| 87256B - HOSE, REAR HEATER WATER OUTLET, B | ||||
| 87245-97518 |
S221,231 長さ=80 |
1 | ||
| 87256C - HOSE, REAR HEATER WATER OUTLET, C | ||||
| 87245-97514 |
S221,231 長さ=290 |
1 | ||
| 87256D - HOSE, REAR HEATER WATER OUTLET, D | ||||
| 87245-97513 |
S221,231 長さ=202 |
1 | ||
| Common parts | ||||
| 90041-89078 | ||||
| 90044-67245 | ||||
| 90044-67472 | ||||
| 90464-00751 | ||||
| 91621-60614 | ||||
| 91651-60614 | ||||
| 93560-15012 | ||||
| 93560-55014 | ||||

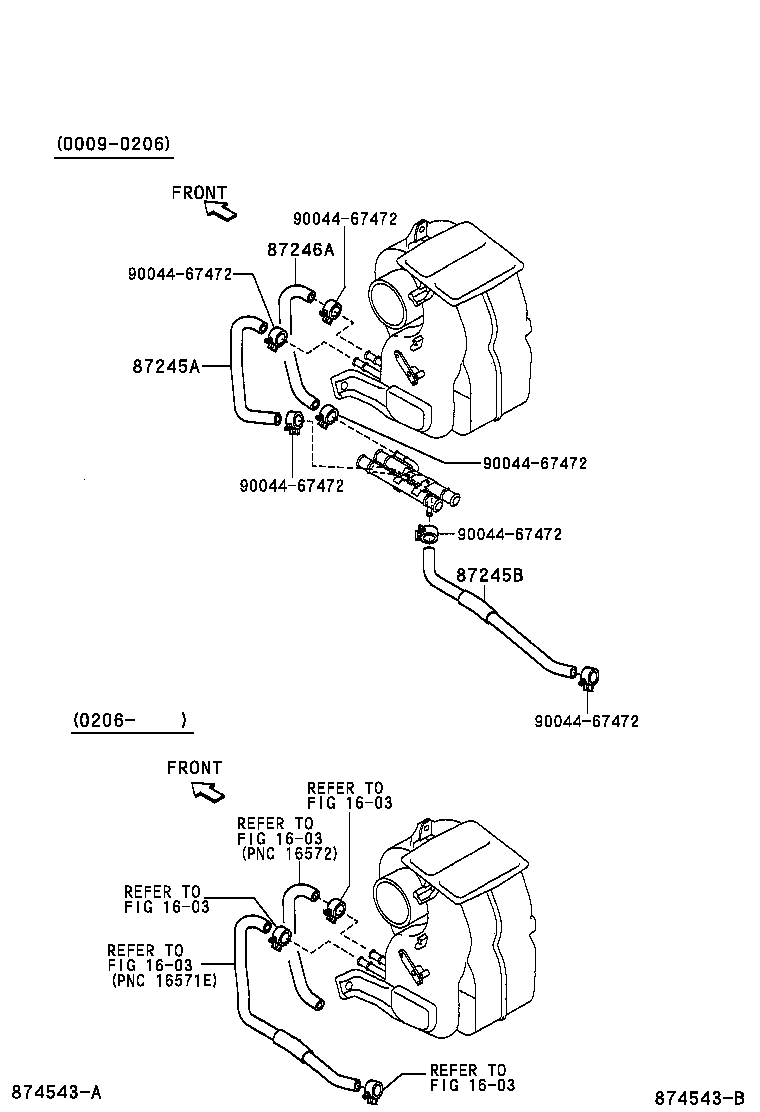

ILLUST NO. 1 OF 2(0009- )
Click highlighted areas on diagram
ﾌﾛﾝﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-97512 |
S221,231 |
1 | ||
| 87245B - HOSE, HEATER WATER, INLET B | ||||
| 87245-97511 |
S221,231 長さ=405 |
1 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 87245-97516 |
S221,231 |
1 | ||
| Common parts | ||||
| 90044-67472 | ||||
| Linked diagrams | ||||
| 1603 | ||||
