S221E-ZMRF (2000)

Toyota Sparky

Production Sep 2000 - Mar 2003
Engine K3VE
Transmission 5MT MTM
Displacement 2500cc
Power 168 HP (125 kW)

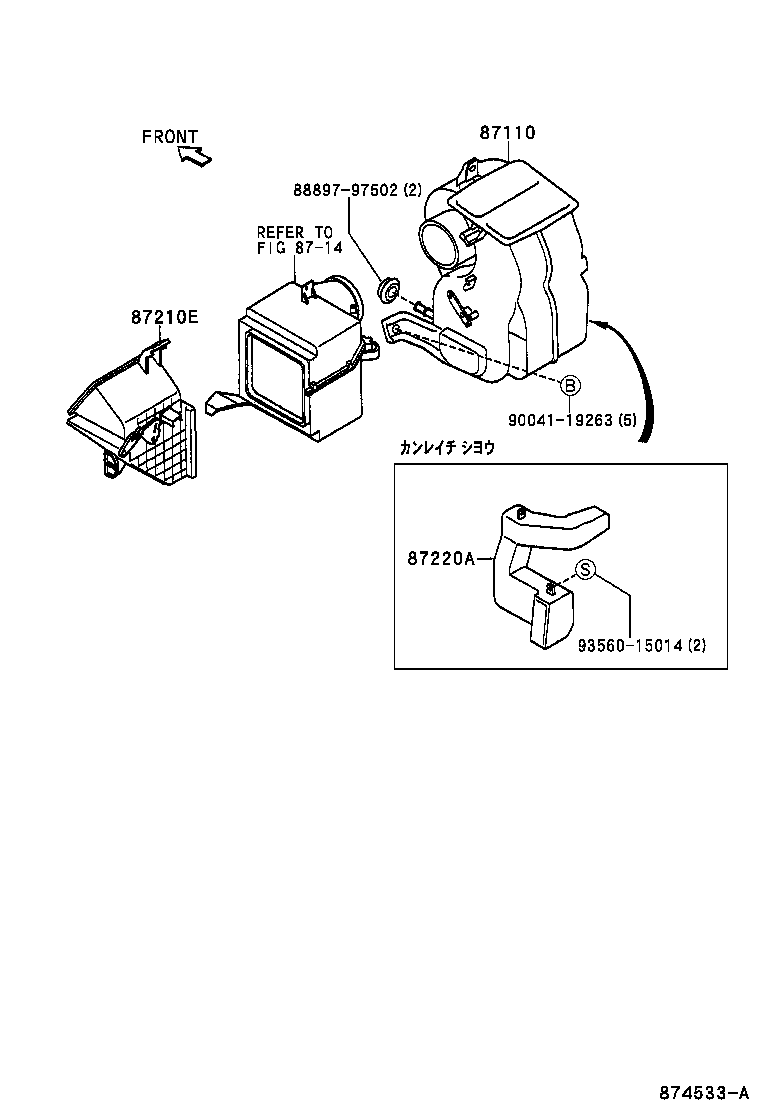

ILLUST NO. 1 OF 3(0009- )

Click highlighted areas on diagram

ﾌﾛﾝﾄﾋｰﾀﾕﾆﾂﾄ

diagram 87110 8714 87210E 87220A 8889797502 9004119263 9356015014
Part # Description Qty Price
87110 - HEATER ASSY
87110-97508

S221,231

ｶﾝﾚｲﾁ ｼﾖｳ

 1
87110-97505

S221,231

 1
87210E - CASE ASSY, AIR DAMPER
87210-97501

S221,231

 1
87220A - DUCT ASSY, HEATER RADIATOR AIR
87220-97502

S221,231

ｶﾝﾚｲﾁ ｼﾖｳ

 1
Common parts
88897-97502
90041-19263
93560-15014
Linked diagrams
8714

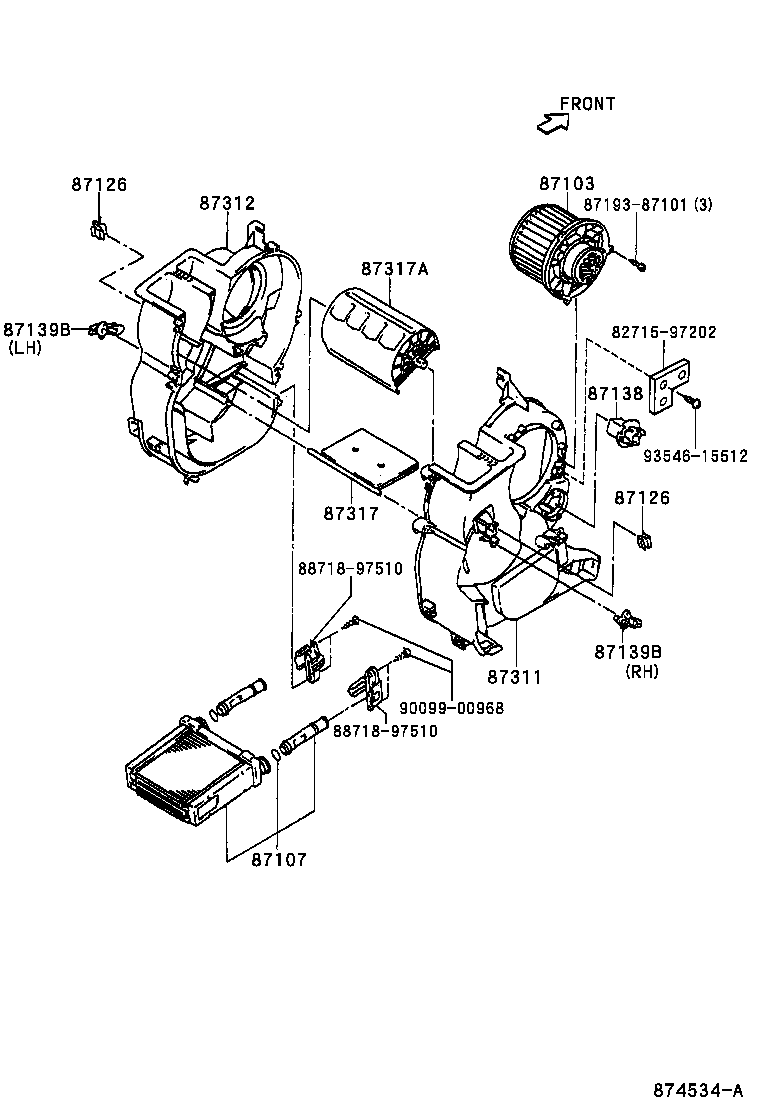

ILLUST NO. 2 OF 3(0009- )

Click highlighted areas on diagram

ﾌﾛﾝﾄﾋｰﾀﾕﾆﾂﾄ

diagram 8271597202 87103 87107 87126 87126 87138 87139B 87139B 8719387101 87311 87312 87317 87317A 8871897510 8871897510 9009900968 9354615512
Part # Description Qty Price
87103 - MOTOR SUB-ASSY, HEATER BLOWER, W/FAN
87103-97201

S221,231

ﾌﾛﾝﾄ

 1
87103-97501

S221,231..X..HIR

ﾘﾔ

 1
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-97504

S221,231

ｶﾝﾚｲﾁ ｼﾖｳ

 1
87107-97505

S221,231

 1
87126 - CLAMP, HEATER CONTROL
87126-87501

S221,231

 2
87126 - CLAMP, HEATER CONTROL
87126-87501

S221,231

 2
87138 - RESISTOR, HEATER BLOWER
87138-97201

S221,231

 1
87139B - FILTER, CLEAN AIR
87139-87402

S221,231

左側

 1
87139-87401

S221,231

右側

 1
87139B - FILTER, CLEAN AIR
87139-87402

S221,231

左側

 1
87139-87401

S221,231

右側

 1
87311 - CASE, HEATER, NO.1
87311-97513

S221,231

ﾌﾛﾝﾄ ﾋ-ﾀ

 1
87311-97519

S221,231

ﾌﾛﾝﾄ ﾋ-ﾀ,ｶﾝﾚｲﾁｼﾖｳ

 1
87311-97517

S221,231..X..HIR

ﾘﾔ ﾋ-ﾀ,NO.1

 1
87311-97518

S221,231..X..HIR

ﾘﾔ ﾋ-ﾀ,NO.2

 1
87312 - CASE, HEATER, NO.2
87311-97520

S221,231

ｶﾝﾚｲﾁ ｼﾖｳ

 1
87311-97510

S221,231

 1
87317 - DAMPER, HEATER DUCT
87317-87401

S221,231

 1
87317A - DAMPER, HEATER DUCT
87317-97203

S221,231

 1
Common parts
82715-97202
87193-87101
88718-97510
90099-00968
93546-15512

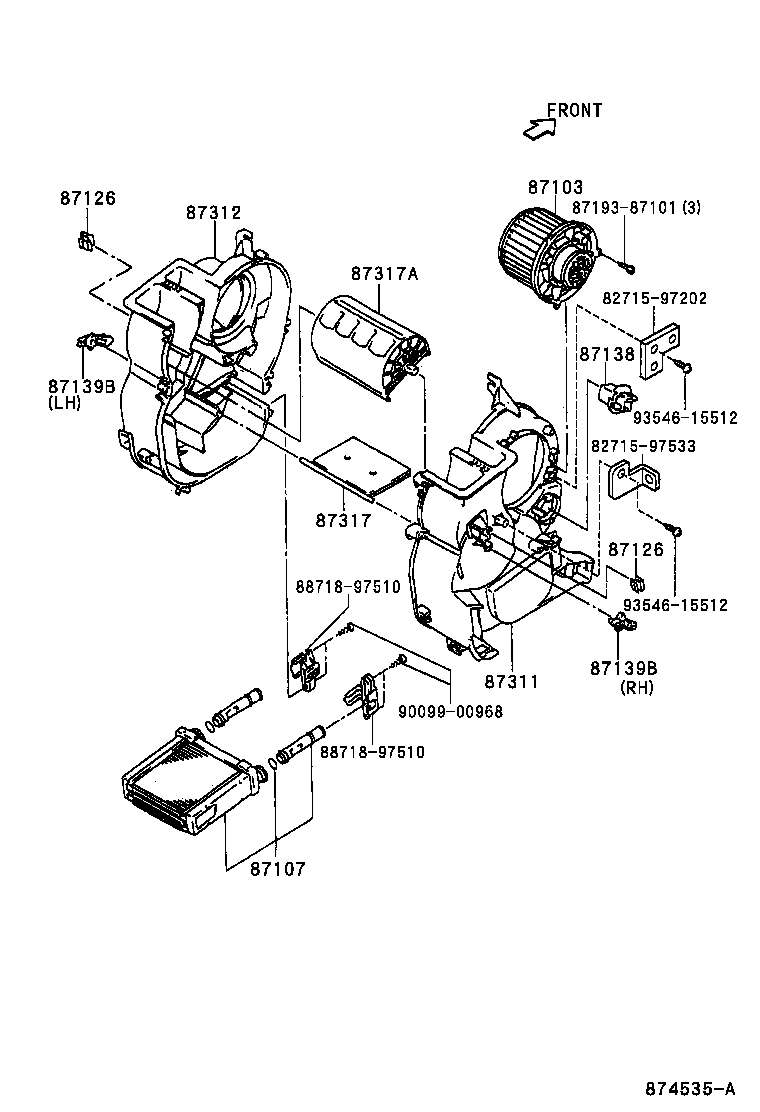

ILLUST NO. 2 OF 3(0009- )

Click highlighted areas on diagram

ﾌﾛﾝﾄﾋｰﾀﾕﾆﾂﾄ(ｶﾝﾚｲﾁｼﾖｳ)

diagram 8271597202 8271597533 87103 87107 87126 87126 87138 87139B 87139B 8719387101 87311 87312 87317 87317A 8871897510 8871897510 9009900968 9354615512 9354615512
Part # Description Qty Price
87103 - MOTOR SUB-ASSY, HEATER BLOWER, W/FAN
87103-97201

S221,231

ﾌﾛﾝﾄ

 1
87103-97501

S221,231..X..HIR

ﾘﾔ

 1
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-97504

S221,231

ｶﾝﾚｲﾁ ｼﾖｳ

 1
87107-97505

S221,231

 1
87126 - CLAMP, HEATER CONTROL
87126-87501

S221,231

 2
87126 - CLAMP, HEATER CONTROL
87126-87501

S221,231

 2
87138 - RESISTOR, HEATER BLOWER
87138-97201

S221,231

 1
87139B - FILTER, CLEAN AIR
87139-87402

S221,231

左側

 1
87139-87401

S221,231

右側

 1
87139B - FILTER, CLEAN AIR
87139-87402

S221,231

左側

 1
87139-87401

S221,231

右側

 1
87311 - CASE, HEATER, NO.1
87311-97513

S221,231

ﾌﾛﾝﾄ ﾋ-ﾀ

 1
87311-97519

S221,231

ﾌﾛﾝﾄ ﾋ-ﾀ,ｶﾝﾚｲﾁｼﾖｳ

 1
87311-97517

S221,231..X..HIR

ﾘﾔ ﾋ-ﾀ,NO.1

 1
87311-97518

S221,231..X..HIR

ﾘﾔ ﾋ-ﾀ,NO.2

 1
87312 - CASE, HEATER, NO.2
87311-97520

S221,231

ｶﾝﾚｲﾁ ｼﾖｳ

 1
87311-97510

S221,231

 1
87317 - DAMPER, HEATER DUCT
87317-87401

S221,231

 1
87317A - DAMPER, HEATER DUCT
87317-97203

S221,231

 1
Common parts
82715-97202
82715-97533
87193-87101
88718-97510
90099-00968
93546-15512

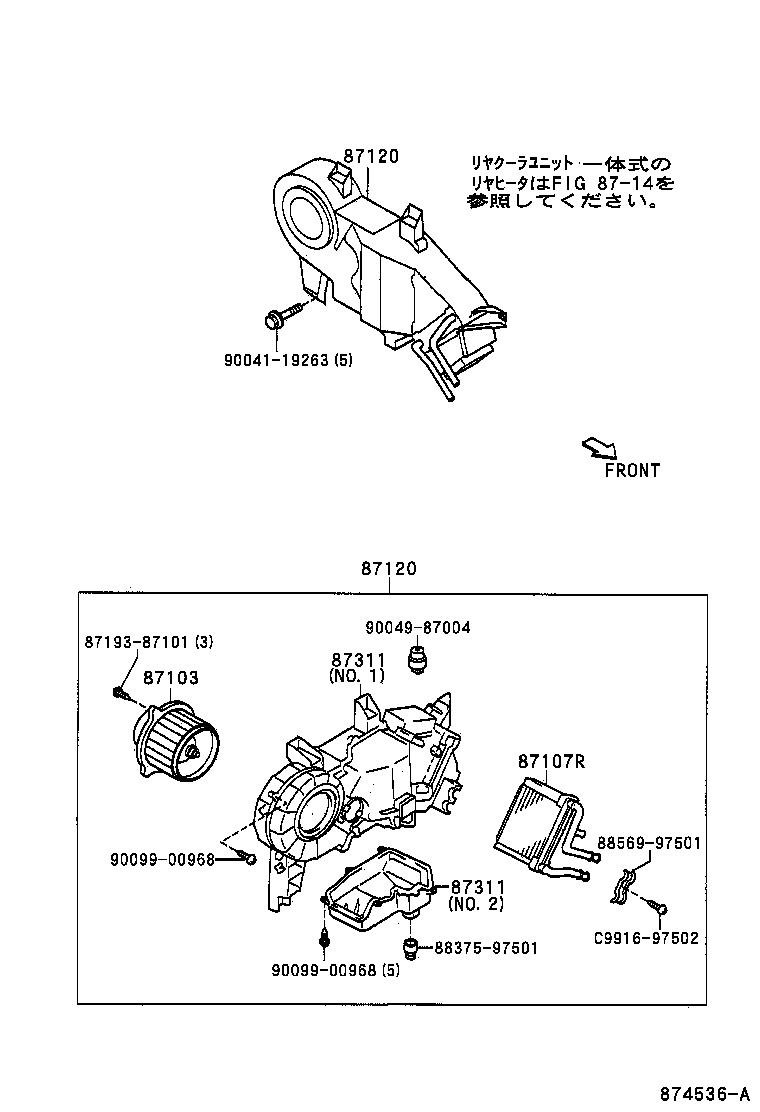

ILLUST NO. 3 OF 3(0009- )

Click highlighted areas on diagram

ﾘﾔﾋ-ﾀﾕﾆﾂﾄ

diagram 87103 87107R 87120 87120 8719387101 87311 87311 8837597501 8856997501 9004119263 9004987004 9009900968 9009900968 C991697502
Part # Description Qty Price
87103 - MOTOR SUB-ASSY, HEATER BLOWER, W/FAN
87103-97201

S221,231

ﾌﾛﾝﾄ

 1
87103-97501

S221,231..X..HIR

ﾘﾔ

 1
87107R - UNIT SUB-ASSY, REAR HEATER
87107-97506

S221,231..X..HIR

 1
87120 - HEATER ASSY, REAR
87120-97503

S221,231..X..HIR

 1
87120 - HEATER ASSY, REAR
87120-97503

S221,231..X..HIR

 1
87311 - CASE, HEATER, NO.1
87311-97513

S221,231

ﾌﾛﾝﾄ ﾋ-ﾀ

 1
87311-97519

S221,231

ﾌﾛﾝﾄ ﾋ-ﾀ,ｶﾝﾚｲﾁｼﾖｳ

 1
87311-97517

S221,231..X..HIR

ﾘﾔ ﾋ-ﾀ,NO.1

 1
87311-97518

S221,231..X..HIR

ﾘﾔ ﾋ-ﾀ,NO.2

 1
87311 - CASE, HEATER, NO.1
87311-97513

S221,231

ﾌﾛﾝﾄ ﾋ-ﾀ

 1
87311-97519

S221,231

ﾌﾛﾝﾄ ﾋ-ﾀ,ｶﾝﾚｲﾁｼﾖｳ

 1
87311-97517

S221,231..X..HIR

ﾘﾔ ﾋ-ﾀ,NO.1

 1
87311-97518

S221,231..X..HIR

ﾘﾔ ﾋ-ﾀ,NO.2

 1
Common parts
87193-87101
88375-97501
88569-97501
90041-19263
90049-87004
90099-00968
C9916-97502
