S221E-ZMRF (2000)

Toyota Sparky

Production Sep 2000 - Mar 2003
Engine K3VE
Transmission 5MT MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0009- )

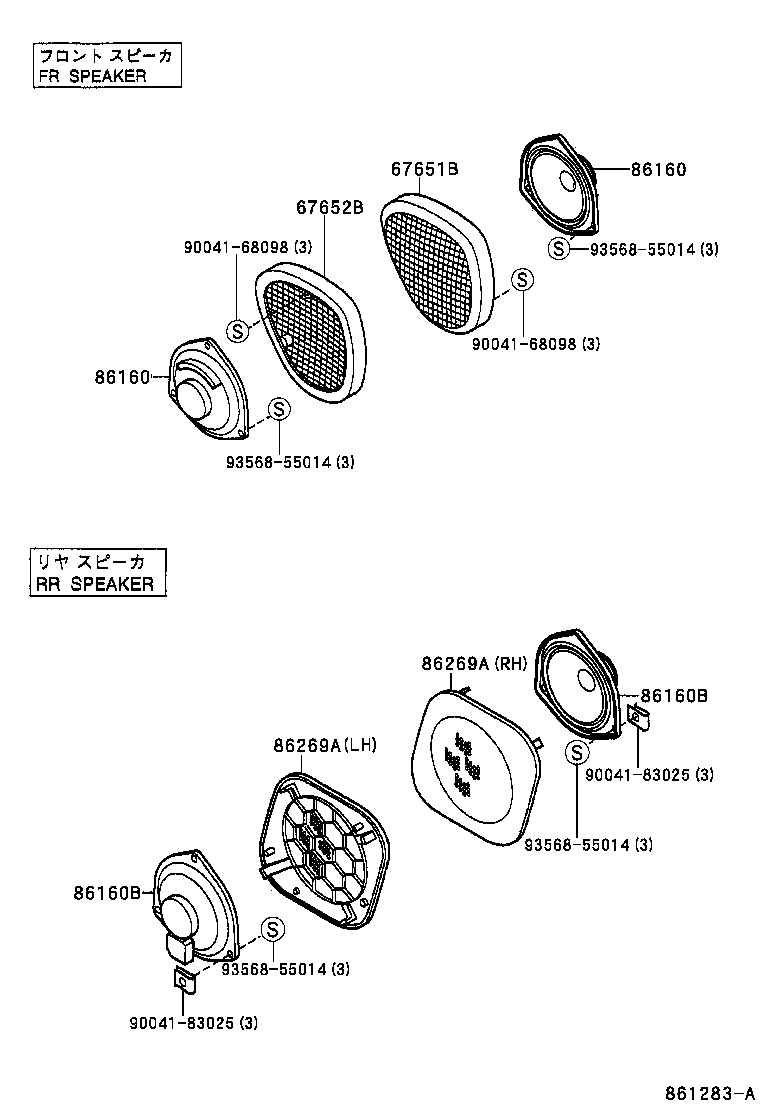

Click highlighted areas on diagram

diagram 67651B 67652B 86160 86160 86160B 86160B 86269A 86269A 9004168098 9004168098 9004183025 9004183025 9356855014 9356855014 9356855014 9356855014
Part # Description Qty Price
67651B - GRILLE, SPEAKER DOOR, RH
67651-9750303

S221,231

GRAY

 1
67652B - GRILLE, SPEAKER DOOR, LH
67651-9750303

S221,231

GRAY

 1
86160 - SPEAKER ASSY, FRONT NO.1
86160-97507

S221,231

 2
86160 - SPEAKER ASSY, FRONT NO.1
86160-97507

S221,231

 2
86160B - SPEAKER ASSY, REAR
86160-97508

S221,231

 2
86160B - SPEAKER ASSY, REAR
86160-97508

S221,231

 2
86269A - GRILLE, SPEAKER
86269-9750203

S221,231

GRAY,左側

 1
86269-9750103

S221,231

GRAY,右側

 1
86269A - GRILLE, SPEAKER
86269-9750203

S221,231

GRAY,左側

 1
86269-9750103

S221,231

GRAY,右側

 1
Common parts
90041-68098
90041-83025
93568-55014
