S221E-ZMRF (2000)
Toyota Sparky
Production
Sep 2000
-
Mar 2003
Engine
K3VE
Transmission
5MT MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0009- )

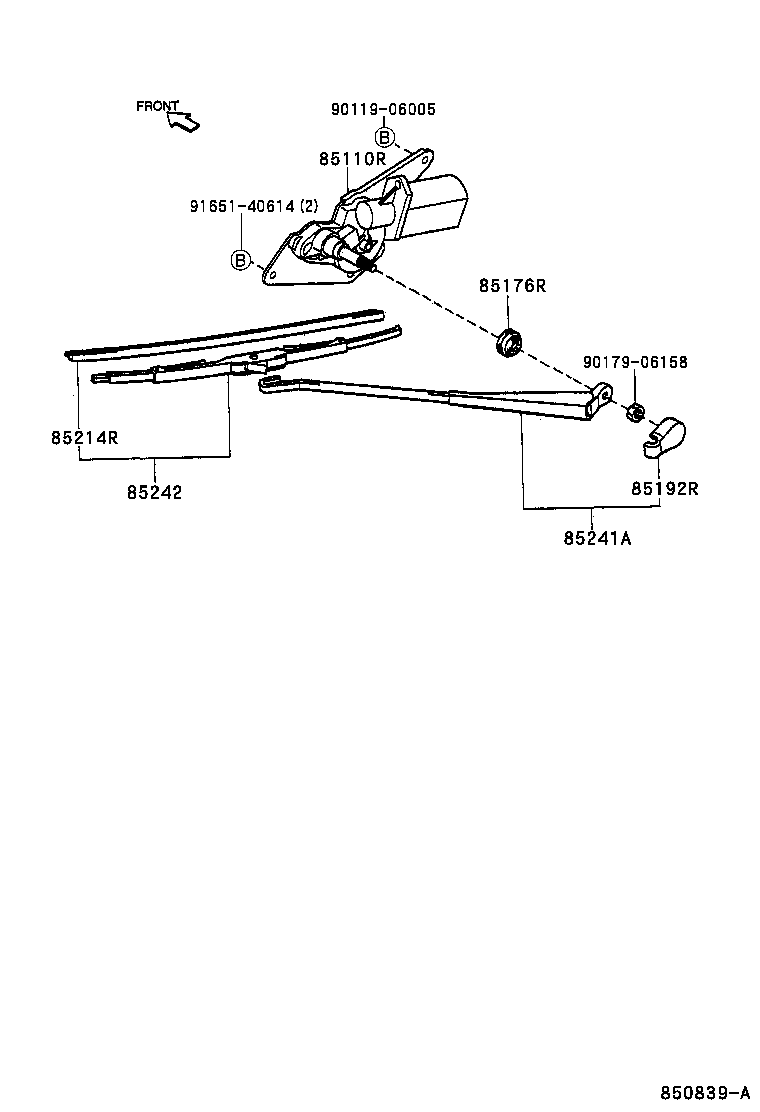

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85110R - MOTOR ASSY, REAR WIPER | ||||
| 85080-97504 |
S221,231 |
1 | ||
| 85176R - CAP, REAR WIPER LINK | ||||
| 85176-97501 |
S221,231 |
1 | ||
| 85192R - COVER, REAR WIPER ARM | ||||
| 85187-97501 |
S221,231 |
1 | ||
| 85214R - RUBBER, REAR WIPER | ||||
| 85243-97501 |
S221,231 |
1 | ||
| 85241A - ARM, REAR WIPER | ||||
| 85190-97505 |
S221,231 |
1 | ||
| 85242 - BLADE, RR WIPER | ||||
| 85242-97501 |
S221,231 |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
| 90179-06158 | ||||
| 91651-40614 | ||||
