S221E-ZMRF (2000)

Toyota Sparky

Production Sep 2000 - Mar 2003
Engine K3VE
Transmission 5MT MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0009- )

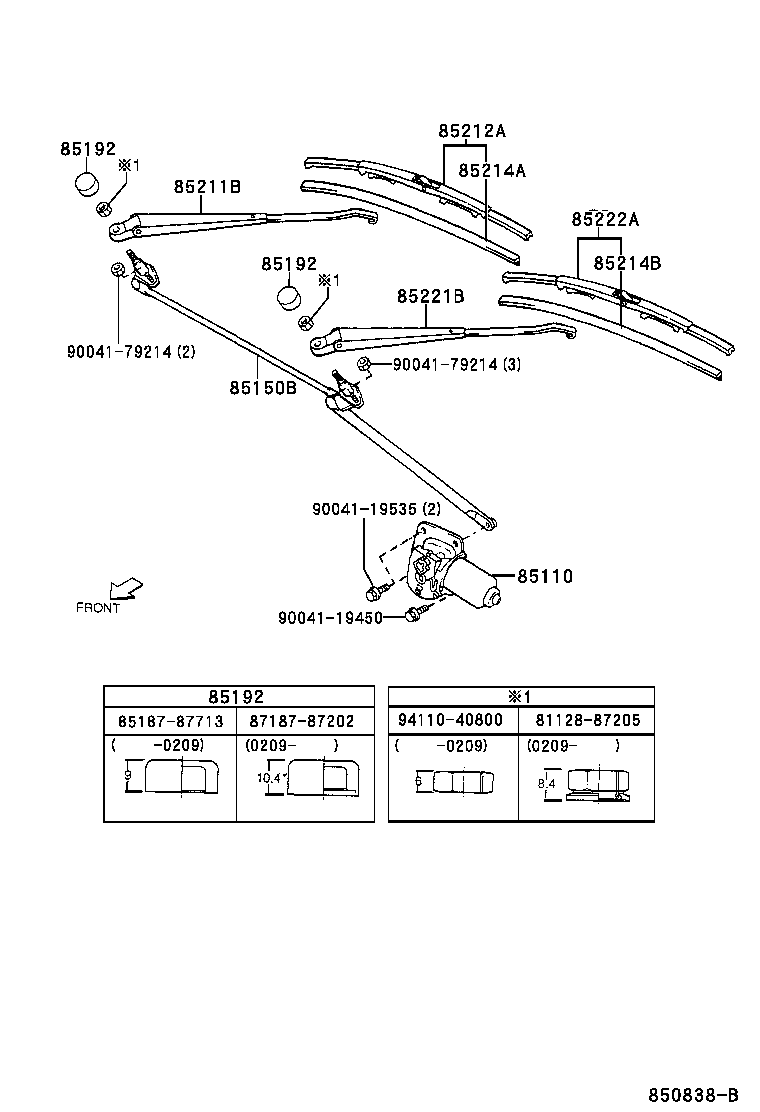

Click highlighted areas on diagram

diagram 8112887205 85110 85150B 85192 85192 85192 85211B 85212A 85214A 85214B 85221B 85222A 9004119450 9004119535 9004179214 9004179214 9411040800
Part # Description Qty Price
85110 - MOTOR ASSY, WINDSHIELD WIPER
85120-97503

S221,231

ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
85120-97502

S221,231

 1
85150B - LINK ASSY, WIPER
85150-97502

S221,231

 1
85192 - COVER, WINDSHIELD WIPER ARM
85187-87713

S221,231

 2
85187-87202

S221,231

 2
85192 - COVER, WINDSHIELD WIPER ARM
85187-87713

S221,231

 2
85187-87202

S221,231

 2
85192 - COVER, WINDSHIELD WIPER ARM
85187-87713

S221,231

 2
85187-87202

S221,231

 2
85211B - ARM, FRONT WIPER, RH
85190-97502

S221,231

 1
85212A - BLADE, FR WIPER, RH
85212-97502

S221,231

 1
85214A - RUBBER, WIPER, RH
85221-97502

S221,231

 1
85214B - RUBBER, WIPER, LH
85223-87203

S221,231

 1
85221B - ARM, FRONT WIPER, LH
85210-97501

S221,231

 1
85222A - BLADE, FR WIPER, LH
85290-87202

S221,231

 1
Common parts
81128-87205
90041-19450
90041-19535
90041-79214
94110-40800
