S221E-ZMRF (2000)

Toyota Sparky

Production Sep 2000 - Mar 2003
Engine K3VE
Transmission 5MT MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0009- )

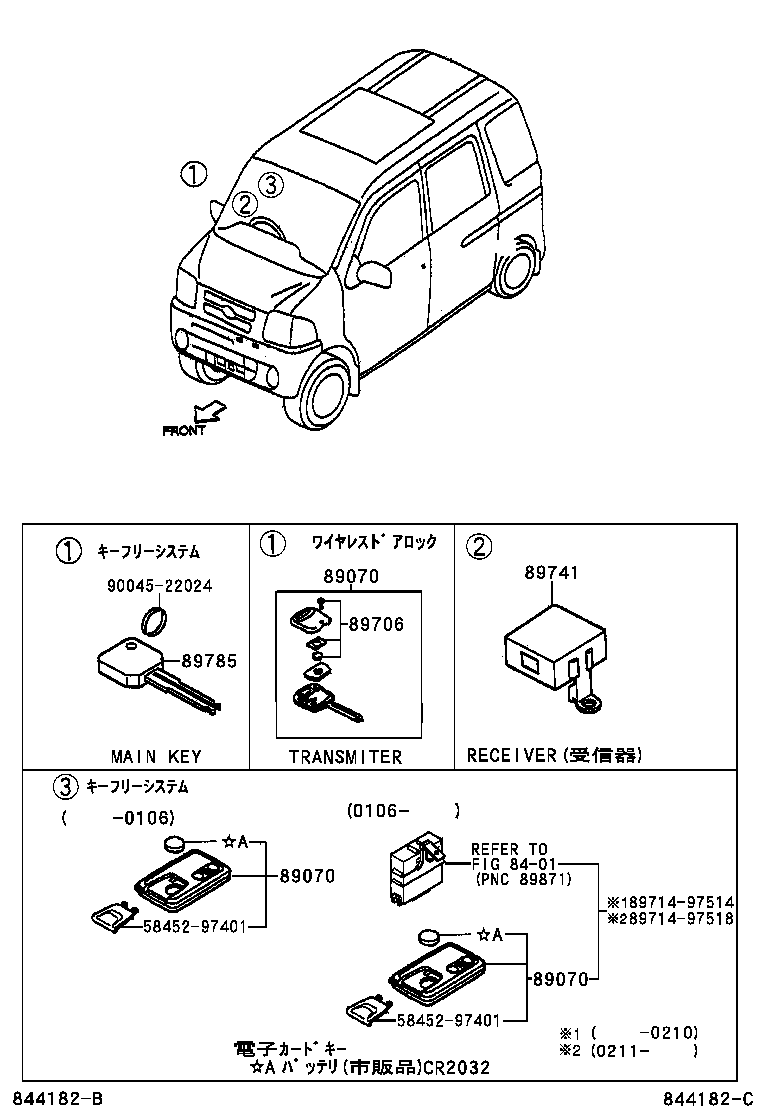

Click highlighted areas on diagram

diagram 5845297401 5845297401 8401 89070 89070 89070 89706 8971497514 8971497518 89741 89785 9004522024
Part # Description Qty Price
89070 - TRANSMITTER ASSY, DOOR CONTROL
89071-97405

S221,231

ｱﾘ(ｷ- ﾌﾘ- ｼｽﾃﾑ)

 1
89071-97401

S221,231

ｱﾘ(ｷ- ﾌﾘ- ｼｽﾃﾑ)

 1
89071-97206

S221,231

ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ)

 1
89070 - TRANSMITTER ASSY, DOOR CONTROL
89071-97405

S221,231

ｱﾘ(ｷ- ﾌﾘ- ｼｽﾃﾑ)

 1
89071-97401

S221,231

ｱﾘ(ｷ- ﾌﾘ- ｼｽﾃﾑ)

 1
89071-97206

S221,231

ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ)

 1
89070 - TRANSMITTER ASSY, DOOR CONTROL
89071-97405

S221,231

ｱﾘ(ｷ- ﾌﾘ- ｼｽﾃﾑ)

 1
89071-97401

S221,231

ｱﾘ(ｷ- ﾌﾘ- ｼｽﾃﾑ)

 1
89071-97206

S221,231

ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ)

 1
89706 - BATTERY SET, TRANSMITTER
89706-87401

S221,231

 1
89741 - RECEIVER, DOOR CONTROL
89741-97507

S221,231

 1
89785 - TRANSMITTER, TRANSPONDER KEY MASTER
89785-97402

S221,231

 1
Common parts
58452-97401
89714-97514
89714-97518
90045-22024
Linked diagrams
8401
