S221E-ZMRF (2000)
Toyota Sparky
Production
Sep 2000
-
Mar 2003
Engine
K3VE
Transmission
5MT MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0009- )

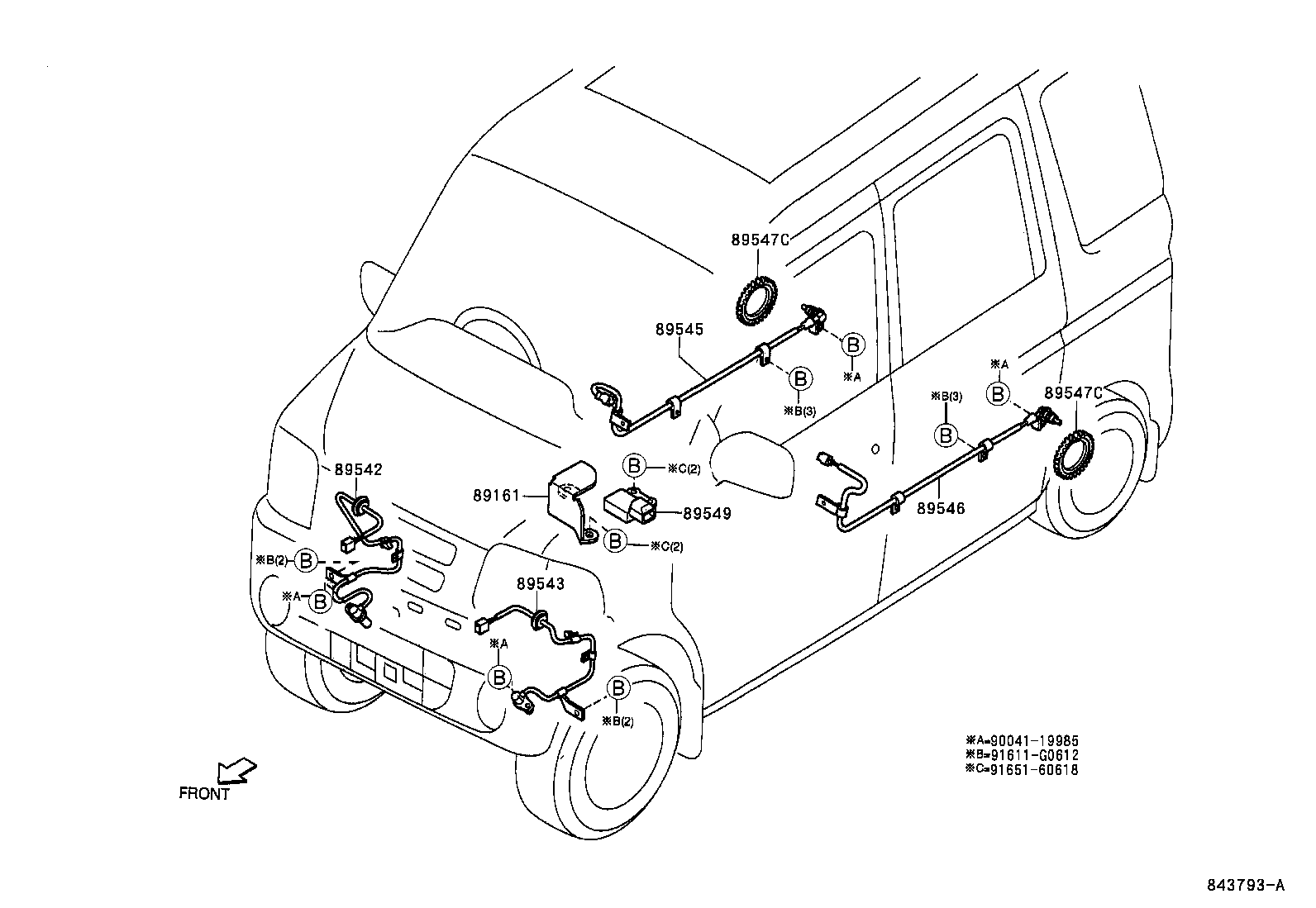

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89542 - SENSOR, SPEED, FRONT RH | ||||
| 89544-97501 |
S221,231 |
1 | ||
| 89543 - SENSOR, SPEED, FRONT LH | ||||
| 89545-97501 |
S221,231 |
1 | ||
| 89545 - SENSOR, SPEED, REAR RH | ||||
| 89544-97502 |
S221,231 |
1 | ||
| 89544-97505 |
S221,231 |
1 | ||
| 89546 - SENSOR, SPEED, REAR LH | ||||
| 89545-97506 |
S221,231 |
1 | ||
| 89545-97505 |
S221,231 |
1 | ||
| 89547C - ROTOR, SKID CONTROL SENSOR | ||||
| 89547-97502 |
S221,231 |
2 | ||
| 89547-97506 |
S221,231 |
2 | ||
| 89547C - ROTOR, SKID CONTROL SENSOR | ||||
| 89547-97502 |
S221,231 |
2 | ||
| 89547-97506 |
S221,231 |
2 | ||
| Common parts | ||||
| 90041-19985 | ||||
| 91611-G0612 | ||||
| 91651-60618 | ||||
