S221E-ZMRF (2000)

Toyota Sparky

Production Sep 2000 - Mar 2003
Engine K3VE
Transmission 5MT MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 3(0009- )

Click highlighted areas on diagram

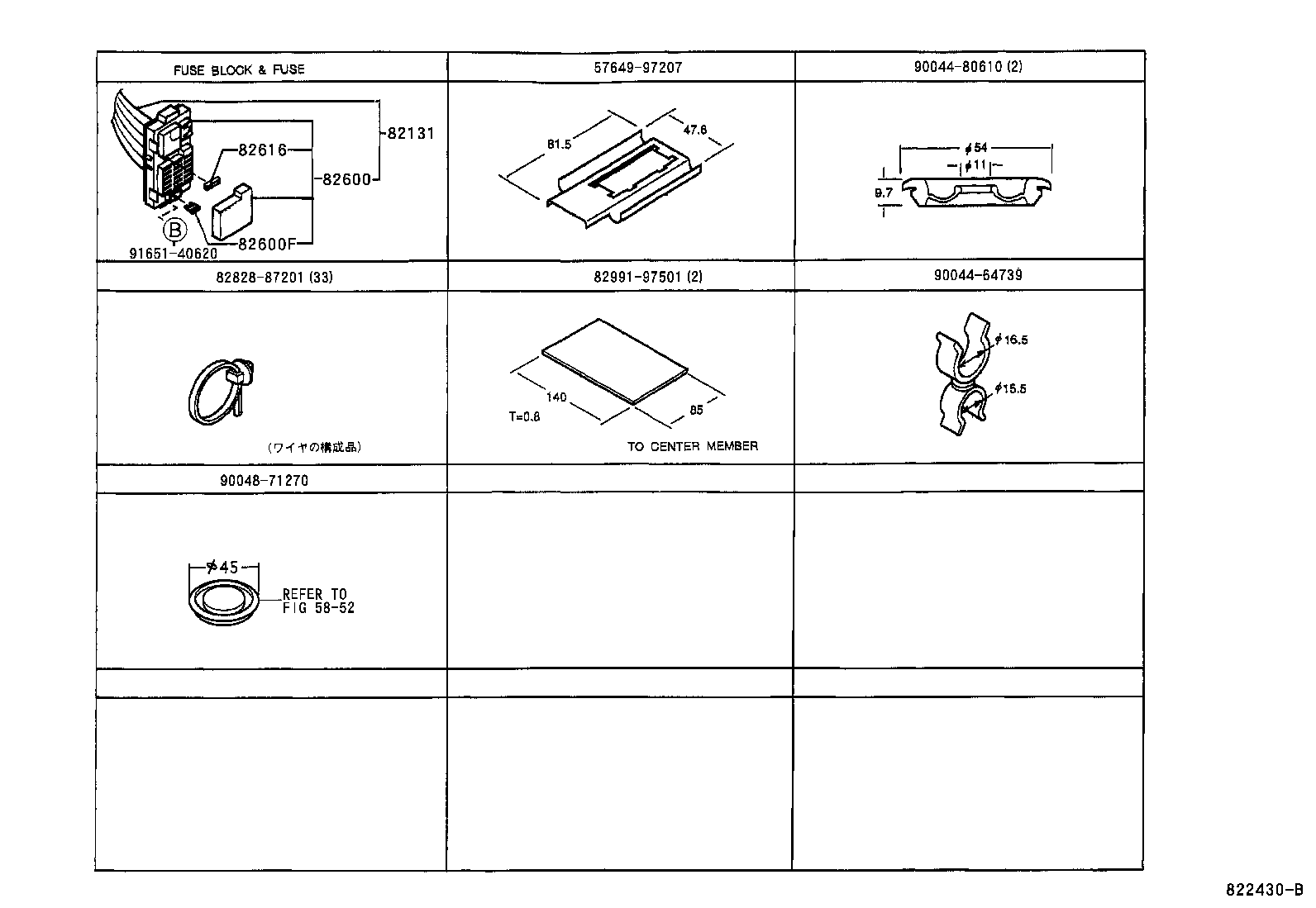

diagram 5764997207 5852 82131 82600 82600F 82616 8282887201 8299197501 9004464739 9004480610 9004871270 9165140620
Part # Description Qty Price
82131 - WIRE, COWL
82131-97M84

S221,231..5MT

 1
82131-97D54

S221,231..5MT

ｱﾘ(ｷ- ﾌﾘ- ｼｽﾃﾑ)

 1
82131-97D53

S221,231..5MT

 1
82135-97514

S221,231..5MT

ｱﾘ(ｷ- ﾌﾘ- ｼｽﾃﾑ)

 1
82135-97D52

S221,231..5MT

Jﾊﾟﾂｹ-ｼﾞ

 1
82135-97513

S221,231..5MT

 1
82135-97D54

S221,231..5MT

 1
82131-97M85

S221,231..5MT

ｱﾘ(ｷ- ﾌﾘ- ｼｽﾃﾑ)

 1
82135-97D55

S221,231..5MT

ｱﾘ(ｷ- ﾌﾘ- ｼｽﾃﾑ)

 1
82600 - BLOCK ASSY, FUSE
82600-97514

S221,231

 1
82600F - FUSE, FUSE BLOCK
90049-40019

S221,231

10A,ﾚｯﾄﾞ

 10
90049-40020

S221,231

15A,ﾌﾞﾙｰ

 5
82616 - PULLER, FUSE
82616-87701

S221,231

 1
Common parts
57649-97207
82828-87201
82991-97501
90044-64739
90044-80610
90048-71270
91651-40620
Linked diagrams
5852

ILLUST NO. 3 OF 3(0009- )

Click highlighted areas on diagram

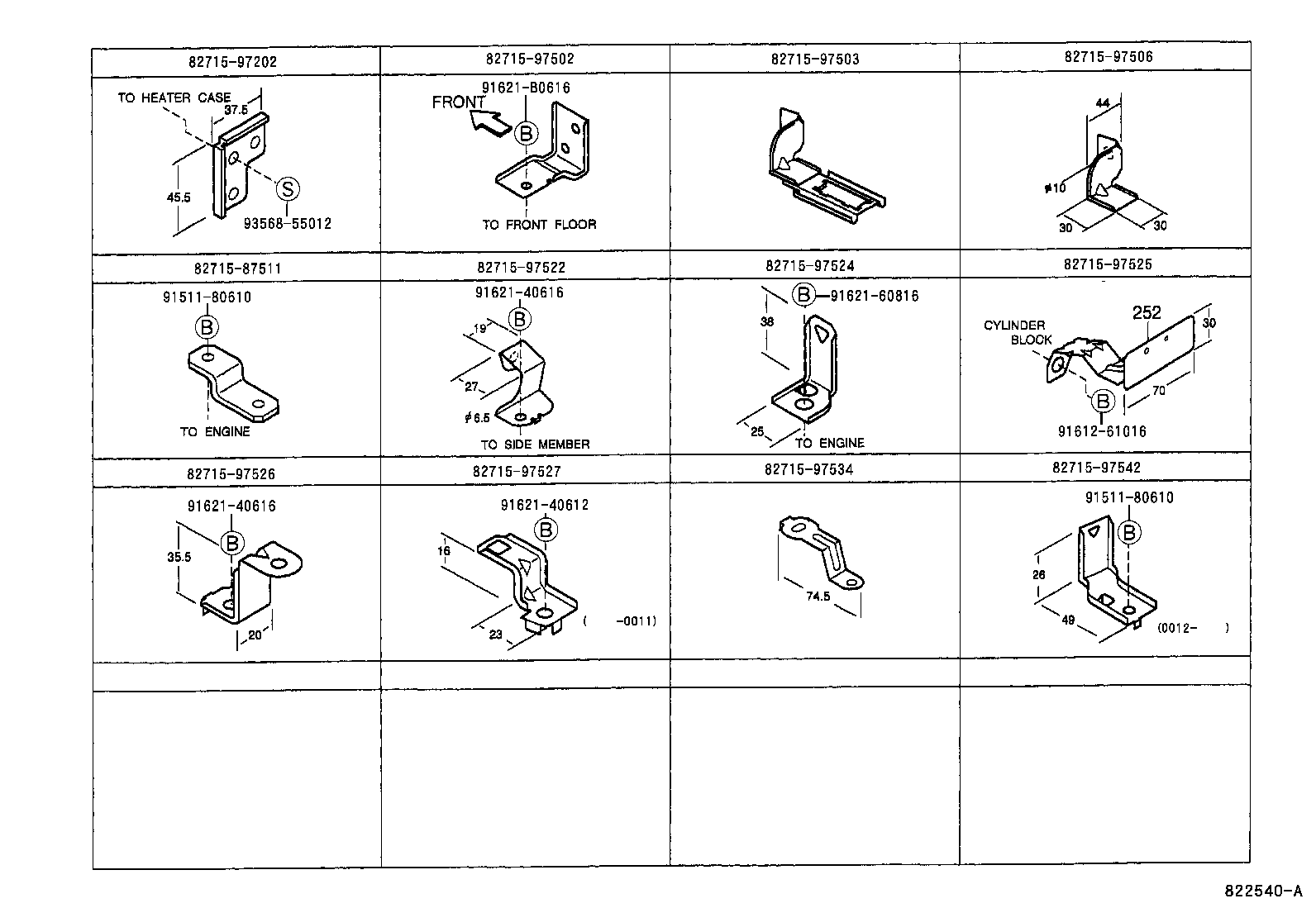

diagram 8271587511 8271597202 8271597502 8271597503 8271597506 8271597522 8271597524 8271597525 8271597526 8271597527 8271597534 8271597542 9151180610 9151180610 9161261016 9162140612 9162140616 9162140616 9162160816 91621B0616 9356855012
Part # Description Qty Price
Common parts
82715-87511
82715-97202
82715-97502
82715-97503
82715-97506
82715-97522
82715-97524
82715-97525
82715-97526
82715-97527
82715-97534
82715-97542
91511-80610
91612-61016
91621-40612
91621-40616
91621-60816
91621-B0616
93568-55012

ILLUST NO. 1 OF 3(0009- )

Click highlighted areas on diagram

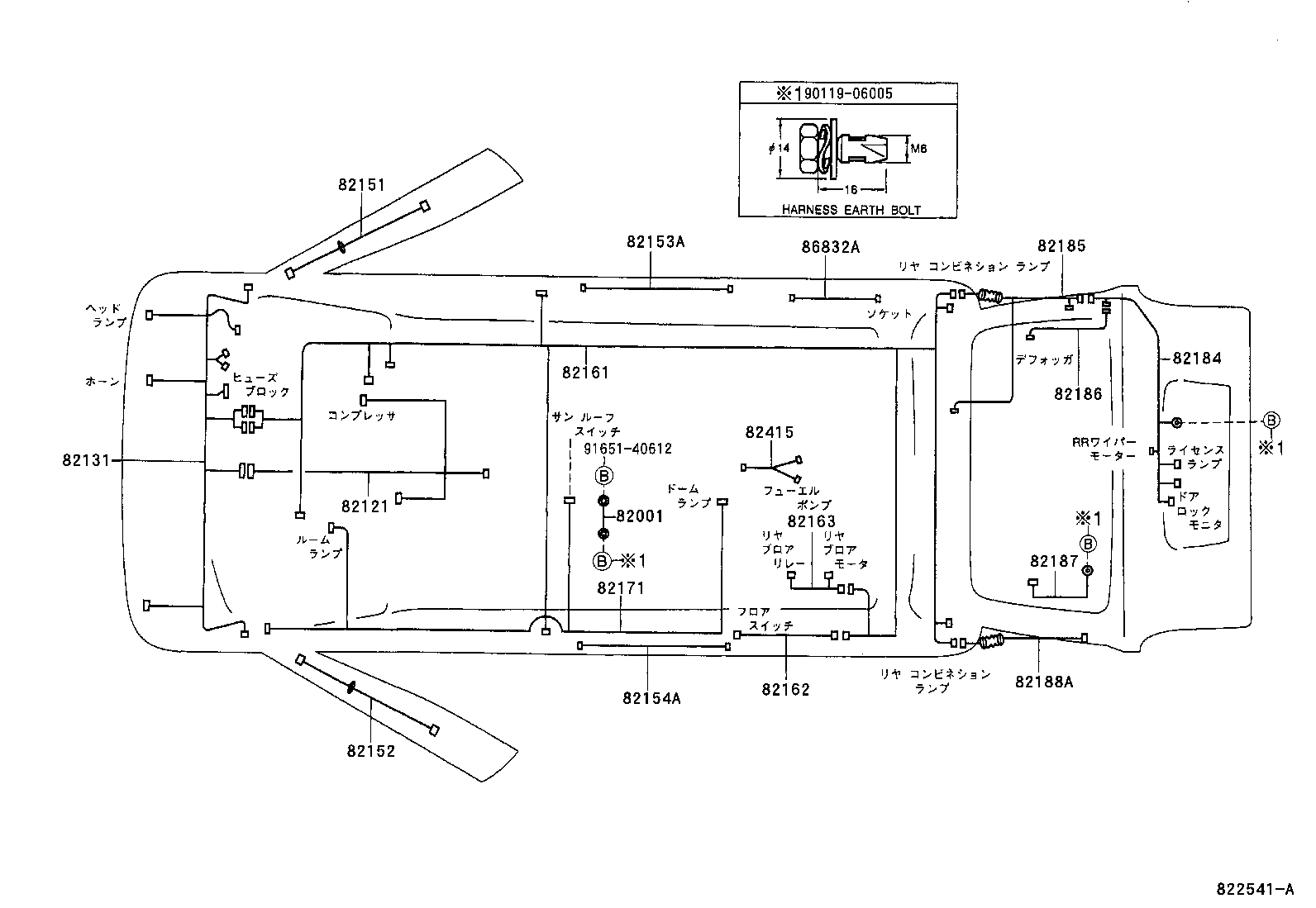

diagram 82001 82121 82131 82151 82152 82153A 82154A 82161 82162 82163 82171 82184 82185 82186 82187 82188A 82415 86832A 9011906005 9165140612
Part # Description Qty Price
82001 - CABLE, BOND, NO.1
90049-80118

S221,231

 1
82121 - WIRE, ENGINE
82121-97556

S221,231

 1
82121-97532

S221,231

 1
82121-97538

S221,231

 1
82121-97516

S221,231

 1
82131 - WIRE, COWL
82131-97M84

S221,231..5MT

 1
82131-97D54

S221,231..5MT

ｱﾘ(ｷ- ﾌﾘ- ｼｽﾃﾑ)

 1
82131-97D53

S221,231..5MT

 1
82135-97514

S221,231..5MT

ｱﾘ(ｷ- ﾌﾘ- ｼｽﾃﾑ)

 1
82135-97D52

S221,231..5MT

Jﾊﾟﾂｹ-ｼﾞ

 1
82135-97513

S221,231..5MT

 1
82135-97D54

S221,231..5MT

 1
82131-97M85

S221,231..5MT

ｱﾘ(ｷ- ﾌﾘ- ｼｽﾃﾑ)

 1
82135-97D55

S221,231..5MT

ｱﾘ(ｷ- ﾌﾘ- ｼｽﾃﾑ)

 1
82151 - WIRE, FRONT DOOR, RH
82151-97506

S221,231

 1
82151-97510

S221,231..X

Jﾊﾟﾂｹ-ｼﾞ

 1
82151-97544

S221,231

 1
82152 - WIRE, FRONT DOOR, LH
82152-97520

S221,231

 1
82152-97521

S221,231..X

Jﾊﾟﾂｹ-ｼﾞ

 1
82153A - WIRE, REAR DOOR, RH
82153-97503

S221,231

 1
82154A - WIRE, REAR DOOR, LH
82154-97505

S221,231

 1
82161 - WIRE, FLOOR
82161-97D09

S221,231..5MT..X

ｱﾘ(ﾃﾞﾕｱﾙｴｱｺﾝ)

 1
82164-97D23

S221,231..5MT..X

 1
82161-97D12

S221,231..5MT..X

 1
82164-97D19

S221,231..5MT..X

ｱﾘ(ﾃﾞﾕｱﾙｴｱｺﾝ)

 1
82162-97D33

S221,231..5MT..HIR

 1
82162-97D28

S221,231..5MT..HIR

ｱﾘ(ﾃﾞﾕｱﾙｴｱｺﾝ)

 1
82162 - WIRE, FLOOR, NO.2
82162-97503

S221,231..X

ｱﾘ(ﾃﾞﾕｱﾙｴｱｺﾝ)

 1
82162-97D68

S221,231..X..HIR

ｱﾘ(ﾃﾞﾕｱﾙｴｱｺﾝ)

 1
82163 - WIRE, FLOOR, NO.3
82163-97501

S221,231..X

ｶﾝﾚｲﾁ ｼﾖｳ & ｱﾘ(ｴｱｺﾝ);ｱﾘ(ﾃﾞﾕｱﾙｴｱｺﾝ);ｶﾝﾚｲﾁ ｼﾖｳ

 1
82171 - WIRE, ROOF, NO.1
82171-97508

S221,231..HIR

ｱﾘ(ｻﾝﾙ-ﾌ)

 1
82171-97509

S221,231..HIR

 1
82184 - WIRE, BACK DOOR, NO.1
82184-97513

S221,231

 1
82185 - WIRE, BACK DOOR, NO.2
82185-97527

S221,231

 1
82185-97526

S221,231

ｱﾘ(ﾘﾔ ｽﾎﾟｲﾗ)

 1
82185-97528

S221,231..HIR

 1
82185-97523

S221,231..HIR

S ﾊﾟﾂｹ-ｼﾞ

 1
82185-97523

S221,231

ｱﾘ(ﾘﾔ ｽﾎﾟｲﾗ)

 1
82186 - WIRE, REAR WINDOW, NO.1
82186-97502

S221,231

 1
82187 - WIRE, REAR WINDOW, NO.2
82187-97502

S221,231

 1
82415 - WIRE, FUEL PUMP
82415-97501

S221,231

 1
86832A - WIRE, ACCESSORY SOCKET
86832-97501

S221,231

 1
Common parts
90119-06005
91651-40612
