S221E-ZMRF (2000)

Toyota Sparky

Production Sep 2000 - Mar 2003
Engine K3VE
Transmission 5MT MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0009- )

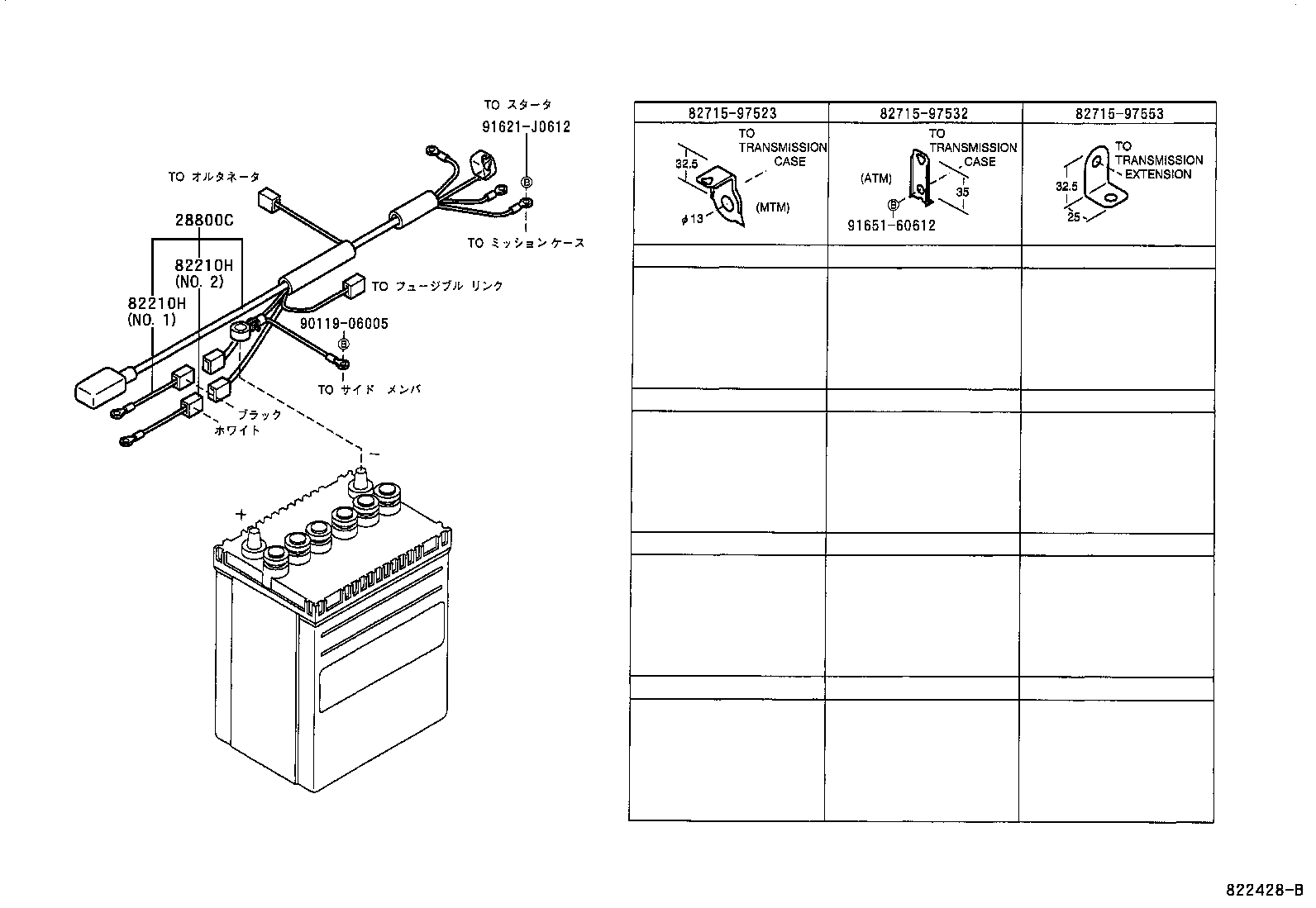

Click highlighted areas on diagram

diagram 28800C 82210H 82210H 8271597523 8271597532 8271597553 9011906005 91621J0612 9165160612
Part # Description Qty Price
28800C - CABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)
82122-97527

K3VE..S221,231..5MT

 1
82122-97560

K3VE..S221..5MT

 1
82122-97518

K3VE..S221,231..5MT

 1
82210H - FUSIBLE LINK
82661-97507

S221,231

NO.2

 1
90049-82067

S221,231

NO.1

 1
90049-82068

S221,231

NO.2

 1
82210H - FUSIBLE LINK
82661-97507

S221,231

NO.2

 1
90049-82067

S221,231

NO.1

 1
90049-82068

S221,231

NO.2

 1
Common parts
82715-97523
82715-97532
82715-97553
90119-06005
91621-J0612
91651-60612
