S221E-ZMRF (2000)
Toyota Sparky
Production
Sep 2000
-
Mar 2003
Engine
K3VE
Transmission
5MT MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0009- )

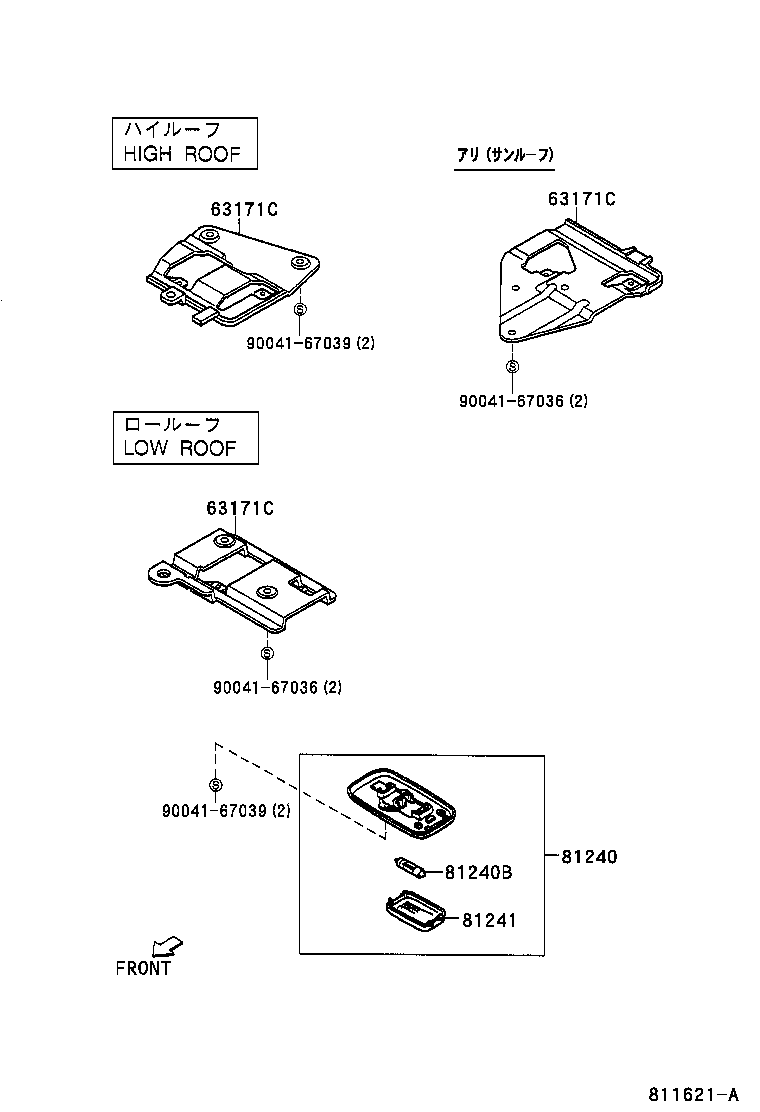

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63171C - BRACKET, ROOM LAMP | ||||
| 63171-97501 |
S221,231..HIR |
1 | ||
| 63171-97502 |
S221,231..HIR ｱﾘ(ｻﾝﾙ-ﾌ) |
1 | ||
| 63171C - BRACKET, ROOM LAMP | ||||
| 63171-97501 |
S221,231..HIR |
1 | ||
| 63171-97502 |
S221,231..HIR ｱﾘ(ｻﾝﾙ-ﾌ) |
1 | ||
| 63171C - BRACKET, ROOM LAMP | ||||
| 63171-97501 |
S221,231..HIR |
1 | ||
| 63171-97502 |
S221,231..HIR ｱﾘ(ｻﾝﾙ-ﾌ) |
1 | ||
| 81240 - LAMP ASSY, ROOM, NO.1 | ||||
| 81240-1205103 |
S221,231 GRAY |
1 | ||
| 81240B - BULB, ROOM LAMP, NO.1 | ||||
| 90981-14011 |
S221,231 12V 8W |
1 | ||
| 81241 - LENS, ROOM LAMP, NO.1 | ||||
| 81241-12020 |
S221,231 |
1 | ||
| Common parts | ||||
| 90041-67036 | ||||
| 90041-67039 | ||||
