S221E-ZMRF (2000)

Toyota Sparky

Production Sep 2000 - Mar 2003
Engine K3VE
Transmission 5MT MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0009- )

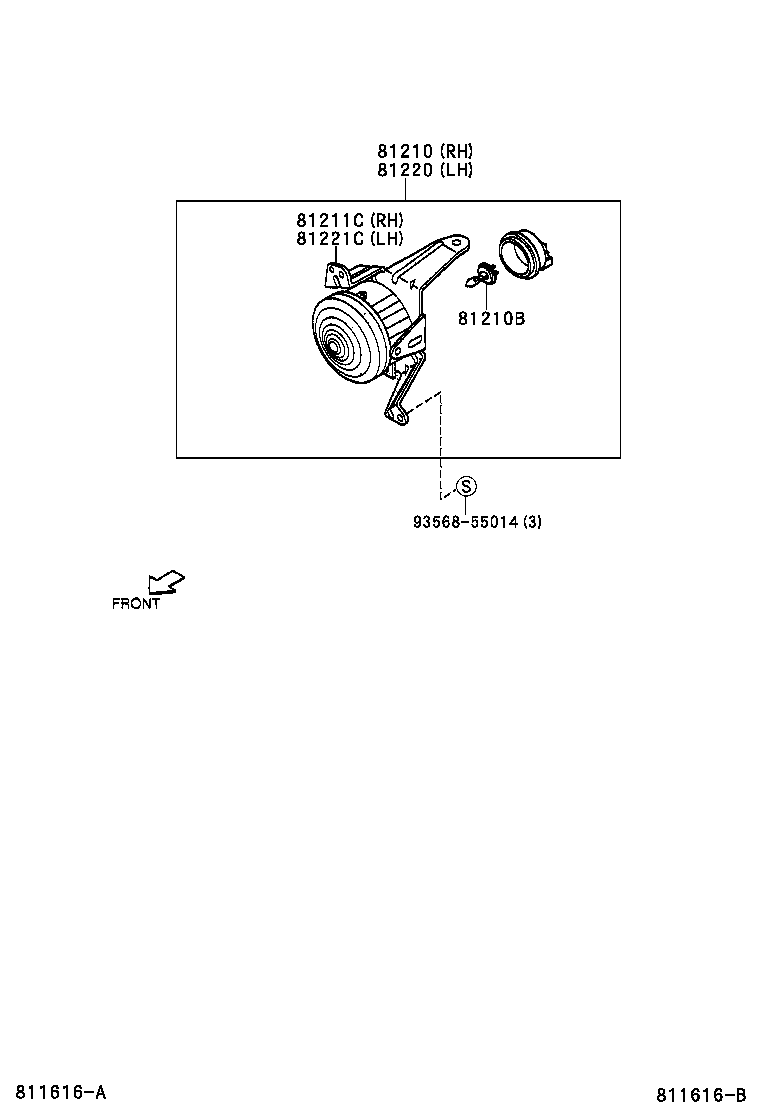

Click highlighted areas on diagram

diagram 81210 81210B 81211C 81220 81221C 9356855014
Part # Description Qty Price
81210 - LAMP ASSY, FOG
81210-97511

S221,231..X

S ﾊﾟﾂｹ-ｼﾞ

 1
81210-97506

S221,231..X

S ﾊﾟﾂｹ-ｼﾞ

 1
81210B - BULB, FOG LAMP
90049-51144

S221,231..X

12V 51W,S ﾊﾟﾂｹ-ｼﾞ

 2
81211C - LAMP UNIT, FOG LAMP, RH
81211-97501

S221,231..X

S ﾊﾟﾂｹ-ｼﾞ

 1
81211-97506

S221,231..X

S ﾊﾟﾂｹ-ｼﾞ

 1
81220 - LAMP ASSY, FOG, LH
81220-97510

S221,231..X

S ﾊﾟﾂｹ-ｼﾞ

 1
81220-97505

S221,231..X

S ﾊﾟﾂｹ-ｼﾞ

 1
81221C - LAMP UNIT, FOG LAMP, LH
81221-97501

S221,231..X

S ﾊﾟﾂｹ-ｼﾞ

 1
81221-97505

S221,231..X

S ﾊﾟﾂｹ-ｼﾞ

 1
Common parts
93568-55014
