S221E-ZMRF (2000)

Toyota Sparky

Production Sep 2000 - Mar 2003
Engine K3VE
Transmission 5MT MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0009- )

Click highlighted areas on diagram

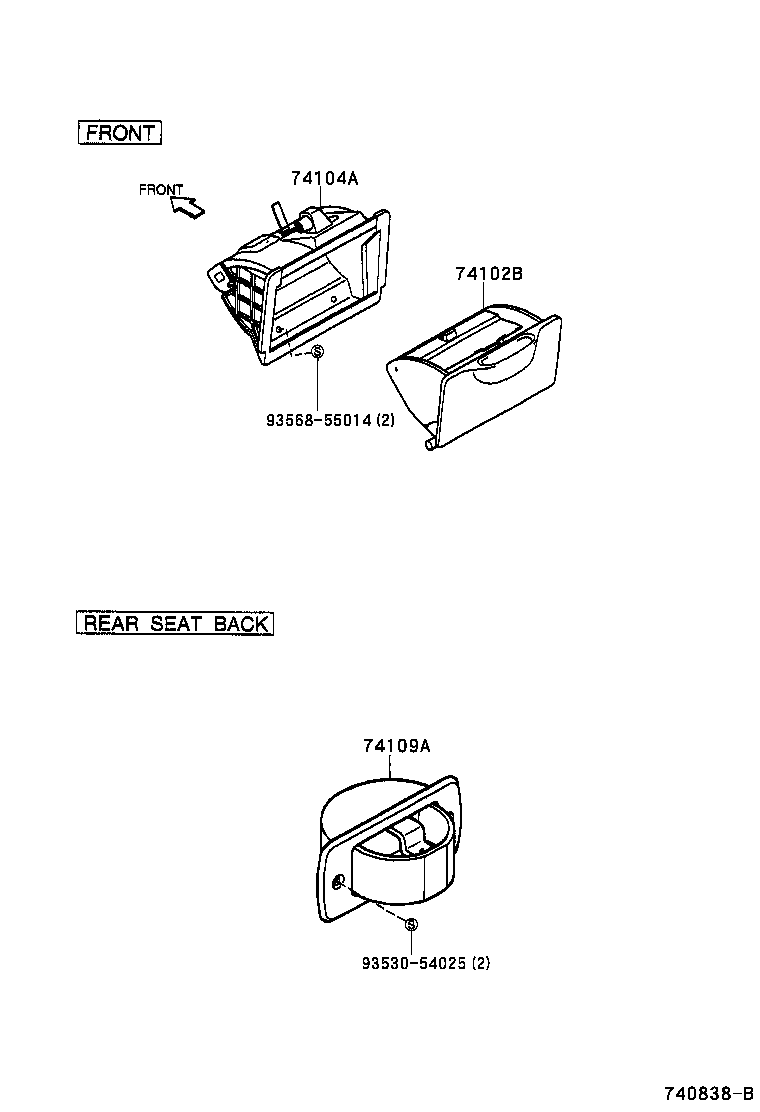

diagram 74102B 74104A 74109A 9353054025 9356855014
Part # Description Qty Price
74102B - BOX SUB-ASSY, FRONT ASH RECEPTACLE
74102-9750201

S221,231..X

BLACK

 1
74104A - RETAINER SUB-ASSY, FRONT ASH RECEPTACLE
74104-97501

S221,231

 1
74109A - BOX SUB-ASSY, ASH RECEPTACLE
74106-8720153

S221,231

DARK GRAY

 1
Common parts
93530-54025
93568-55014
