S221E-ZMRF (2000)
Toyota Sparky
Production
Sep 2000
-
Mar 2003
Engine
K3VE
Transmission
5MT MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0009- )

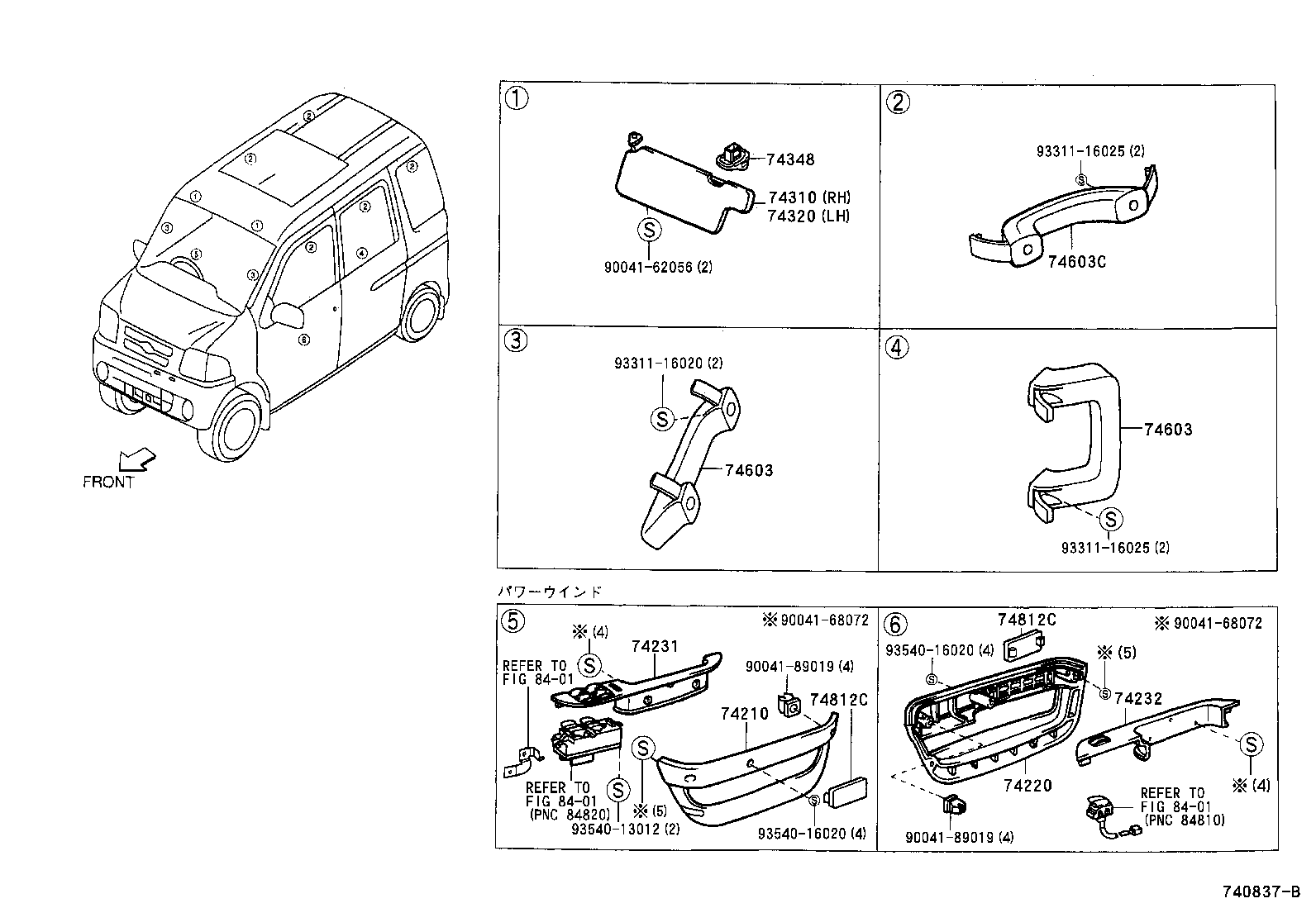

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74210 - ARMREST ASSY, FRONT, RH | ||||
| 74211-9750203 |
S221,231 GRAY |
1 | ||
| 74211-9750103 |
S221,231 GRAY |
1 | ||
| 74211-9750103 |
S221,231..X Jﾊﾟﾂｹ-ｼﾞ,GRAY |
1 | ||
| 74220 - ARMREST ASSY, FRONT, LH | ||||
| 74212-8750123 |
S221,231..X Jﾊﾟﾂｹ-ｼﾞ,GRAY |
1 | ||
| 74212-8750123 |
S221,231 GRAY |
1 | ||
| 74212-9750103 |
S221,231 GRAY |
1 | ||
| 74231 - PANEL, FRONT ARMREST BASE, UPPER RH | ||||
| 74221-9750503 |
S221,231..X ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),GRAY |
1 | ||
| 74221-9751003 |
S221,231..X GRAY |
1 | ||
| 74221-9750113 |
S221,231..X Jﾊﾟﾂｹ-ｼﾞ,GRAY |
1 | ||
| 74221-9750113 |
S221,231..X GRAY |
1 | ||
| 74221-9751103 |
S221,231..X..HIR ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),GRAY |
1 | ||
| 74232 - PANEL, FRONT ARMREST BASE, UPPER LH | ||||
| 74222-9750113 |
S221,231..X GRAY |
1 | ||
| 74222-9750113 |
S221,231..X Jﾊﾟﾂｹ-ｼﾞ,GRAY |
1 | ||
| 74222-9750703 |
S221,231..X GRAY |
1 | ||
| 74310 - VISOR ASSY, RH | ||||
| 74310-9751313 |
S221,231..X GRAY |
1 | ||
| 74310-9751903 |
S221,231 GRAY |
1 | ||
| 74320 - VISOR ASSY, LH | ||||
| 74320-9750423 |
S221,231..X GRAY |
1 | ||
| 74320-9750703 |
S221,231 GRAY |
1 | ||
| 74348 - HOLDER, VISOR | ||||
| 74348-9720123 |
S221,231 GRAY |
2 | ||
| 74603 - GRIP SUB-ASSY, ASSIST, FRONT | ||||
| 74610-9750103 |
S221,231 GRAY |
3 | ||
| 74603 - GRIP SUB-ASSY, ASSIST, FRONT | ||||
| 74610-9750103 |
S221,231 GRAY |
3 | ||
| 74603C - GRIP SUB-ASSY, ASSIST | ||||
| 74611-8720523 |
S221,231 GRAY |
5 | ||
| 74812C - COVER, DOOR PULL HANDLE | ||||
| 74812-9750103 |
S221,231 GRAY |
8 | ||
| 74812C - COVER, DOOR PULL HANDLE | ||||
| 74812-9750103 |
S221,231 GRAY |
8 | ||
| Common parts | ||||
| 90041-62056 | ||||
| 90041-68072 | ||||
| 90041-89019 | ||||
| 93311-16020 | ||||
| 93311-16025 | ||||
| 93540-13012 | ||||
| 93540-16020 | ||||
| Linked diagrams | ||||
| 8401 | ||||
