S221E-ZMRF (2000)
Toyota Sparky

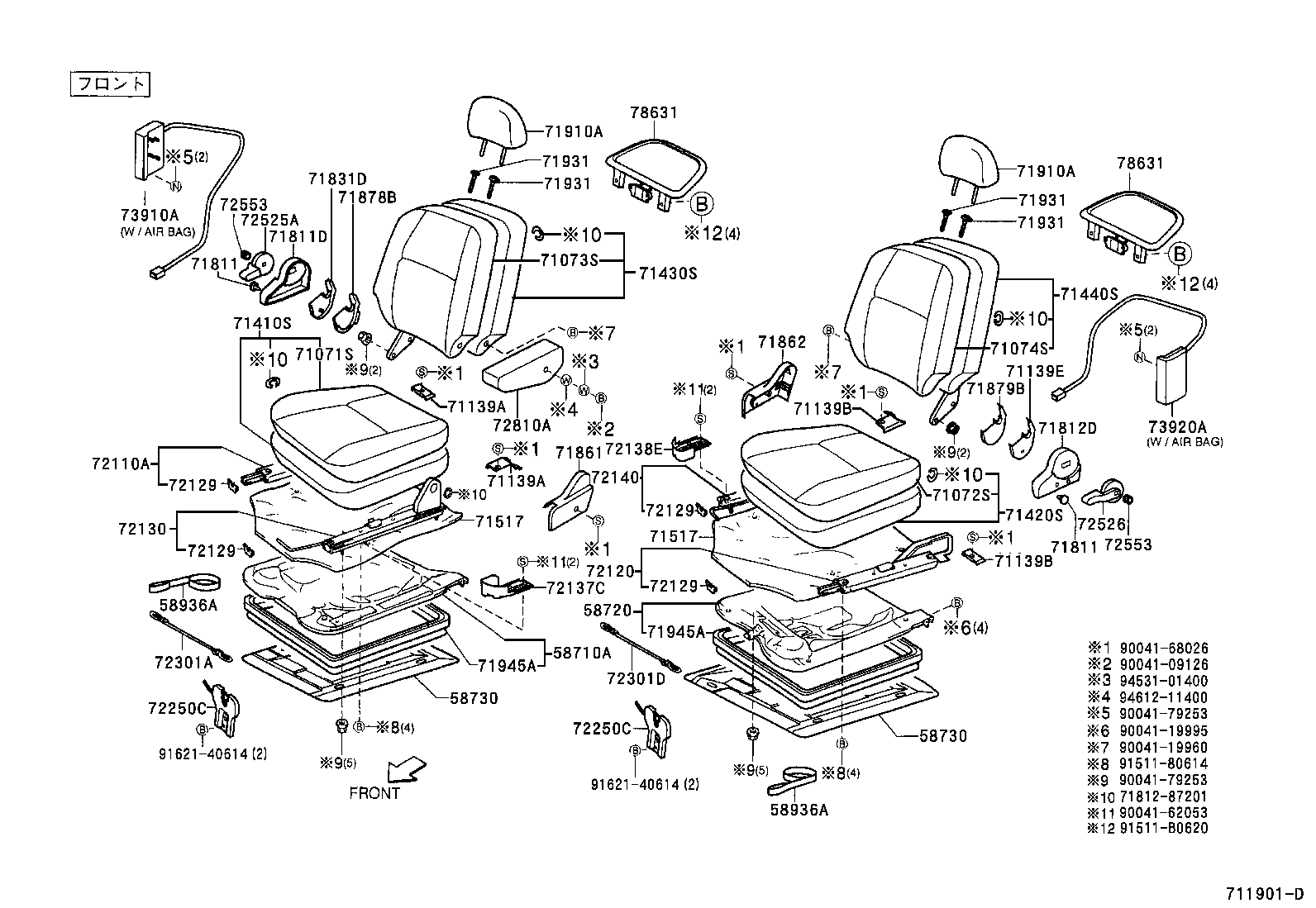

ILLUST NO. 1 OF 4(0009- )
ﾌﾛﾝﾄ ｼ-ﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58710A - COVER, ENGINE SERVICE HOLE, RH | ||||
| 58710-97505 |
S221,231 |
1 | ||
| 58710-97514 |
S221,231..G;S221,231..5MT..X..HIR ｱﾘ(*80,ｻｲﾄﾞ) |
1 | ||
| 58710-97513 |
S221,231 |
1 | ||
| 58710-97509 |
S221,231 ｱﾘ(ｷ- ﾌﾘ- ｼｽﾃﾑ) |
1 | ||
| 58710-97509 |
S221,231..X J ﾊﾟﾂｹ-ｼﾞ & ｱﾘ(ｷ- ﾌﾘ- ｼｽﾃﾑ) |
1 | ||
| 58710-97514 |
S221,231 ｱﾘ(ｷ- ﾌﾘ- ｼｽﾃﾑ) |
1 | ||
| 58710-97514 |
S221,231..(4AT,5MT)..X..HIR J ﾊﾟﾂｹ-ｼﾞ & ｱﾘ(ｷ- ﾌﾘ- ｼｽﾃﾑ) |
1 | ||
| 58720 - COVER, ENGINE SERVICE HOLE, LH | ||||
| 58720-97505 |
S221,231 |
1 | ||
| 58720-97515 |
S221,231 |
1 | ||
| 58720-97511 |
S221,231 ｱﾘ(ｷ- ﾌﾘ- ｼｽﾃﾑ) |
1 | ||
| 58720-97516 |
S221,231..G;S221,231..5MT..X..HIR ｱﾘ(*80,ｻｲﾄﾞ) |
1 | ||
| 58720-97511 |
S221,231..X J ﾊﾟﾂｹ-ｼﾞ & ｱﾘ(ｷ- ﾌﾘ- ｼｽﾃﾑ) |
1 | ||
| 58720-97516 |
S221,231 ｱﾘ(ｷ- ﾌﾘ- ｼｽﾃﾑ) |
1 | ||
| 58720-97516 |
S221,231..(4AT,5MT)..X..HIR J ﾊﾟﾂｹ-ｼﾞ & ｱﾘ(ｷ- ﾌﾘ- ｼｽﾃﾑ) |
1 | ||
| 58730 - COVER ASSY, ENGINE SERVICE, REAR | ||||
| 58735-97501 |
S221,231 右側 |
1 | ||
| 58736-97501 |
S221,231 左側 |
1 | ||
| 58730 - COVER ASSY, ENGINE SERVICE, REAR | ||||
| 58735-97501 |
S221,231 右側 |
1 | ||
| 58736-97501 |
S221,231 左側 |
1 | ||
| 58936A - BAND, ENGINE SERVICE HOLE COVER SUPPORT | ||||
| 58936-97502 |
S221,231 |
2 | ||
| 58936A - BAND, ENGINE SERVICE HOLE COVER SUPPORT | ||||
| 58936-97502 |
S221,231 |
2 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-9754503 |
S221,231..5MT ｱﾘ(ｷ- ﾌﾘ- ｼｽﾃﾑ),GRAY |
1 | ||
| 71071-9754403 |
S221,231..5MT GRAY |
1 | ||
| 71071-9757803 |
S221,231..5MT..X J ﾊﾟﾂｹ-ｼﾞ & ｱﾘ(ｷ- ﾌﾘ- ｼｽﾃﾑ),GRAY |
1 | ||
| 71071-9754503 |
S221,231..5MT..X J ﾊﾟﾂｹ-ｼﾞ & ｱﾘ(ｷ- ﾌﾘ- ｼｽﾃﾑ),GRAY |
1 | ||
| 71071-9757803 |
S221,231..5MT ｱﾘ(ｷ- ﾌﾘ- ｼｽﾃﾑ),GRAY |
1 | ||
| 71071-9757703 |
S221,231..5MT GRAY |
1 | ||
| 71071-97D1401 |
S221,231..5MT ｱﾘ(ｷ- ﾌﾘ- ｼｽﾃﾑ),BLACK |
1 | ||
| 71071-97D1301 |
S221,231..5MT BLACK |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-9754103 |
S221,231..5MT ｱﾘ(ｷ- ﾌﾘ- ｼｽﾃﾑ),GRAY |
1 | ||
| 71072-9754003 |
S221,231..5MT GRAY |
1 | ||
| 71072-9757503 |
S221,231..5MT ｱﾘ(ｷ- ﾌﾘ- ｼｽﾃﾑ),GRAY |
1 | ||
| 71072-9754103 |
S221,231..5MT..X J ﾊﾟﾂｹ-ｼﾞ & ｱﾘ(ｷ- ﾌﾘ- ｼｽﾃﾑ),GRAY |
1 | ||
| 71072-9757503 |
S221,231..5MT..X J ﾊﾟﾂｹ-ｼﾞ & ｱﾘ(ｷ- ﾌﾘ- ｼｽﾃﾑ),GRAY |
1 | ||
| 71072-9757403 |
S221,231..5MT GRAY |
1 | ||
| 71072-97D0601 |
S221,231..5MT ｱﾘ(ｷ- ﾌﾘ- ｼｽﾃﾑ),BLACK |
1 | ||
| 71072-97D0501 |
S221,231..5MT BLACK |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-9755303 |
S221,231..5MT GRAY |
1 | ||
| 71073-97D0501 |
S221,231..5MT BLACK |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-9754703 |
S221,231..5MT GRAY |
1 | ||
| 71074-97D1301 |
S221,231..HIR BLACK |
1 | ||
| 71074-97D2901 |
S221,231..X..HIR Jﾊﾟﾂｹ-ｼﾞ,BLACK |
1 | ||
| 71074-9758803 |
S221,231 GRAY |
1 | ||
| 71074-9756403 |
S221,231..X Jﾊﾟﾂｹ-ｼﾞ,GRAY |
1 | ||
| 71139A - COVER, FRONT SEAT LEG, NO.1 | ||||
| 71139-9750103 |
S221,231 GRAY,内側 |
1 | ||
| C7198-9750103 |
S221,231 GRAY,外側 |
1 | ||
| 71139A - COVER, FRONT SEAT LEG, NO.1 | ||||
| 71139-9750103 |
S221,231 GRAY,内側 |
1 | ||
| C7198-9750103 |
S221,231 GRAY,外側 |
1 | ||
| 71139B - COVER, FRONT SEAT LEG, NO.2 | ||||
| C7198-9750103 |
S221,231 GRAY,外側 |
1 | ||
| 71149-9750103 |
S221,231 GRAY,内側 |
1 | ||
| 71139B - COVER, FRONT SEAT LEG, NO.2 | ||||
| C7198-9750103 |
S221,231 GRAY,外側 |
1 | ||
| 71149-9750103 |
S221,231 GRAY,内側 |
1 | ||
| 71139E - COVER, FRONT SEAT LEG NO.2 | ||||
| 71832-9750203 |
S221,231 GRAY |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71510-9754403 |
S221,231..5MT GRAY |
1 | ||
| 71510-9758503 |
S221,231..5MT GRAY |
1 | ||
| 71510-9754503 |
S221,231..5MT..X J ﾊﾟﾂｹ-ｼﾞ & ｱﾘ(ｷ- ﾌﾘ- ｼｽﾃﾑ),GRAY |
1 | ||
| 71510-9758603 |
S221,231..5MT..X J ﾊﾟﾂｹ-ｼﾞ & ｱﾘ(ｷ- ﾌﾘ- ｼｽﾃﾑ),GRAY |
1 | ||
| 71510-9758603 |
S221,231..5MT ｱﾘ(ｷ- ﾌﾘ- ｼｽﾃﾑ),GRAY |
1 | ||
| 71510-9754503 |
S221,231..5MT ｱﾘ(ｷ- ﾌﾘ- ｼｽﾃﾑ),GRAY |
1 | ||
| 71510-97D2901 |
S221,231..5MT BLACK |
1 | ||
| 71510-97D3001 |
S221,231..5MT ｱﾘ(ｷ- ﾌﾘ- ｼｽﾃﾑ),BLACK |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71520-9754403 |
S221,231..5MT GRAY |
1 | ||
| 71520-9754503 |
S221,231..5MT..X J ﾊﾟﾂｹ-ｼﾞ & ｱﾘ(ｷ- ﾌﾘ- ｼｽﾃﾑ),GRAY |
1 | ||
| 71520-9759103 |
S221,231..5MT..X J ﾊﾟﾂｹ-ｼﾞ & ｱﾘ(ｷ- ﾌﾘ- ｼｽﾃﾑ),GRAY |
1 | ||
| 71520-9759103 |
S221,231..5MT ｱﾘ(ｷ- ﾌﾘ- ｼｽﾃﾑ),GRAY |
1 | ||
| 71520-9754503 |
S221,231..5MT ｱﾘ(ｷ- ﾌﾘ- ｼｽﾃﾑ),GRAY |
1 | ||
| 71420-9752001 |
S221,231..5MT BLACK |
1 | ||
| 71520-9759003 |
S221,231..5MT GRAY |
1 | ||
| 71420-9752101 |
S221,231..5MT ｱﾘ(ｷ- ﾌﾘ- ｼｽﾃﾑ),BLACK |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71530-9755803 |
S221,231..5MT GRAY |
1 | ||
| 71530-97D3103 |
S221,231..5MT ｱﾘ(ｼ-ﾄﾊﾞﾂｸ ﾃ-ﾌﾞﾙ),GRAY |
1 | ||
| 71530-97D3203 |
S221,231..5MT ｱﾘ(ｷ- ﾌﾘ- ｼｽﾃﾑ & ｼ-ﾄﾊﾞﾂｸ ﾃ-ﾌﾞﾙ),GRAY |
1 | ||
| 71530-97D3103 |
S221,231..5MT..X J ﾊﾟﾂｹ-ｼﾞ & ｱﾘ(ｼ-ﾄﾊﾞﾂｸ ﾃ-ﾌﾞﾙ),GRAY |
1 | ||
| 71530-97D4503 |
S221,231..5MT ｱﾘ(ｷ- ﾌﾘ- ｼｽﾃﾑ),GRAY |
1 | ||
| 71430-9756601 |
S221,231..5MT ｱﾘ(ｷ- ﾌﾘ- ｼｽﾃﾑ & ｼ-ﾄﾊﾞﾂｸ ﾃ-ﾌﾞﾙ),BLACK |
1 | ||
| 71430-9756501 |
S221,231..5MT ｱﾘ(ｼ-ﾄﾊﾞﾂｸ ﾃ-ﾌﾞﾙ);J ﾊﾟﾂｹ-ｼﾞ & ｱﾘ(ｼ-ﾄﾊﾞﾂｸ ﾃ-ﾌﾞﾙ),BLACK |
1 | ||
| 71530-97D4503 |
S221,231..5MT..X J ﾊﾟﾂｹ-ｼﾞ & ｱﾘ(ｷ- ﾌﾘ- ｼｽﾃﾑ),GRAY |
1 | ||
| 71530-9755903 |
S221,231..5MT ｱﾘ(ｷ- ﾌﾘ- ｼｽﾃﾑ),GRAY |
1 | ||
| 71530-97D3203 |
S221,231..5MT..X J ﾊﾟﾂｹ-ｼﾞ & ｱﾘ(ｷ- ﾌﾘ- ｼｽﾃﾑ & ｼ-ﾄﾊﾞﾂｸ ﾃ-ﾌﾞﾙ),GRAY |
1 | ||
| 71430-9756101 |
S221,231..5MT BLACK |
1 | ||
| 71430-9756201 |
S221,231..5MT ｱﾘ(ｷ- ﾌﾘ- ｼｽﾃﾑ),BLACK |
1 | ||
| 71530-97D4603 |
S221,231..5MT GRAY |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71540-9755303 |
S221,231..5MT GRAY |
1 | ||
| 71540-9757503 |
S221,231..5MT..X Jﾊﾟﾂｹ-ｼﾞ,GRAY |
1 | ||
| 71540-97D2603 |
S221,231 ｱﾘ(ｼ-ﾄﾊﾞﾂｸ ﾃ-ﾌﾞﾙ),GRAY |
1 | ||
| 71540-9755403 |
S221,231..5MT ｱﾘ(ｷ- ﾌﾘ- ｼｽﾃﾑ),GRAY |
1 | ||
| 71540-97D2703 |
S221,231 ｱﾘ(ｷ- ﾌﾘ- ｼｽﾃﾑ & ｼ-ﾄﾊﾞﾂｸ ﾃ-ﾌﾞﾙ),GRAY |
1 | ||
| 71540-97D2803 |
S221,231..X J ﾊﾟﾂｹ-ｼﾞ & ｱﾘ(ｼ-ﾄﾊﾞﾂｸ ﾃ-ﾌﾞﾙ),GRAY |
1 | ||
| 71540-97D5403 |
S221,231 GRAY |
1 | ||
| 71540-97D5503 |
S221,231..X Jﾊﾟﾂｹ-ｼﾞ,GRAY |
1 | ||
| 71540-97D5203 |
S221,231 ｱﾘ(ｷ- ﾌﾘ- ｼｽﾃﾑ),GRAY |
1 | ||
| 71540-97D2903 |
S221,231..X J ﾊﾟﾂｹ-ｼﾞ & ｱﾘ(ｷ- ﾌﾘ- ｼｽﾃﾑ & ｼ-ﾄﾊﾞﾂｸ ﾃ-ﾌﾞﾙ),GRAY |
1 | ||
| 71540-9757603 |
S221,231..X J ﾊﾟﾂｹ-ｼﾞ & ｱﾘ(ｷ- ﾌﾘ- ｼｽﾃﾑ),GRAY |
1 | ||
| 71440-9755801 |
S221,231..HIR ｱﾘ(ｼ-ﾄﾊﾞﾂｸ ﾃ-ﾌﾞﾙ),BLACK |
1 | ||
| 71440-9755401 |
S221,231..HIR ｱﾘ(ｷ- ﾌﾘ- ｼｽﾃﾑ),BLACK |
1 | ||
| 71440-9755301 |
S221,231..HIR BLACK |
1 | ||
| 71540-97D5303 |
S221,231..X J ﾊﾟﾂｹ-ｼﾞ & ｱﾘ(ｷ- ﾌﾘ- ｼｽﾃﾑ),GRAY |
1 | ||
| 71440-9755901 |
S221,231..HIR ｱﾘ(ｷ- ﾌﾘ- ｼｽﾃﾑ & ｼ-ﾄﾊﾞﾂｸ ﾃ-ﾌﾞﾙ),BLACK |
1 | ||
| 71440-9758501 |
S221,231..X..HIR J ﾊﾟﾂｹ-ｼﾞ & ｱﾘ(ｼ-ﾄﾊﾞﾂｸ ﾃ-ﾌﾞﾙ),BLACK |
1 | ||
| 71440-9758401 |
S221,231..X..HIR Jﾊﾟﾂｹ-ｼﾞ,BLACK |
1 | ||
| 71517 - CLOTH, FRONT SEAT CUSHION UNDER | ||||
| 58531-9755703 |
S221,231..5MT ｱﾘ(ｷ- ﾌﾘ- ｼｽﾃﾑ),GRAY,右側 |
1 | ||
| 58531-9754203 |
S221,231..5MT..X ｱﾘ(ｷ- ﾌﾘ- ｼｽﾃﾑ),GRAY,右側 |
1 | ||
| 58532-9754803 |
S221,231..5MT..X ｱﾘ(ｷ- ﾌﾘ- ｼｽﾃﾑ),GRAY,左側 |
1 | ||
| 58532-9754603 |
S221,231..5MT..X GRAY,左側 |
1 | ||
| 58531-9754003 |
S221,231..5MT..X GRAY,右側 |
1 | ||
| 58531-9755703 |
S221,231..5MT..X J ﾊﾟﾂｹ-ｼﾞ & ｱﾘ(ｷ- ﾌﾘ- ｼｽﾃﾑ),GRAY,右側 |
1 | ||
| 58532-9755903 |
S221,231..5MT GRAY,左側 |
1 | ||
| 58531-9755303 |
S221,231..5MT GRAY,右側 |
1 | ||
| 58532-9756303 |
S221,231..5MT ｱﾘ(*80,ｻｲﾄﾞ),GRAY,左側 |
1 | ||
| 58531-9757303 |
S221,231..5MT ｱﾘ(ｷ- ﾌﾘ- ｼｽﾃﾑ);ｱﾘ(ｷ- ﾌﾘ- ｼｽﾃﾑ & ｼ-ﾄﾊﾞﾂｸ ﾃ-ﾌﾞﾙ),GRAY,右側 |
1 | ||
| 58532-9756303 |
S221,231..5MT..X J ﾊﾟﾂｹ-ｼﾞ & ｱﾘ(ｷ- ﾌﾘ- ｼｽﾃﾑ),GRAY,左側 |
1 | ||
| 58531-9757103 |
S221,231..5MT GRAY,右側 |
1 | ||
| 58532-9758003 |
S221,231..5MT ｱﾘ(ｷ- ﾌﾘ- ｼｽﾃﾑ);ｱﾘ(ｷ- ﾌﾘ- ｼｽﾃﾑ & ｼ-ﾄﾊﾞﾂｸ ﾃ-ﾌﾞﾙ),GRAY,左側 |
1 | ||
| 58532-9757803 |
S221,231..5MT GRAY,左側 |
1 | ||
| 71517 - CLOTH, FRONT SEAT CUSHION UNDER | ||||
| 58531-9755703 |
S221,231..5MT ｱﾘ(ｷ- ﾌﾘ- ｼｽﾃﾑ),GRAY,右側 |
1 | ||
| 58531-9754203 |
S221,231..5MT..X ｱﾘ(ｷ- ﾌﾘ- ｼｽﾃﾑ),GRAY,右側 |
1 | ||
| 58532-9754803 |
S221,231..5MT..X ｱﾘ(ｷ- ﾌﾘ- ｼｽﾃﾑ),GRAY,左側 |
1 | ||
| 58532-9754603 |
S221,231..5MT..X GRAY,左側 |
1 | ||
| 58531-9754003 |
S221,231..5MT..X GRAY,右側 |
1 | ||
| 58531-9755703 |
S221,231..5MT..X J ﾊﾟﾂｹ-ｼﾞ & ｱﾘ(ｷ- ﾌﾘ- ｼｽﾃﾑ),GRAY,右側 |
1 | ||
| 58532-9755903 |
S221,231..5MT GRAY,左側 |
1 | ||
| 58531-9755303 |
S221,231..5MT GRAY,右側 |
1 | ||
| 58532-9756303 |
S221,231..5MT ｱﾘ(*80,ｻｲﾄﾞ),GRAY,左側 |
1 | ||
| 58531-9757303 |
S221,231..5MT ｱﾘ(ｷ- ﾌﾘ- ｼｽﾃﾑ);ｱﾘ(ｷ- ﾌﾘ- ｼｽﾃﾑ & ｼ-ﾄﾊﾞﾂｸ ﾃ-ﾌﾞﾙ),GRAY,右側 |
1 | ||
| 58532-9756303 |
S221,231..5MT..X J ﾊﾟﾂｹ-ｼﾞ & ｱﾘ(ｷ- ﾌﾘ- ｼｽﾃﾑ),GRAY,左側 |
1 | ||
| 58531-9757103 |
S221,231..5MT GRAY,右側 |
1 | ||
| 58532-9758003 |
S221,231..5MT ｱﾘ(ｷ- ﾌﾘ- ｼｽﾃﾑ);ｱﾘ(ｷ- ﾌﾘ- ｼｽﾃﾑ & ｼ-ﾄﾊﾞﾂｸ ﾃ-ﾌﾞﾙ),GRAY,左側 |
1 | ||
| 58532-9757803 |
S221,231..5MT GRAY,左側 |
1 | ||
| 71811 - FASTENER, SEAT COVER | ||||
| 90044-6816543 |
S221,231..HIR GRAY,ﾘﾔ NO.1 ｼｰﾄ |
6 | ||
| 90044-68061A3 |
S221,231 GRAY,ﾌﾛﾝﾄ ｼｰﾄ |
2 | ||
| 71811 - FASTENER, SEAT COVER | ||||
| 90044-6816543 |
S221,231..HIR GRAY,ﾘﾔ NO.1 ｼｰﾄ |
6 | ||
| 90044-68061A3 |
S221,231 GRAY,ﾌﾛﾝﾄ ｼｰﾄ |
2 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-9750403 |
S221,231..G;S221,231..5MT..X ｱﾘ(*80,ｻｲﾄﾞ & ｼ-ﾄﾊﾞﾂｸ ﾃ-ﾌﾞﾙ),GRAY |
1 | ||
| 71811-9750113 |
S221,231 GRAY |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-9750113 |
S221,231..ATM;S221,231..5MT..X GRAY |
1 | ||
| 71812-9750403 |
S221,231..G;S221,231..5MT..X ｱﾘ(*80,ｻｲﾄﾞ & ｼ-ﾄﾊﾞﾂｸ ﾃ-ﾌﾞﾙ),GRAY |
1 | ||
| 71831D - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-8720101 |
S221,231 BLACK,ﾘﾔ NO.1 ｼｰﾄ |
1 | ||
| 71831-9750203 |
S221,231 GRAY,ﾌﾛﾝﾄ ｼｰﾄ |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 72265-9750103 |
S221,231 GRAY |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 72266-9750103 |
S221,231 GRAY |
1 | ||
| 71878B - COVER, REAR SEAT RECLINING, INNER RH | ||||
| 71875-9750303 |
S221,231..HIR GRAY,ﾘﾔ NO.1 ｼｰﾄ |
1 | ||
| 71875-9750403 |
S221,231 GRAY,ﾌﾛﾝﾄ ｼｰﾄ |
1 | ||
| 71879B - COVER, REAR SEAT RECLINING, INNER LH | ||||
| 71876-9750303 |
S221,231 GRAY,ﾌﾛﾝﾄ ｼｰﾄ |
1 | ||
| 71876-9750203 |
S221,231..HIR GRAY,ﾘﾔ NO.1 ｼｰﾄ |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-9751703 |
S221,231 GRAY |
2 | ||
| 71910-9752701 |
S221,231 BLACK |
2 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-9751703 |
S221,231 GRAY |
2 | ||
| 71910-9752701 |
S221,231 BLACK |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-9720223 |
S221,231 ﾛｯｸ付,GRAY |
6 | ||
| 71930-9720143 |
S221,231 ﾛｯｸ付,GRAY |
6 | ||
| 71931-9720223 |
S221,231 ﾛｯｸ無,GRAY |
6 | ||
| 71931-9720143 |
S221,231 ﾛｯｸ無,GRAY |
6 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-9720223 |
S221,231 ﾛｯｸ付,GRAY |
6 | ||
| 71930-9720143 |
S221,231 ﾛｯｸ付,GRAY |
6 | ||
| 71931-9720223 |
S221,231 ﾛｯｸ無,GRAY |
6 | ||
| 71931-9720143 |
S221,231 ﾛｯｸ無,GRAY |
6 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-9720223 |
S221,231 ﾛｯｸ付,GRAY |
6 | ||
| 71930-9720143 |
S221,231 ﾛｯｸ付,GRAY |
6 | ||
| 71931-9720223 |
S221,231 ﾛｯｸ無,GRAY |
6 | ||
| 71931-9720143 |
S221,231 ﾛｯｸ無,GRAY |
6 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-9720223 |
S221,231 ﾛｯｸ付,GRAY |
6 | ||
| 71930-9720143 |
S221,231 ﾛｯｸ付,GRAY |
6 | ||
| 71931-9720223 |
S221,231 ﾛｯｸ無,GRAY |
6 | ||
| 71931-9720143 |
S221,231 ﾛｯｸ無,GRAY |
6 | ||
| 71945A - PACKING, ENGINE SERVICE HOLE COVER | ||||
| 71945-97503 |
S221,231 左側 |
1 | ||
| 71945-97502 |
S221,231 右側 |
1 | ||
| 71945A - PACKING, ENGINE SERVICE HOLE COVER | ||||
| 71945-97503 |
S221,231 左側 |
1 | ||
| 71945-97502 |
S221,231 右側 |
1 | ||
| 72110A - TRACK ASSY, FRONT SEAT, OUTER RH | ||||
| 72110-97504 |
S221,231 |
1 | ||
| 72120 - TRACK ASSY, FRONT SEAT, OUTER LH | ||||
| 72120-97503 |
S221,231 |
1 | ||
| 72120-97509 |
S221,231 |
1 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72137-97501 |
S221,231 内側 |
2 | ||
| 72137-97502 |
S221,231 外側 |
2 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72137-97501 |
S221,231 内側 |
2 | ||
| 72137-97502 |
S221,231 外側 |
2 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72137-97501 |
S221,231 内側 |
2 | ||
| 72137-97502 |
S221,231 外側 |
2 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72137-97501 |
S221,231 内側 |
2 | ||
| 72137-97502 |
S221,231 外側 |
2 | ||
| 72130 - TRACK ASSY, RH SEAT, INNER | ||||
| 72130-97504 |
S221,231 |
1 | ||
| 72130-97506 |
S221,231 |
1 | ||
| 72137C - COVER, SEAT TRACK INNER, RH | ||||
| 72137-97503 |
S221,231 |
1 | ||
| 72138E - COVER, SEAT TRACK, INNER LH | ||||
| 72138-97501 |
S221,231 |
1 | ||
| 72140 - TRACK ASSY, LH SEAT, INNER | ||||
| 72140-97506 |
S221,231 |
1 | ||
| 72140-97503 |
S221,231 |
1 | ||
| 72250C - LOCK ASSY, FRONT SEAT | ||||
| 59260-97502 |
S221,231 |
2 | ||
| 72250C - LOCK ASSY, FRONT SEAT | ||||
| 59260-97502 |
S221,231 |
2 | ||
| 72301A - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH | ||||
| 72301-97502 |
S221,231 |
1 | ||
| 72301D - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, LH | ||||
| 72301-97502 |
S221,231 |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72527-9750113 |
S221,231 GRAY |
1 | ||
| 72527-9750313 |
S221,231 GRAY |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72527-9750113 |
S221,231 GRAY |
1 | ||
| 72527-9750313 |
S221,231 GRAY |
1 | ||
| 72553 - COVER, RECLINING PEDAL | ||||
| 71875-9750103 |
S221,231 GRAY |
2 | ||
| 71875-9750513 |
S221,231 GRAY |
2 | ||
| 72553 - COVER, RECLINING PEDAL | ||||
| 71875-9750103 |
S221,231 GRAY |
2 | ||
| 71875-9750513 |
S221,231 GRAY |
2 | ||
| 73910A - AIR BAG ASSY, FRONT SEAT, RH | ||||
| 73910-97502 |
S221,231..5MT ｱﾘ(*80,ｻｲﾄﾞ & ｼ-ﾄﾊﾞﾂｸ ﾃ-ﾌﾞﾙ) |
1 | ||
| 73920A - AIR BAG ASSY, FRONT SEAT, LH | ||||
| 73920-97502 |
S221,231..5MT ｱﾘ(*80,ｻｲﾄﾞ & ｼ-ﾄﾊﾞﾂｸ ﾃ-ﾌﾞﾙ) |
1 | ||
| 78631 - TABLE, FRONT SEAT SIDE | ||||
| 55270-9750103 |
S221,231 GRAY |
2 | ||
| 78631 - TABLE, FRONT SEAT SIDE | ||||
| 55270-9750103 |
S221,231 GRAY |
2 | ||
| Common parts | ||||
| 71812-87201 | ||||
| 90041-09126 | ||||
| 90041-19960 | ||||
| 90041-19995 | ||||
| 90041-62053 | ||||
| 90041-68026 | ||||
| 90041-79253 | ||||
| 91511-80614 | ||||
| 91511-B0620 | ||||
| 91621-40614 | ||||
| 94531-01400 | ||||
| 94612-11400 | ||||

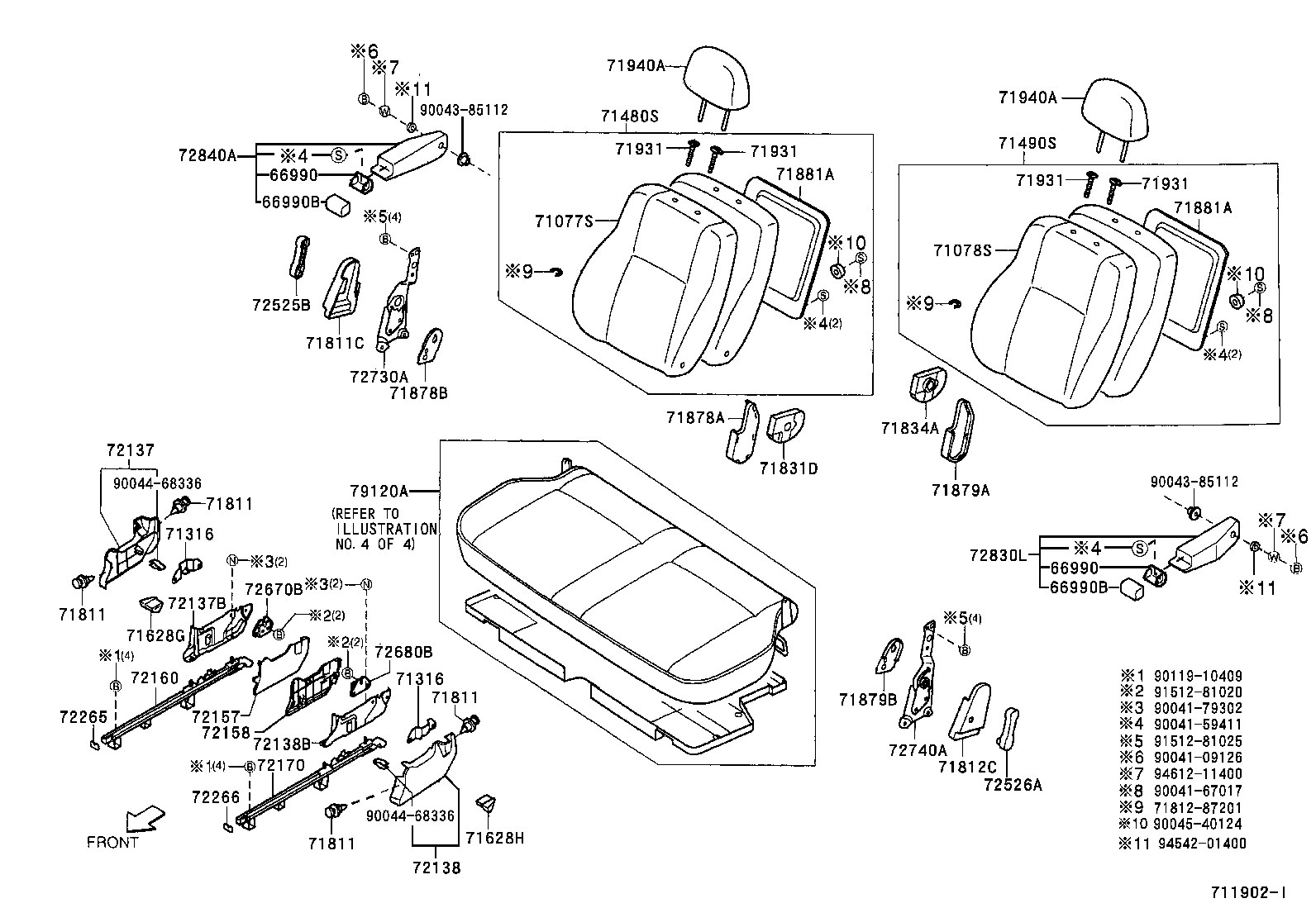

ILLUST NO. 2 OF 4(0009- )HIR
ﾘﾔ ｼ-ﾄ NO.1 ｼ-ﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 66990 - HOLDER ASSY, CUP | ||||
| 66991-97502 |
S221,231..HIR |
2 | ||
| 66990 - HOLDER ASSY, CUP | ||||
| 66991-97502 |
S221,231..HIR |
2 | ||
| 66990B - HOLDER ASSY, CUP, NO.2 RH | ||||
| 66992-97501 |
S221,231..HIR |
2 | ||
| 66990B - HOLDER ASSY, CUP, NO.2 RH | ||||
| 66992-97501 |
S221,231..HIR |
2 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-9752603 |
S221,231..X Jﾊﾟﾂｹ-ｼﾞ,GRAY |
1 | ||
| 71077-9752503 |
S221,231 GRAY |
1 | ||
| 71077-9754801 |
S221,231..X..HIR Jﾊﾟﾂｹ-ｼﾞ,BLACK |
1 | ||
| 71077-9754501 |
S221,231..HIR BLACK |
1 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-9753801 |
S221,231..X..HIR Jﾊﾟﾂｹ-ｼﾞ,BLACK |
1 | ||
| 71078-9752203 |
S221,231 GRAY |
1 | ||
| 71078-9753501 |
S221,231..HIR BLACK |
1 | ||
| 71078-9752303 |
S221,231..X Jﾊﾟﾂｹ-ｼﾞ,GRAY |
1 | ||
| 71316 - BRACKET, REAR SEAT SUPPORT | ||||
| 71237-97501 |
S221,231..HIR 右側 |
1 | ||
| 71239-97501 |
S221,231..HIR 左側 |
1 | ||
| 71237-97503 |
S221,231..X..HIR Jﾊﾟﾂｹ-ｼﾞ,右側 |
1 | ||
| 71316 - BRACKET, REAR SEAT SUPPORT | ||||
| 71237-97501 |
S221,231..HIR 右側 |
1 | ||
| 71239-97501 |
S221,231..HIR 左側 |
1 | ||
| 71237-97503 |
S221,231..X..HIR Jﾊﾟﾂｹ-ｼﾞ,右側 |
1 | ||
| 71480S - BACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE) | ||||
| 71580-9753103 |
S221,231 GRAY |
1 | ||
| 71580-9756201 |
S221,231..HIR BLACK |
1 | ||
| 71580-9756601 |
S221,231..X..HIR Jﾊﾟﾂｹ-ｼﾞ,BLACK |
1 | ||
| 71580-9754303 |
S221,231 GRAY |
1 | ||
| 71580-9753303 |
S221,231..X Jﾊﾟﾂｹ-ｼﾞ,GRAY |
1 | ||
| 71490S - BACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71490-9754103 |
S221,231 GRAY |
1 | ||
| 71490-9756801 |
S221,231..X..HIR Jﾊﾟﾂｹ-ｼﾞ,BLACK |
1 | ||
| 71490-9752903 |
S221,231 GRAY |
1 | ||
| 71490-9756501 |
S221,231..HIR BLACK |
1 | ||
| 71490-9753203 |
S221,231..X Jﾊﾟﾂｹ-ｼﾞ,GRAY |
1 | ||
| 71628G - SPACER, REAR SEAT CUSHION, RH | ||||
| 71628-97501 |
S221,231..HIR 右側 |
1 | ||
| 71628H - SPACER, REAR SEAT CUSHION, LH | ||||
| 71628-97502 |
S221,231..HIR 左側 |
1 | ||
| 71811 - FASTENER, SEAT COVER | ||||
| 90044-6816543 |
S221,231..HIR GRAY,ﾘﾔ NO.1 ｼｰﾄ |
6 | ||
| 90044-68061A3 |
S221,231 GRAY,ﾌﾛﾝﾄ ｼｰﾄ |
2 | ||
| 71811 - FASTENER, SEAT COVER | ||||
| 90044-6816543 |
S221,231..HIR GRAY,ﾘﾔ NO.1 ｼｰﾄ |
6 | ||
| 90044-68061A3 |
S221,231 GRAY,ﾌﾛﾝﾄ ｼｰﾄ |
2 | ||
| 71811 - FASTENER, SEAT COVER | ||||
| 90044-6816543 |
S221,231..HIR GRAY,ﾘﾔ NO.1 ｼｰﾄ |
6 | ||
| 90044-68061A3 |
S221,231 GRAY,ﾌﾛﾝﾄ ｼｰﾄ |
2 | ||
| 71811 - FASTENER, SEAT COVER | ||||
| 90044-6816543 |
S221,231..HIR GRAY,ﾘﾔ NO.1 ｼｰﾄ |
6 | ||
| 90044-68061A3 |
S221,231 GRAY,ﾌﾛﾝﾄ ｼｰﾄ |
2 | ||
| 71811C - COVER, RECLINING ADJUSTER, RH | ||||
| 71811-9750303 |
S221,231..HIR GRAY |
1 | ||
| 71812C - COVER, RECLINING ADJUSTER, LH | ||||
| 71812-9750303 |
S221,231..HIR GRAY |
1 | ||
| 71831D - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-8720101 |
S221,231 BLACK,ﾘﾔ NO.1 ｼｰﾄ |
1 | ||
| 71831-9750203 |
S221,231 GRAY,ﾌﾛﾝﾄ ｼｰﾄ |
1 | ||
| 71834A - COVER, REAR SEAT RECLINING, NO.1 LH | ||||
| 71832-8720101 |
S221,231..(4AT,5MT)..HIR BLACK |
1 | ||
| 71878A - COVER, REAR SEAT RECLINING, INNER RH | ||||
| 71485-9750201 |
S221,231..HIR BLACK |
1 | ||
| 71878B - COVER, REAR SEAT RECLINING, INNER RH | ||||
| 71875-9750303 |
S221,231..HIR GRAY,ﾘﾔ NO.1 ｼｰﾄ |
1 | ||
| 71875-9750403 |
S221,231 GRAY,ﾌﾛﾝﾄ ｼｰﾄ |
1 | ||
| 71879A - COVER, REAR SEAT RECLINING, INNER LH | ||||
| 71486-9750201 |
S221,231..HIR BLACK |
1 | ||
| 71879B - COVER, REAR SEAT RECLINING, INNER LH | ||||
| 71876-9750303 |
S221,231 GRAY,ﾌﾛﾝﾄ ｼｰﾄ |
1 | ||
| 71876-9750203 |
S221,231..HIR GRAY,ﾘﾔ NO.1 ｼｰﾄ |
1 | ||
| 71881A - BOARD, REAR SEAT BACK | ||||
| 71881-2801003 |
S221,231 GRAY |
2 | ||
| 71881-9750203 |
S221,231..HIR GRAY |
2 | ||
| 71881A - BOARD, REAR SEAT BACK | ||||
| 71881-2801003 |
S221,231 GRAY |
2 | ||
| 71881-9750203 |
S221,231..HIR GRAY |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-9720223 |
S221,231 ﾛｯｸ付,GRAY |
6 | ||
| 71930-9720143 |
S221,231 ﾛｯｸ付,GRAY |
6 | ||
| 71931-9720223 |
S221,231 ﾛｯｸ無,GRAY |
6 | ||
| 71931-9720143 |
S221,231 ﾛｯｸ無,GRAY |
6 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-9720223 |
S221,231 ﾛｯｸ付,GRAY |
6 | ||
| 71930-9720143 |
S221,231 ﾛｯｸ付,GRAY |
6 | ||
| 71931-9720223 |
S221,231 ﾛｯｸ無,GRAY |
6 | ||
| 71931-9720143 |
S221,231 ﾛｯｸ無,GRAY |
6 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-9720223 |
S221,231 ﾛｯｸ付,GRAY |
6 | ||
| 71930-9720143 |
S221,231 ﾛｯｸ付,GRAY |
6 | ||
| 71931-9720223 |
S221,231 ﾛｯｸ無,GRAY |
6 | ||
| 71931-9720143 |
S221,231 ﾛｯｸ無,GRAY |
6 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-9720223 |
S221,231 ﾛｯｸ付,GRAY |
6 | ||
| 71930-9720143 |
S221,231 ﾛｯｸ付,GRAY |
6 | ||
| 71931-9720223 |
S221,231 ﾛｯｸ無,GRAY |
6 | ||
| 71931-9720143 |
S221,231 ﾛｯｸ無,GRAY |
6 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-9751403 |
S221,231 GRAY |
4 | ||
| 71940-9752401 |
S221,231..HIR BLACK |
4 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-9751403 |
S221,231 GRAY |
4 | ||
| 71940-9752401 |
S221,231..HIR BLACK |
4 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 71327-9750203 |
S221,231..X..HIR Jﾊﾟﾂｹ-ｼﾞ,GRAY |
1 | ||
| 71327-9750103 |
S221,231..HIR GRAY |
1 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 71205-97504 |
S221,231..HIR |
1 | ||
| 71205-97508 |
S221,231..X..HIR Jﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 71328-9750103 |
S221,231..HIR GRAY |
1 | ||
| 71328-9750203 |
S221,231..X..HIR Jﾊﾟﾂｹ-ｼﾞ,GRAY |
1 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 71206-97506 |
S221,231..HIR |
1 | ||
| 71206-97508 |
S221,231..X..HIR Jﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 72157 - COVER, SEAT TRACK BRACKET, INNER | ||||
| 72157-9750403 |
S221,231..X..HIR Jﾊﾟﾂｹ-ｼﾞ,GRAY |
1 | ||
| 72157-9750303 |
S221,231..HIR GRAY |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-9750303 |
S221,231..HIR GRAY |
1 | ||
| 72158-9750403 |
S221,231..X..HIR Jﾊﾟﾂｹ-ｼﾞ,GRAY |
1 | ||
| 72160 - TRACK ASSY, REAR SEAT, OUTER RH | ||||
| 72160-97505 |
S221,231..HIR |
1 | ||
| 72170 - TRACK ASSY, REAR SEAT, OUTER LH | ||||
| 72170-97505 |
S221,231..HIR |
1 | ||
| 72265 - COVER, SEAT TRACK UPPER RAIL, RH | ||||
| 71323-9750203 |
S221,231 GRAY |
1 | ||
| 72266 - COVER, SEAT TRACK UPPER RAIL, LH | ||||
| 71324-9750203 |
S221,231 GRAY |
1 | ||
| 72525B - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72735-9750103 |
S221,231 GRAY |
1 | ||
| 72735-9750203 |
S221,231 GRAY |
1 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72736-9750103 |
S221,231 GRAY |
1 | ||
| 72736-9750203 |
S221,231 GRAY |
1 | ||
| 72670B - LOCK ASSY, REAR SEAT CUSHION, RH | ||||
| 72670-97503 |
S221,231..(4AT,5MT)..HIR ﾘﾔ NO.1 ｼｰﾄ |
1 | ||
| 72670-97501 |
S221,231..HIR ﾘﾔ NO.2 ｼｰﾄ |
1 | ||
| 72680B - LOCK ASSY, REAR SEAT CUSHION, LH | ||||
| 72680-97502 |
S221,231 |
1 | ||
| 72680-97501 |
S221,231..(4AT,5MT)..X..HIR Jﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 72680-97501 |
S221,231..HIR |
1 | ||
| 72730A - ADJUSTER ASSY, REAR SEAT RECLINING, RH | ||||
| 72730-97503 |
S221,231..X..HIR Jﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 72730-97504 |
S221,231..HIR |
1 | ||
| 72740A - ADJUSTER ASSY, REAR SEAT RECLINING, LH | ||||
| 72740-97504 |
S221,231..HIR |
1 | ||
| 72740-97503 |
S221,231..X..HIR Jﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 72830L - ARMREST ASSY, REAR NO.2 SEAT, RH | ||||
| 72840-9751001 |
S221,231..HIR BLACK |
1 | ||
| 72840-9750503 |
S221,231 GRAY |
1 | ||
| 72840A - ARMREST ASSY, REAR NO.2 SEAT, LH | ||||
| 72830-9751303 |
S221,231 GRAY |
1 | ||
| 72830-9752401 |
S221,231..HIR BLACK |
1 | ||
| 79120A - CUSHION ASSY, NO.1 SEAT | ||||
| 71560-9753803 |
S221,231 GRAY |
1 | ||
| 71560-9754003 |
S221,231..X Jﾊﾟﾂｹ-ｼﾞ,GRAY |
1 | ||
| 71560-9756703 |
S221,231 GRAY |
1 | ||
| 71560-9758001 |
S221,231..HIR BLACK |
1 | ||
| 71560-9758701 |
S221,231..X..HIR Jﾊﾟﾂｹ-ｼﾞ,BLACK |
1 | ||
| 71560-9756803 |
S221,231..X Jﾊﾟﾂｹ-ｼﾞ,GRAY |
1 | ||
| Common parts | ||||
| 71812-87201 | ||||
| 90041-09126 | ||||
| 90041-59411 | ||||
| 90041-67017 | ||||
| 90041-79302 | ||||
| 90043-85112 | ||||
| 90044-68336 | ||||
| 90045-40124 | ||||
| 90119-10409 | ||||
| 91512-81020 | ||||
| 91512-81025 | ||||
| 94542-01400 | ||||
| 94612-11400 | ||||

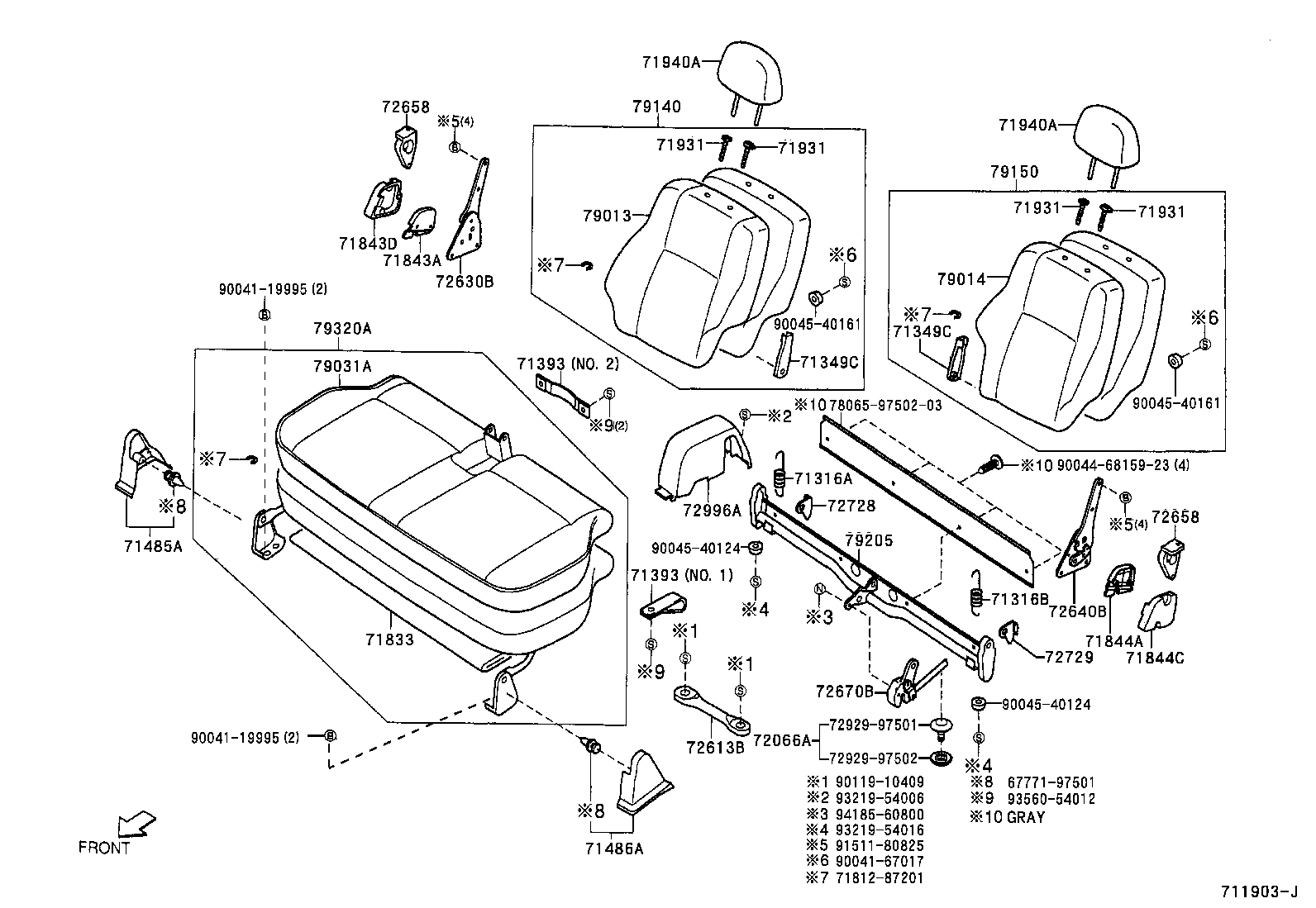

ILLUST NO. 3 OF 4(0009- )HIR
ﾘﾔ ｼ-ﾄ NO.2 ｼ-ﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71316A - SPRING, TORSION, NO.1 | ||||
| 71462-97501 |
S221,231 |
1 | ||
| 71316B - SPRING, TORSION, NO.2 | ||||
| 71463-97501 |
S221,231 |
1 | ||
| 71349C - COVER, REAR SEAT BACK HINGE | ||||
| 71349-97501 |
S221,231 |
2 | ||
| 71349C - COVER, REAR SEAT BACK HINGE | ||||
| 71349-97501 |
S221,231 |
2 | ||
| 71393 - BAND, REAR SEAT CUSHION | ||||
| 71393-97504 |
S221,231..HIR NO.2 |
1 | ||
| 71393-97503 |
S221,231..HIR NO.1 |
1 | ||
| 71393-97501 |
S221,231 |
1 | ||
| 71393 - BAND, REAR SEAT CUSHION | ||||
| 71393-97504 |
S221,231..HIR NO.2 |
1 | ||
| 71393-97503 |
S221,231..HIR NO.1 |
1 | ||
| 71393-97501 |
S221,231 |
1 | ||
| 71485A - COVER, REAR SEAT HINGE, NO.2 RH | ||||
| 71485-9750103 |
S221,231..HIR GRAY |
1 | ||
| 71486A - COVER, REAR SEAT HINGE, NO.2 LH | ||||
| 71486-9750103 |
S221,231..HIR GRAY |
1 | ||
| 71833 - MAT, REAR SEAT FLOOR, FRONT | ||||
| 71893-9750303 |
S221,231..X GRAY |
1 | ||
| 71893-9750503 |
S221,231..HIR GRAY |
1 | ||
| 71843A - COVER, REAR SEAT RECLINING, NO.2 RH | ||||
| 72667-9750103 |
S221,231..HIR GRAY |
1 | ||
| 71843D - COVER, REAR SEAT RECLINING, NO.2 RH | ||||
| 72665-9750203 |
S221,231..HIR GRAY |
1 | ||
| 71844A - COVER, REAR SEAT RECLINING, NO.2 LH | ||||
| 72668-9750103 |
S221,231..HIR GRAY |
1 | ||
| 71844C - COVER, REAR SEAT RECLINING, NO.2 LH | ||||
| 72666-9750203 |
S221,231..HIR GRAY |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-9720223 |
S221,231 ﾛｯｸ付,GRAY |
6 | ||
| 71930-9720143 |
S221,231 ﾛｯｸ付,GRAY |
6 | ||
| 71931-9720223 |
S221,231 ﾛｯｸ無,GRAY |
6 | ||
| 71931-9720143 |
S221,231 ﾛｯｸ無,GRAY |
6 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-9720223 |
S221,231 ﾛｯｸ付,GRAY |
6 | ||
| 71930-9720143 |
S221,231 ﾛｯｸ付,GRAY |
6 | ||
| 71931-9720223 |
S221,231 ﾛｯｸ無,GRAY |
6 | ||
| 71931-9720143 |
S221,231 ﾛｯｸ無,GRAY |
6 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-9720223 |
S221,231 ﾛｯｸ付,GRAY |
6 | ||
| 71930-9720143 |
S221,231 ﾛｯｸ付,GRAY |
6 | ||
| 71931-9720223 |
S221,231 ﾛｯｸ無,GRAY |
6 | ||
| 71931-9720143 |
S221,231 ﾛｯｸ無,GRAY |
6 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-9720223 |
S221,231 ﾛｯｸ付,GRAY |
6 | ||
| 71930-9720143 |
S221,231 ﾛｯｸ付,GRAY |
6 | ||
| 71931-9720223 |
S221,231 ﾛｯｸ無,GRAY |
6 | ||
| 71931-9720143 |
S221,231 ﾛｯｸ無,GRAY |
6 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-9751403 |
S221,231 GRAY |
4 | ||
| 71940-9752401 |
S221,231..HIR BLACK |
4 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-9751403 |
S221,231 GRAY |
4 | ||
| 71940-9752401 |
S221,231..HIR BLACK |
4 | ||
| 72066A - HOOK SUB-ASSY,REAR SEAT CUSHION LOCK,LH | ||||
| 72065-97501 |
S221,231 |
1 | ||
| 72613B - STRIKER, REAR SEAT LOCK | ||||
| 72692-97501 |
S221,231 |
1 | ||
| 72630B - ADJUSTER ASSY, REAR NO.1 SEAT, INNER RH | ||||
| 72630-97502 |
S221,231..HIR |
1 | ||
| 72640B - ADJUSTER ASSY, REAR NO.1 SEAT, INNER LH | ||||
| 72640-97502 |
S221,231..HIR |
1 | ||
| 72658 - KNOB, REAR SEAT HANDLE | ||||
| 72658-9720113 |
S221,231..HIR GRAY,ﾘﾔ NO.1 ｼｰﾄ |
1 | ||
| 71318-97501 |
S221,231 ﾘﾔ NO.2 ｼｰﾄ,左側 |
1 | ||
| 71317-97501 |
S221,231 ﾘﾔ NO.2 ｼｰﾄ,右側 |
1 | ||
| 72658 - KNOB, REAR SEAT HANDLE | ||||
| 72658-9720113 |
S221,231..HIR GRAY,ﾘﾔ NO.1 ｼｰﾄ |
1 | ||
| 71318-97501 |
S221,231 ﾘﾔ NO.2 ｼｰﾄ,左側 |
1 | ||
| 71317-97501 |
S221,231 ﾘﾔ NO.2 ｼｰﾄ,右側 |
1 | ||
| 72670B - LOCK ASSY, REAR SEAT CUSHION, RH | ||||
| 72670-97503 |
S221,231..(4AT,5MT)..HIR ﾘﾔ NO.1 ｼｰﾄ |
1 | ||
| 72670-97501 |
S221,231..HIR ﾘﾔ NO.2 ｼｰﾄ |
1 | ||
| 72728 - PROTECTOR, REAR SEAT RECLINING, INNER RH | ||||
| 72728-97501 |
S221,231..HIR |
1 | ||
| 72729 - PROTECTOR, REAR SEAT RECLINING, INNER LH | ||||
| 72729-97501 |
S221,231..HIR |
1 | ||
| 72996A - COVER, REAR SEAT BACK | ||||
| 72975-9750103 |
S221,231..HIR GRAY |
1 | ||
| 79013 - COVER SUB-ASSY, NO.1 SEAT BACK, RH | ||||
| 71087-9750703 |
S221,231 GRAY |
1 | ||
| 71087-9751101 |
S221,231..HIR BLACK |
1 | ||
| 79014 - COVER SUB-ASSY, NO.1 SEAT BACK, LH | ||||
| 71088-9752201 |
S221,231..HIR BLACK |
1 | ||
| 71088-9750403 |
S221,231 GRAY |
1 | ||
| 71088-9751603 |
S221,231 GRAY |
1 | ||
| 79031A - COVER SUB-ASSY, NO.3 SEAT CUSHION | ||||
| 71085-9750801 |
S221,231..HIR BLACK |
1 | ||
| 71085-9750403 |
S221,231 GRAY |
1 | ||
| 79140 - BACK ASSY, NO.1 SEAT, RH | ||||
| 71480-9750503 |
S221,231 GRAY |
1 | ||
| 71480-9751201 |
S221,231..HIR BLACK |
1 | ||
| 79150 - BACK ASSY, NO.1 SEAT, LH | ||||
| 71490-9753003 |
S221,231 GRAY |
1 | ||
| 71490-9757901 |
S221,231..HIR BLACK |
1 | ||
| 79205 - LEG SUB-ASSY, NO.2 SEAT | ||||
| 71309-97504 |
S221,231 |
1 | ||
| 71309-97503 |
S221,231..HIR |
1 | ||
| 71309-97503 |
S221,231 |
1 | ||
| 79320A - CUSHION ASSY, NO.3 SEAT | ||||
| 71470-9752703 |
S221,231 GRAY |
1 | ||
| 71470-9753901 |
S221,231..HIR BLACK |
1 | ||
| 71470-9752003 |
S221,231..X GRAY |
1 | ||
| Common parts | ||||
| 67771-97501 | ||||
| 71812-87201 | ||||
| 72929-97501 | ||||
| 72929-97502 | ||||
| 78065-9750203 | ||||
| 90041-19995 | ||||
| 90041-67017 | ||||
| 90044-6815923 | ||||
| 90045-40124 | ||||
| 90045-40161 | ||||
| 90119-10409 | ||||
| 91511-80825 | ||||
| 93219-54006 | ||||
| 93219-54016 | ||||
| 93560-54012 | ||||
| 94185-60800 | ||||

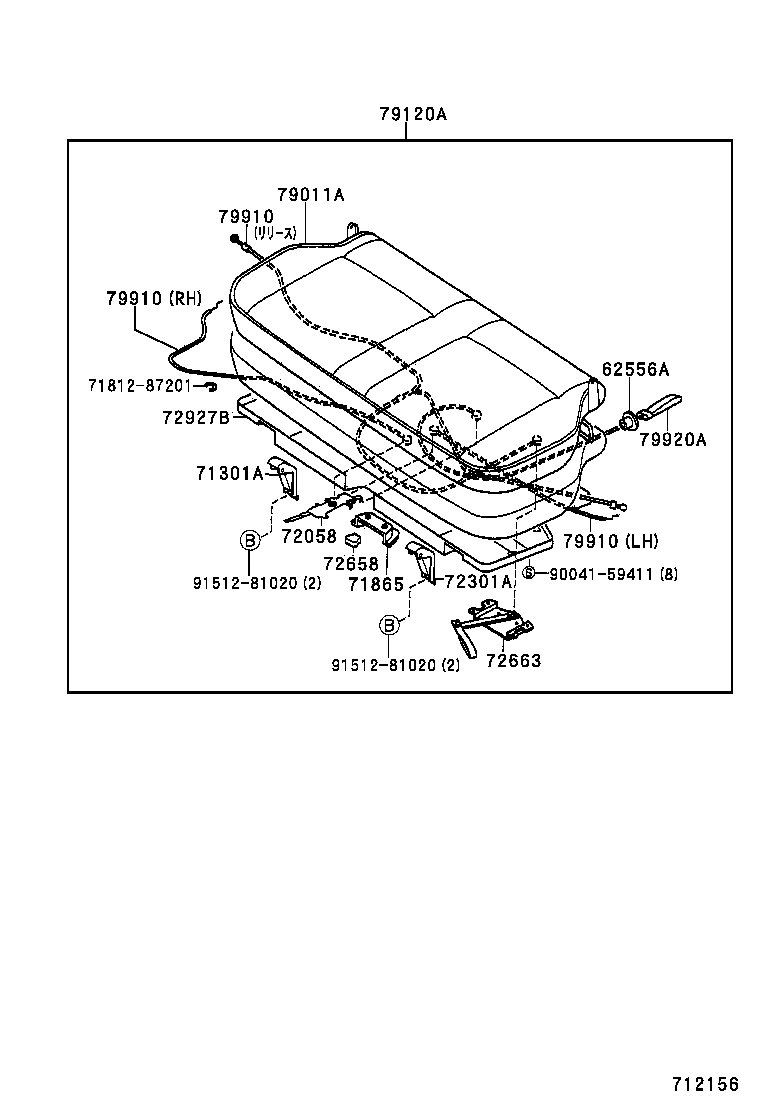

ILLUST NO. 4 OF 4(0009- )HIR
ﾘﾔ ｼ-ﾄ NO.1 ｸﾂｼﾖﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62556A - CAP, REAR SEAT SIDE GARNISH | ||||
| 62556-9750103 |
S221,231..HIR GRAY |
1 | ||
| 71301A - HINGE SUB-ASSY, REAR SEAT CUSHION | ||||
| 71301-97502 |
S221,231..X..HIR Jﾊﾟﾂｹ-ｼﾞ,右側 |
1 | ||
| 71302-97501 |
S221,231..X..HIR Jﾊﾟﾂｹ-ｼﾞ,左側 |
1 | ||
| 71865 - BEZEL, REAR SEAT COVER, NO.1 | ||||
| 71865-9750103 |
S221,231 GRAY |
1 | ||
| 72058 - LEVER SUB-ASSY, REAR SEAT LOCK CONTROL | ||||
| 72057-97501 |
S221,231..HIR |
1 | ||
| 72301A - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH | ||||
| 72301-97502 |
S221,231 |
1 | ||
| 72658 - KNOB, REAR SEAT HANDLE | ||||
| 72658-9720113 |
S221,231..HIR GRAY,ﾘﾔ NO.1 ｼｰﾄ |
1 | ||
| 71318-97501 |
S221,231 ﾘﾔ NO.2 ｼｰﾄ,左側 |
1 | ||
| 71317-97501 |
S221,231 ﾘﾔ NO.2 ｼｰﾄ,右側 |
1 | ||
| 72663 - LEVER, REAR SEAT LOCK CONTROL, NO.1 | ||||
| 72663-97501 |
S221,231..HIR |
1 | ||
| 72927B - COVER, REAR SEAT CUSHION UNDER | ||||
| 72927-9750203 |
S221,231..HIR GRAY |
1 | ||
| 79011A - COVER SUB-ASSY, NO.1 SEAT CUSHION | ||||
| 71065-9753603 |
S221,231 GRAY |
1 | ||
| 71065-9756601 |
S221,231..X..HIR Jﾊﾟﾂｹ-ｼﾞ,BLACK |
1 | ||
| 71065-9755103 |
S221,231 GRAY |
1 | ||
| 71065-9755901 |
S221,231..HIR BLACK |
1 | ||
| 71065-9753803 |
S221,231..X Jﾊﾟﾂｹ-ｼﾞ,GRAY |
1 | ||
| 79120A - CUSHION ASSY, NO.1 SEAT | ||||
| 71560-9753803 |
S221,231 GRAY |
1 | ||
| 71560-9754003 |
S221,231..X Jﾊﾟﾂｹ-ｼﾞ,GRAY |
1 | ||
| 71560-9756703 |
S221,231 GRAY |
1 | ||
| 71560-9758001 |
S221,231..HIR BLACK |
1 | ||
| 71560-9758701 |
S221,231..X..HIR Jﾊﾟﾂｹ-ｼﾞ,BLACK |
1 | ||
| 71560-9756803 |
S221,231..X Jﾊﾟﾂｹ-ｼﾞ,GRAY |
1 | ||
| 79910 - CABLE ASSY, REAR SEAT TURN, NO.1 | ||||
| 79910-97502 |
S221,231..HIR 右側,NO.1 |
1 | ||
| 79910-97505 |
S221,231..HIR 左側,NO.1 |
1 | ||
| 79910-97504 |
S221,231..HIR NO.2 |
1 | ||
| 79910 - CABLE ASSY, REAR SEAT TURN, NO.1 | ||||
| 79910-97502 |
S221,231..HIR 右側,NO.1 |
1 | ||
| 79910-97505 |
S221,231..HIR 左側,NO.1 |
1 | ||
| 79910-97504 |
S221,231..HIR NO.2 |
1 | ||
| 79910 - CABLE ASSY, REAR SEAT TURN, NO.1 | ||||
| 79910-97502 |
S221,231..HIR 右側,NO.1 |
1 | ||
| 79910-97505 |
S221,231..HIR 左側,NO.1 |
1 | ||
| 79910-97504 |
S221,231..HIR NO.2 |
1 | ||
| 79920A - CABLE ASSY, REAR SEAT TURN, NO.2 | ||||
| 79920-97502 |
S221,231..HIR |
1 | ||
| Common parts | ||||
| 71812-87201 | ||||
| 90041-59411 | ||||
| 91512-81020 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
