S221E-ZMRF (2000)
Toyota Sparky
Production
Sep 2000
-
Mar 2003
Engine
K3VE
Transmission
5MT MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0009- )

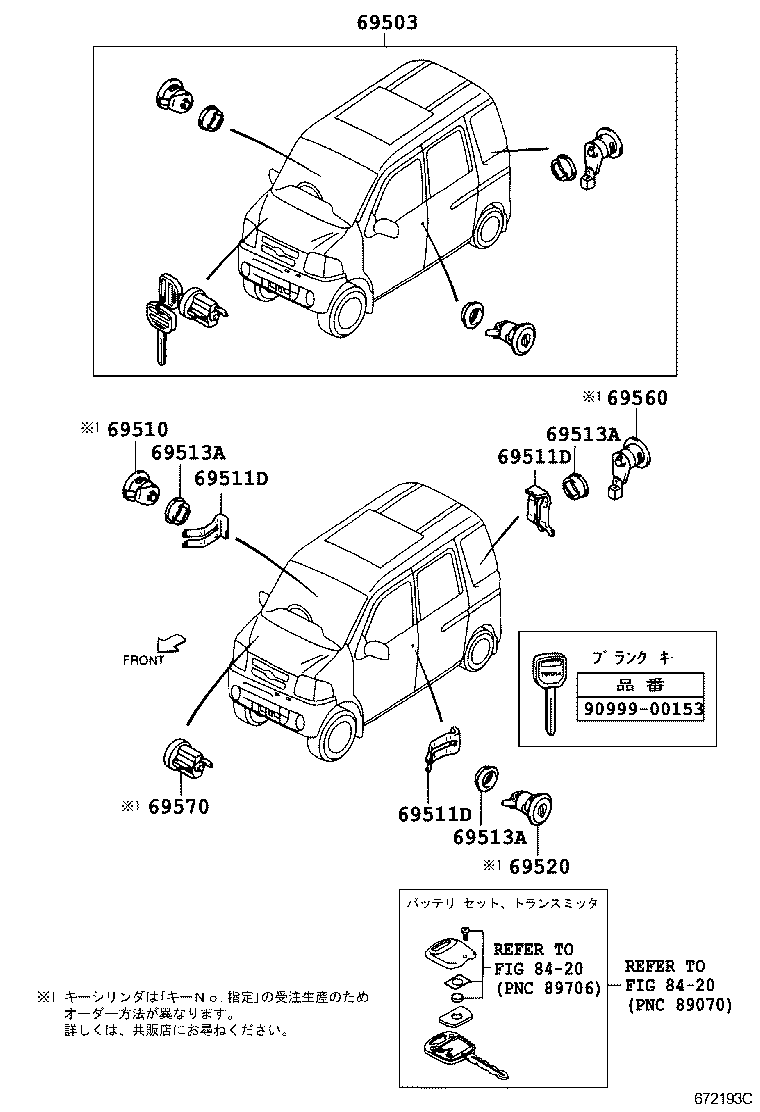

Click highlighted areas on diagram
ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱﾛｯｸ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69503 - CYLINDER SET, LOCK | ||||
| 69005-97515 |
S221,231 ｱﾘ(ｷ- ﾌﾘ- ｼｽﾃﾑ) |
1 | ||
| 69503-97505 |
S221,231 |
1 | ||
| 69510 - CYLINDER ASSY, FRONT DOOR LOCK, RH | ||||
| 69510-97501 |
S221,231 |
1 | ||
| 69511D - RETAINER, BACK DOOR LOCK CYLINDER | ||||
| 69682-87201 |
S221,231 |
3 | ||
| 69511D - RETAINER, BACK DOOR LOCK CYLINDER | ||||
| 69682-87201 |
S221,231 |
3 | ||
| 69511D - RETAINER, BACK DOOR LOCK CYLINDER | ||||
| 69682-87201 |
S221,231 |
3 | ||
| 69513A - PAD, DOOR CYLINDER | ||||
| 69513-87201 |
S221,231 |
3 | ||
| 69513A - PAD, DOOR CYLINDER | ||||
| 69513-87201 |
S221,231 |
3 | ||
| 69513A - PAD, DOOR CYLINDER | ||||
| 69513-87201 |
S221,231 |
3 | ||
| 69520 - CYLINDER ASSY, FRONT DOOR LOCK, LH | ||||
| 69520-97501 |
S221,231 |
1 | ||
| 69560 - CYLINDER ASSY, BACK DOOR LOCK | ||||
| 69560-97501 |
S221,231 |
1 | ||
| 69570 - CYLINDER ASSY, IGNITION SWITCH LOCK | ||||
| 69570-87710 |
S221,231 |
1 | ||
| Common parts | ||||
| 90999-00153 | ||||
| Linked diagrams | ||||
| 8420 | ||||
(0009- )

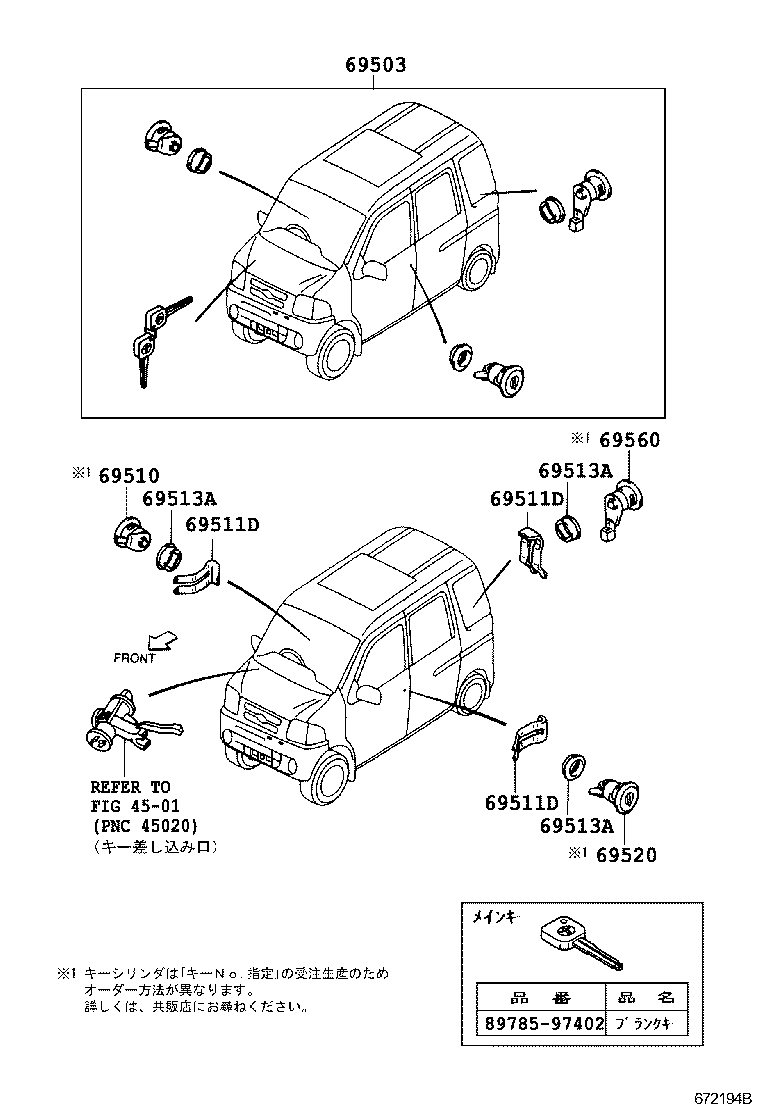

Click highlighted areas on diagram
ｱﾘ(ｷ-ﾌﾘ-ｼｽﾃﾑ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69503 - CYLINDER SET, LOCK | ||||
| 69005-97515 |
S221,231 ｱﾘ(ｷ- ﾌﾘ- ｼｽﾃﾑ) |
1 | ||
| 69503-97505 |
S221,231 |
1 | ||
| 69510 - CYLINDER ASSY, FRONT DOOR LOCK, RH | ||||
| 69510-97501 |
S221,231 |
1 | ||
| 69511D - RETAINER, BACK DOOR LOCK CYLINDER | ||||
| 69682-87201 |
S221,231 |
3 | ||
| 69511D - RETAINER, BACK DOOR LOCK CYLINDER | ||||
| 69682-87201 |
S221,231 |
3 | ||
| 69511D - RETAINER, BACK DOOR LOCK CYLINDER | ||||
| 69682-87201 |
S221,231 |
3 | ||
| 69513A - PAD, DOOR CYLINDER | ||||
| 69513-87201 |
S221,231 |
3 | ||
| 69513A - PAD, DOOR CYLINDER | ||||
| 69513-87201 |
S221,231 |
3 | ||
| 69513A - PAD, DOOR CYLINDER | ||||
| 69513-87201 |
S221,231 |
3 | ||
| 69520 - CYLINDER ASSY, FRONT DOOR LOCK, LH | ||||
| 69520-97501 |
S221,231 |
1 | ||
| 69560 - CYLINDER ASSY, BACK DOOR LOCK | ||||
| 69560-97501 |
S221,231 |
1 | ||
| Common parts | ||||
| 89785-97402 | ||||
| Linked diagrams | ||||
| 4501 | ||||
