S221E-ZMRF (2000)
Toyota Sparky
Production
Sep 2000
-
Mar 2003
Engine
K3VE
Transmission
5MT MTM
Displacement
2500cc
Power
168 HP (125 kW)

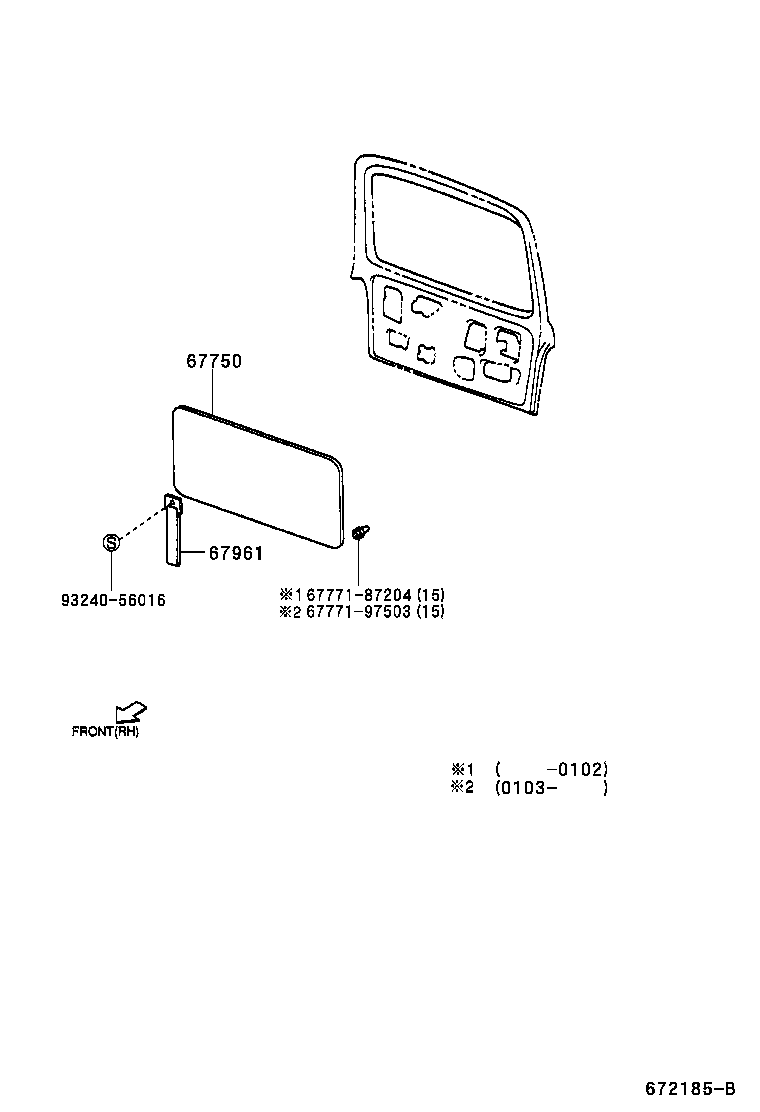

ILLUST NO. 1 OF 2(0009- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67750 - BOARD ASSY, BACK DOOR TRIM | ||||
| 64780-9750123 |
S221,231 GRAY |
1 | ||
| 67961 - STRAP, BACK DOOR PULL | ||||
| 67908-2802003 |
S221,231 GRAY |
1 | ||
| 67908-2802001 |
S221,231 BLACK |
1 | ||
| Common parts | ||||
| 67771-87204 | ||||
| 67771-97503 | ||||
| 93240-56016 | ||||

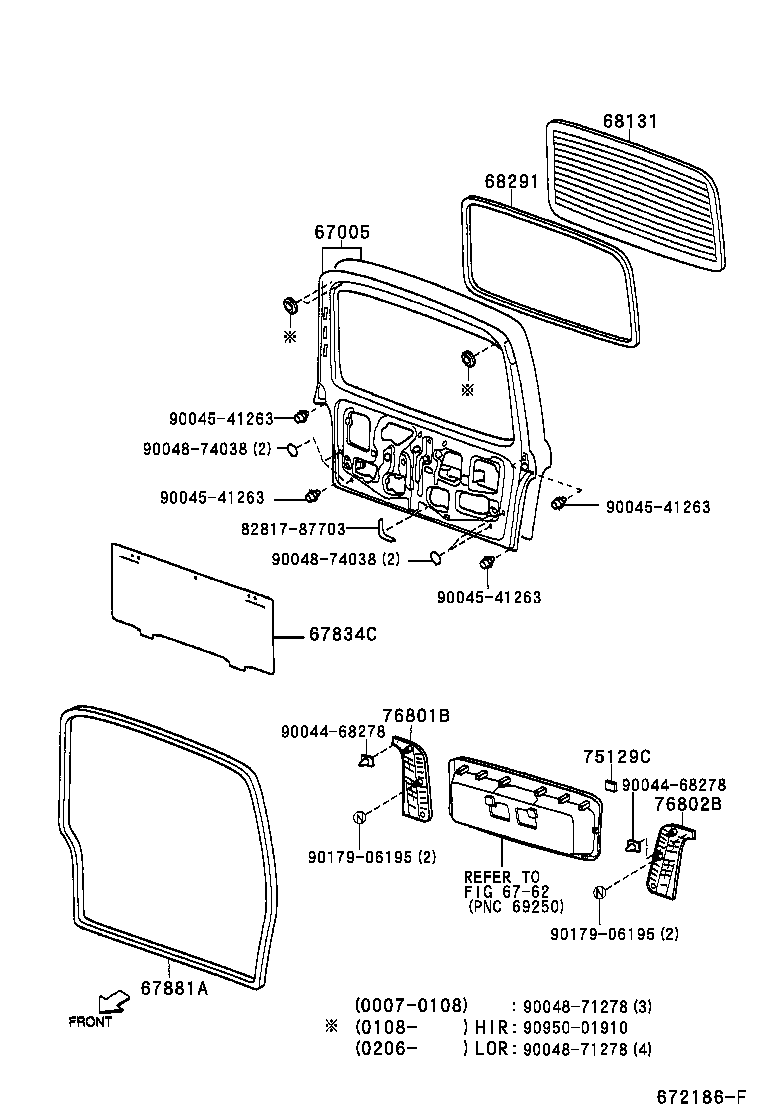

ILLUST NO. 2 OF 2(0009- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67005 - PANEL SUB-ASSY, BACK DOOR | ||||
| 67005-97591 |
S221,231..X ﾋﾞﾚﾂﾄ |
1 | ||
| 67005-97552 |
S221,231 ｱﾘ(ﾘﾔ ｽﾎﾟｲﾗ) |
1 | ||
| 67005-97D17 |
S221,231..X..HIR ﾋﾞﾚﾂﾄ & ｱﾘ(ﾘﾔ ｽﾎﾟｲﾗ) |
1 | ||
| 67005-97D18 |
S221,231..X..HIR ﾋﾞﾚﾂﾄ |
1 | ||
| 67005-97D12 |
S221,231..HIR |
1 | ||
| 67005-97590 |
S221,231..X ﾋﾞﾚﾂﾄ & ｱﾘ(ﾘﾔ ｽﾎﾟｲﾗ) |
1 | ||
| 67005-97553 |
S221,231 |
1 | ||
| 67005-97D11 |
S221,231..HIR ｱﾘ(ﾘﾔ ｽﾎﾟｲﾗ) |
1 | ||
| 67834C - COVER, BACK DOOR SERVICE HOLE | ||||
| 67834-97501 |
S221,231 |
1 | ||
| 67881A - WEATHERSTRIP, BACK DOOR | ||||
| 67881-97504 |
S221,231..HIR |
1 | ||
| 68131 - GLASS, BACK DOOR | ||||
| 68131-97503 |
S221,231 *EHTT,厚さ=3.1,ﾀﾞｰｸｸﾞﾚｰ |
1 | ||
| 68291 - WEATHERSTRIP, BACK DOOR GLASS | ||||
| 68291-97502 |
S221,231 |
1 | ||
| 75129C - CUSHION, REAR LICENCE PLATE | ||||
| 75129-28020 |
S221,231 |
2 | ||
| 76801B - GARNISH SUB-ASSY, BACK DOOR, OUTSIDE RH | ||||
| 76801-97502 |
S221,231 |
1 | ||
| 76802B - GARNISH SUB-ASSY, BACK DOOR, OUTSIDE LH | ||||
| 76802-97502 |
S221,231 |
1 | ||
| Common parts | ||||
| 82817-87703 | ||||
| 90044-68278 | ||||
| 90045-41263 | ||||
| 90048-71278 | ||||
| 90048-74038 | ||||
| 90179-06195 | ||||
| 90950-01910 | ||||
| Linked diagrams | ||||
| 6762 | ||||
