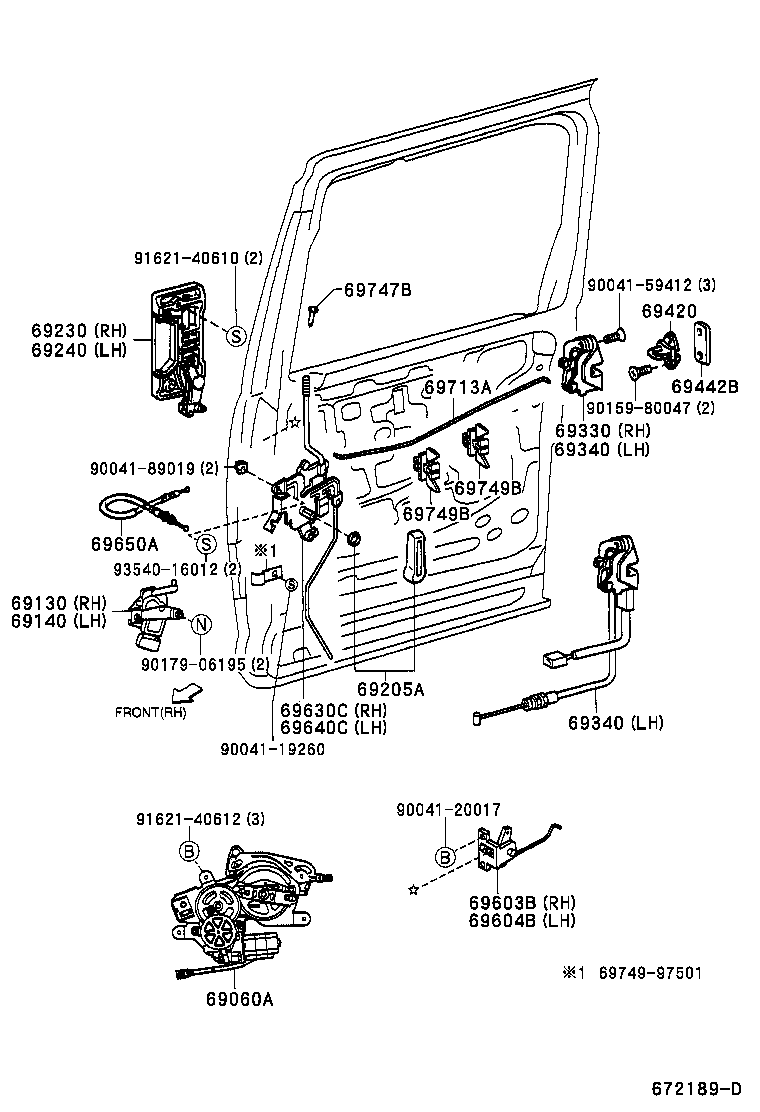

Toyota Sparky S221E REAR DOOR LOCK & HANDLE

Part #	Description	Period	Qty
69060A - LOCK ASSY, REAR DOOR W/MOTOR, LH
69060-97501	S221,231	09/2000 - 12/2999	1
69130 - ACTUATOR ASSY, REAR DOOR LOCK, RH
69130-97501	S221,231	09/2000 - 12/2999	1
69140 - ACTUATOR ASSY, REAR DOOR LOCK, LH
69140-97501	S221,231	09/2000 - 12/2999	1
69205A - HANDLE SUB-ASSY, REAR DOOR INSIDE, RH
69272-8750543	S221,231 GRAY	09/2000 - 12/2999	2
69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH
69230-8751203	S221,231 SILVER M.,1C0	11/2000 - 12/2999	1
69230-87511	S221,231..X	09/2000 - 11/2000	1
69230-8751212	S221,231 RED MC,3K3	11/2000 - 06/2001	1
69230-87511	S221,231..X Jﾊﾟﾂｹ-ｼﾞ	11/2000 - 12/2999	1
69230-8751201	S221,231 BLACK M.,6A5	11/2000 - 12/2999	1
69230-8751218	S221,231 WHITE,056	11/2000 - 12/2999	1
69230-8751213	S221,231 GREENISH SIL. M.,S29	06/2002 - 12/2999	1
69230-8751244	S221,231 DARK BLUE M.M.,B42	11/2000 - 06/2002	1
69230-8751209	S221,231 SHAMPGNE ME.,583	06/2001 - 12/2999	1
69230-8751228	S221,231 WHITE PEARL,W16	11/2000 - 12/2999	1
69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH
69240-87516	S221,231..X	09/2000 - 11/2000	1
69240-8751718	S221,231 WHITE,056	11/2000 - 12/2999	1
69240-8751701	S221,231 BLACK M.,6A5	11/2000 - 12/2999	1
69240-8751744	S221,231 DARK BLUE M.M.,B42	11/2000 - 06/2002	1
69240-8751703	S221,231 SILVER M.,1C0	11/2000 - 12/2999	1
69240-8751709	S221,231 SHAMPGNE ME.,583	06/2001 - 12/2999	1
69240-8751712	S221,231 RED MC,3K3	11/2000 - 06/2001	1
69240-87516	S221,231..X Jﾊﾟﾂｹ-ｼﾞ	11/2000 - 12/2999	1
69240-8751713	S221,231 GREENISH SIL. M.,S29	06/2002 - 12/2999	1
69240-8751728	S221,231 WHITE PEARL,W16	11/2000 - 12/2999	1
69330 - LOCK ASSY, REAR DOOR, RH
69330-97504	S221,231	09/2000 - 12/2999	1
69340 - LOCK ASSY, REAR DOOR, LH
69340-97504	S221,231 ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ)	09/2000 - 12/2999	1
69340-97503	S221,231	06/2001 - 12/2999	1
69340-97503	S221,231..X	09/2000 - 06/2001	1
69340 - LOCK ASSY, REAR DOOR, LH
69340-97504	S221,231 ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ)	09/2000 - 12/2999	1
69340-97503	S221,231	06/2001 - 12/2999	1
69340-97503	S221,231..X	09/2000 - 06/2001	1
69420 - PLATE ASSY, REAR DOOR LOCK STRIKER
69440-97501	S221,231	09/2000 - 12/2999	2
69442B - CUSHION, REAR DOOR LOCK, LH
69491-87501	S221,231	09/2000 - 12/2999	1
69603B - CONTROL SUB-ASSY, SLIDE DOOR LOCK REMOTE, RH
69640-97508	S221,231	09/2000 - 12/2999	1
69604B - CONTROL SUB-ASSY, SLIDE DOOR LOCK REMOTE, LH
69650-97502	S221,231	09/2000 - 12/2999	1
69630C - CONTROL ASSY, SLIDE DOOR LOCK REMOTE, RH
69630-97518	S221,231	04/2002 - 12/2999	1
69630-97512	S221,231	09/2000 - 04/2002	1
69640C - CONTROL ASSY, SLIDE DOOR LOCK REMOTE, LH
69640-97529	S221,231 ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ)	09/2000 - 04/2002	1
69640-97528	S221,231	06/2001 - 04/2002	1
69640-97536	S221,231	04/2002 - 12/2999	1
69640-97537	S221,231 ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ)	04/2002 - 12/2999	1
69640-97528	S221,231..X	09/2000 - 06/2001	1
69650A - CABLE ASSY, SLIDE DOOR LOCK CONTROL
69650-97504	S221,231	09/2000 - 04/2002	2
69650-97503	S221,231	04/2002 - 12/2999	2
69713A - LINK, REAR DOOR LOCK REMOTE CONTROL, RH
69713-97501	S221,231	09/2000 - 12/2999	2
69747B - BUTTON, DOOR LOCKING(FOR REAR DOOR)
69747-87208	S221,231	09/2000 - 12/2999	2
69749B - CLAMP, REAR DOOR LOCK LINK
69749-97502	S221,231	10/2000 - 12/2999	4
69749-87702	S221,231	09/2000 - 10/2000	4
69749B - CLAMP, REAR DOOR LOCK LINK
69749-97502	S221,231	10/2000 - 12/2999	4
69749-87702	S221,231	09/2000 - 10/2000	4
Common parts
69749-97501
90041-19260
90041-20017
90041-59412
90041-89019
90159-80047
90179-06195
91621-40610
91621-40612
93540-16012

S221E-ZMRF (2000)

(0009- )
