S221E-ZMRF (2000)

Toyota Sparky

Production Sep 2000 - Mar 2003
Engine K3VE
Transmission 5MT MTM
Displacement 2500cc
Power 168 HP (125 kW)

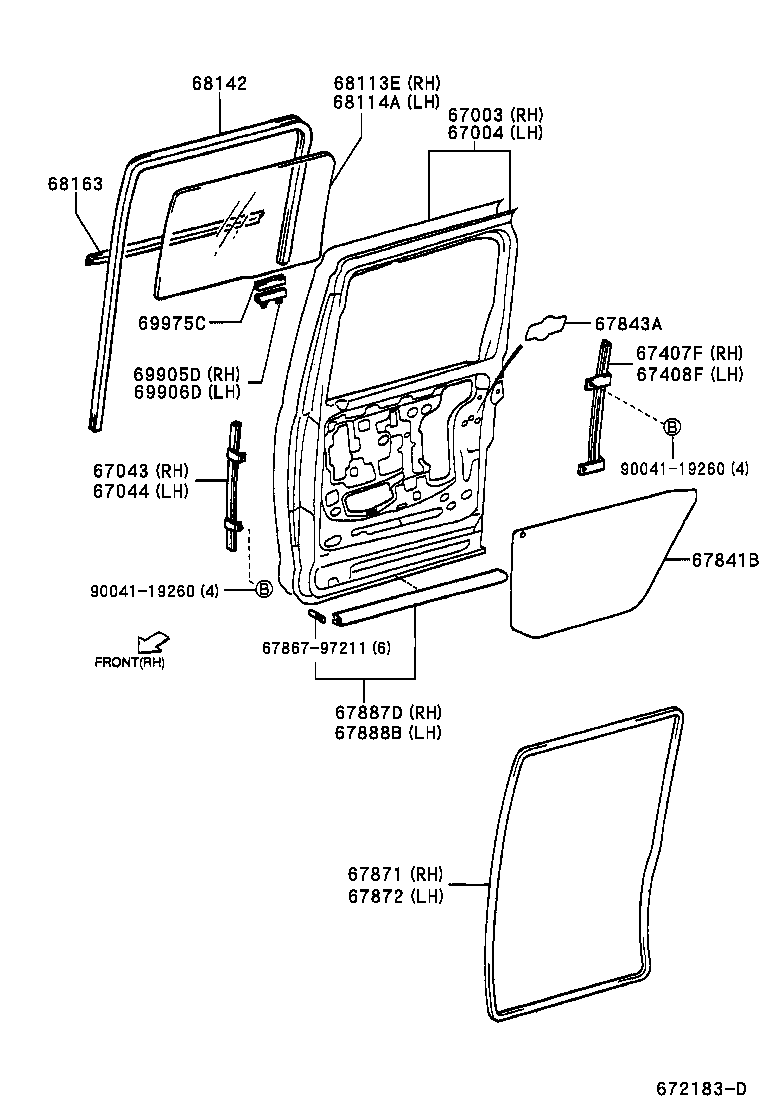

ILLUST NO. 2 OF 2(0009- )

Click highlighted areas on diagram

diagram 67003 67004 67043 67044 67407F 67408F 67841B 67843A 6786797211 67871 67872 67887D 67888B 68113E 68114A 68142 68163 69905D 69906D 69975C 9004119260 9004119260
Part # Description Qty Price
67003 - PANEL SUB-ASSY, REAR DOOR, RH
67003-97509

S221,231

 1
67004 - PANEL SUB-ASSY, REAR DOOR, LH
67004-97513

S221,231..X

 1
67004-97513

S221,231

 1
67004-97514

S221,231

ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ)

 1
67043 - FRAME SUB-ASSY, REAR DOOR WINDOW, RH
67043-97501

S221,231

 1
67044 - FRAME SUB-ASSY, REAR DOOR WINDOW, LH
67044-97501

S221,231

 1
67407F - FRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER RH
67407-97501

S221,231

 1
67408F - FRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER LH
67408-97501

S221,231

 1
67841B - COVER, REAR DOOR SERVICE HOLE
67841-97502

S221,231..X

左側

 1
67841-97502

S221,231

右側

 1
67841-97502

S221,231

左側

 1
67842-97504

S221,231

ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ),左側

 1
67843A - COVER, REAR DOOR SERVICE HOLE, NO.2
67844-97501

S221,231

左側

 1
67843-97501

S221,231

右側

 1
67871 - WEATHERSTRIP, REAR DOOR, RH
67871-97502

S221,231

 1
67872 - WEATHERSTRIP, REAR DOOR, LH
67871-97502

S221,231

 1
67887D - WEATHERSTRIP, SLIDE DOOR, NO.2 RH
67887-97501

S221,231

 1
67888B - WEATHERSTRIP, SLIDE DOOR, NO.2 LH
67887-97501

S221,231

 1
68113E - GLASS, REAR DOOR, RH
68113-97502

S221,231

*TT,厚さ=3.1,ﾀﾞｰｸｸﾞﾚｰ

 1
68114A - GLASS, REAR DOOR, REAR
68114-97502

S221,231

*TT,厚さ=3.1,ﾀﾞｰｸｸﾞﾚｰ

 1
68142 - RUN, REAR DOOR GLASS
68142-97501

S221,231

 2
68163 - WEATHERSTRIP, REAR DOOR GLASS, OUTER
68163-97501

S221,231

右側

 1
68164-97501

S221,231

左側

 1
69905D - CHANNEL SUB-ASSY, SLIDE DOOR GLASS, RH
69905-87502

S221,231

 1
69906D - CHANNEL SUB-ASSY, SLIDE DOOR GLASS, LH
69905-87502

S221,231

 1
69975C - FILLER, SLIDE DOOR GLASS CHANNEL
69975-87503

S221,231

 2
Common parts
67867-97211
90041-19260

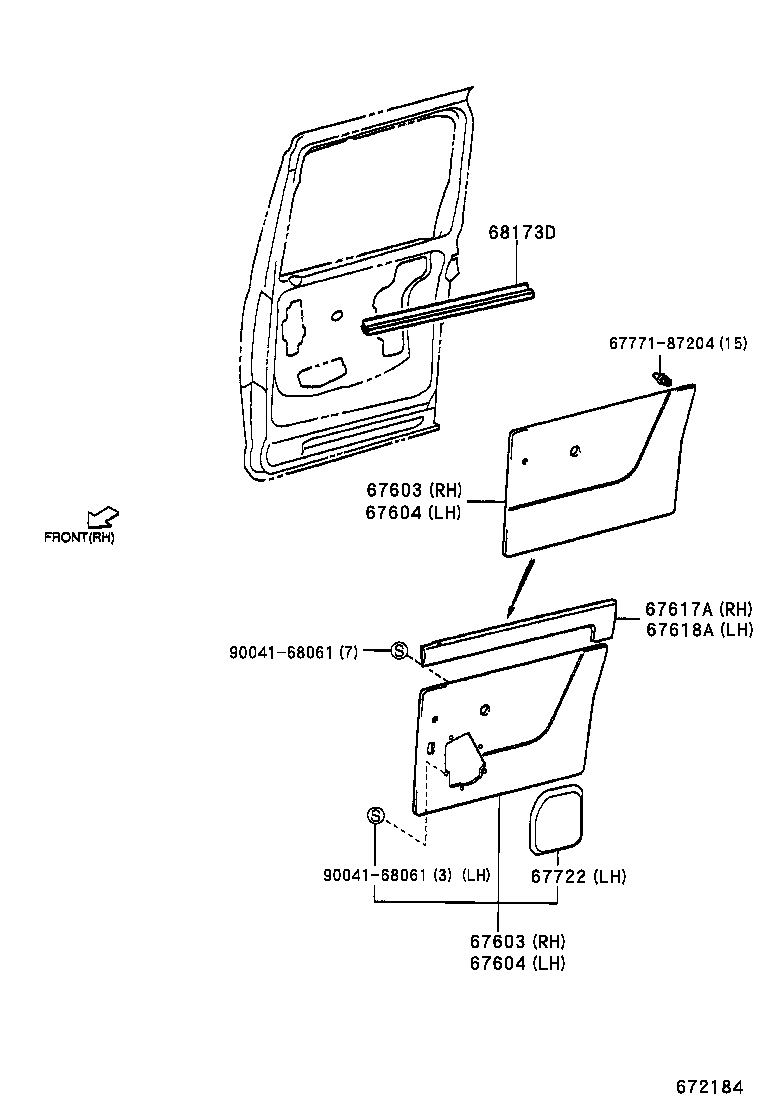

ILLUST NO. 1 OF 2(0009- )

Click highlighted areas on diagram

diagram 67603 67603 67604 67604 67617A 67618A 67722 6777187204 68173D 9004168061 9004168061
Part # Description Qty Price
67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH
67630-9752303

S221,231

GRAY

 1
67630-9753803

S221,231

GRAY

 1
67630-9751803

S221,231..X

ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ),GRAY

 1
67630-9751703

S221,231

GRAY

 1
67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH
67630-9752303

S221,231

GRAY

 1
67630-9753803

S221,231

GRAY

 1
67630-9751803

S221,231..X

ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ),GRAY

 1
67630-9751703

S221,231

GRAY

 1
67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH
67640-9753003

S221,231..X

ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ),GRAY

 1
67640-9753803

S221,231

ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ),GRAY

 1
67640-9755003

S221,231

GRAY

 1
67640-9756303

S221,231

ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ),GRAY

 1
67640-9752903

S221,231..X

GRAY

 1
67640-9756403

S221,231

GRAY

 1
67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH
67640-9753003

S221,231..X

ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ),GRAY

 1
67640-9753803

S221,231

ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ),GRAY

 1
67640-9755003

S221,231

GRAY

 1
67640-9756303

S221,231

ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ),GRAY

 1
67640-9752903

S221,231..X

GRAY

 1
67640-9756403

S221,231

GRAY

 1
67617A - BASE, REAR DOOR TRIM, RH
67627-9750113

S221,231

GRAY

 1
67627-9750401

S221,231

BLACK

 1
67627-9750113

S221,231..X

Jﾊﾟﾂｹ-ｼﾞ,GRAY

 1
67627-9750601

S221,231

BLACK

 1
67618A - BASE, REAR DOOR TRIM, LH
67628-9750113

S221,231

GRAY

 1
67628-9750401

S221,231

BLACK

 1
67628-9750113

S221,231..X

Jﾊﾟﾂｹ-ｼﾞ,GRAY

 1
67628-9750601

S221,231

BLACK

 1
67722 - COVER, REAR DOOR TRIM, LH
67722-9750113

S221,231

GRAY

 1
68173D - WEATHERSTRIP, REAR DOOR GLASS, CHANNEL
68173-97503

S221,231

 2
Common parts
67771-87204
90041-68061
