S221E-ZMRF (2000)

Toyota Sparky

Production Sep 2000 - Mar 2003
Engine K3VE
Transmission 5MT MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0009- )

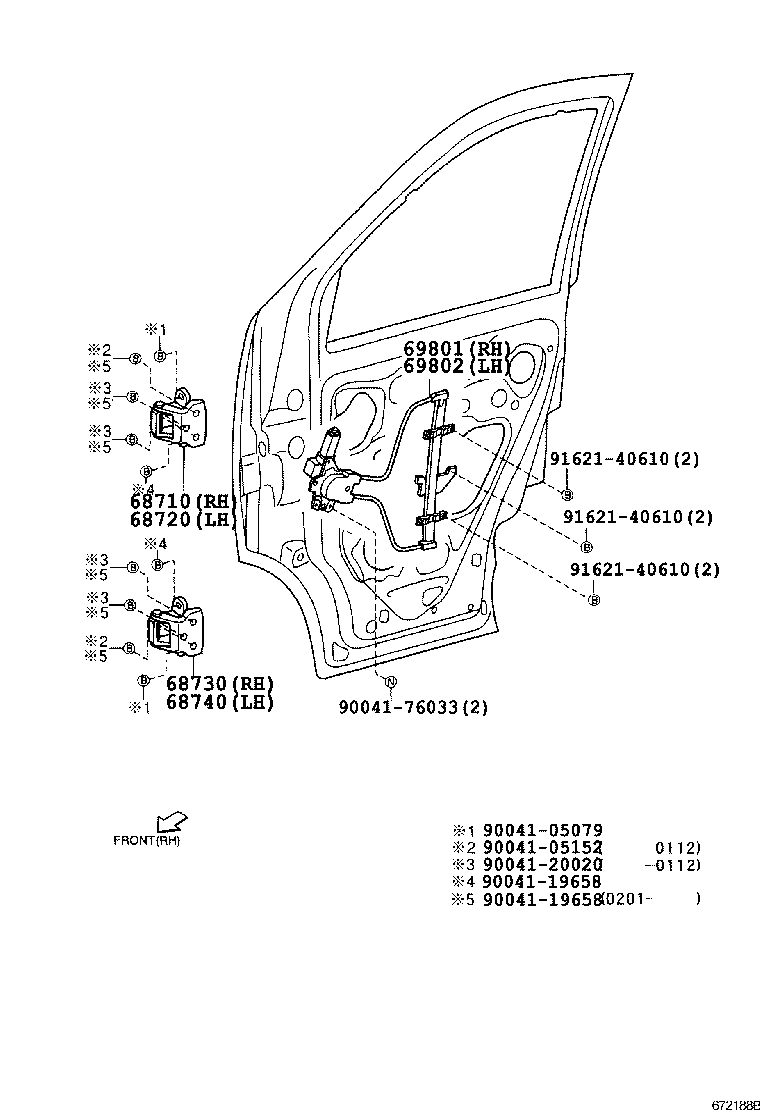

Click highlighted areas on diagram

diagram 68710 68720 68730 68740 69801 69802 9004105079 9004105152 9004119658 9004119658 9004120020 9004176033 9162140610 9162140610 9162140610
Part # Description Qty Price
68710 - HINGE ASSY, FRONT DOOR, UPPER RH
68710-97501

S221,231

 1
68720 - HINGE ASSY, FRONT DOOR, UPPER LH
68720-97501

S221,231

 1
68730 - HINGE ASSY, FRONT DOOR, LOWER RH
68720-97501

S221,231

 1
68740 - HINGE ASSY, FRONT DOOR, LOWER LH
68710-97501

S221,231

 1
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69810-97503

S221,231

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69820-97503

S221,231

 1
Common parts
90041-05079
90041-05152
90041-19658
90041-20020
90041-76033
91621-40610
