S221E-ZMRF (2000)

Toyota Sparky

Production Sep 2000 - Mar 2003
Engine K3VE
Transmission 5MT MTM
Displacement 2500cc
Power 168 HP (125 kW)

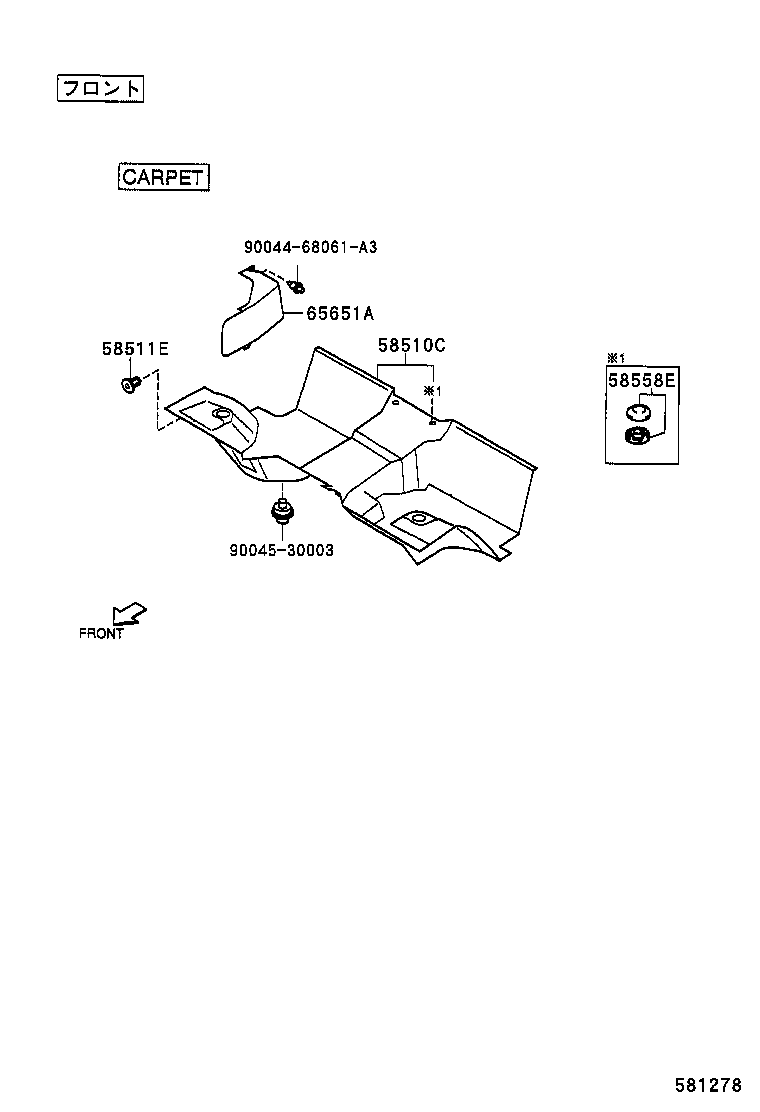

ILLUST NO. 1 OF 3(0009- )

Click highlighted areas on diagram

ﾌﾛﾝﾄ ｶ-ﾍﾟﾂﾄ

diagram 58510C 58511E 58558E 65651A 9004468061A3 9004530003
Part # Description Qty Price
58510C - CARPET ASSY, FRONT FLOOR, FRONT
58510-9753403

S221,231..5MT

GRAY

 1
58510-9751803

S221,231..5MT..X

GRAY

 1
58510-9752703

S221,231..5MT

GRAY

 1
58511E - CLIP(FOR FRONT FLOOR MAT)
90044-6823403

S221,231

GRAY

 4
58558E - FASTENER, PILE
58558-8750143

S221,231

GRAY

 10
65651A - COVER SUB-ASSY, WHEEL HOUSE
65651-9750103

S221,231

GRAY

 1
Common parts
90044-68061A3
90045-30003

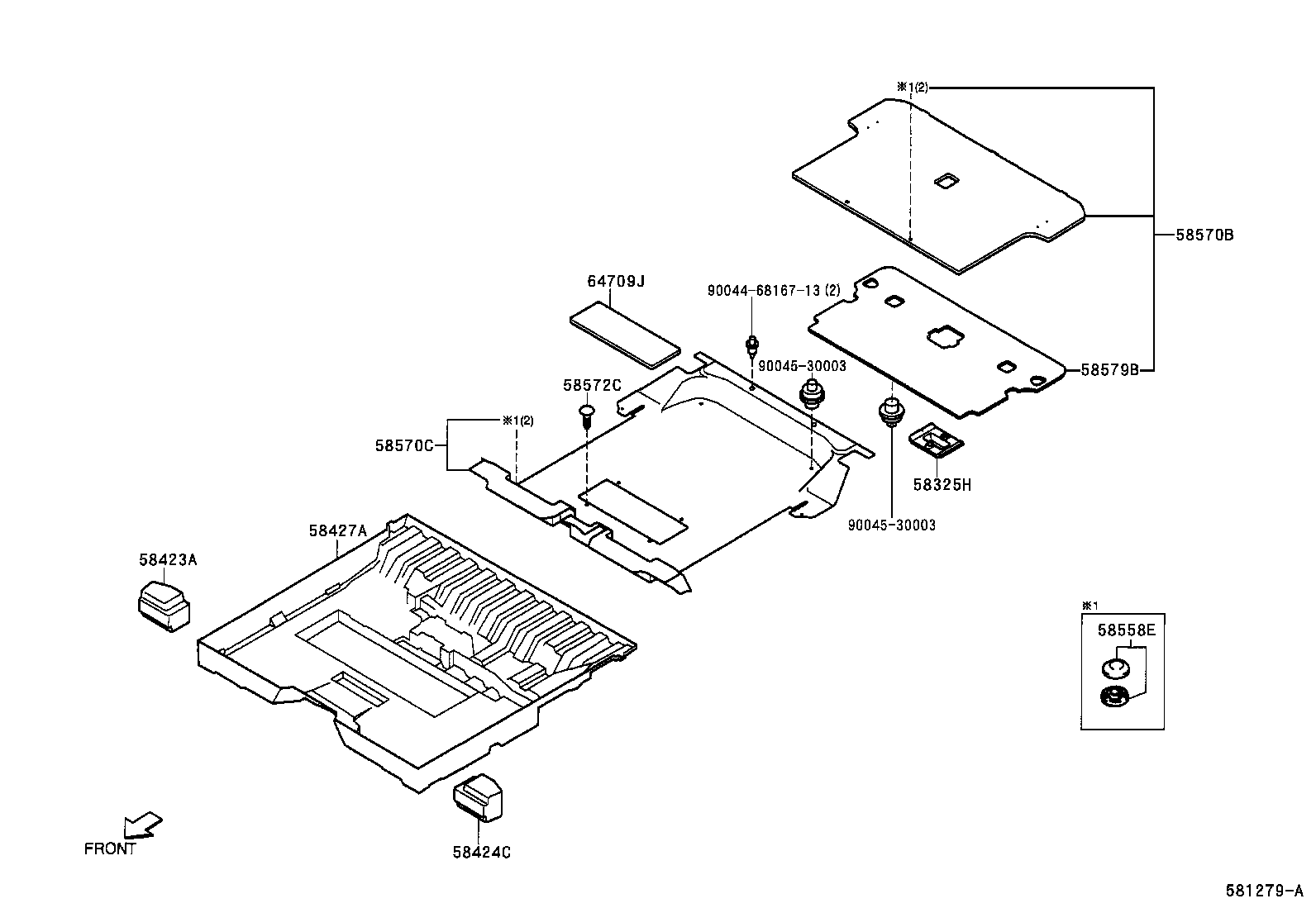

ILLUST NO. 2 OF 3(0009- )HIR

Click highlighted areas on diagram

ｾﾝﾀ- & ﾘﾔ ｶ-ﾍﾟﾂﾄ

diagram 58325H 58423A 58424C 58427A 58558E 58570B 58570C 58572C 58579B 64709J 900446816713 9004530003 9004530003
Part # Description Qty Price
58325H - COVER, REAR FLOOR SERVICE HOLE
58325-97502

S221,231

 1
58325-28030

S221,231

 1
58423A - SPACER, REAR FLOOR BOARD, NO.2
58423-97502

S221,231

 1
58424C - SPACER, REAR FLOOR BOARD, NO.3
58424-97502

S221,231

 1
58427A - SPACER, REAR FLOOR BOARD
58427-97504

S221,231..X..HIR

ｶﾝﾚｲﾁ ｼﾖｳ

 1
58427-97505

S221,231..X..HIR

 1
58558E - FASTENER, PILE
58558-8750143

S221,231

GRAY

 10
58570B - MAT ASSY, REAR FLOOR
58570-9752303

S221,231..X..HIR

GRAY

 1
58570-9751003

S221,231..X

GRAY

 1
58570-9751703

S221,231..X

GRAY

 1
58570C - CARPET ASSY, REAR FLOOR
58540-9751103

S221,231..X

GRAY

 1
58540-9750803

S221,231..X

ｶﾝﾚｲﾁ ｼﾖｳ,GRAY

 1
58540-9752503

S221,231..X..HIR

GRAY

 1
58540-9752403

S221,231..X..HIR

ｶﾝﾚｲﾁ ｼﾖｳ,GRAY

 1
58579B - PAD, REAR FLOOR
58579-97504

S221,231

 1
Common parts
90044-6816713
90045-30003

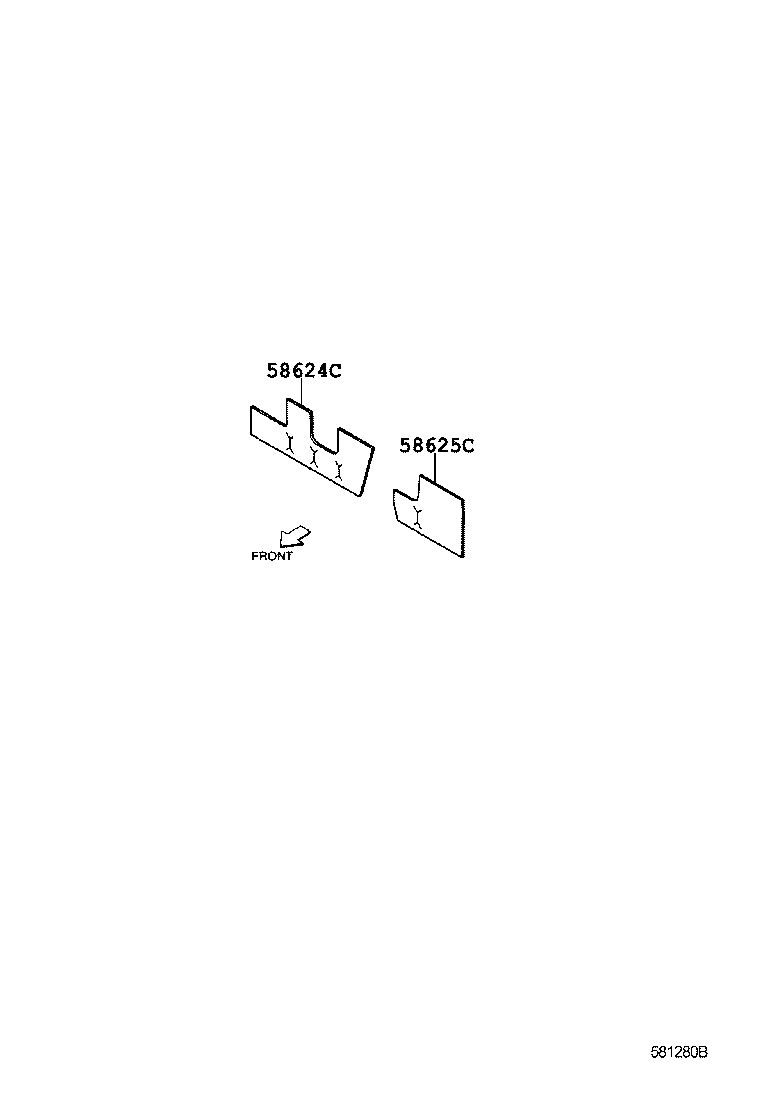

ILLUST NO. 3 OF 3(0009- )

Click highlighted areas on diagram

ｻｲﾚﾝｻ ｼ-ﾄ

diagram 58624C 58625C
Part # Description Qty Price
58624C - PAD, CENTER FLOOR SILENCER, RH
58633-97501

S221,231

 1
58625C - PAD, CENTER FLOOR SILENCER, LH
58634-97501

S221,231

 1
