S221E-ZMRF (2000)

Toyota Sparky

Production Sep 2000 - Mar 2003
Engine K3VE
Transmission 5MT MTM
Displacement 2500cc
Power 168 HP (125 kW)

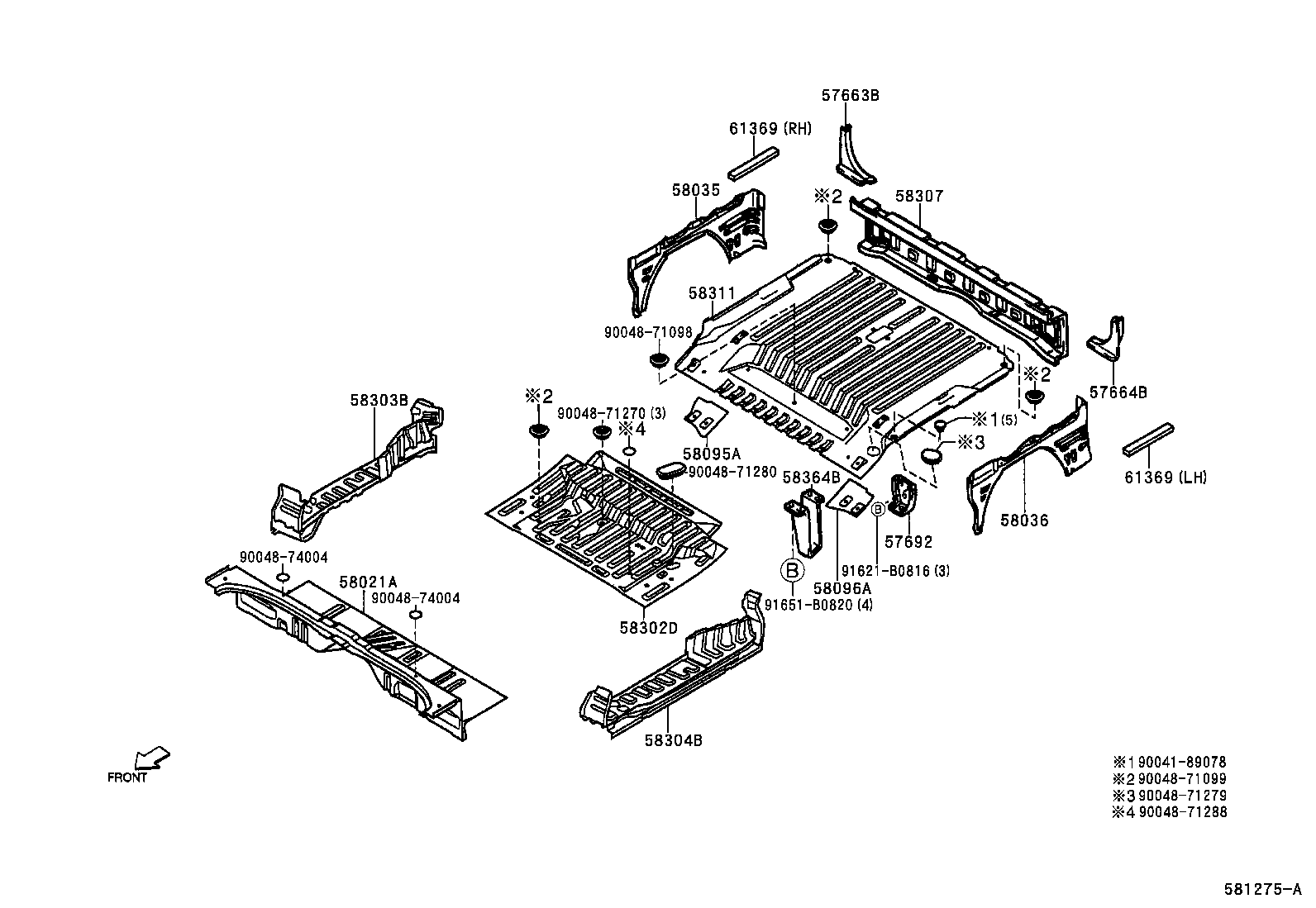

ILLUST NO. 1 OF 2(0009- )

Click highlighted areas on diagram

diagram 57663B 57664B 57692 58021A 58035 58036 58095A 58096A 58302D 58303B 58304B 58307 58311 58364B 61369 61369 9004189078 9004871098 9004871099 9004871270 9004871279 9004871280 9004871288 9004874004 9004874004 91621B0816 91651B0820
Part # Description Qty Price
57663B - PANEL, REAR FLOOR SIDE, REAR RH
57663-97501

S221,231

 1
57664B - PANEL, REAR FLOOR SIDE, REAR LH
57664-97501

S221,231

 1
57692 - BRACKET, FUEL TANK MOUNTING, REAR CENTER
57692-97501

S221,231

 1
58021A - PANEL SUB-ASSY, HEADER
58021-97534

S221

 1
58021-97511

S221

 1
58035 - PANEL SUB-ASSY, REAR FLOOR SIDE, RH
58035-97502

S221,231

 1
58036 - PANEL SUB-ASSY, REAR FLOOR SIDE, LH
58036-97502

S221,231

 1
58095A - RETAINER SUB-ASSY, REAR SEAT, NO.3 REAR RH
58095-97501

S221,231

 1
58096A - RETAINER SUB-ASSY, REAR SEAT, NO.3 REAR LH
58096-97501

S221,231

 1
58302D - PANEL SUB-ASSY, REAR FLOOR, FRONT
58302-97531

S221,231

 1
58303B - STEP SUB-ASSY, REAR FLOOR, RH
58107-97504

S221,231

 1
58304B - STEP SUB-ASSY, REAR FLOOR, LH
58108-97506

S221,231

 1
58307 - PANEL SUB-ASSY, BODY LOWER BACK
58307-97501

S221,231

 1
58311 - PAN, REAR FLOOR
58303-97518

S221,231

 1
58303-97510

S221,231

 1
58303-97515

S221,231

 1
61369 - SPACER, REAR SIDE PANEL
61369-97501

S221,231

 2
61369 - SPACER, REAR SIDE PANEL
61369-97501

S221,231

 2
Common parts
90041-89078
90048-71098
90048-71099
90048-71270
90048-71279
90048-71280
90048-71288
90048-74004
91621-B0816
91651-B0820

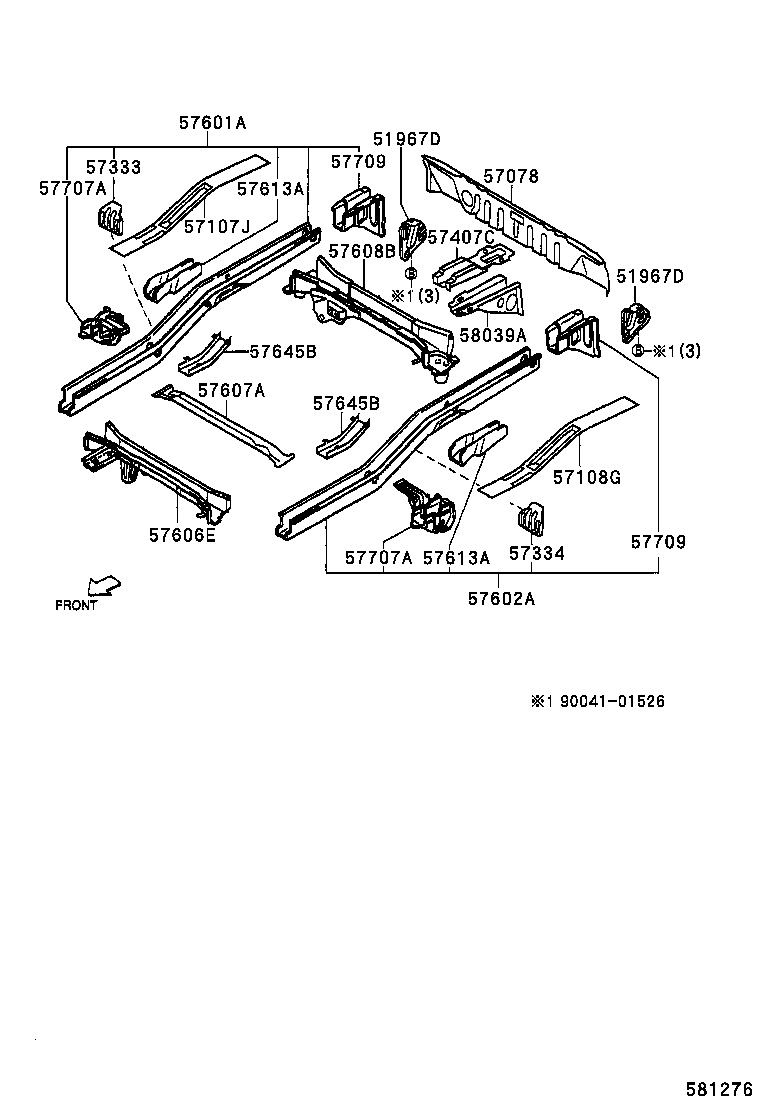

ILLUST NO. 2 OF 2(0009- )

Click highlighted areas on diagram

diagram 51967D 51967D 57078 57107J 57108G 57333 57334 57407C 57601A 57602A 57606E 57607A 57608B 57613A 57613A 57645B 57645B 57707A 57707A 57709 57709 58039A 9004101526
Part # Description Qty Price
51967D - HOOK SUB-ASSY,REAR
51967-97501

S221,231

右側

 1
51968-97502

S221,231

左側

 1
51968-97501

S221,231

左側

 1
51967-97502

S221,231

右側

 1
51967D - HOOK SUB-ASSY,REAR
51967-97501

S221,231

右側

 1
51968-97502

S221,231

左側

 1
51968-97501

S221,231

左側

 1
51967-97502

S221,231

右側

 1
57078 - MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, OUTER
57078-97504

S221,231

 1
57107J - PLATE SUB-ASSY, SIDE FRAME, NO.3 RH
57107-97504

S221,231

 1
57107-97505

S221,231

 1
57108G - PLATE SUB-ASSY, SIDE FRAME, NO.3 LH
57107-97505

S221,231

 1
57107-97504

S221,231

 1
57333 - OUTRIGGER, NO.5 RH
57333-97502

S221,231

 1
57334 - OUTRIGGER, NO.5 LH
57333-97502

S221,231

 1
57407C - MEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.1
57407-97502

S221,231

 1
57601A - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH
57601-97507

S221,231

 1
57601-97509

S221,231

 1
57602A - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH
57602-97509

S221,231

 1
57602-97507

S221,231

 1
57602-97515

S221,231

 1
57606E - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2
57606-97506

S221

 1
57606-97501

S221

 1
57607A - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3
57607-97502

S221,231..HIR

 1
57608B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.4
57608-97506

S221,231

 1
57613A - MEMBER, REAR FLOOR SIDE CENTER
57614-87502

S221,231

左側

 1
57614-97501

S221,231

左側

 1
57613-97502

S221,231

右側

 1
57614-87502

S221,231

左側

 1
57613-87505

S221,231

右側

 1
57613-87505

S221,231

右側

 1
57613A - MEMBER, REAR FLOOR SIDE CENTER
57614-87502

S221,231

左側

 1
57614-97501

S221,231

左側

 1
57613-97502

S221,231

右側

 1
57614-87502

S221,231

左側

 1
57613-87505

S221,231

右側

 1
57613-87505

S221,231

右側

 1
57645B - REINFORCEMENT, REAR SIDE MEMBER
57645-97502

S221,231

 2
57645B - REINFORCEMENT, REAR SIDE MEMBER
57645-97502

S221,231

 2
57707A - PLATE SUB-ASSY, REAR SPRING, RH
57707-97504

S221,231

右側

 1
57708-97504

S221,231

左側

 1
57707A - PLATE SUB-ASSY, REAR SPRING, RH
57707-97504

S221,231

右側

 1
57708-97504

S221,231

左側

 1
57709 - BRACKET SUB-ASSY, REAR SPRING, REAR
57703-97502

S221,231

右側

 1
57703-97505

S221,231

左側

 1
57703-97502

S221,231

 2
57709 - BRACKET SUB-ASSY, REAR SPRING, REAR
57703-97502

S221,231

右側

 1
57703-97505

S221,231

左側

 1
57703-97502

S221,231

 2
58039A - REINFORCEMENT SUB-ASSY, REAR FLOOR PANEL
58039-97501

S221,231

 1
Common parts
90041-01526
