S221E-ZMRF (2000)
Toyota Sparky
Production
Sep 2000
-
Mar 2003
Engine
K3VE
Transmission
5MT MTM
Displacement
2500cc
Power
168 HP (125 kW)

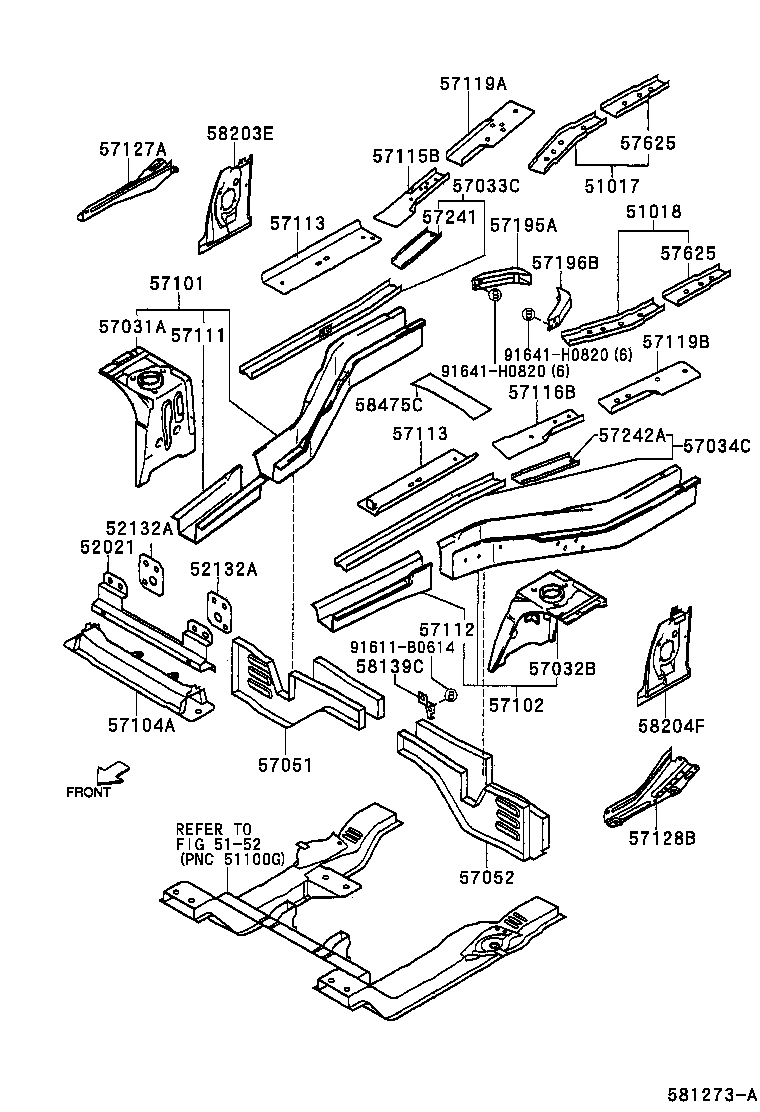

ILLUST NO. 1 OF 2(0009- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51017 - REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 RH | ||||
| 51017-97502 |
S221,231 |
1 | ||
| 51018 - REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 LH | ||||
| 51018-97502 |
S221,231 |
1 | ||
| 52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER | ||||
| 52021-97501 |
S221,231 |
1 | ||
| 52132A - REINFORCEMENT, FRONT BUMPER, NO.2 | ||||
| 52132-97501 |
S221,231 |
2 | ||
| 52132A - REINFORCEMENT, FRONT BUMPER, NO.2 | ||||
| 52132-97501 |
S221,231 |
2 | ||
| 57031A - REINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH | ||||
| 57031-97506 |
S221,231 |
1 | ||
| 57032B - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH | ||||
| 57032-97506 |
S221,231 |
1 | ||
| 57033C - REINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.3 RH | ||||
| 57033-97503 |
S221,231 |
1 | ||
| 57034C - REINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.3 LH | ||||
| 57034-97502 |
S221,231 |
1 | ||
| 57051 - MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH | ||||
| 57051-97503 |
S221,231 |
1 | ||
| 57052 - MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH | ||||
| 57052-97503 |
S221,231 |
1 | ||
| 57101 - MEMBER SUB-ASSY, FRONT SIDE, RH | ||||
| 57101-97514 |
S221,231 |
1 | ||
| 57102 - MEMBER SUB-ASSY, FRONT SIDE, LH | ||||
| 57102-97512 |
S221,231 |
1 | ||
| 57104A - MEMBER SUB-ASSY, FRONT CROSS | ||||
| 57104-97503 |
S221,231 |
1 | ||
| 57111 - MEMBER, FRONT SIDE, RH | ||||
| 57111-97505 |
S221,231 |
1 | ||
| 57112 - MEMBER, FRONT SIDE, LH | ||||
| 57112-97504 |
S221,231 |
1 | ||
| 57113 - EXTENSION, FRONT SIDE MEMBER, RH | ||||
| 57113-97503 |
S221,231 |
2 | ||
| 57113 - EXTENSION, FRONT SIDE MEMBER, RH | ||||
| 57113-97503 |
S221,231 |
2 | ||
| 57115B - PLATE, FRONT SIDE MEMBER, NO.1 RH | ||||
| 57115-97503 |
S221,231 |
1 | ||
| 57115-97505 |
S221,231 |
1 | ||
| 57116B - PLATE, FRONT SIDE MEMBER, NO.1 LH | ||||
| 57106-97503 |
S221,231 |
1 | ||
| 57119A - PLATE, FRONT SIDE MEMBER, FRONT RH | ||||
| 57119-97501 |
S221,231 |
1 | ||
| 57119B - PLATE, FRONT SIDE MEMBER, FRONT LH | ||||
| 57118-97502 |
S221,231 |
1 | ||
| 57127A - REINFORCEMENT, FRONT SIDE MEMBER, NO.8 RH | ||||
| 57127-97502 |
S221,231 |
1 | ||
| 57128B - REINFORCEMENT, FRONT SIDE MEMBER, NO.8 LH | ||||
| 57128-97502 |
S221,231 |
1 | ||
| 57195A - REINFORCEMENT, FRONT SIDE MEMBER, FRONT RH | ||||
| 57195-97501 |
S221,231 |
1 | ||
| 57196B - REINFORCEMENT, FRONT SIDE MEMBER, FRONT LH | ||||
| 57196-97501 |
S221,231 |
1 | ||
| 57241 - REINFORCEMENT, FRONT SIDE MEMBER, NO.5 RH | ||||
| 57245-97502 |
S221,231 |
1 | ||
| 57242A - REINFORCEMENT, FRONT SIDE MEMBER, NO.5 LH | ||||
| 57246-97502 |
S221,231 |
1 | ||
| 57625 - REINFORCEMENT, REAR FLOOR SIDE MEMBER, RH | ||||
| 57625-97501 |
S221,231 |
2 | ||
| 57625 - REINFORCEMENT, REAR FLOOR SIDE MEMBER, RH | ||||
| 57625-97501 |
S221,231 |
2 | ||
| 58139C - BRACKET, HARNESS CLAMP | ||||
| 58139-97502 |
S221,231 |
1 | ||
| 58203E - PILLAR, CENTER BODY, INNER LOWER RH | ||||
| 58203-97504 |
S221,231 |
1 | ||
| 58203-97501 |
S221,231 |
1 | ||
| 58204F - PILLAR, CENTER BODY, INNER LOWER LH | ||||
| 58204-97504 |
S221,231 |
1 | ||
| 58204-97501 |
S221,231 |
1 | ||
| 58475C - PACKING, ENGIN SUB COVER, NO.3 | ||||
| 57475-97501 |
S221,231 |
1 | ||
| Common parts | ||||
| 91611-B0614 | ||||
| 91641-H0820 | ||||
| Linked diagrams | ||||
| 5152 | ||||

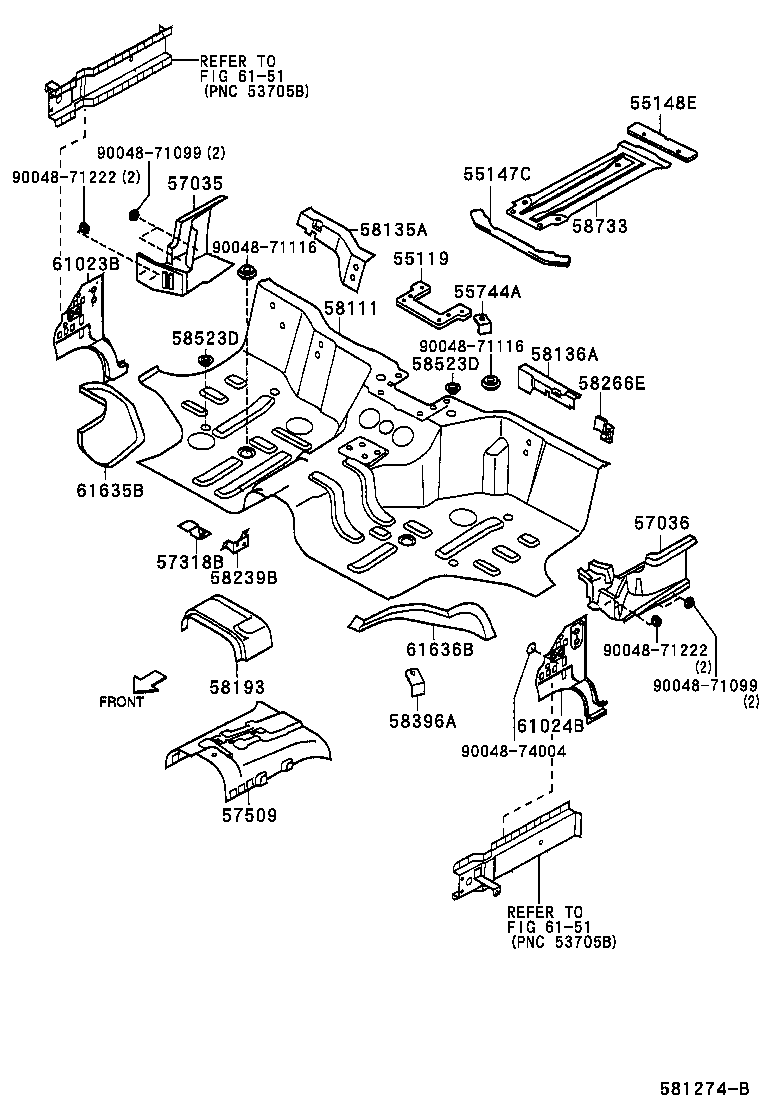

ILLUST NO. 2 OF 2(0009-0106)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55119 - MEMBER, SEAT RISER, CENTER | ||||
| 55119-97501 |
S221,231 |
1 | ||
| 55147C - CUSHION, ENGINE SERVICE HOLE COVER NO.1 | ||||
| 55147-97501 |
S221,231 |
1 | ||
| 55148E - CUSHION, ENGINE SERVICE HOLE COVER, NO.2 | ||||
| 55148-97501 |
S221,231..5MT |
1 | ||
| 55744A - REINFORCEMENT, PEDAL BRACKET MOUNTING | ||||
| 55744-87603 |
S221,231 |
1 | ||
| 57035 - PANEL SUB-ASSY, FRONT STEP, RH | ||||
| 57035-97508 |
S221,231 |
1 | ||
| 57035-97504 |
S221,231 |
1 | ||
| 57036 - PANEL SUB-ASSY, FRONT STEP, LH | ||||
| 57036-97506 |
S221,231 |
1 | ||
| 57036-97503 |
S221,231 |
1 | ||
| 57318B - BRACKET, POWERSTEERING TUBE MOUNTING | ||||
| 57318-97501 |
S221,231 |
1 | ||
| 57509 - REINFORCEMENT SUB-ASSY, FRONT FLOOR, CENTER | ||||
| 57509-97502 |
S221,231 |
1 | ||
| 58111 - PAN, FRONT FLOOR | ||||
| 58111-97517 |
S221,231 |
1 | ||
| 58111-97515 |
S221,231 |
1 | ||
| 58111-97501 |
S221,231 |
1 | ||
| 58111-97512 |
S221,231 |
1 | ||
| 58135A - PANEL, FRONT FLOOR HOUSING, FRONT RH | ||||
| 58135-97504 |
S221,231 |
1 | ||
| 58135-97502 |
S221,231 |
1 | ||
| 58018-97501 |
S221,231 |
1 | ||
| 58136A - COVER, FRONT FLOOR SERVICE HOLE | ||||
| 58136-97506 |
S221,231 |
1 | ||
| 58136-97505 |
S221,231 |
1 | ||
| 58136-97503 |
S221,231 |
1 | ||
| 58193 - BRACKET, INSTRUMENT PANEL BRACE MOUNTING | ||||
| 58193-97501 |
S221,231 |
1 | ||
| 58239B - BRACKET, CABLE CLAMP | ||||
| 58239-97501 |
S221,231 |
1 | ||
| 58266E - BRACKET, FUEL TUBE CLAMP, CENTER | ||||
| 58266-87703 |
S221,231 |
1 | ||
| 58266-87703 |
S221,231 |
2 | ||
| 58396A - BRACKET, WIRE HARNESS CLAMP | ||||
| 58396-87503 |
S221,231 |
1 | ||
| 58523D - CLIP(FOR FLOOR CARPET SET BRACKET) | ||||
| 58523-87202 |
S221,231 |
10 | ||
| 58523D - CLIP(FOR FLOOR CARPET SET BRACKET) | ||||
| 58523-87202 |
S221,231 |
10 | ||
| 61023B - PILLAR SUB-ASSY, FRONT BODY, INNER RH | ||||
| 61023-97507 |
S221,231 |
1 | ||
| 61023-97509 |
S221,231..HIR ｱﾘ(ｻﾝﾙ-ﾌ) |
1 | ||
| 61024B - PILLAR SUB-ASSY, FRONT BODY, INNER LH | ||||
| 61024-97506 |
S221,231 |
1 | ||
| 61024-97508 |
S221,231..HIR ｱﾘ(ｻﾝﾙ-ﾌ) |
1 | ||
| 61635B - PANEL, QUARTER, INNER FRONT RH | ||||
| 61635-97502 |
S221,231 |
1 | ||
| 61636B - PANEL, QUARTER, INNER FRONT LH | ||||
| 61636-97502 |
S221,231 |
1 | ||
| Common parts | ||||
| 90048-71099 | ||||
| 90048-71116 | ||||
| 90048-71222 | ||||
| 90048-74004 | ||||
| Linked diagrams | ||||
| 6151 | ||||

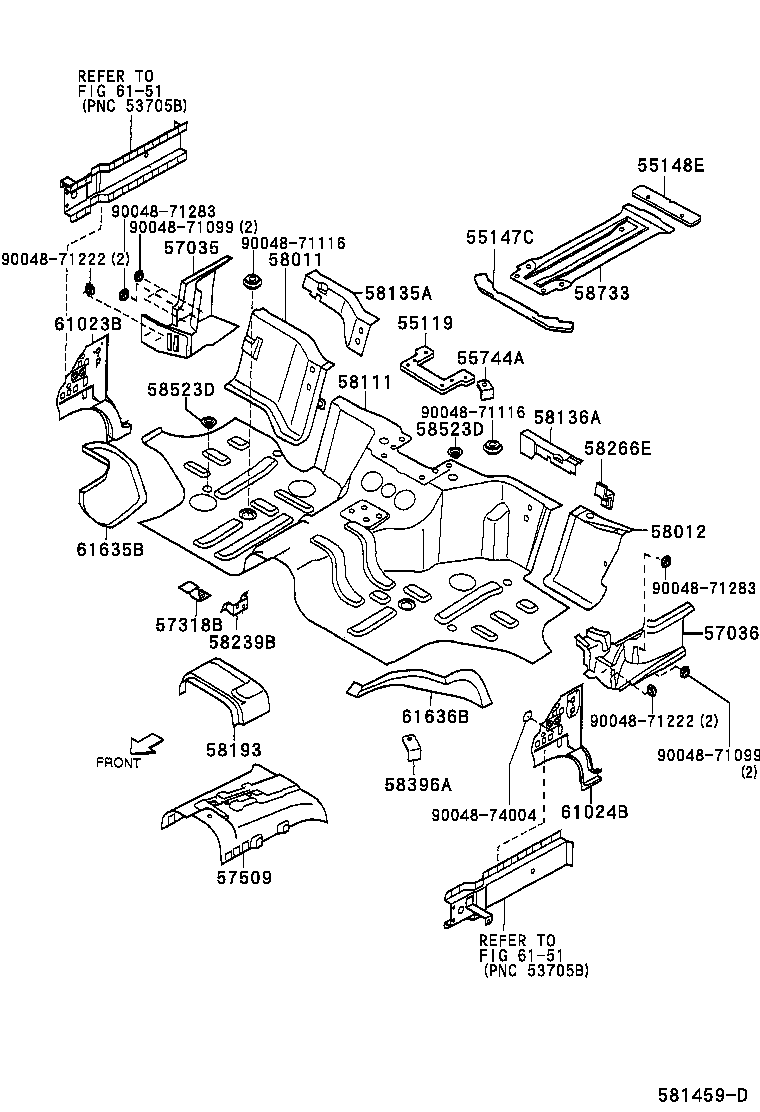

ILLUST NO. 2 OF 2(0106-0111)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55119 - MEMBER, SEAT RISER, CENTER | ||||
| 55119-97501 |
S221,231 |
1 | ||
| 55147C - CUSHION, ENGINE SERVICE HOLE COVER NO.1 | ||||
| 55147-97501 |
S221,231 |
1 | ||
| 55148E - CUSHION, ENGINE SERVICE HOLE COVER, NO.2 | ||||
| 55148-97501 |
S221,231..5MT |
1 | ||
| 55744A - REINFORCEMENT, PEDAL BRACKET MOUNTING | ||||
| 55744-87603 |
S221,231 |
1 | ||
| 57035 - PANEL SUB-ASSY, FRONT STEP, RH | ||||
| 57035-97508 |
S221,231 |
1 | ||
| 57035-97504 |
S221,231 |
1 | ||
| 57036 - PANEL SUB-ASSY, FRONT STEP, LH | ||||
| 57036-97506 |
S221,231 |
1 | ||
| 57036-97503 |
S221,231 |
1 | ||
| 57318B - BRACKET, POWERSTEERING TUBE MOUNTING | ||||
| 57318-97501 |
S221,231 |
1 | ||
| 57509 - REINFORCEMENT SUB-ASSY, FRONT FLOOR, CENTER | ||||
| 57509-97502 |
S221,231 |
1 | ||
| 58011 - PANEL SUB-ASSY, FRONT FLOOR SIDE, RH | ||||
| 58011-97501 |
S221,231 |
1 | ||
| 58012 - PANEL SUB-ASSY, FRONT FLOOR SIDE, LH | ||||
| 58012-97501 |
S221,231 |
1 | ||
| 58111 - PAN, FRONT FLOOR | ||||
| 58111-97515 |
S221,231 |
1 | ||
| 58111-97517 |
S221,231 |
1 | ||
| 58111-97501 |
S221,231 |
1 | ||
| 58111-97512 |
S221,231 |
1 | ||
| 58135A - PANEL, FRONT FLOOR HOUSING, FRONT RH | ||||
| 58135-97504 |
S221,231 |
1 | ||
| 58135-97502 |
S221,231 |
1 | ||
| 58018-97501 |
S221,231 |
1 | ||
| 58136A - COVER, FRONT FLOOR SERVICE HOLE | ||||
| 58136-97506 |
S221,231 |
1 | ||
| 58136-97505 |
S221,231 |
1 | ||
| 58136-97503 |
S221,231 |
1 | ||
| 58193 - BRACKET, INSTRUMENT PANEL BRACE MOUNTING | ||||
| 58193-97501 |
S221,231 |
1 | ||
| 58239B - BRACKET, CABLE CLAMP | ||||
| 58239-97501 |
S221,231 |
1 | ||
| 58266E - BRACKET, FUEL TUBE CLAMP, CENTER | ||||
| 58266-87703 |
S221,231 |
1 | ||
| 58266-87703 |
S221,231 |
2 | ||
| 58396A - BRACKET, WIRE HARNESS CLAMP | ||||
| 58396-87503 |
S221,231 |
1 | ||
| 58523D - CLIP(FOR FLOOR CARPET SET BRACKET) | ||||
| 58523-87202 |
S221,231 |
10 | ||
| 58523D - CLIP(FOR FLOOR CARPET SET BRACKET) | ||||
| 58523-87202 |
S221,231 |
10 | ||
| 61023B - PILLAR SUB-ASSY, FRONT BODY, INNER RH | ||||
| 61023-97507 |
S221,231 |
1 | ||
| 61023-97509 |
S221,231..HIR ｱﾘ(ｻﾝﾙ-ﾌ) |
1 | ||
| 61024B - PILLAR SUB-ASSY, FRONT BODY, INNER LH | ||||
| 61024-97506 |
S221,231 |
1 | ||
| 61024-97508 |
S221,231..HIR ｱﾘ(ｻﾝﾙ-ﾌ) |
1 | ||
| 61635B - PANEL, QUARTER, INNER FRONT RH | ||||
| 61635-97502 |
S221,231 |
1 | ||
| 61636B - PANEL, QUARTER, INNER FRONT LH | ||||
| 61636-97502 |
S221,231 |
1 | ||
| Common parts | ||||
| 90048-71099 | ||||
| 90048-71116 | ||||
| 90048-71222 | ||||
| 90048-71283 | ||||
| 90048-74004 | ||||
| Linked diagrams | ||||
| 6151 | ||||

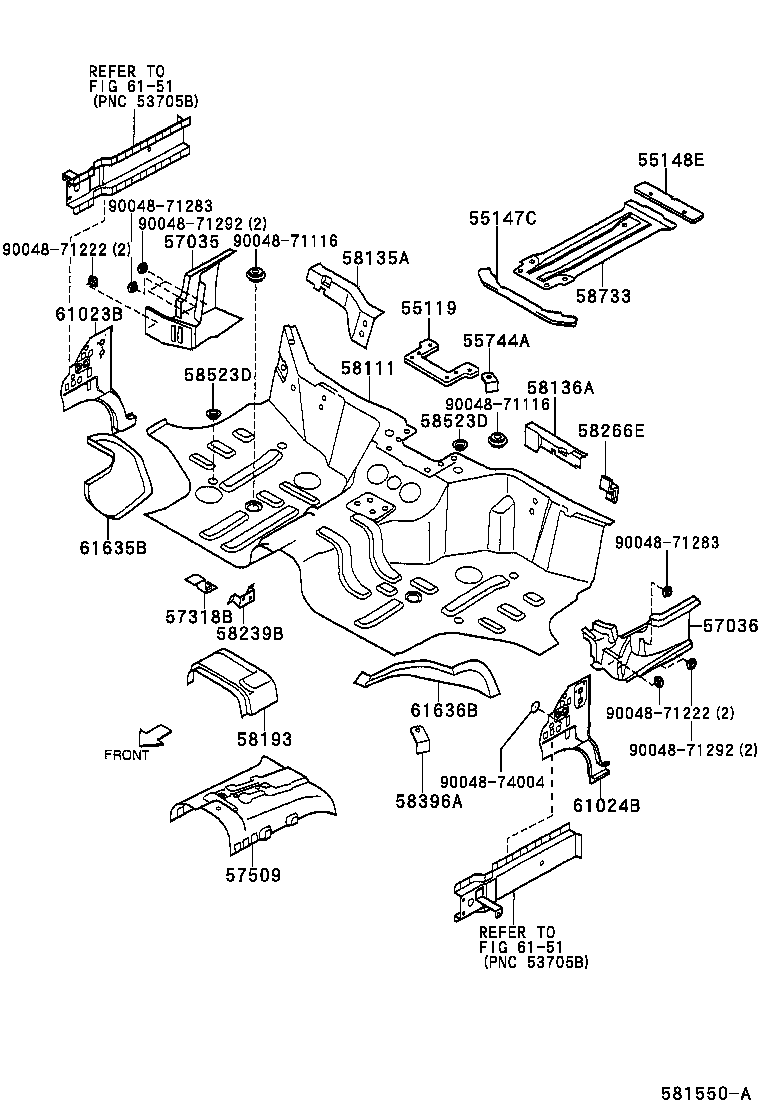

ILLUST NO. 2 OF 2(0111- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55119 - MEMBER, SEAT RISER, CENTER | ||||
| 55119-97501 |
S221,231 |
1 | ||
| 55147C - CUSHION, ENGINE SERVICE HOLE COVER NO.1 | ||||
| 55147-97501 |
S221,231 |
1 | ||
| 55148E - CUSHION, ENGINE SERVICE HOLE COVER, NO.2 | ||||
| 55148-97501 |
S221,231..5MT |
1 | ||
| 55744A - REINFORCEMENT, PEDAL BRACKET MOUNTING | ||||
| 55744-87603 |
S221,231 |
1 | ||
| 57035 - PANEL SUB-ASSY, FRONT STEP, RH | ||||
| 57035-97508 |
S221,231 |
1 | ||
| 57035-97504 |
S221,231 |
1 | ||
| 57036 - PANEL SUB-ASSY, FRONT STEP, LH | ||||
| 57036-97506 |
S221,231 |
1 | ||
| 57036-97503 |
S221,231 |
1 | ||
| 57318B - BRACKET, POWERSTEERING TUBE MOUNTING | ||||
| 57318-97501 |
S221,231 |
1 | ||
| 57509 - REINFORCEMENT SUB-ASSY, FRONT FLOOR, CENTER | ||||
| 57509-97502 |
S221,231 |
1 | ||
| 58111 - PAN, FRONT FLOOR | ||||
| 58111-97515 |
S221,231 |
1 | ||
| 58111-97517 |
S221,231 |
1 | ||
| 58111-97501 |
S221,231 |
1 | ||
| 58111-97512 |
S221,231 |
1 | ||
| 58135A - PANEL, FRONT FLOOR HOUSING, FRONT RH | ||||
| 58135-97504 |
S221,231 |
1 | ||
| 58135-97502 |
S221,231 |
1 | ||
| 58018-97501 |
S221,231 |
1 | ||
| 58136A - COVER, FRONT FLOOR SERVICE HOLE | ||||
| 58136-97506 |
S221,231 |
1 | ||
| 58136-97505 |
S221,231 |
1 | ||
| 58136-97503 |
S221,231 |
1 | ||
| 58193 - BRACKET, INSTRUMENT PANEL BRACE MOUNTING | ||||
| 58193-97501 |
S221,231 |
1 | ||
| 58239B - BRACKET, CABLE CLAMP | ||||
| 58239-97501 |
S221,231 |
1 | ||
| 58266E - BRACKET, FUEL TUBE CLAMP, CENTER | ||||
| 58266-87703 |
S221,231 |
1 | ||
| 58266-87703 |
S221,231 |
2 | ||
| 58396A - BRACKET, WIRE HARNESS CLAMP | ||||
| 58396-87503 |
S221,231 |
1 | ||
| 58523D - CLIP(FOR FLOOR CARPET SET BRACKET) | ||||
| 58523-87202 |
S221,231 |
10 | ||
| 58523D - CLIP(FOR FLOOR CARPET SET BRACKET) | ||||
| 58523-87202 |
S221,231 |
10 | ||
| 61023B - PILLAR SUB-ASSY, FRONT BODY, INNER RH | ||||
| 61023-97507 |
S221,231 |
1 | ||
| 61023-97509 |
S221,231..HIR ｱﾘ(ｻﾝﾙ-ﾌ) |
1 | ||
| 61024B - PILLAR SUB-ASSY, FRONT BODY, INNER LH | ||||
| 61024-97506 |
S221,231 |
1 | ||
| 61024-97508 |
S221,231..HIR ｱﾘ(ｻﾝﾙ-ﾌ) |
1 | ||
| 61635B - PANEL, QUARTER, INNER FRONT RH | ||||
| 61635-97502 |
S221,231 |
1 | ||
| 61636B - PANEL, QUARTER, INNER FRONT LH | ||||
| 61636-97502 |
S221,231 |
1 | ||
| Common parts | ||||
| 90048-71116 | ||||
| 90048-71222 | ||||
| 90048-71283 | ||||
| 90048-71292 | ||||
| 90048-74004 | ||||
| Linked diagrams | ||||
| 6151 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
Unable to retrieve price information.
