S221E-ZMRF (2000)

Toyota Sparky

Production Sep 2000 - Mar 2003
Engine K3VE
Transmission 5MT MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0009- )

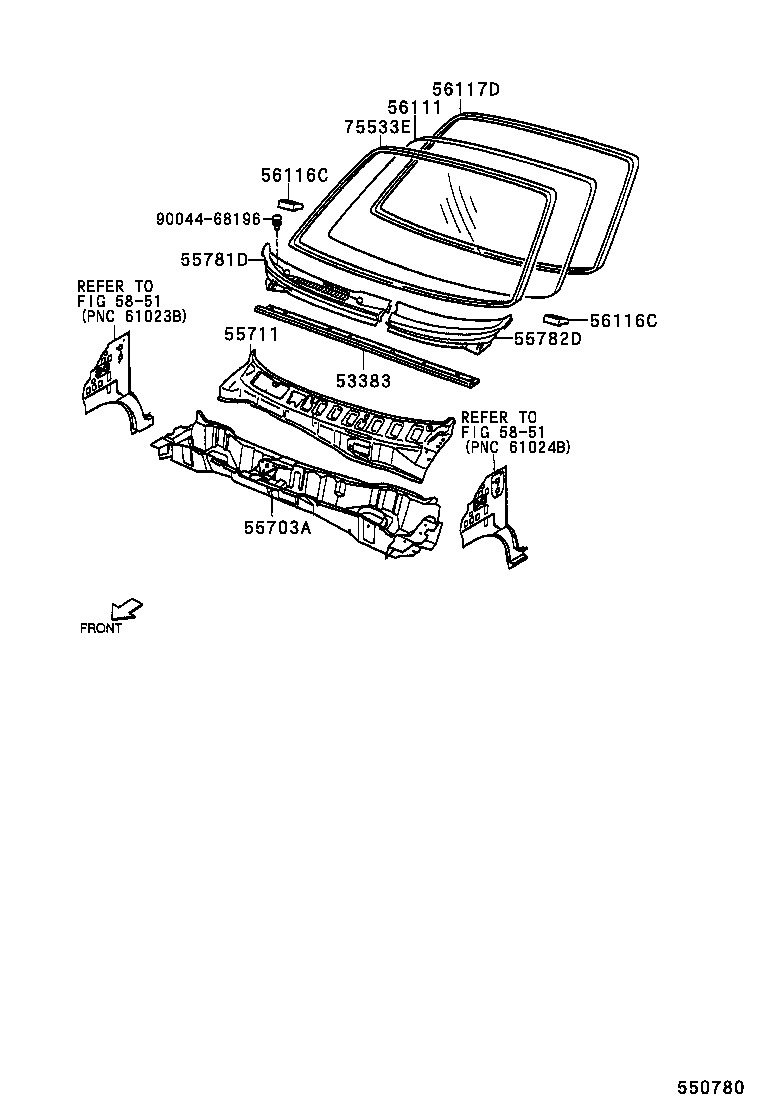

Click highlighted areas on diagram

diagram 53383 55703A 55711 55781D 55782D 56111 56116C 56116C 56117D 5851 5851 75533E 9004468196
Part # Description Qty Price
53383 - SEAL, HOOD TO COWL TOP
53383-97501

S221,231

 1
55703A - PANEL SUB-ASSY, COWL TOP, INNER
55703-97504

S221,231..5MT

 1
55711 - PANEL, COWL TOP, OUTER
55701-97501

S221,231

 1
55781D - LOUVER, COWL TOP VENTILATOR, RH
55753-97503

S221,231

 1
55782D - LOUVER, COWL TOP VENTILATOR, LH
55754-97503

S221,231

 1
56111 - GLASS, WINDSHIELD
56111-97504

S221,231

*LAM,T=4.7,ｸﾞﾘｰﾝ

 1
56116C - STOPPER, WINDSHIELD GLASS, NO.2
56115-87401

S221,231

 2
56116C - STOPPER, WINDSHIELD GLASS, NO.2
56115-87401

S221,231

 2
56117D - DAM, WINDSHIELD GLASS ADHESIVE
56117-97501

S221,231

 1
75533E - MOULDING, WINDSHIELD, OUTSIDE
75533-97503

S221,231

 1
Common parts
90044-68196
Linked diagrams
5851
