S221E-ZMRF (2000)

Toyota Sparky

Production Sep 2000 - Mar 2003
Engine K3VE
Transmission 5MT MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0009- )

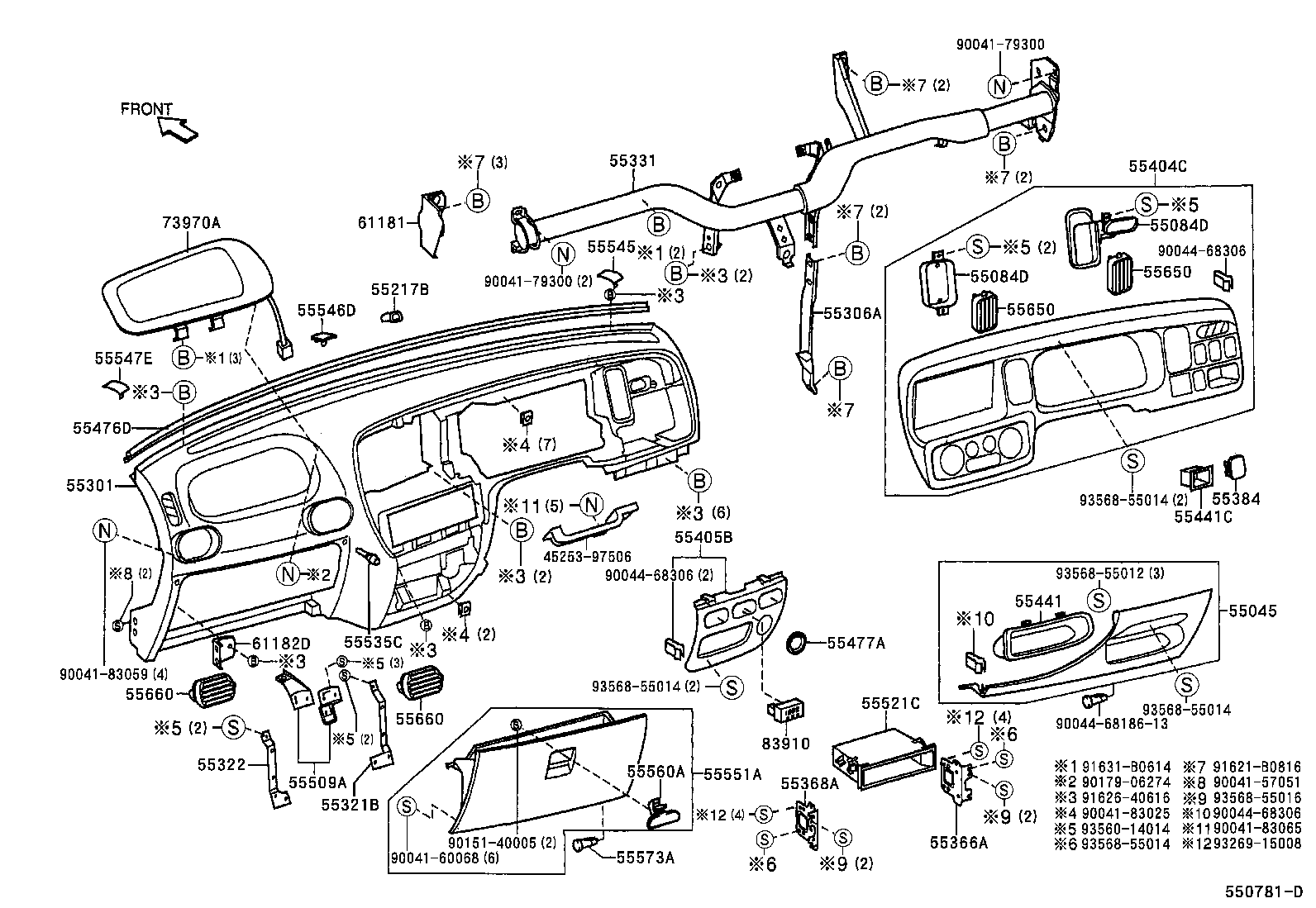

Click highlighted areas on diagram

diagram 4525397506 55045 55084D 55084D 55217B 55301 55306A 55321B 55322 55331 55366A 55368A 55384 55404C 55405B 55441 55441C 55476D 55477A 55509A 55521C 55535C 55545 55546D 55547E 55551A 55560A 55573A 55650 55650 55660 55660 61181 61182D 73970A 83910 9004157051 9004160068 9004179300 9004179300 9004183025 9004183059 9004183065 900446818613 9004468306 9004468306 9004468306 9015140005 9017906274 91621B0816 9162640616 91631B0614 9326915008 9356014014 9356855012 9356855014 9356855014 9356855014 9356855014 9356855016
Part # Description Qty Price
55045 - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER
55045-9750103

S221,231

GRAY

 1
55084D - DUCT SUB-ASSY, HEATER TO REGISTER, NO.1
55081-97501

S221,231

右側

 1
55833-97501

S221,231

左側

 1
55084D - DUCT SUB-ASSY, HEATER TO REGISTER, NO.1
55081-97501

S221,231

右側

 1
55833-97501

S221,231

左側

 1
55217B - RETAINER, DASH PANEL SILENCER
55217-97501

S221,231

 1
55301 - PANEL SUB-ASSY, INSTRUMENT
55301-9750503

S221,231

GRAY

 1
55301-9752603

S221,231

GRAY

 1
55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
55351-97503

S221,231

 1
55321B - BRACKET, INSTRUMENT PANEL, NO.1
55321-97501

S221,231

 1
55322 - BRACKET, INSTRUMENT PANEL, NO.1
55322-97501

S221,231

 1
55331 - REINFORCEMENT, INSTRUMENT PANEL
55305-97524

S221,231

 1
55305-97523

S221,231..X

Jﾊﾟﾂｹ-ｼﾞ

 1
55305-97510

S221,231

 1
55366A - BRACKET, RADIO MOUNTING, NO.1
55365-97501

S221,231

 1
55368A - BRACKET, RADIO MOUNTING, NO.2
55366-97501

S221,231

 1
55384 - COVER, BASE SWITCH HOLE
55384-9720101

S221,231

BLACK

 1
55404C - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2
55404-9750503

S221,231..X

SILVER & GRAY

 1
55404-9751603

S221,231..X

SILVER

 1
55404-97510

S221,231..X

 1
55404-9750503

S221,231..X

Jﾊﾟﾂｹ-ｼﾞ,SILVER & GRAY

 1
55404-9751703

S221,231..X

Jﾊﾟﾂｹ-ｼﾞ,SILVER

 1
55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER
55405-9750213

S221,231..X

GRAY

 1
55405-9750803

S221,231..X

GRAY

 1
55441 - BOX, INSTRUMENT PANEL
55441-9750103

S221,231

GRAY

 1
55441C - BOX, INSTRUMENT PANEL COIN
55441-8740101

S221,231..X

Jﾊﾟﾂｹ-ｼﾞ,BLACK

 1
55476D - GARNISH, INSTRUMENT PANEL FINISH PLATE
55476-9750103

S221,231

GRAY

 1
55477A - BEZEL, CIGARETTE LIGHTER HOLE
55477-97501

S221,231

 1
55509A - RETAINER SUB-ASSY, GLOVE COMPARTMENT DOOR LOCK
55509-97502

S221,231

 1
55521C - COVER, STEREO OPENING
55359-97501

S221,231

 2
55535C - CUSHION, GLOVE COMPARTMENT DOOR
55535-97501

S221,231

 2
55545 - COVER, FUSE BOX OPENING
55545-9750103

S221,231

GRAY

 1
55546D - COVER, INSTRUMENT PANEL HOLE, NO.2
55546-9750103

S221,231

GRAY

 1
55547E - COVER, INSTRUMENT PANEL HOLE, NO.3
55547-9750103

S221,231

GRAY

 1
55551A - DOOR, GLOVE COMPARTMENT, OUTER
55500-9750103

S221,231

GRAY

 1
55560A - LOCK ASSY, GLOVE COMPARTMENT DOOR
55560-9720133

S221,231

GRAY

 1
55573A - HINGE, GLOVE COMPARTMENT DOOR
55571-97501

S221,231

 1
55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1
55063-97501

S221,231

 2
55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1
55063-97501

S221,231

 2
55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2
55061-8750533

S221,231

GRAY

 2
55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2
55061-8750533

S221,231

GRAY

 2
61181 - BRACKET, INSTRUMENT PANEL SIDE
61186-97501

S221,231

 1
61182D - BRACKET, INSTRUMENT PANEL SIDE
61187-97502

S221,231

 1
73970A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER
73970-9750203

S221,231

GRAY

 1
83910 - CLOCK ASSY
83910-97501

S221,231

 1
Common parts
45253-97506
90041-57051
90041-60068
90041-79300
90041-83025
90041-83059
90041-83065
90044-6818613
90044-68306
90151-40005
90179-06274
91621-B0816
91626-40616
91631-B0614
93269-15008
93560-14014
93568-55012
93568-55014
93568-55016
