S221E-ZMRF (2000)

Toyota Sparky

Production Sep 2000 - Mar 2003
Engine K3VE
Transmission 5MT MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0009- )

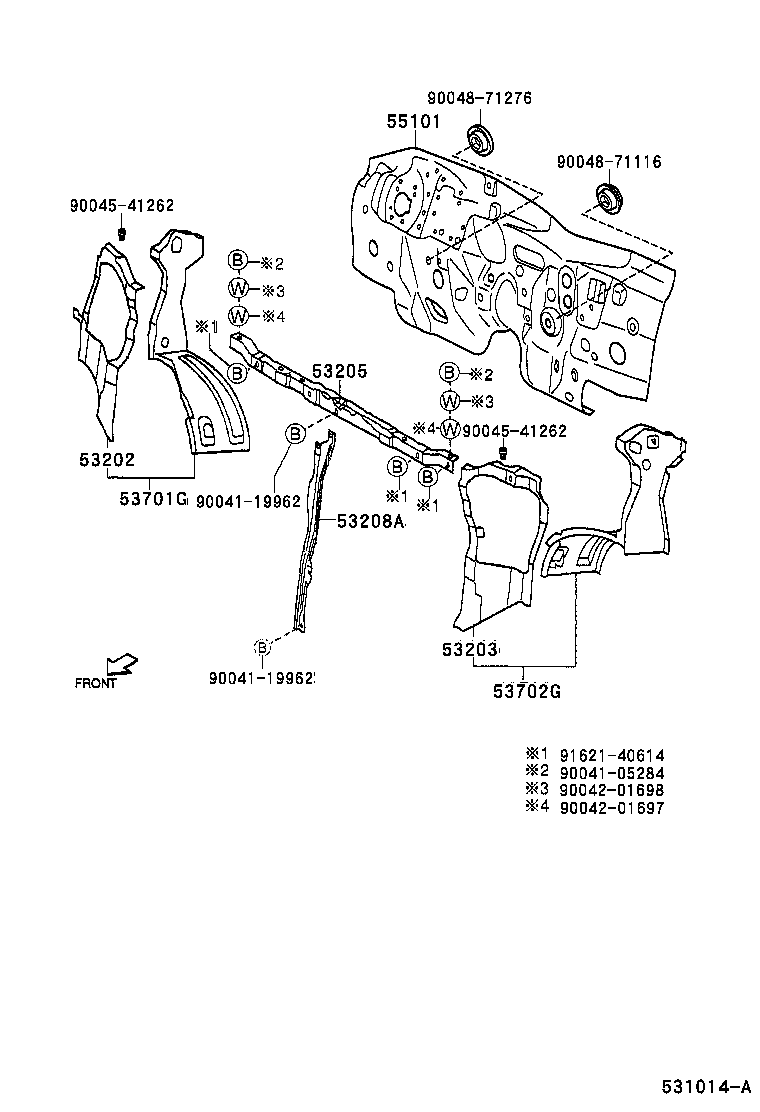

Click highlighted areas on diagram

diagram 53202 53203 53205 53208A 53701G 53702G 55101 9004105284 9004119962 9004119962 9004201697 9004201698 9004541262 9004541262 9004871116 9004871276 9162140614
Part # Description Qty Price
53202 - SUPPORT SUB-ASSY, RADIATOR, RH
53202-97505

S221,231

 1
53203 - SUPPORT SUB-ASSY, RADIATOR, LH
53203-97505

S221,231

 1
53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER
53205-97503

S221,231

 1
53208A - SUPPORT SUB-ASSY, HOOD LOCK
53215-97502

S221,231

 1
53701G - APRON SUB-ASSY, FRONT FENDER, RH
53701-97508

S221,231

 1
53702G - APRON SUB-ASSY, FRONT FENDER, LH
53702-97508

S221,231

 1
55101 - PANEL SUB-ASSY, DASH
55101-97528

S221,231..5MT

 1
Common parts
90041-05284
90041-19962
90042-01697
90042-01698
90045-41262
90048-71116
90048-71276
91621-40614
