S221E-ZMRF (2000)
Toyota Sparky
Production
Sep 2000
-
Mar 2003
Engine
K3VE
Transmission
5MT MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0009- )

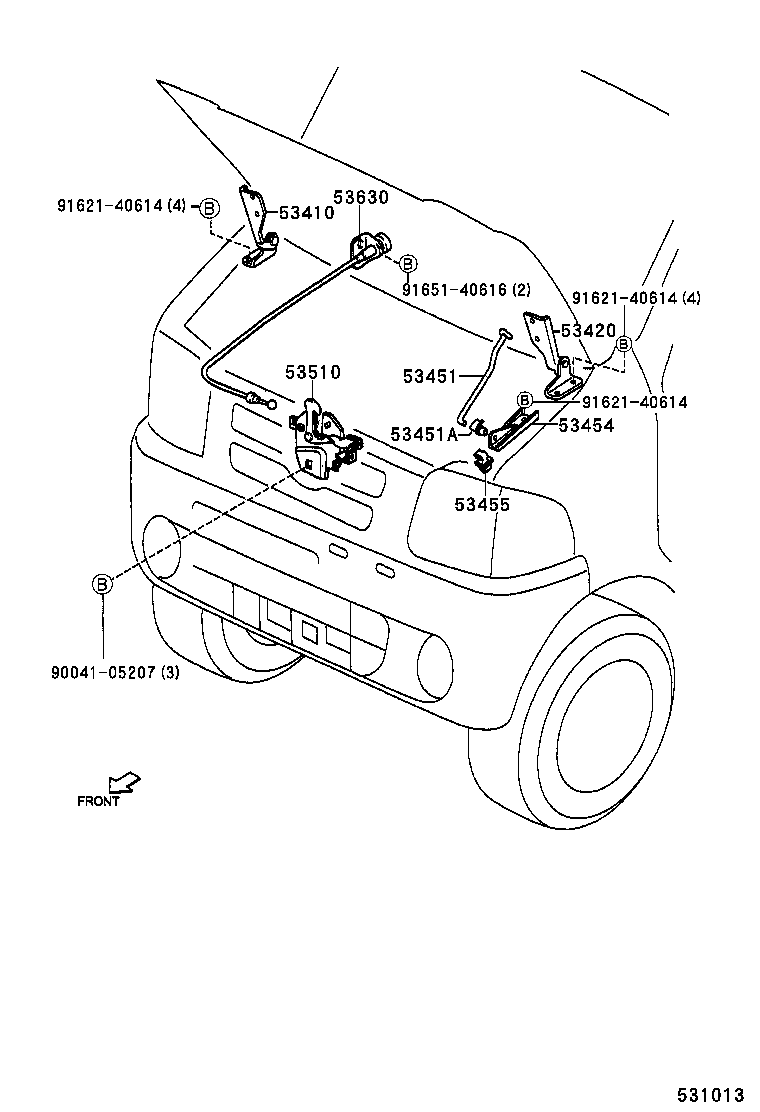

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53410 - HINGE ASSY, HOOD, RH | ||||
| 53401-97501 |
S221,231 |
1 | ||
| 53420 - HINGE ASSY, HOOD, LH | ||||
| 53402-97501 |
S221,231 |
1 | ||
| 53451 - ROD, HOOD SUPPORT | ||||
| 53451-97501 |
S221,231 |
1 | ||
| 53451A - GROMMET(FOR HOOD SUPPORT ROD) | ||||
| 90044-67461 |
S221,231 |
1 | ||
| 53454 - CLIP, HOOD SUPPORT ROD | ||||
| 53559-97501 |
S221,231 |
1 | ||
| 53455 - CLAMP, HOOD SUPPORT ROD | ||||
| 53455-97501 |
S221,231 |
1 | ||
| 53510 - LOCK ASSY, HOOD | ||||
| 53510-87212 |
S221,231 |
1 | ||
| 53630 - CABLE ASSY, HOOD LOCK CONTROL | ||||
| 53630-97501 |
S221,231 |
1 | ||
| Common parts | ||||
| 90041-05207 | ||||
| 91621-40614 | ||||
| 91651-40616 | ||||
