S221E-ZMRF (2000)

Toyota Sparky

Production Sep 2000 - Mar 2003
Engine K3VE
Transmission 5MT MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0009- )

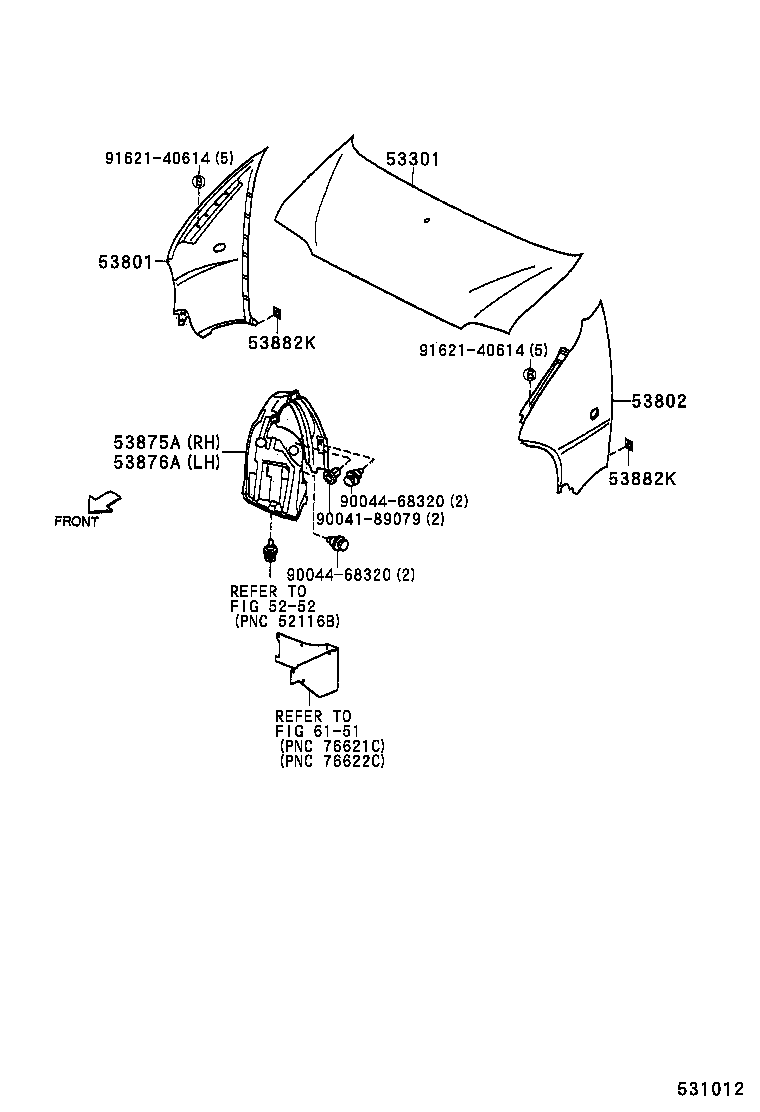

Click highlighted areas on diagram

diagram 5252 53301 53801 53802 53875A 53876A 53882K 53882K 6151 9004189079 9004468320 9004468320 9162140614 9162140614
Part # Description Qty Price
53301 - HOOD SUB-ASSY
53301-97504

S221,231

 1
53801 - FENDER SUB-ASSY, FRONT RH
53811-97503

S221,231

 1
53802 - FENDER SUB-ASSY, FRONT LH
53812-97503

S221,231

 1
53875A - LINER, FRONT FENDER, RH
53875-97503

S221,231

 1
53876A - LINER, FRONT FENDER, LH
53876-97503

S221,231

 1
53882K - SEAL, FRONT FENDER
53882-87701

S221,231

 6
53882K - SEAL, FRONT FENDER
53882-87701

S221,231

 6
Common parts
90041-89079
90044-68320
91621-40614
Linked diagrams
5252
6151
