S221E-ZMRF (2000)

Toyota Sparky

Production Sep 2000 - Mar 2003
Engine K3VE
Transmission 5MT MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0009- )

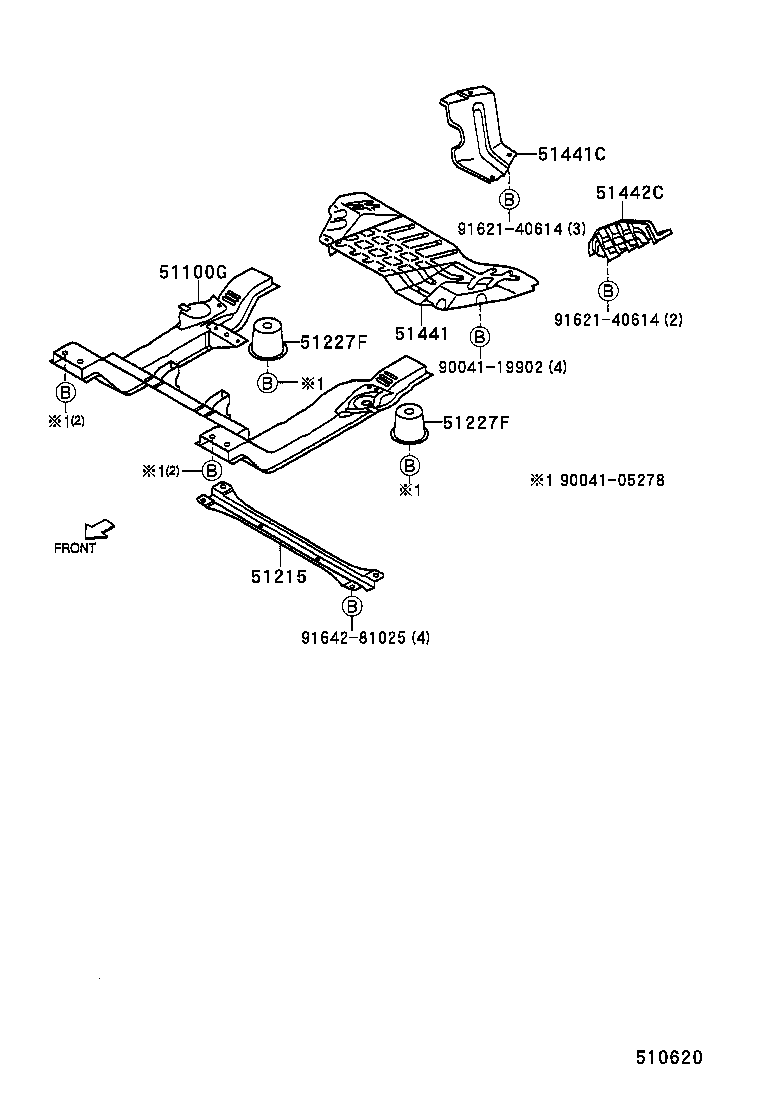

Click highlighted areas on diagram

diagram 51100G 51215 51227F 51227F 51441 51441C 51442C 9004105278 9004119902 9162140614 9162140614 9164281025
Part # Description Qty Price
51100G - FRAME ASSY, FRONT
51001-97508

S221..X

 1
51001-97509

S221..X

ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ)

 1
51001-97505

S221,231

 1
51215 - REINFORCEMENT, FRONT SUSPENSION CROSSMEMBER
51223-97501

S221

 1
51227F - WEIGHT, FRONT SUSPENSION MEMBER DAMPER
51227-97501

S221,231

 2
51227F - WEIGHT, FRONT SUSPENSION MEMBER DAMPER
51227-97501

S221,231

 2
51441 - COVER, ENGINE UNDER, NO.1
51441-97501

S221,231

 1
51441C - COVER, ENGINE UNDER, RH
51448-97502

S221,231

 1
51442C - COVER, ENGINE UNDER, LH
51447-97502

S221,231

 1
51447-97503

S221,231

 1
Common parts
90041-05278
90041-19902
91621-40614
91642-81025
