S221E-ZMRF (2000)
Toyota Sparky
Production
Sep 2000
-
Mar 2003
Engine
K3VE
Transmission
5MT MTM
Displacement
2500cc
Power
168 HP (125 kW)

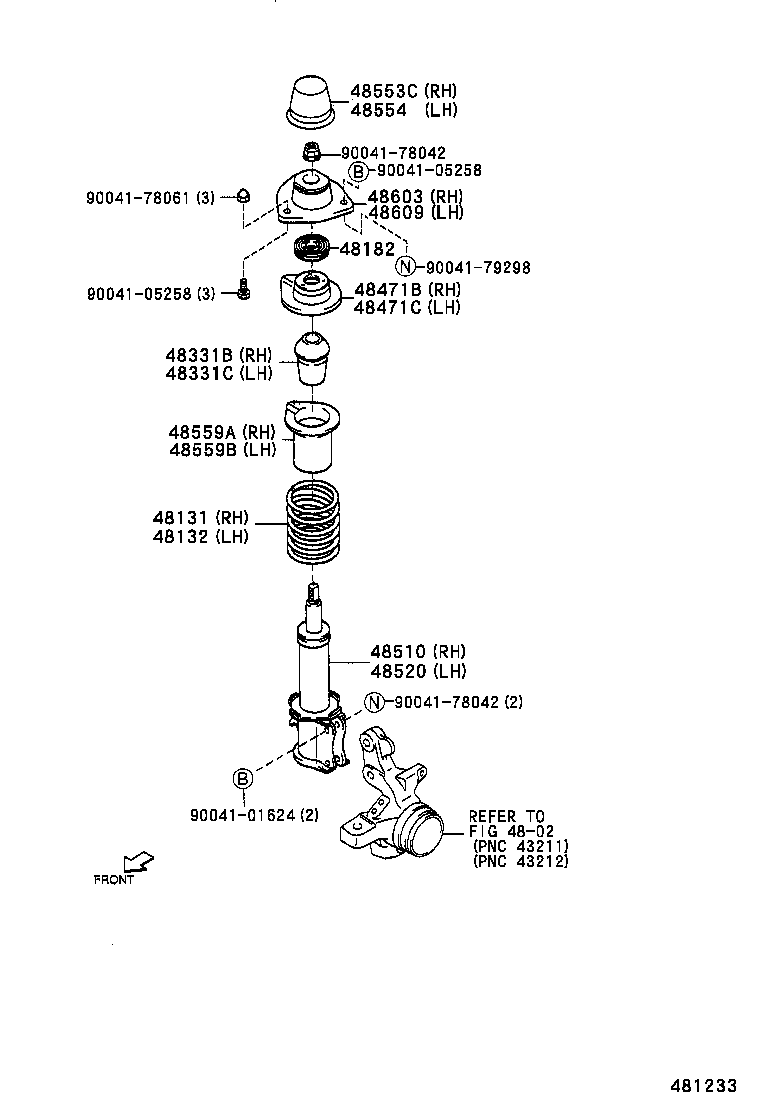

ILLUST NO. 1 OF 2(0009- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48131 - SPRING, FRONT COIL, RH | ||||
| 48131-97526 |
S221..HIR |
1 | ||
| 48131-97516 |
S221..X |
1 | ||
| 48131-97522 |
S221..X ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) |
1 | ||
| 48132 - SPRING, FRONT COIL, LH | ||||
| 48131-97516 |
S221..X |
1 | ||
| 48131-97522 |
S221..X ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ) |
1 | ||
| 48131-97526 |
S221..HIR |
1 | ||
| 48182 - BUSH, FRONT SPRING | ||||
| 48143-87501 |
S221,231 |
2 | ||
| 48331B - BUMPER, FRONT SPRING, RH | ||||
| 48331-97501 |
S221,231 |
1 | ||
| 48331C - BUMPER, FRONT SPRING, LH | ||||
| 48331-97501 |
S221,231 |
1 | ||
| 48471B - SEAT, FRONT COIL SPRING, UPPER RH | ||||
| 48470-97501 |
S221,231 |
1 | ||
| 48471C - SEAT, FRONT COIL SPRING, UPPER LH | ||||
| 48470-97501 |
S221,231 |
1 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48510-97523 |
S221,231 |
1 | ||
| 48510-97535 |
S221,231..HIR |
1 | ||
| 48510-97528 |
S221,231 |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48520-97528 |
S221,231 |
1 | ||
| 48520-97535 |
S221,231..HIR |
1 | ||
| 48520-97523 |
S221,231 |
1 | ||
| 48553C - CAP, FRONT SHOCK ABSORBER, RH | ||||
| 48553-9750103 |
S221,231 GRAY |
1 | ||
| 48554 - CAP, FRONT SHOCK ABSORBER, LH | ||||
| 48553-9750103 |
S221,231 GRAY |
1 | ||
| 48559A - COVER, FRONT SHOCK ABSORBER DUST, RH NO.1 | ||||
| 48559-97501 |
S221,231 |
1 | ||
| 48559B - COVER, FRONT SHOCK ABSORBER DUST, LH NO.1 | ||||
| 48559-97501 |
S221,231 |
1 | ||
| 48603 - SUPPORT SUB-ASSY, FRONT SUSPENSION, RH | ||||
| 48609-97516 |
S221,231 |
1 | ||
| 48609-97514 |
S221,231 |
1 | ||
| 48609 - SUPPORT SUB-ASSY, FRONT SUSPENSION, LH | ||||
| 48609-97513 |
S221,231 |
1 | ||
| 48609-97515 |
S221,231 |
1 | ||
| Common parts | ||||
| 90041-01624 | ||||
| 90041-05258 | ||||
| 90041-78042 | ||||
| 90041-78061 | ||||
| 90041-79298 | ||||
| Linked diagrams | ||||
| 4802 | ||||

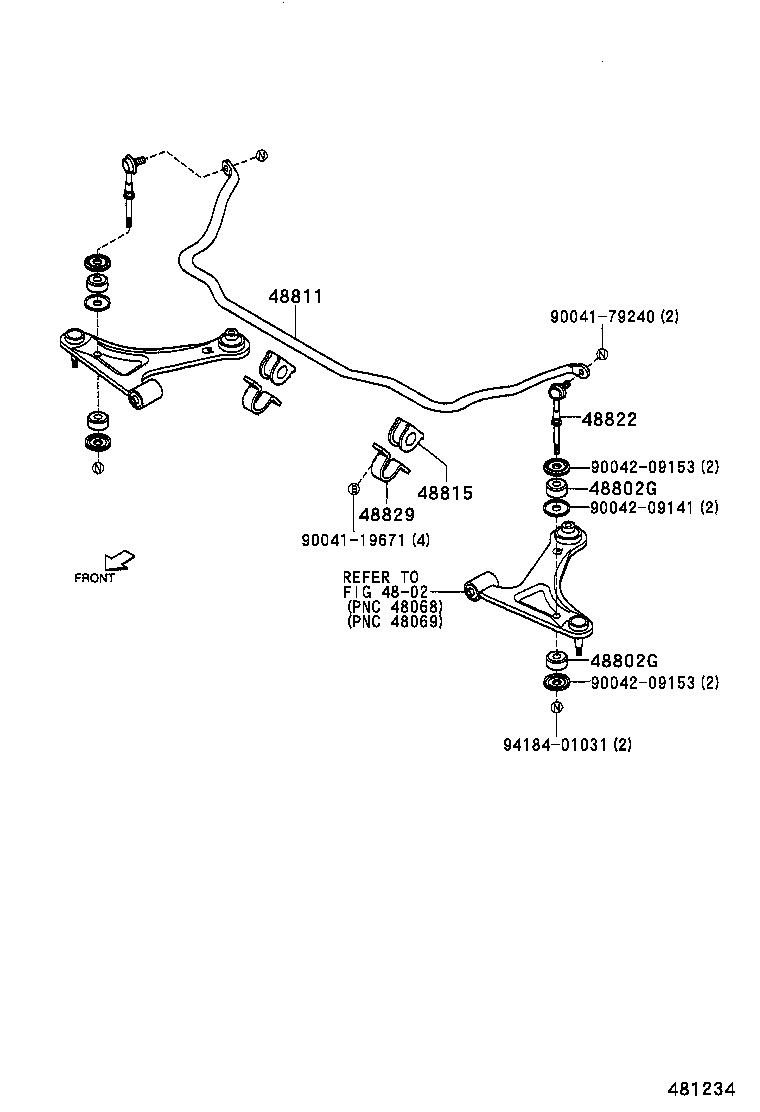

ILLUST NO. 2 OF 2(0009- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48802G - BUSH(FOR FRONT STABILIZER BAR LINK) | ||||
| 90043-85179 |
S221 |
4 | ||
| 48802G - BUSH(FOR FRONT STABILIZER BAR LINK) | ||||
| 90043-85179 |
S221 |
4 | ||
| 48811 - BAR, STABILIZER, FRONT | ||||
| 48811-97507 |
S221 |
1 | ||
| 48811-97504 |
S221..HIR ｱﾘ(ｻﾝﾙ-ﾌ) |
1 | ||
| 48815 - BUSH, FRONT STABILIZER BAR, NO.1 | ||||
| 48815-97504 |
S221..HIR ｱﾘ(ｻﾝﾙ-ﾌ) |
2 | ||
| 48815-97506 |
S221 |
2 | ||
| 48822 - ROD, STABILIZER LINK | ||||
| 48822-97503 |
S221 |
2 | ||
| 48829 - BRACKET, STABILIZER | ||||
| 48824-97501 |
S221 |
2 | ||
| Common parts | ||||
| 90041-19671 | ||||
| 90041-79240 | ||||
| 90042-09141 | ||||
| 90042-09153 | ||||
| 94184-01031 | ||||
| Linked diagrams | ||||
| 4802 | ||||
