S221E-ZMRF (2000)

Toyota Sparky

Production Sep 2000 - Mar 2003
Engine K3VE
Transmission 5MT MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0009- )

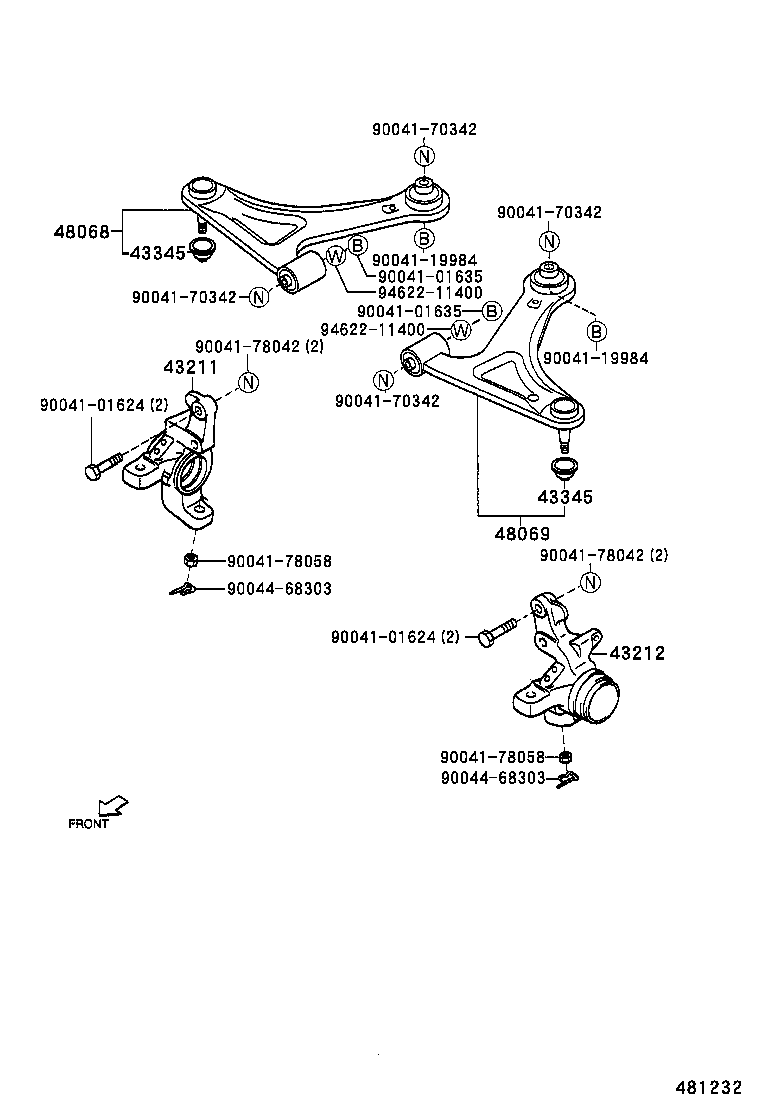

Click highlighted areas on diagram

diagram 43211 43212 43345 43345 48068 48069 9004101624 9004101624 9004101635 9004101635 9004119984 9004119984 9004170342 9004170342 9004170342 9004170342 9004178042 9004178042 9004178058 9004178058 9004468303 9004468303 9462211400 9462211400
Part # Description Qty Price
43211 - KNUCKLE, STEERING, RH
43211-97506

S221,231

 1
43211-97508

S221,231

 1
43212 - KNUCKLE, STEERING, LH
43212-97508

S221,231

 1
43212-97506

S221,231

 1
43345 - COVER, LOWER BALL JOINT DUST
43345-97501

S221,231

 2
43345 - COVER, LOWER BALL JOINT DUST
43345-97501

S221,231

 2
48068 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH
48068-97507

S221,231

 1
48068-97503

S221,231

 1
48069 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH
48069-97503

S221,231

 1
48069-97507

S221,231

 1
Common parts
90041-01624
90041-01635
90041-19984
90041-70342
90041-78042
90041-78058
90044-68303
94622-11400
