S221E-ZMRF (2000)
Toyota Sparky
Production
Sep 2000
-
Mar 2003
Engine
K3VE
Transmission
5MT MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0009- )

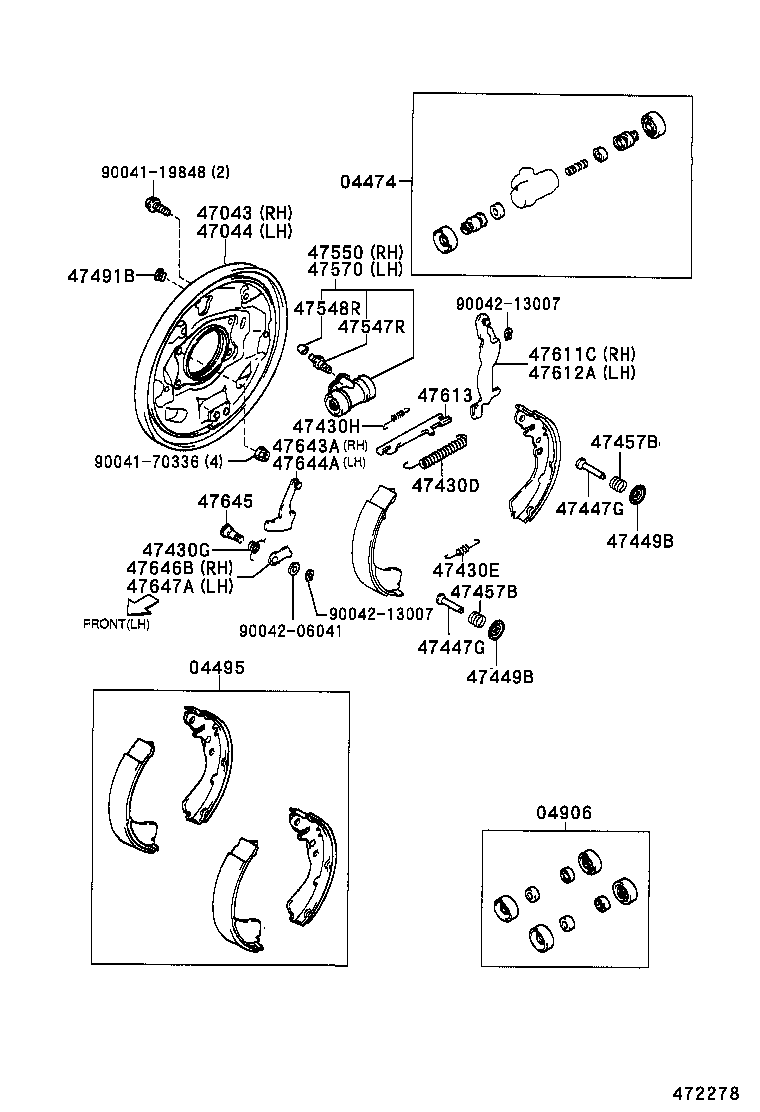

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04474 - CYLINDER KIT, REAR WHEEL | ||||
| 04474-97503 |
S221,231 |
2 | ||
| 04474-97501 |
S221,231 |
2 | ||
| 04474-97502 |
S221,231 |
2 | ||
| 04495 - SHOE KIT, REAR BRAKE | ||||
| 04495-97501 |
S221,231 |
1 | ||
| 04906 - CUP KIT, REAR WHEEL CYLINDER | ||||
| 04906-97502 |
S221,231 |
1 | ||
| 04906-97504 |
S221,231 |
1 | ||
| 04906-97503 |
S221,231 |
1 | ||
| 47043 - PLATE SUB-ASSY, BRAKE BACKING, REAR RH | ||||
| 47043-97503 |
S221,231 |
1 | ||
| 47044 - PLATE SUB-ASSY, BRAKE BACKING, REAR LH | ||||
| 47044-97503 |
S221,231 |
1 | ||
| 47430D - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90045-06233 |
S221,231 |
2 | ||
| 47430E - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90045-06250 |
S221,231 |
2 | ||
| 47430G - SPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER) | ||||
| 90045-08373 |
S221,231 右側 |
1 | ||
| 90045-08374 |
S221,231 左側 |
1 | ||
| 47430H - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE STRUT) | ||||
| 90045-06183 |
S221,231 左側 |
1 | ||
| 90045-06182 |
S221,231 右側 |
1 | ||
| 47447G - PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47447-87501 |
S221,231 |
4 | ||
| 47447G - PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47447-87501 |
S221,231 |
4 | ||
| 47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-97201 |
S221,231 |
4 | ||
| 47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-97201 |
S221,231 |
4 | ||
| 47457B - SPRING, COMPRESSION(FOR REAR SHOE HOLD DOWN SPRING PIN) | ||||
| 90045-01817 |
S221,231 |
4 | ||
| 47457B - SPRING, COMPRESSION(FOR REAR SHOE HOLD DOWN SPRING PIN) | ||||
| 90045-01817 |
S221,231 |
4 | ||
| 47491B - PLUG, HOLE(FOR REAR BRAKE) | ||||
| 47491-87201 |
S221,231 |
2 | ||
| 47547R - PLUG, BLEEDER(FOR DRUM BRAKE, REAR) | ||||
| 47547-87205 |
S221,231 |
2 | ||
| 47547-87506 |
S221,231 |
2 | ||
| 47548R - CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR) | ||||
| 47548-87204 |
S221,231 |
2 | ||
| 47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER) | ||||
| 47560-97504 |
S221,231 |
1 | ||
| 47560-97502 |
S221,231 |
1 | ||
| 47560-97501 |
S221,231 |
1 | ||
| 47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER) | ||||
| 47560-97504 |
S221,231 |
1 | ||
| 47560-97501 |
S221,231 |
1 | ||
| 47560-97502 |
S221,231 |
1 | ||
| 47611C - LEVER, PARKING BRAKE SHOE, RH | ||||
| 47601-87504 |
S221,231 |
1 | ||
| 47612A - LEVER, PARKING BRAKE SHOE, LH | ||||
| 47602-87504 |
S221,231 |
1 | ||
| 47613 - STRUT, PARKING BRAKE SHOE (FOR REAR BRAKE) | ||||
| 47613-87503 |
S221,231 |
2 | ||
| 47643A - LEVER, REAR BRAKE AUTOMATIC ADJUST, RH | ||||
| 47608-87501 |
S221,231 |
1 | ||
| 47644A - LEVER, REAR BRAKE AUTOMATIC ADJUST, LH | ||||
| 47609-87501 |
S221,231 |
1 | ||
| 47645 - PIN, AUTOMATIC ADJUST LEVER(FOR REAR BRAKE) | ||||
| 47645-87201 |
S221,231 |
2 | ||
| 47646B - LATCH, AUTOMATIC ADJUST, RH(FOR REAR BRAKE) | ||||
| 47646-97201 |
S221,231 |
1 | ||
| 47647A - LATCH, AUTOMATIC ADJUST, LH(FOR REAR BRAKE) | ||||
| 47647-97201 |
S221,231 |
1 | ||
| Common parts | ||||
| 90041-19848 | ||||
| 90041-70336 | ||||
| 90042-06041 | ||||
| 90042-13007 | ||||
