S221E-ZMRF (2000)
Toyota Sparky
Production
Sep 2000
-
Mar 2003
Engine
K3VE
Transmission
5MT MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0009- )

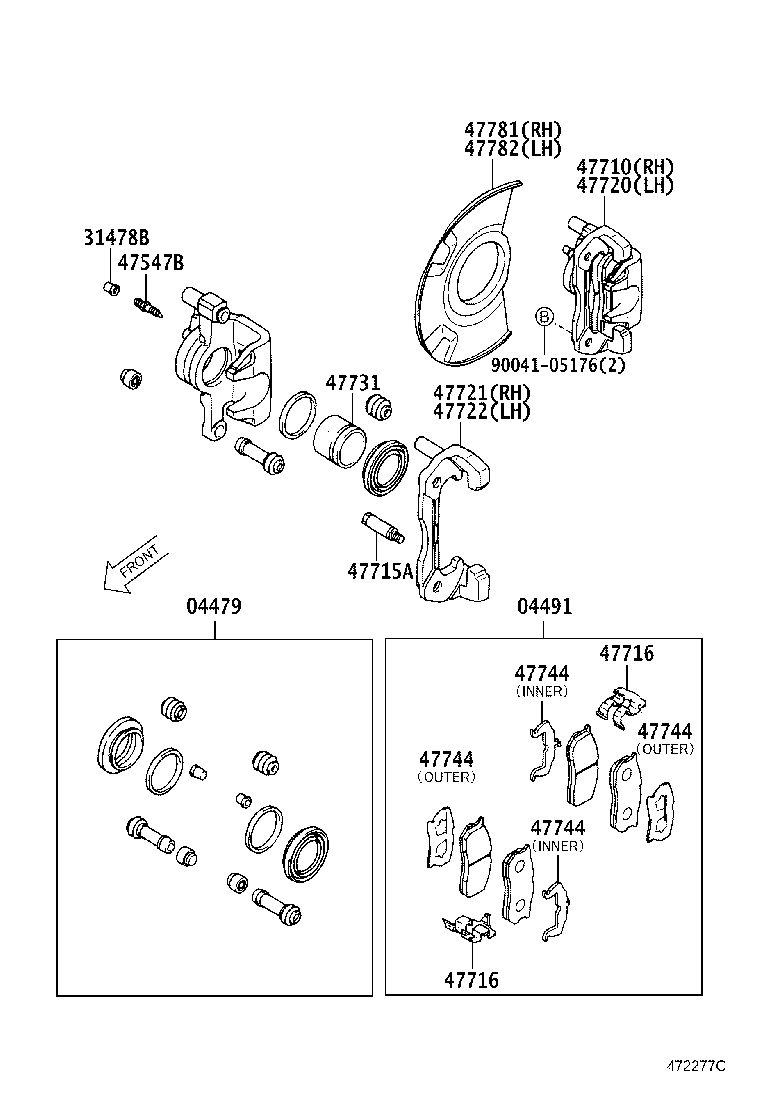

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04479 - CYLINDER KIT, DISC BRAKE, FRONT | ||||
| 04479-97502 |
S221,231 |
1 | ||
| 04491 - PAD KIT, DISC BRAKE, FRONT | ||||
| 04491-97505 |
S221,231 |
1 | ||
| 04491-97507 |
S221,231 |
1 | ||
| 31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE) | ||||
| 47548-87502 |
S221,231 |
2 | ||
| 47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE) | ||||
| 47547-87504 |
S221,231 |
2 | ||
| 47710 - CALIPER ASSY, DISC BRAKE, FRONT, RH | ||||
| 47710-97504 |
S221,231 |
1 | ||
| 47710-97506 |
S221,231 |
1 | ||
| 47715A - PIN, FRONT DISC BRAKE CYLINDER SLIDE | ||||
| 47715-87502 |
S221,231 |
2 | ||
| 47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47736-97503 |
S221,231 |
2 | ||
| 47736-97501 |
S221,231 |
2 | ||
| 47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47736-97503 |
S221,231 |
2 | ||
| 47736-97501 |
S221,231 |
2 | ||
| 47720 - CALIPER ASSY, DISC BRAKE, FRONT, LH | ||||
| 47720-97506 |
S221,231 |
1 | ||
| 47720-97504 |
S221,231 |
1 | ||
| 47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH | ||||
| 47721-97503 |
S221,231 |
1 | ||
| 47721-97501 |
S221,231 |
1 | ||
| 47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH | ||||
| 47722-97501 |
S221,231 |
1 | ||
| 47722-97503 |
S221,231 |
1 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-87502 |
S221,231 |
2 | ||
| 47744 - SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47744-97503 |
S221,231 外側 |
2 | ||
| 47744-97501 |
S221,231 外側 |
2 | ||
| 47744-97502 |
S221,231 内側 |
2 | ||
| 47744 - SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47744-97503 |
S221,231 外側 |
2 | ||
| 47744-97501 |
S221,231 外側 |
2 | ||
| 47744-97502 |
S221,231 内側 |
2 | ||
| 47744 - SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47744-97503 |
S221,231 外側 |
2 | ||
| 47744-97501 |
S221,231 外側 |
2 | ||
| 47744-97502 |
S221,231 内側 |
2 | ||
| 47744 - SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47744-97503 |
S221,231 外側 |
2 | ||
| 47744-97501 |
S221,231 外側 |
2 | ||
| 47744-97502 |
S221,231 内側 |
2 | ||
| 47781 - COVER, DISC BRAKE DUST, FRONT RH | ||||
| 47781-97506 |
S221,231 |
1 | ||
| 47781-97504 |
S221,231 |
1 | ||
| 47782 - COVER, DISC BRAKE DUST, FRONT LH | ||||
| 47781-97505 |
S221,231 |
1 | ||
| 47781-97507 |
S221,231 |
1 | ||
| Common parts | ||||
| 90041-05176 | ||||
