S221E-ZMRF (2000)

Toyota Sparky

Production Sep 2000 - Mar 2003
Engine K3VE
Transmission 5MT MTM
Displacement 2500cc
Power 168 HP (125 kW)

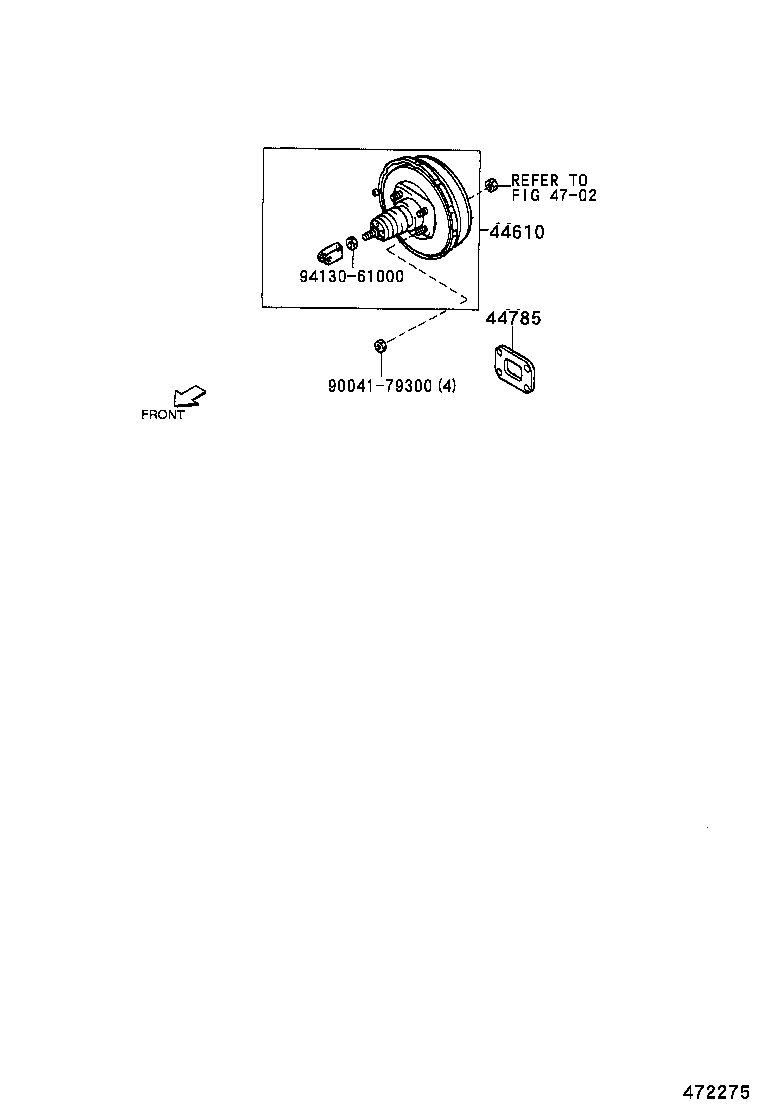

ILLUST NO. 1 OF 2(0009- )

Click highlighted areas on diagram

diagram 44610 44785 4702 9004179300 9413061000
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-97508

S221,231

 1
44785 - GASKET, BRAKE BOOSTER
47278-87703

S221,231

 1
Common parts
90041-79300
94130-61000
Linked diagrams
4702

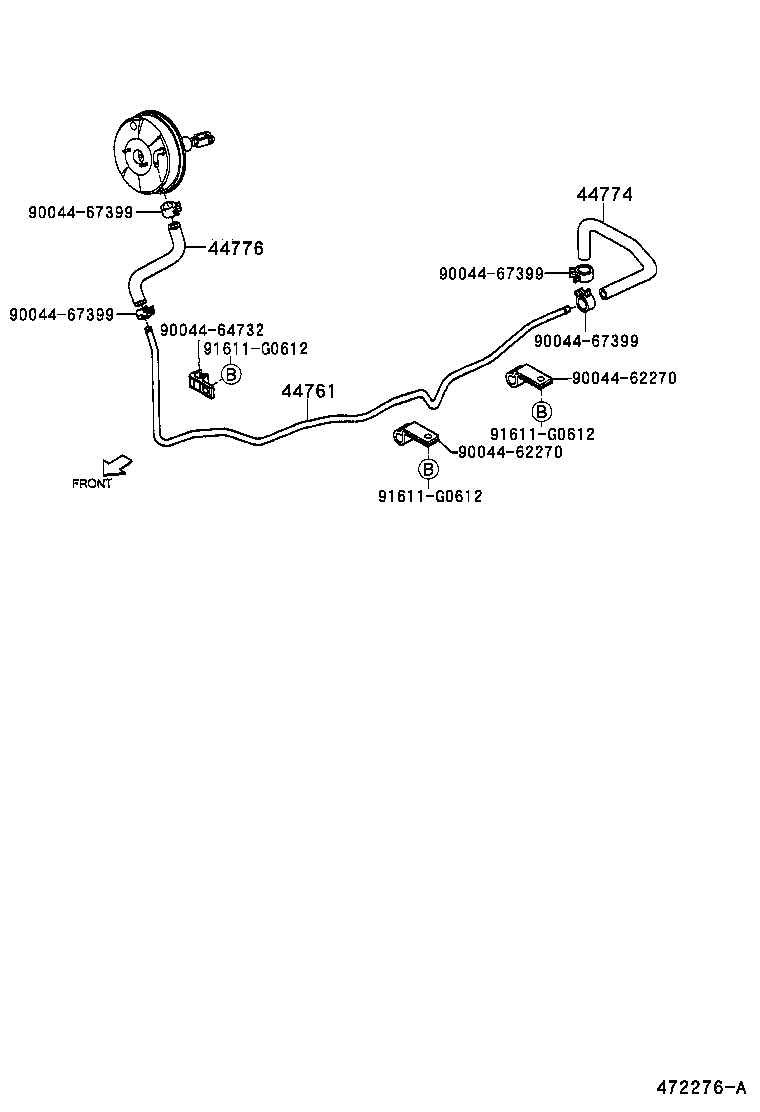

ILLUST NO. 2 OF 2(0009- )

Click highlighted areas on diagram

diagram 44761 44774 44776 9004462270 9004462270 9004464732 9004467399 9004467399 9004467399 9004467399 91611G0612 91611G0612 91611G0612
Part # Description Qty Price
44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR
44761-97503

S221,231

 1
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-97504

S221,231

 1
44776 - HOSE, BRAKE BOOSTER
44750-97501

S221,231

 1
Common parts
90044-62270
90044-64732
90044-67399
91611-G0612
