S221E-ZMRF (2000)

Toyota Sparky

Production Sep 2000 - Mar 2003
Engine K3VE
Transmission 5MT MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0009- )

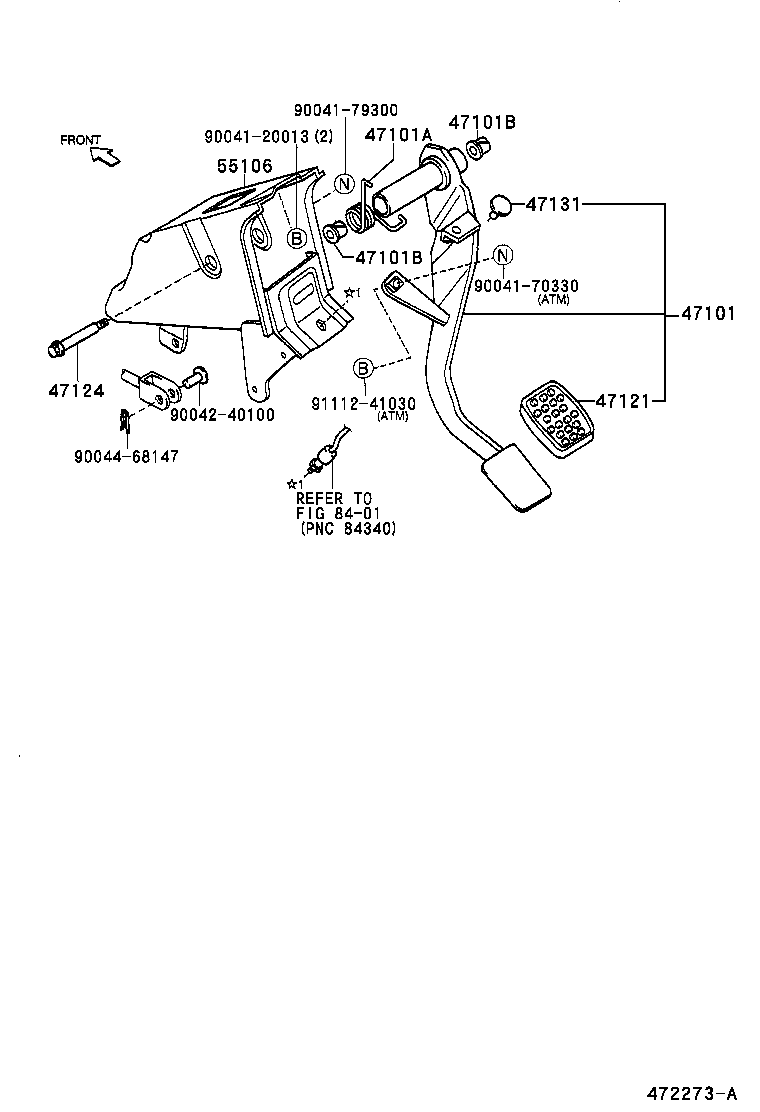

Click highlighted areas on diagram

diagram 47101 47101A 47101B 47101B 47121 47124 47131 55106 8401 9004120013 9004170330 9004179300 9004240100 9004468147 9111241030
Part # Description Qty Price
47101 - PEDAL SUB-ASSY, BRAKE
47101-97501

S221,231..5MT

 1
47101-97506

S221,231..5MT

 1
47101A - SPRING(FOR BRAKE PEDAL RETURN)
31394-97507

S221,231

 1
90045-08386

S221,231

 1
47101B - BUSH(FOR BRAKE PEDAL)
90043-86121

S221,231

 2
47101B - BUSH(FOR BRAKE PEDAL)
90043-86121

S221,231

 2
47121 - PAD, BRAKE PEDAL
31321-97501

S221,231

 1
31321-87503

S221,231

 1
47124 - SHAFT, BRAKE PEDAL
47124-97501

S221,231

 1
47131 - CUSHION(FOR STOP LAMP SWITCH)
90045-40158

S221,231

 1
55106 - SUPPORT SUB-ASSY, BRAKE PEDAL
55106-97503

S221,231..5MT

 1
Common parts
90041-20013
90041-70330
90041-79300
90042-40100
90044-68147
91112-41030
Linked diagrams
8401
