S221E-ZMRF (2000)

Toyota Sparky

Production Sep 2000 - Mar 2003
Engine K3VE
Transmission 5MT MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0009- )

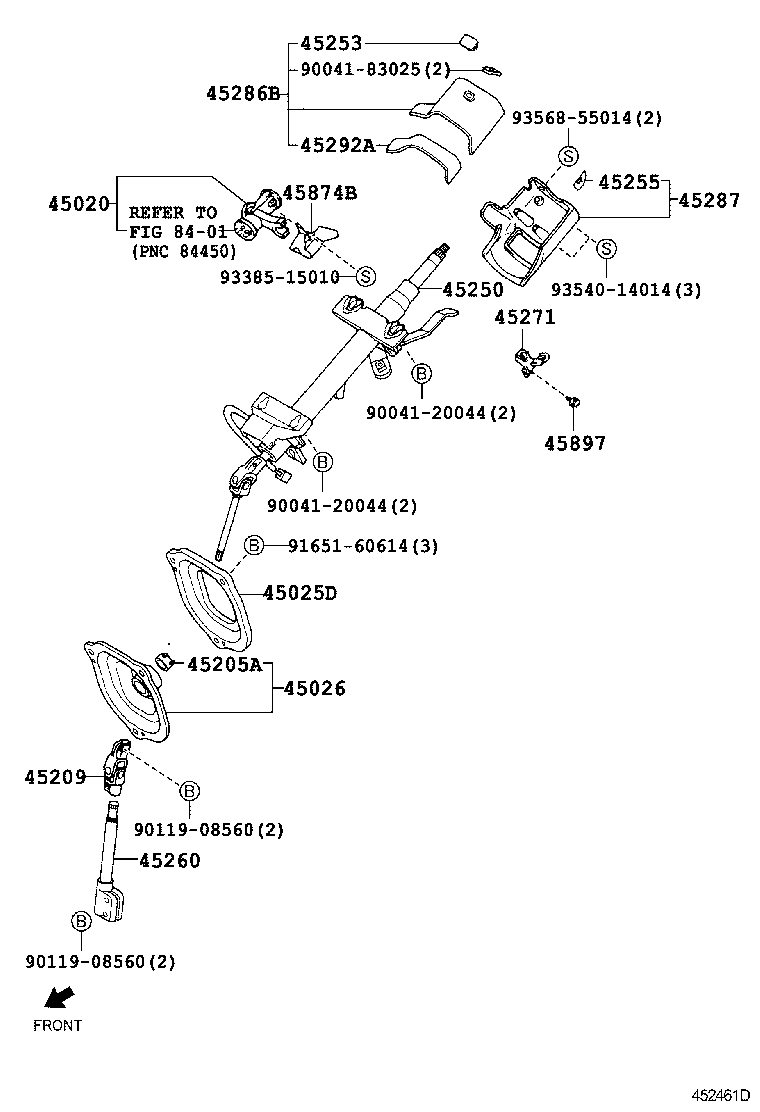

Click highlighted areas on diagram

diagram 45020 45025D 45026 45205A 45209 45250 45253 45255 45260 45271 45286B 45287 45292A 45874B 45897 8401 9004120044 9004120044 9004183025 9011908560 9011908560 9165160614 9338515010 9354014014 9356855014
Part # Description Qty Price
45020 - BRACKET ASSY, STEERING COLUMN UPPER W/SWITCH
45020-97509

S221,231..5MT

ｱﾘ(ｷ- ﾌﾘ- ｼｽﾃﾑ)

 1
45020-97514

S221,231..5MT

ｱﾘ(ｷ- ﾌﾘ- ｼｽﾃﾑ)

 1
45020-97514

S221,231..5MT..X

J ﾊﾟﾂｹ-ｼﾞ & ｱﾘ(ｷ- ﾌﾘ- ｼｽﾃﾑ)

 1
45020-97512

S221,231..5MT

 1
45020-87401

S221,231..5MT

 1
45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45223-97501

S221,231

 1
45026 - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2
45222-97501

S221,231

 1
45205A - BUSH(FOR STEERING COLUMN TUBE)
90043-85170

S221,231

 1
45209 - YOKE SUB-ASSY, STEERING SLIDING
45290-97504

S221,231

 1
45250 - COLUMN ASSY, STEERING
45250-97514

S221,231..5MT..X

ｱﾘ(ﾁﾙﾄ ｽﾃｱﾘﾝｸﾞ)

 1
45250-97504

S221,231..5MT

 1
45250-97504

S221,231..5MT..X

 1
45253 - COVER, STEERING COLUMN HOLE
45253-97503

S221,231..5MT

 1
45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2
45260-97504

S221,231

 1
45271 - CLAMP, STEERING COLUMN, UPPER
45281-87401

S221,231

 1
45286B - COVER, STEERING COLUMN, UPR
45286-9750403

S221,231..5MT

ｱﾘ(ｷ- ﾌﾘ- ｼｽﾃﾑ),GRAY

 1
45286-9751303

S221,231..5MT..X

Jﾊﾟﾂｹ-ｼﾞ,GRAY

 1
45286-9751803

S221,231..5MT

GRAY

 1
45286-9751503

S221,231..5MT..X

J ﾊﾟﾂｹ-ｼﾞ & ｱﾘ(ｷ- ﾌﾘ- ｼｽﾃﾑ),GRAY

 1
45286-9752003

S221,231..5MT

ｱﾘ(ｷ- ﾌﾘ- ｼｽﾃﾑ),GRAY

 1
45286-9750103

S221,231..5MT

GRAY

 1
45287 - COVER, STEERING COLUMN, LWR
45287-9750103

S221,231..5MT

GRAY

 1
45287-9750103

S221,231..5MT..X

J ﾊﾟﾂｹ-ｼﾞ & ｱﾘ(ｷ- ﾌﾘ- ｼｽﾃﾑ),GRAY

 1
45287-9750603

S221,231..5MT

GRAY

 1
45287-9750103

S221,231..5MT..X

Jﾊﾟﾂｹ-ｼﾞ,GRAY

 1
45292A - COVER, MAIN SHAFT LOWER DUST
45292-97501

S221,231..5MT

 1
45897 - BOLT, STEERING LOCK SET
45897-87401

S221,231

 1
Common parts
90041-20044
90041-83025
90119-08560
91651-60614
93385-15010
93540-14014
93568-55014
Linked diagrams
8401
