S221E-ZMRF (2000)

Toyota Sparky

Production Sep 2000 - Mar 2003
Engine K3VE
Transmission 5MT MTM
Displacement 2500cc
Power 168 HP (125 kW)

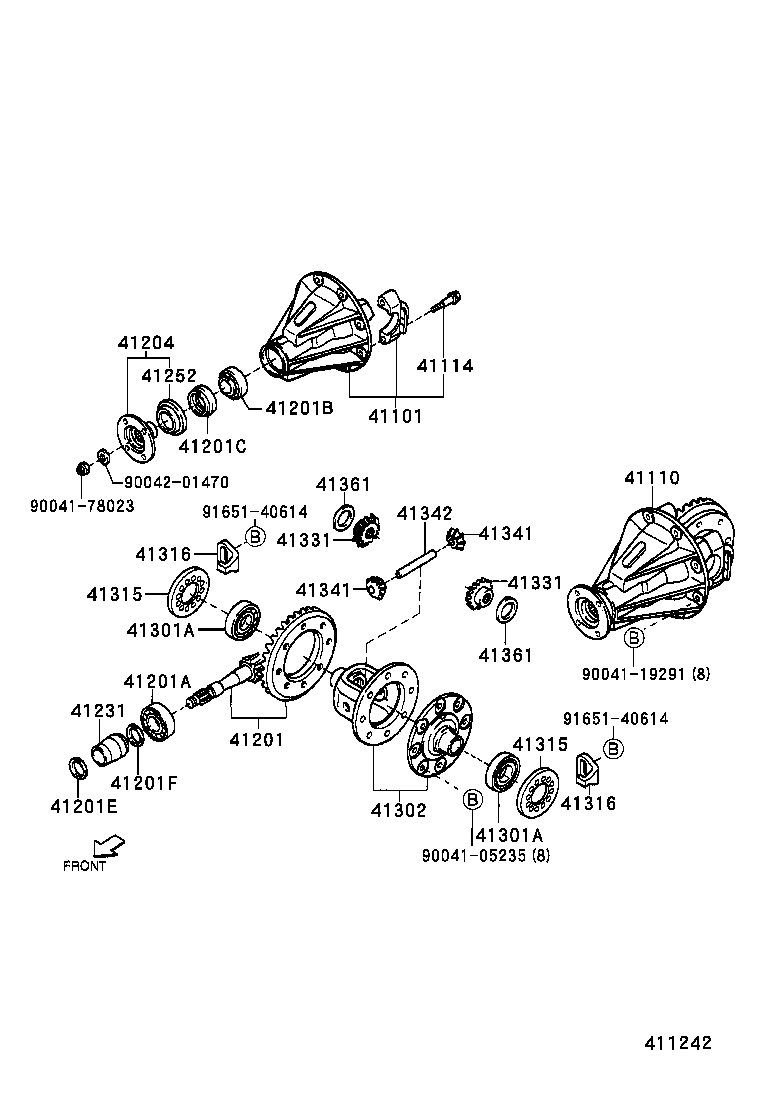

ILLUST NO. 1 OF 2(0009- )

Click highlighted areas on diagram

diagram 41101 41110 41114 41201 41201A 41201B 41201C 41201E 41201F 41204 41231 41252 41301A 41301A 41302 41315 41315 41316 41316 41331 41331 41341 41341 41342 41361 41361 9004105235 9004119291 9004178023 9004201470 9165140614 9165140614
Part # Description Qty Price
41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR
41101-87412

S221,231

 1
41110 - CARRIER ASSY, DIFFERENTIAL, REAR
41110-97510

S221..5MT

 1
41114 - BOLT, REAR DIFFERENTIAL BEARING CAP
41114-87401

S221,231

 4
41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR
41201-97505

S221..5MT

 1
41201A - BEARING (FOR REAR DRIVE PINION REAR)
90043-66074

S221,231

 1
41201B - BEARING (FOR REAR DRIVE PINION FRONT)
90043-66013

S221,231

 1
41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)
90043-11342

S221,231

 1
41201E - SHIM (FOR REAR DIFF DRIVE PINION SPACER FRONT ADJUST)
90045-64553

S221,231

厚さ=1.80

 33
90045-64554

S221,231

厚さ=1.85

 33
90045-64555

S221,231

厚さ=1.90

 33
90045-64552

S221,231

厚さ=1.75

 33
90045-64551

S221,231

厚さ=1.70

 33
90045-64550

S221,231

厚さ=1.65

 33
90045-64560

S221,231

厚さ=2.15

 33
90045-64561

S221,231

厚さ=2.20

 33
90045-64563

S221,231

厚さ=2.30

 33
90045-64559

S221,231

厚さ=2.10

 33
90045-64564

S221,231

厚さ=2.35

 33
90045-64557

S221,231

厚さ=2.00

 33
90045-64566

S221,231

厚さ=2.45

 33
90045-64558

S221,231

厚さ=2.05

 33
90045-64556

S221,231

厚さ=1.95

 33
90045-64565

S221,231

厚さ=2.40

 33
90045-64562

S221,231

厚さ=2.25

 33
41201F - SHIM (FOR REAR DIFF DRIVE PINION SPACER REAR ADJUST)
90045-64500

S221,231

厚さ=0.15

 33
90045-64501

S221,231

厚さ=0.20

 33
90045-64502

S221,231

厚さ=0.25

 33
90045-64503

S221,231

厚さ=0.50

 33
41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR
41204-97502

S221,231

 1
41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING
41231-87404

S221,231

 1
41252 - DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)
41252-87503

S221,231

 1
41301A - BEARING(FOR REAR DIFFERENTIAL CASE)
90043-66075

S221,231

 2
41301A - BEARING(FOR REAR DIFFERENTIAL CASE)
90043-66075

S221,231

 2
41302 - CASE SUB-ASSY, REAR DIFFERENTIAL
41311-87404

S221,231

 1
41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING
41315-87503

S221,231

 2
41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING
41315-87503

S221,231

 2
41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT
41316-87501

S221,231

 2
41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT
41316-87501

S221,231

 2
41331 - GEAR, REAR DIFFERENTIAL SIDE
41331-87610

S221,231

 2
41331 - GEAR, REAR DIFFERENTIAL SIDE
41331-87610

S221,231

 2
41341 - PINION, REAR DIFFERENTIAL
41341-97501

S221,231

 2
41341-87404

S221,231

 2
41341 - PINION, REAR DIFFERENTIAL
41341-97501

S221,231

 2
41341-87404

S221,231

 2
41342 - SHAFT, REAR DIFFERENTIAL PINION
41342-87402

S221,231

 1
41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1
41361-87510

S221,231

厚さ=1.3

 2
41361-87509

S221,231

厚さ=1.1

 2
41361-87709

S221,231

厚さ=1.2

 2
41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1
41361-87510

S221,231

厚さ=1.3

 2
41361-87509

S221,231

厚さ=1.1

 2
41361-87709

S221,231

厚さ=1.2

 2
Common parts
90041-05235
90041-19291
90041-78023
90042-01470
91651-40614

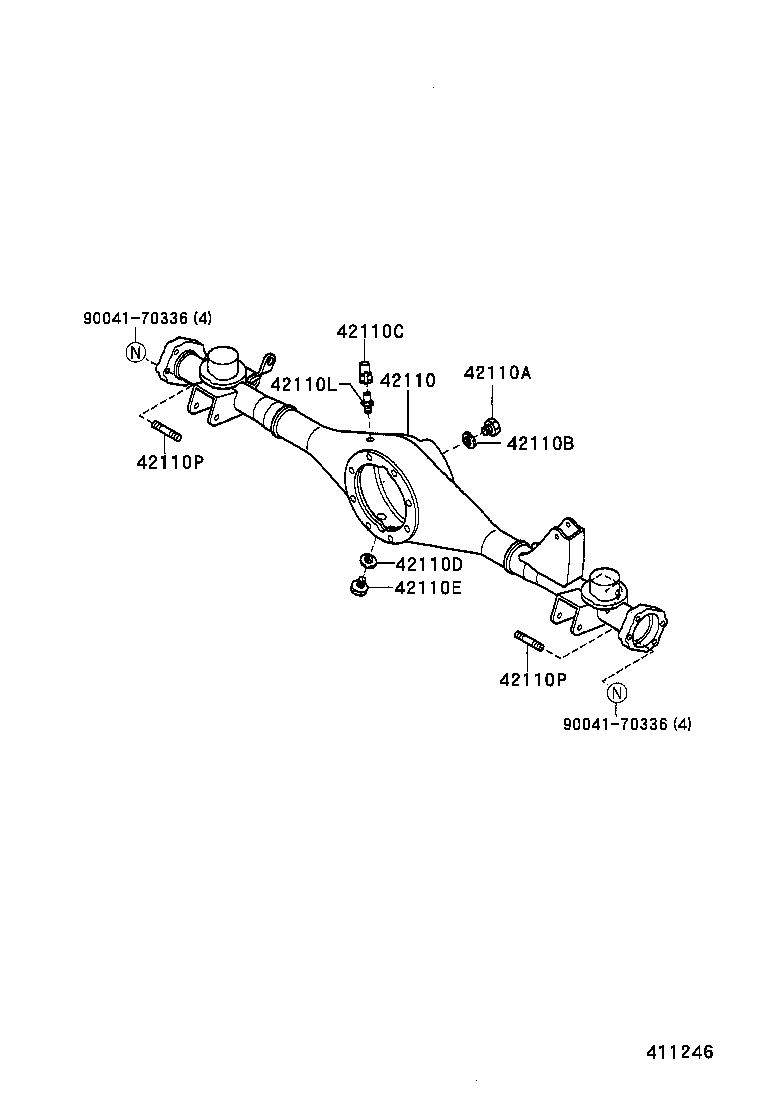

ILLUST NO. 2 OF 2(0009- )

Click highlighted areas on diagram

diagram 42110 42110A 42110B 42110C 42110D 42110E 42110L 42110P 42110P 9004170336 9004170336
Part # Description Qty Price
42110 - HOUSING ASSY, REAR AXLE
42110-97520

S221,231

ﾘﾔ ｼｮｯｸｱﾌﾞｿｰﾊﾞ:ｼｷﾍﾞﾂﾏｰｸ=ｱｶ

 1
42110-97522

S221,231

ﾘﾔ ｼｮｯｸｱﾌﾞｿｰﾊﾞ:ｼｷﾍﾞﾂﾏｰｸ=ｱｵ

 1
42110A - PLUG (FOR REAR AXLE HOUSING FILLER)
90043-41046

S221,231

 1
42110B - GASKET (FOR REAR AXLE HOUSING FILLER PLUG)
90044-30237

S221,231

 1
42110C - PLUG, BREATHER (FOR REAR AXLE HOUSING)
90049-15052

S221,231

 1
42110D - GASKET (FOR REAR AXLE HOUSING DRAIN PLUG)
90044-30237

S221,231

 2
42110E - PLUG (FOR REAR AXLE HOUSING DRAIN)
90043-41046

S221,231

 2
42110L - PLUG BREATHER, NO.2
90049-15026

S221,231

 1
42110P - BOLT, REAR AXLE HOUSING SET, NO.1
42184-97501

S221,231

 8
42110P - BOLT, REAR AXLE HOUSING SET, NO.1
42184-97501

S221,231

 8
Common parts
90041-70336
