S221E-ZMRF (2000)

Toyota Sparky

Production Sep 2000 - Mar 2003
Engine K3VE
Transmission 5MT MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0009- )5MT

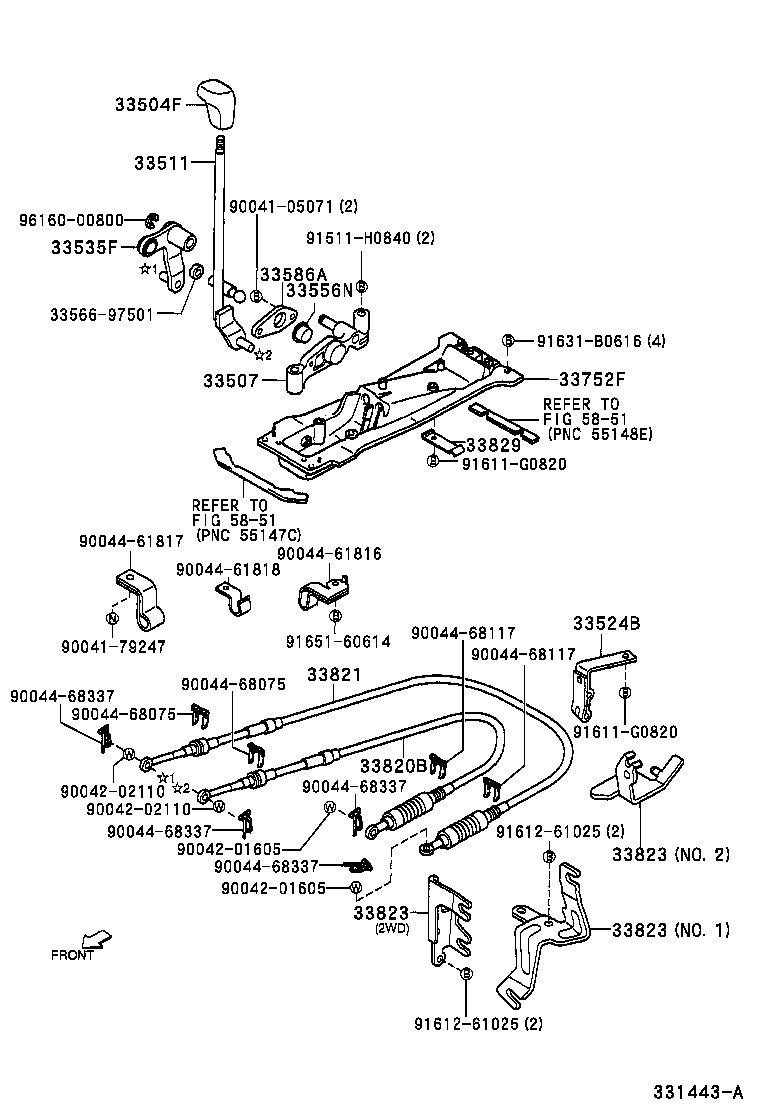

Click highlighted areas on diagram

diagram 33504F 33507 33511 33524B 33535F 33556N 3356697501 33586A 33752F 33820B 33821 33823 33823 33823 33829 5851 5851 9004105071 9004179247 9004201605 9004201605 9004202110 9004202110 9004461816 9004461817 9004461818 9004468075 9004468075 9004468117 9004468117 9004468337 9004468337 9004468337 9004468337 91511H0840 91611G0820 91611G0820 9161261025 9161261025 91631B0616 9165160614 9616000800
Part # Description Qty Price
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-8740123

S221,231..5MT

GRAY

 1
33507 - BRACKET SUB-ASSY, SHIFT LEVER HOUSING
33507-97501

S221,231..5MT

 1
33511 - SHAFT, CONTROL (FOR FLOOR SHIFT)
33501-97501

S221,231..5MT

 1
33524B - BRACKET, CONTROL CABLE
33524-97502

S221,231..5MT

 1
33535F - LEVER, CONTROL SELECT (FOR FLOOR SHIFT)
33535-97501

S221,231..5MT

 1
33556N - SEAT, TRANSMISSION SHIFT LEVER BALL, NO.2
33556-87202

S221,231..5MT

 1
33586A - STOPPER, CONTROL LEVER (FOR FLOOR SHIFT)
33586-97501

S221,231..5MT

 1
33752F - SUPPORT, CONTROL LINK (FOR FLOOR SHIFT)
33752-97501

S221,231..5MT

 1
33820B - CABLE ASSY, TRANSMISSION CONTROL
33530-97506

S221..5MT

 1
33821 - CABLE TRANSMISSION CONTROL SHIFT (FOR FLOOR SHIFT)
33540-97504

S221..5MT

 1
33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33823-97503

S221..5MT

 1
33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33823-97503

S221..5MT

 1
33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33823-97503

S221..5MT

 1
33829 - SUPPORT, TRANSMISSION CONTROL CABLE
33567-97501

S221,231..5MT

 1
Common parts
33566-97501
90041-05071
90041-79247
90042-01605
90042-02110
90044-61816
90044-61817
90044-61818
90044-68075
90044-68117
90044-68337
91511-H0840
91611-G0820
91612-61025
91631-B0616
91651-60614
96160-00800
Linked diagrams
5851
