S221E-ZMRF (2000)
Toyota Sparky
Production
Sep 2000
-
Mar 2003
Engine
K3VE
Transmission
5MT MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0009- )S221..5MT

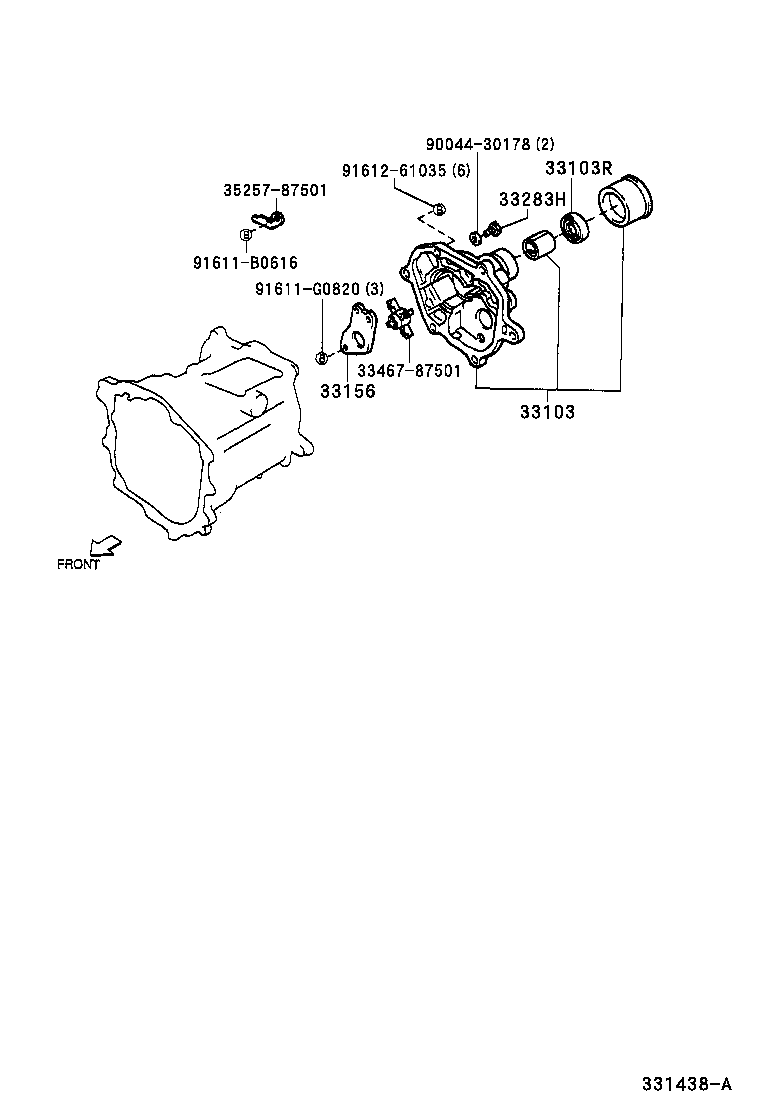

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33103 - HOUSING SUB-ASSY, EXTENSION(MTM) | ||||
| 33103-97501 |
S221..5MT |
1 | ||
| 33103R - SEAL, OIL(FOR MANUAL TRANSMISSION EXTENSION HOUSING) | ||||
| 90043-11285 |
S221..5MT |
1 | ||
| 33156 - RETAINER, OUTPUT SHAFT REAR BEARING | ||||
| 33151-97501 |
S221..5MT |
1 | ||
| 33283H - PLUG, W/HEAD STRAIGHT SCREW | ||||
| 90341-16012 |
S221..5MT |
2 | ||
| Common parts | ||||
| 33467-87501 | ||||
| 35257-87501 | ||||
| 90044-30178 | ||||
| 91611-B0616 | ||||
| 91611-G0820 | ||||
| 91612-61035 | ||||
