S221E-ZMRF (2000)

Toyota Sparky

Production Sep 2000 - Mar 2003
Engine K3VE
Transmission 5MT MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0009- )5MT

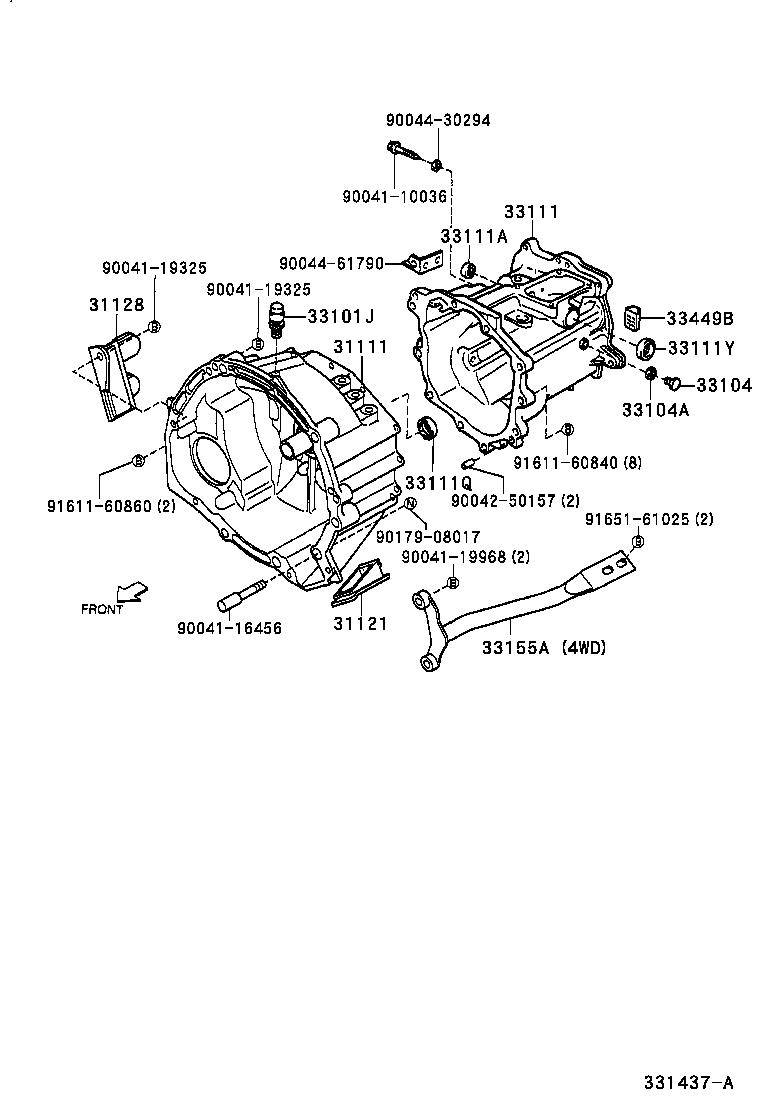

Click highlighted areas on diagram

diagram 31111 31121 31128 33101J 33104 33104A 33111 33111A 33111Q 33111Y 33155A 33449B 9004110036 9004116456 9004119325 9004119325 9004119968 9004250157 9004430294 9004461790 9017908017 9161160840 9161160860 9165161025
Part # Description Qty Price
31111 - HOUSING, CLUTCH
31111-97501

S221,231..5MT

 1
31121 - COVER, CLUTCH HOUSING, NO.1
31121-87504

S221,231..5MT

 1
31128 - COVER, CLUTCH HOUSING UNDER
31128-97501

S221,231..5MT

 1
33101J - PLUG, BREATHER
90049-15026

S221,231..5MT

 1
33104 - PLUG SUB-ASSY, DRAIN(MTM)
90043-41015

S221,231..5MT

 1
33104A - GASKET, DRAIN PLUG(MTM)
90044-30186

S221,231..5MT

 2
33111 - CASE, MANUAL TRANSMISSION
33111-97501

S221,231..5MT

 1
33111A - PLUG, MANUAL TRANSMISSION CASE
90043-31025

S221,231..5MT

 1
33111Q - SEAL, OIL(FOR TRANSMISSION CASE)
90043-10051

S221,231..5MT

 1
33111Y - SEAL, OIL(FOR TRANSMISSION CASE)
90043-11308

S221,231..5MT

 1
33449B - MAGNET, TRANSMISSION
33449-87501

S221,231..5MT

 1
Common parts
90041-10036
90041-16456
90041-19325
90041-19968
90042-50157
90044-30294
90044-61790
90179-08017
91611-60840
91611-60860
91651-61025
