S221E-ZMRF (2000)

Toyota Sparky

Production Sep 2000 - Mar 2003
Engine K3VE
Transmission 5MT MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0009- )5MT

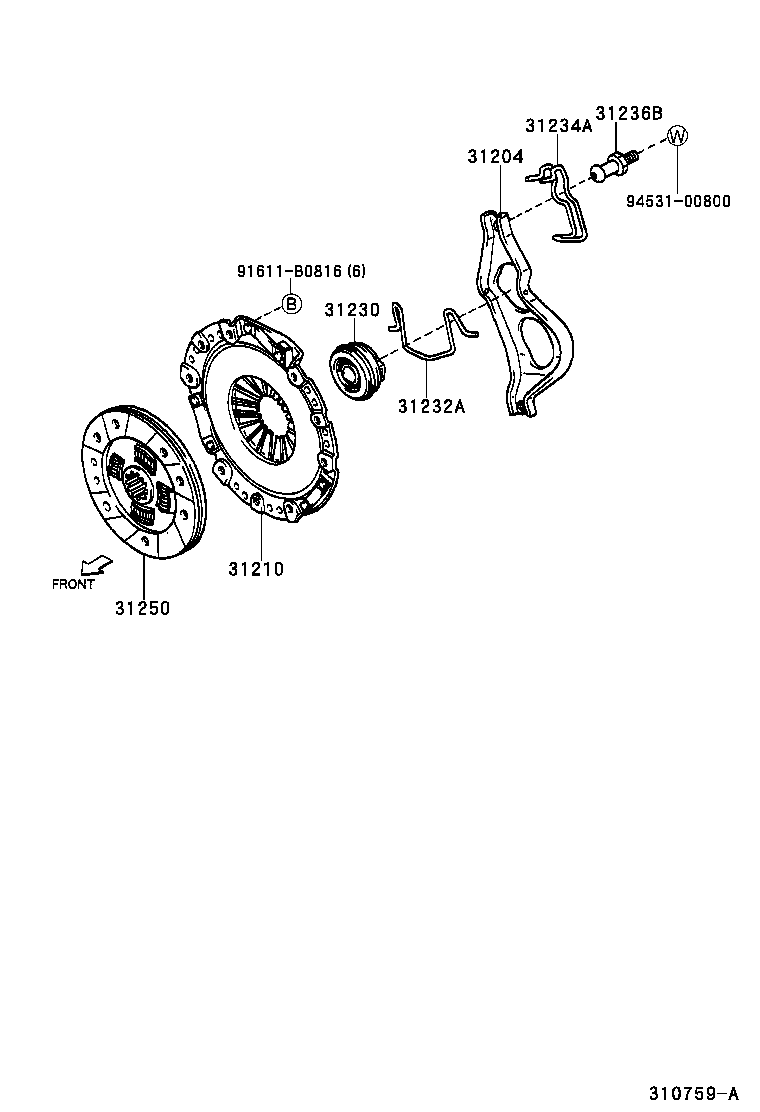

Click highlighted areas on diagram

diagram 31204 31210 31230 31232A 31234A 31236B 31250 91611B0816 9453100800
Part # Description Qty Price
31204 - FORK SUB-ASSY, CLUTCH RELEASE
31233-97501

S221,231..5MT

 1
31210 - COVER ASSY, CLUTCH
31210-97501

S221,231..5MT

 1
31230 - BEARING ASSY, CLUTCH RELEASE
31230-97502

S221,231..5MT

NSK

 1
31230-87507

S221,231..5MT

KOYO

 1
31232A - CLIP, RELEASE BEARING HUB
31232-87505

S221,231..5MT

 1
31234A - SPRING, RELEASE FORK SUPPORT
31234-87402

S221,231..5MT

 1
31236B - SUPPORT, RELEASE FORK
31236-87501

S221,231..5MT

 1
31250 - DISC ASSY, CLUTCH
31250-87404

S221,231..5MT

 1
Common parts
91611-B0816
94531-00800
