S221E-ZMRF (2000)
Toyota Sparky
Production
Sep 2000
-
Mar 2003
Engine
K3VE
Transmission
5MT MTM
Displacement
2500cc
Power
168 HP (125 kW)

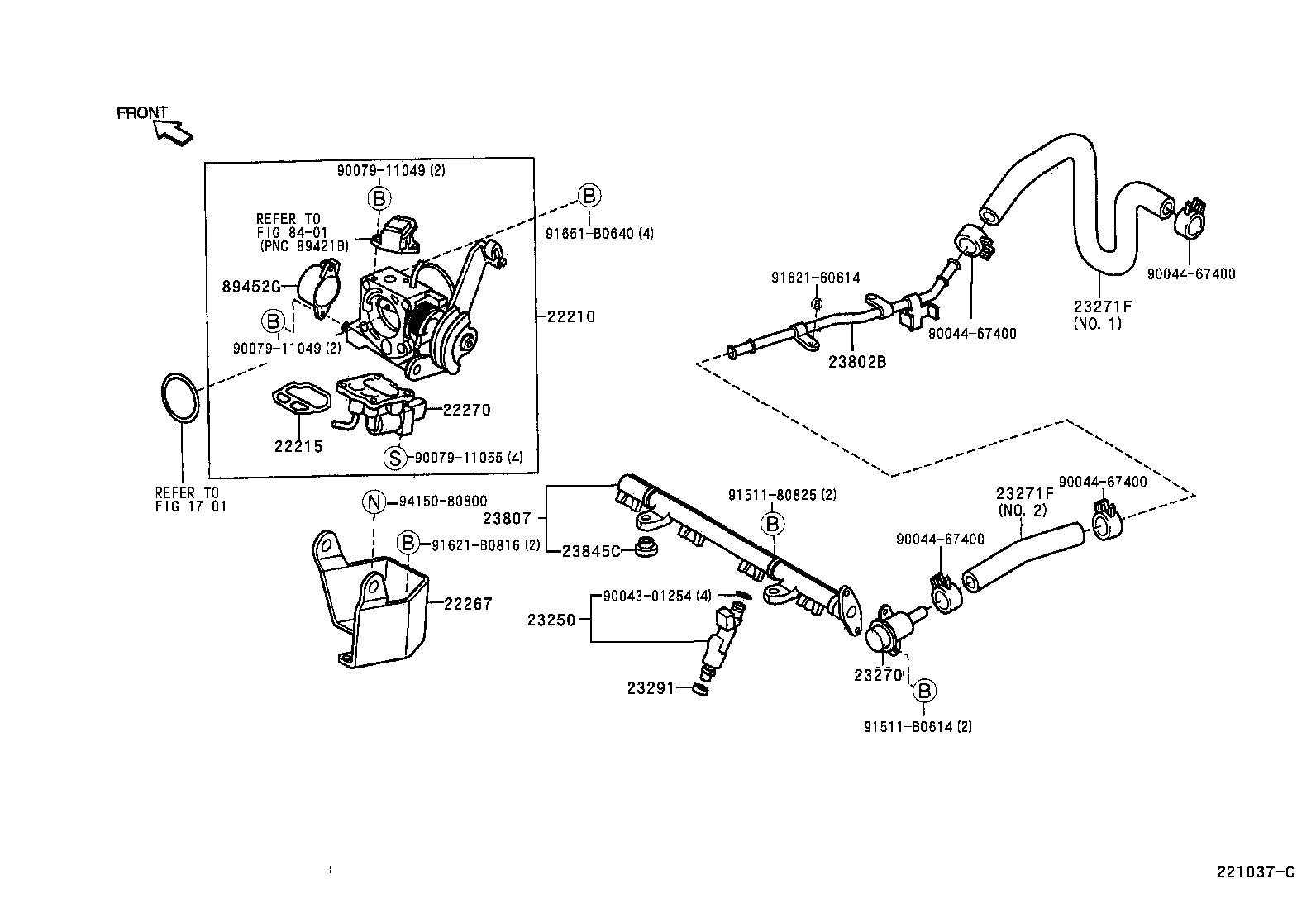

ILLUST NO. 1 OF 2(0009- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22210 - BODY ASSY, THROTTLE | ||||
| 22210-97402 |
K3VE..S221,231 |
1 | ||
| 22210-97403 |
K3VE..S221,231 |
1 | ||
| 22215 - GASKET, THROTTLE BODY COVER | ||||
| 22215-97201 |
K3VE..S221,231 |
1 | ||
| 22267 - BRACKET, THROTTLE BODY | ||||
| 22267-97402 |
K3VE..S221,231 |
1 | ||
| 22270 - VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY) | ||||
| 22270-97402 |
K3VE..S221,231 |
1 | ||
| 23250 - INJECTOR ASSY, FUEL | ||||
| 23250-97401 |
K3VE..S221,231 |
4 | ||
| 23270 - DAMPER ASSY, FUEL PRESSURE PULSATION | ||||
| 23270-97501 |
K3VE..S221,231 |
1 | ||
| 23271F - HOSE, FUEL | ||||
| 23271-97507 |
K3VE..S221,231 NO.1 |
1 | ||
| 90048-64165 |
K3VE..S221,231 NO.2 |
1 | ||
| 23271F - HOSE, FUEL | ||||
| 23271-97507 |
K3VE..S221,231 NO.1 |
1 | ||
| 90048-64165 |
K3VE..S221,231 NO.2 |
1 | ||
| 23291 - INSULATOR, INJECTOR VIBRATION | ||||
| 23291-87701 |
K3VE..S221,231 |
4 | ||
| 23802B - PIPE SUB-ASSY, FUEL, NO.2 | ||||
| 23811-97503 |
K3VE..S221,231 |
1 | ||
| 23807 - PIPE SUB-ASSY, FUEL DELIVERY | ||||
| 23807-97401 |
K3VE..S221,231 |
1 | ||
| 23807-97401 |
K3VE..S221,231 |
1 | ||
| 23807-97402 |
K3VE..S221,231 |
1 | ||
| 23845C - INSULATOR, FUEL PIPE | ||||
| 23845-97401 |
K3VE..S221,231 |
2 | ||
| 89452G - SENSOR, THROTTLE POSITION | ||||
| 89452-97402 |
S221,231 |
1 | ||
| Common parts | ||||
| 90043-01254 | ||||
| 90044-67400 | ||||
| 90079-11049 | ||||
| 90079-11055 | ||||
| 91511-80825 | ||||
| 91511-B0614 | ||||
| 91621-60614 | ||||
| 91621-B0816 | ||||
| 91651-B0640 | ||||
| 94150-80800 | ||||
| Linked diagrams | ||||
| 1701 | ||||
| 8401 | ||||

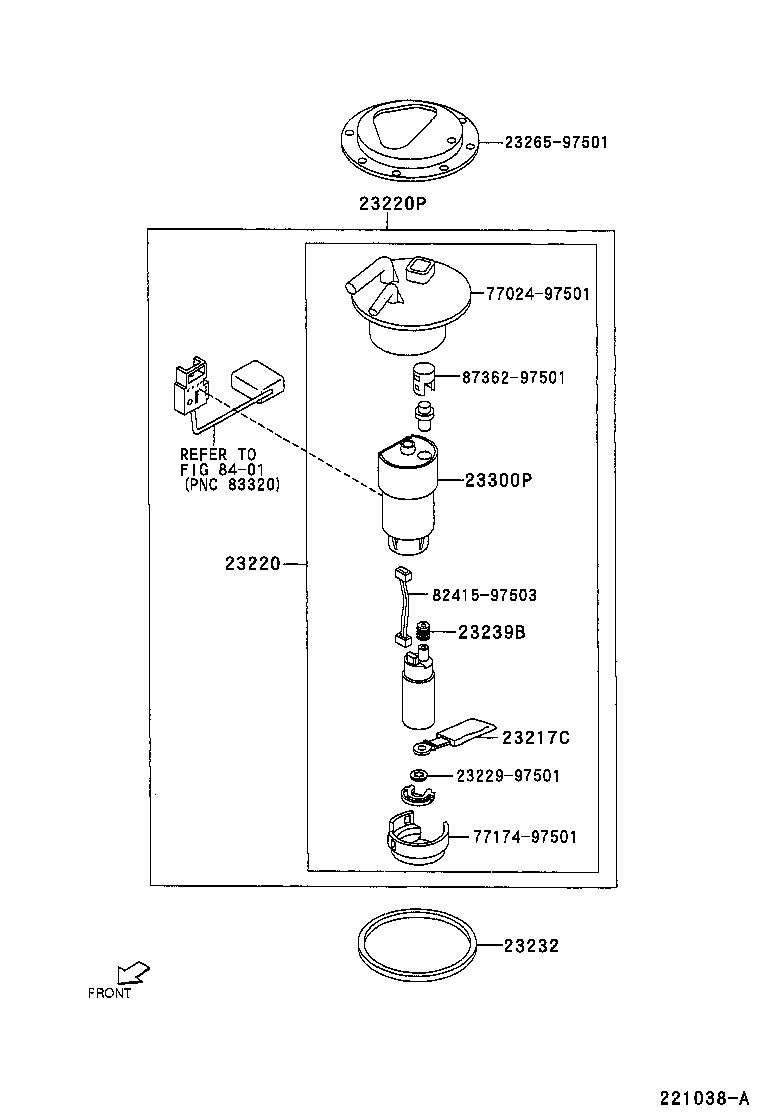

ILLUST NO. 2 OF 2(0009- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23217C - FILTER, SUCTION | ||||
| 23217-97501 |
K3VE..S221,231 |
1 | ||
| 23220 - PUMP ASSY, FUEL W/FILTER | ||||
| 23220-97503 |
K3VE..S221,231 |
1 | ||
| 23220P - PUMP ASSY, FUEL | ||||
| 23210-97503 |
K3VE..S221,231 |
1 | ||
| 23232 - GASKET(FOR FUEL PUMP HOSE) | ||||
| 23232-87401 |
K3VE..S221,231 |
1 | ||
| 23239B - SEAL, FUEL PUMP FILTER | ||||
| 23239-97514 |
K3VE..S221,231 |
1 | ||
| 23300P - FILTER, FUEL(FOR EFI) | ||||
| 23300-97501 |
K3VE..S221,231 |
1 | ||
| Common parts | ||||
| 23229-97501 | ||||
| 23265-97501 | ||||
| 77024-97501 | ||||
| 77174-97501 | ||||
| 82415-97503 | ||||
| 87362-97501 | ||||
| Linked diagrams | ||||
| 8401 | ||||
